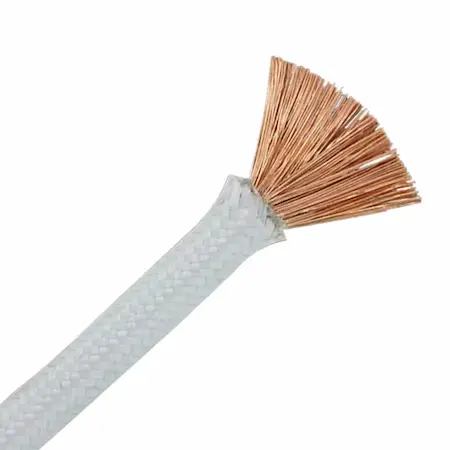

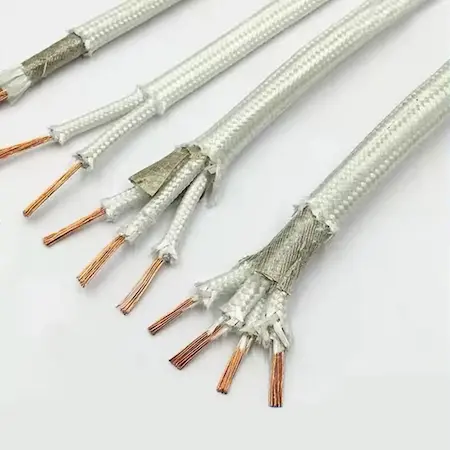

UL 5334 Oven Internal Wiring Overview
UL AWM Style 5334 is a single conductor construction with other-than-extruded insulation, covering 24 AWG through 4 AWG, solid or stranded, rated 450°C and 300 Vac with Horizontal Flame. The construction is non-extruded mica with a glass braid treated with silicone varnish or TFE finish.
Oven wiring is not an inferred application for this Style. The official Use names it directly — wiring of ovens or similar high-temperature equipment — subject to two conditions: the wiring must be protected from mechanical abuse, and acceptability including current-carrying capacity must have been determined. Both conditions travel with the application and are covered in their own sections below.
Within the 24–4 AWG range the Style defines two construction bands with different minimum average requirements. Identifying which band applies is part of specifying the wire, and it is usually the fastest way to turn a general “UL5334 oven wire” request into something quotable.
UL 5334 Technical Specifications
| Parameter | Style-level information |
|---|---|
| UL AWM Style | 5334 (UL 758) |
| Description | Single conductor with other-than-extruded insulation |
| Temperature rating | 450°C |
| Voltage rating | 300 Vac |
| Flame | Horizontal Flame |
| Conductor range | 24 AWG–4 AWG |
| Conductor form | Solid or stranded |
| Insulation | Non-extruded mica with glass braid |
| 24–12 AWG composite mica glass | 17 mil minimum average wall |
| 24–12 AWG treated glass braid | 5 mil minimum average thickness |
| 11–4 AWG composite mica glass | 20 mil minimum average wall |
| 11–4 AWG treated glass braid | 10 mil minimum average thickness |
| Glass braid treatment | Silicone varnish or TFE finish |
| Optional shield | Stainless steel alloy 304 braid over the treated glass braid |
| Official Use | Wiring of ovens or similar high-temperature equipment where protected from mechanical abuse and where the acceptability, including current-carrying capacity, has been determined by Underwriters Laboratories Inc. |

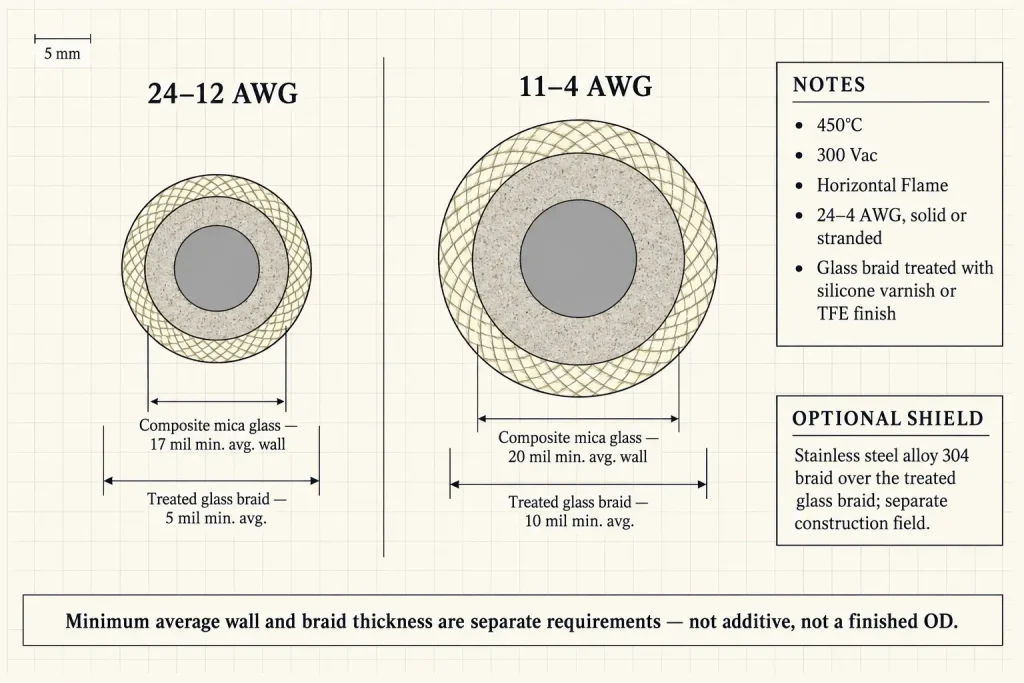

The Two UL 5334 Construction Bands
| Conductor size | Composite mica glass | Treated glass braid |
|---|---|---|
| 24–12 AWG | 17 mil minimum average wall | 5 mil minimum average |
| 11–4 AWG | 20 mil minimum average wall | 10 mil minimum average |
These are real construction differences defined by the Style, not a size grouping created for convenience. Both bands sit under the same 450°C and 300 Vac rating, so the band does not change what the wire is rated for — it changes what is built.
The 24–12 AWG Band
From 24 AWG through 12 AWG the Style specifies a 17 mil minimum average wall of composite mica glass and a 5 mil minimum average treated glass braid.
No claim is made here that this makes the product thin wall, compact, more flexible or easier to route than the other band — those would need construction-specific evidence that Style-level data does not provide. The band is also not a basis for recommending a particular AWG for a particular oven power rating.
The 11–4 AWG Band
From 11 AWG through 4 AWG the requirements increase to a 20 mil minimum average wall of composite mica glass and a 10 mil minimum average treated glass braid.
The larger figures follow the conductor-size band. They do not by themselves mean higher current capacity, better mechanical strength, greater abrasion resistance or a higher temperature rating, and none of those are claimed. Both bands are 450°C and 300 Vac constructions within the same Style.
Do Not Add the Two Figures Together
The composite mica glass wall and the treated glass braid are separate construction requirements. 17 and 5 do not combine into a 22 mil finished insulation, and 20 and 10 do not make 30.
Neither sum is a finished wire wall thickness, and no finished outside diameter is calculated from them here. No dimensional tolerance is invented either. Where a drawing controls a dimension, it is checked against the approved construction.

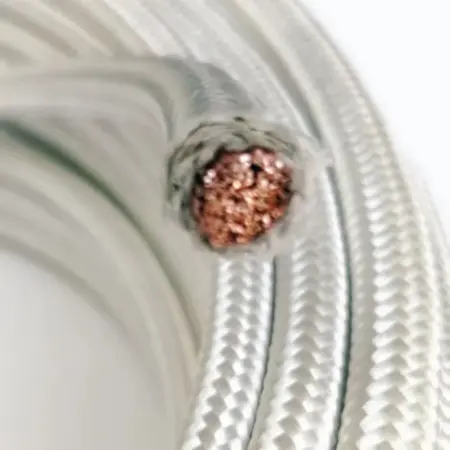

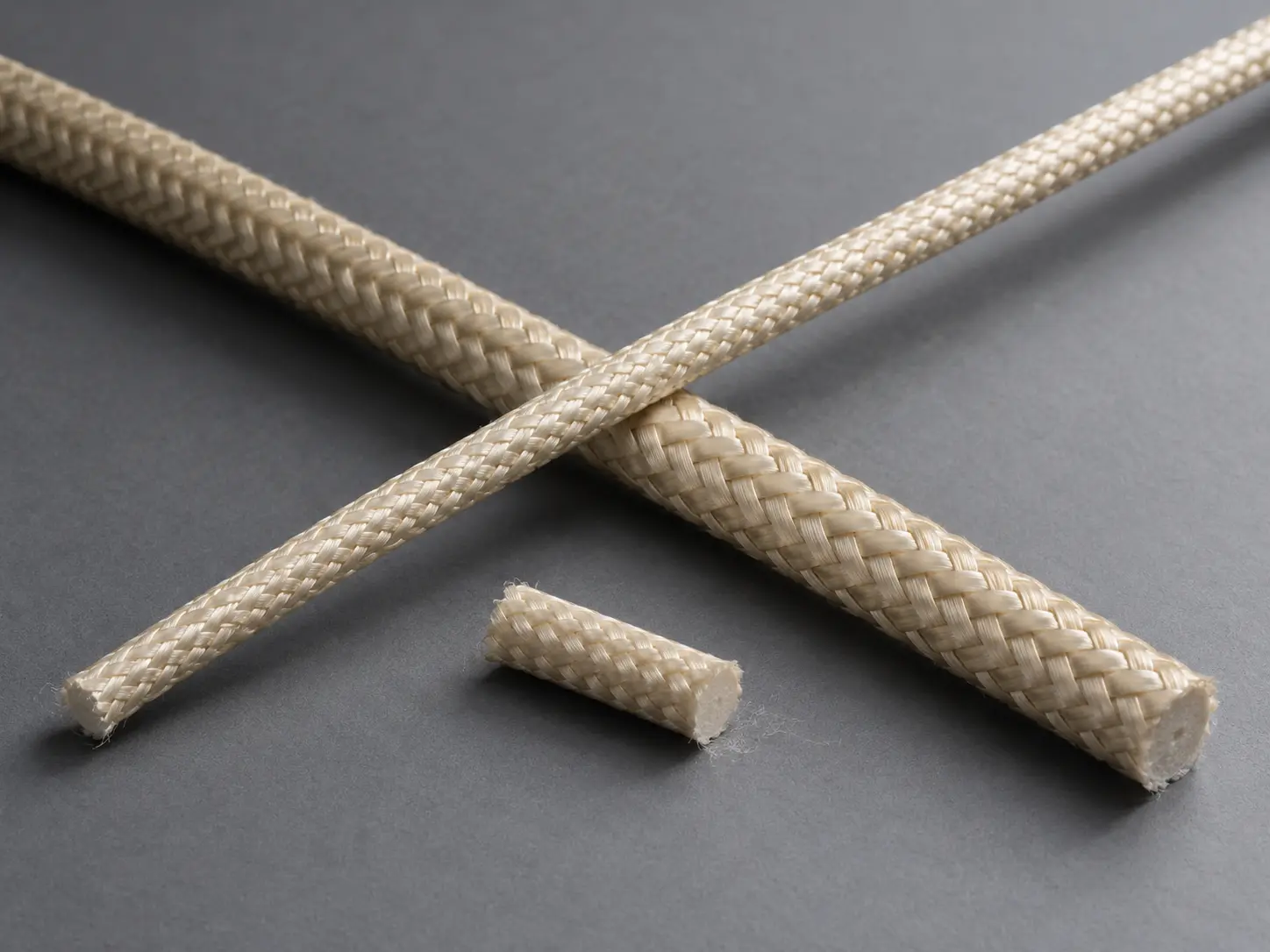

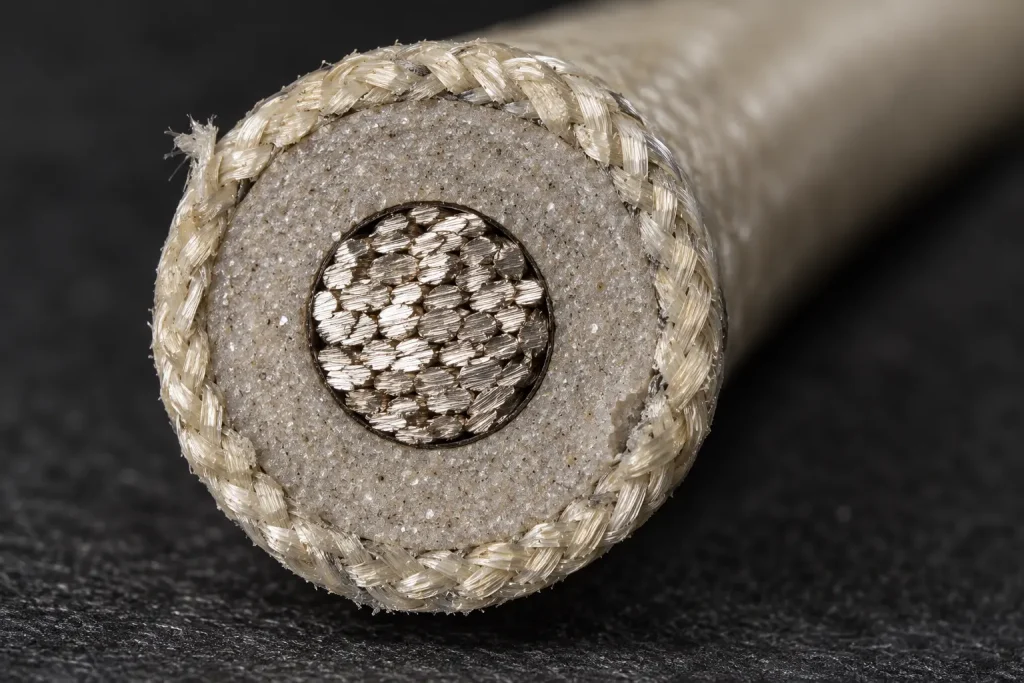

Non-Extruded Mica With Treated Glass Braid
The verified construction description is non-extruded mica with glass braid, the braid being treated with silicone varnish or TFE finish. “Mica glass braid wire” works as the commercial product phrase, but the underlying construction terminology is worth keeping intact in technical sections and RFQs.
Two clarifications follow. A silicone varnish treatment on the braid does not make this a silicone-insulated wire, and a TFE finish on the braid does not make it a PTFE-insulated wire. The treatment applies to the braid and does not redefine the primary insulation system. Nor is this fiberglass-insulated wire: the composite mica glass is the primary insulating construction, and the braid over it is a separate element.
Insulation, Braid and Shield Are Three Separate Fields
A complete Style 5334 construction may contain the primary non-extruded mica insulation, the treated glass braid over it, and — where specified — an optional stainless-steel braided shield outside that.
These should not be collapsed into a single description such as “fiberglass insulation.” The optional stainless-steel braid is not the treated glass braid, and the treated glass braid is not the conductor. Keeping the three fields distinct in an enquiry is what allows a quotation to be matched to one construction rather than several.
Optional Stainless-Steel Braid
The Style permits an optional shield: stainless steel, alloy 304, applied as a braid over the treated glass braid. It is a Style-supported option, not a feature of every Style 5334 wire, and this page represents the base oven-wire construction rather than the shielded version.
No quantified performance is attributed to it here. EMI attenuation, RFI shielding, abrasion rating, mechanical protection rating, corrosion performance and grounding performance are not established by the Style-level information and would need separate verification. Where a shield is required, state yes or no and supply the controlling specification.
The 450°C Rating Applies to the Wire
450°C is a Style 5334 rating for the wire itself. It does not establish that a complete oven operates continuously at 450°C, that terminals are suitable at that temperature, that connectors are, or that every adjacent component may be exposed to it.
The wire rating and the thermal rating of the complete equipment assembly are separate questions. What matters for the enquiry is the temperature at the wire’s actual routing position and the ratings of the hardware it terminates into.
300 Vac Is an AC Rating
The verified rating is 300 Vac and is written that way wherever rating precision matters, rather than as a generic “300V.” It is not restated as 300 Vdc, as a 600V peak value, as a dielectric test voltage, an impulse voltage or a withstand voltage without separate technical documentation supporting those values.

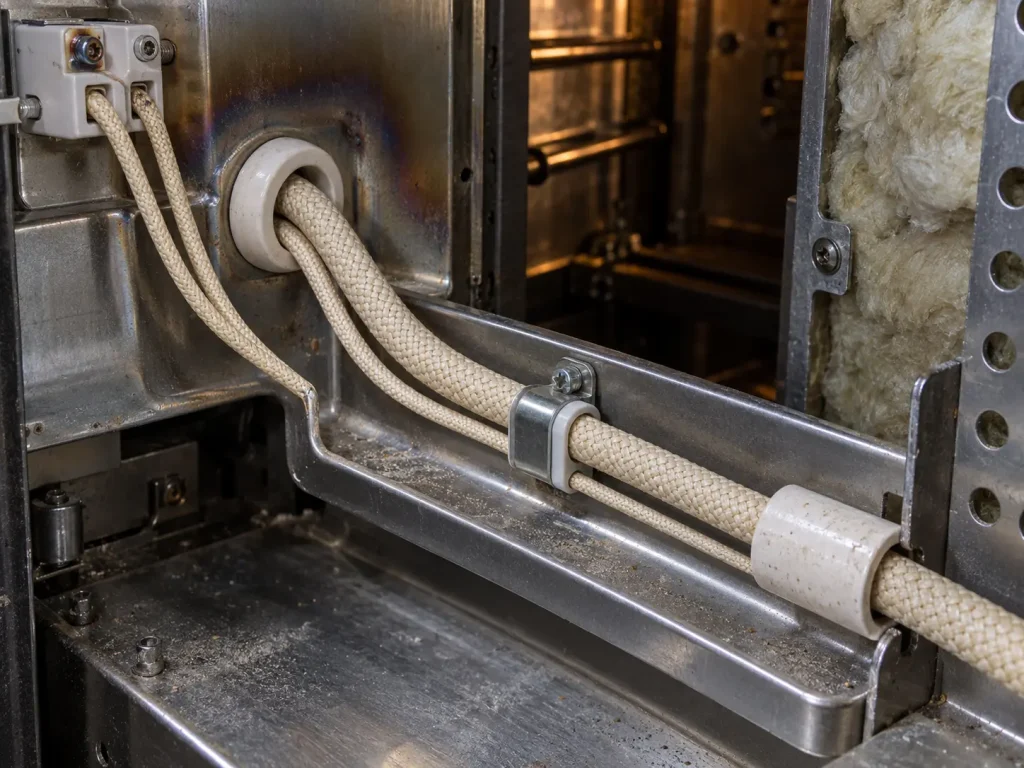

Protected From Mechanical Abuse
The official Use requires that the wiring be protected from mechanical abuse. This condition is attached to the oven-wiring application, not offered alongside it.
Neither the mica construction nor the glass braid is presented here as making the wire suitable for open external routing, unprotected abrasion, impact, crushing, sharp-edge contact, field wiring or equipment power supply cords. No abrasion or impact rating is claimed. The mechanical protection has to come from the equipment design — a formed channel, a clip with an insulating saddle, a ceramic sleeve at a metal crossing — and describing that arrangement in the enquiry is genuinely useful information for matching a construction.
Movement and Flexing
The Use wording supplied for Style 5334 states the mechanical-protection condition and the acceptability determination. It does not state a repeated-flexing restriction, and none is added here — that restriction belongs to other mica Styles and should not be transferred to this one without authoritative Style 5334 documentation establishing it.
Equally, no flex claim is made in the other direction. No flex-cycle performance, bending life or minimum bend radius is provided at Style level, so this is not offered as a continuous-flex cable. Where movement is part of the equipment design, describe it in the enquiry rather than assuming either position.
Current-Carrying Capacity Is Not Published Here
The official Use states that acceptability, including current-carrying capacity, has been determined by Underwriters Laboratories Inc. That describes how the Style is evaluated; it is not an ampacity chart, and none is provided on this page.
No amps by AWG, oven wattage by AWG, heater wattage recommendation, current limit or power recommendation appears here. The equipment drawing and the applicable acceptance requirements control conductor-size selection.
Selecting Conductor Size
The correct AWG comes from the oven or equipment engineering requirement, and this page publishes no AWG-to-current or AWG-to-heater-power table.
What helps a quotation is the buyer’s actual conductor size, the load requirement where relevant, and the equipment drawing. With the size stated, the applicable construction band follows automatically, and the enquiry becomes specific enough to quote.
Conductor Material and Plating Are RFQ Fields
The verified Style information establishes 24–4 AWG, solid or stranded. It does not establish one universal conductor material or plating for this page, so bare copper, tinned copper, nickel-plated copper and nickel conductor are none of them assumed.
Strand count, strand diameter, lay length and conductor resistance are likewise not established at Style level and are not invented here — those come from a product-specific construction sheet. Where conductor material or finish is controlled by the customer BOM, state it in the enquiry.
Finished OD and Dimensional Fit
The Style data used here does not establish one universal finished OD for each conductor size, and OD is not derived from the mica and braid thickness figures.
Where routing space is constrained, request nominal finished OD, maximum finished OD, OD tolerance, feedthrough dimensions, ceramic sleeve dimensions and the terminal-block opening, taken from the approved construction. No numeric OD values are published on this page.

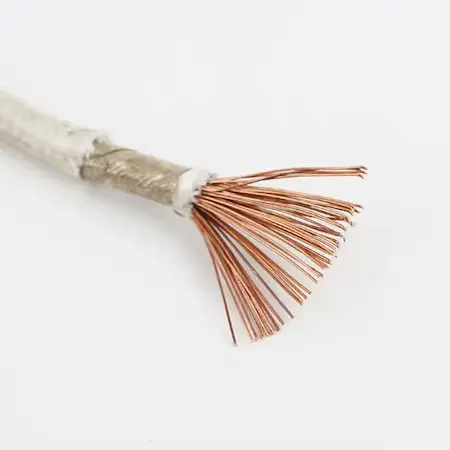

Fixed Oven Routing
For an oven internal-wire enquiry, the information that most often decides whether a construction matches is practical rather than theoretical:
- Routing location inside the equipment
- Temperature requirement at that position
- Available space along the route
- Protection from mechanical damage
- Terminal location
- Lead length
- Whether the optional stainless-steel braid is required
No minimum distance from heating elements, routing clearance or bend radius is prescribed here. Those come from the equipment’s own engineering specification.
Termination Requirements
The Style does not establish a universal terminal, connector, lug, crimp, strip length, ceramic terminal block or termination process, and none are invented here. Where prepared leads are required, supply the terminal part number, connector drawing, strip length requirement, finished lead length and assembly drawing as applicable.
Official AWM Use Boundary
The official Use for Style 5334 is: Wiring of ovens or similar high-temperature equipment where protected from mechanical abuse and where the acceptability, including current-carrying capacity, has been determined by Underwriters Laboratories Inc.
That wording names ovens directly, which is unusual and useful — but it is conditional, and the conditions are part of the sentence. It does not mean approval for every oven design, a universally UL-approved oven cable, a building-approved oven wire or an external oven power cable. An appropriate Style 5334 construction may be evaluated for oven or similar high-temperature equipment wiring where the design satisfies the protection condition and the acceptability determination applies.
What UL 5334 Does Not Automatically Define
- Primary conductor material and conductor plating
- Strand count, strand diameter and lay length
- Conductor resistance and ampacity
- Finished OD and OD tolerance
- Bend radius and flex-cycle life
- Terminal and connector compatibility
- Shield effectiveness
- Reel length, MOQ, stock status and production lead time
Common RFQ Mismatches
- Style 5334 requested, AWG omitted. Two construction bands sit inside 24–4 AWG.
- “300V” written without recognising the rating is 300 Vac. The distinction matters in a BOM line.
- Same mica and braid figures assumed across all sizes. The requirements change at 12/11 AWG.
- The two figures added and called a finished insulation wall. They are separate minimum averages.
- SS304 braid assumed on every construction. It is an optional shield field.
- Finished OD omitted where routing space is controlled. Fit cannot be confirmed without it.
- Oven wiring specified, mechanical protection not described. The Use makes protection a condition.
- Ampacity requested from the Style number alone. The Style does not establish one.
- Conductor material assumed rather than specified. The Style fixes size and form, not material.
Each of these leaves the enquiry matching more than one qualified construction, or matching one whose Use conditions the application does not satisfy — problems that are cheaper to resolve before quotation than after a first article.
RFQ Checklist
- UL AWM Style 5334
- Conductor AWG; solid or stranded
- Conductor material / finish, if controlled
- 450°C requirement
- 300 Vac requirement
- Applicable 24–12 AWG or 11–4 AWG construction band
- Optional SS304 braid required: yes / no
- Nominal / maximum finished OD, if controlled
- Routing location
- Mechanical-protection method
- Terminal / connector specification
- Cut length or reel requirement
- Quantity, packaging and destination
- Documentation requirements
- Actual oven or similar high-temperature-equipment application
Applicable RoHS / REACH documentation can be confirmed according to the ordered construction. UL marking is applied according to the confirmed ordered construction, and material is supplied as UL-recognized component wire under qualified manufacturing scope.
