Why 30 AWG UL 1015 Is a Niche Spec for German Engineers
30 AWG (~0.05 mm²) is the smallest conductor size in the UL 1015 family — a precision-grade hook-up wire used where 14 AWG and 18 AWG are mechanically oversized. German buyers searching UL 1015 30 AWG 600V Leitung Deutschland Preis are typically engineers specifying signal-level wiring inside dense control cabinets, sensor pigtails, encoder lead extensions, or PCB-to-terminal interconnects where 600V isolation rating is required despite low current draw. Local German distributors rarely stock 30 AWG UL 1015 in commercial quantities — most stock 18 AWG and 22 AWG as house standards — which forces engineers to either accept long stockist lead times at premium pricing, or source directly from Asian factories at container-level pricing.
Pricing Structure
30 AWG UL 1015 pricing is tied to two main variables: copper conductor weight (the dominant cost component, tracked against daily LME copper settlement) and PVC compound cost. Setup cost on small gauges is amortized over shorter production runs than on heavy gauges, which affects per-meter economics for orders below 5,000 meters. CableApex offers index-linked quotations for orders above 10,000 m to lock pricing against copper movements during the 25–30 day transit window. Contact us for a quotation specifying AWG, color breakdown, temperature grade, and conductor type (bare or tinned).
Typical German Applications for 30 AWG UL 1015
Instrumentation & Sensor Pigtails
Inside control cabinets exported to North America, 4–20 mA loop wiring, RTD lead extensions, thermocouple compensating cables, and proximity sensor pigtails frequently use 30 AWG hook-up wire where 18 AWG is mechanically oversized. UL 1015 30 AWG with 600V AC / 750V DC isolation rating is overspecified for the signal voltage level itself, but the 600V rating is required for routing inside cabinet wireways shared with power circuits per NEC 300.3(C)(1).
PCB-to-Terminal Block Interconnects

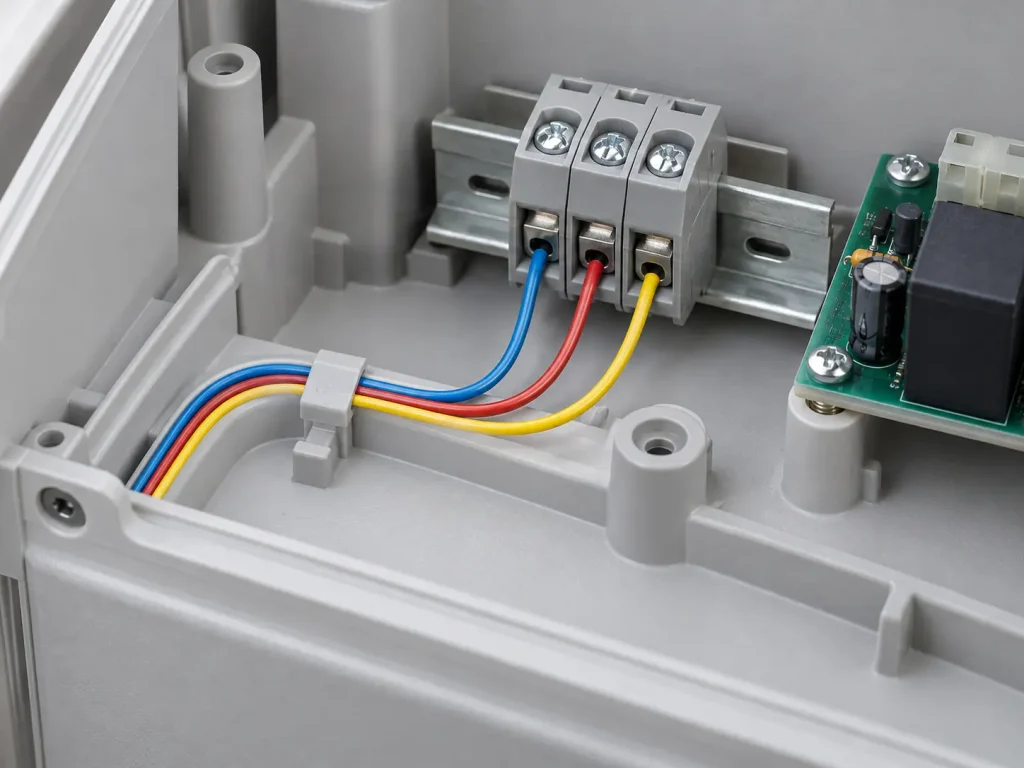

German appliance and instrumentation OEMs producing units for the US market use 30 AWG UL 1015 for short interconnects between PCB-mounted headers and panel-mounted terminal blocks. The thin-gauge stranded construction provides flex life for repeated assembly during service, while the horizontal flame rating per UL Subject 758 satisfies UL 60730 and UL 62368 internal wiring requirements.
Encoder & Servo Feedback Leads
Replacement encoder leads and servo feedback cable extensions in German Maschinenbau service applications use 30 AWG UL 1015 where the OEM lead is damaged and a UL-recognized replacement is required for warranty compliance on equipment installed in US plants. Tag may indicate “2,500 V peak — for electronic use only” per UL 1015 specification.

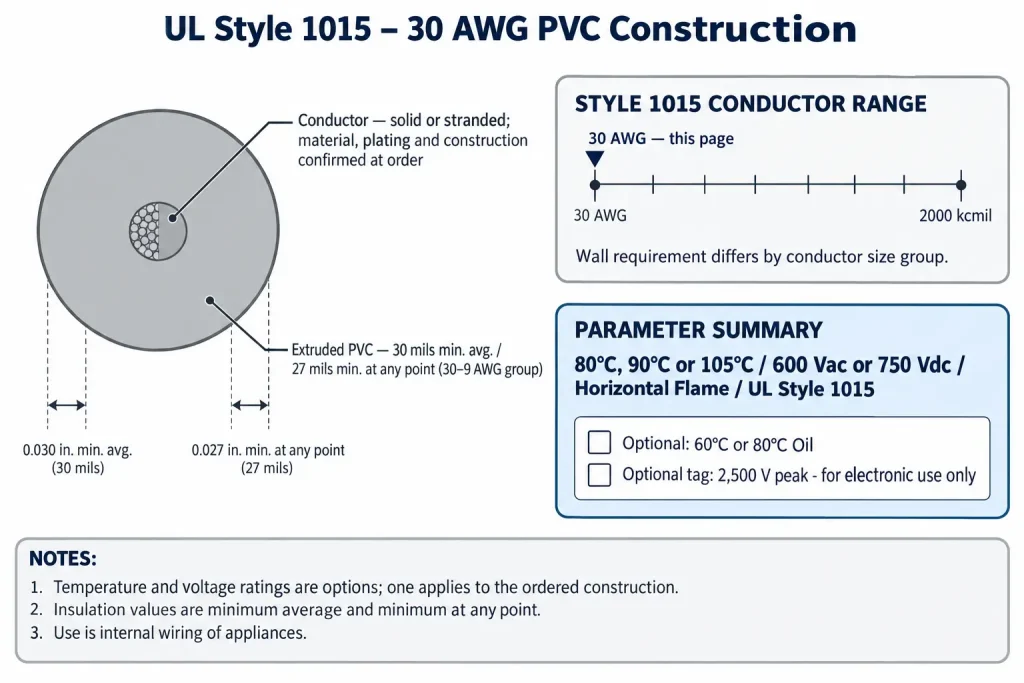

UL 1015 30 AWG Specifications
| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 1015 |
| UL File Number | E333030 (Follow-Up Service) |
| Conductor Size | 30 AWG (~0.05 mm²) |
| Conductor Construction | Solid or stranded round, bare or tinned copper |
| Voltage Rating | 600V AC / 750V DC (2,500V peak — electronic use only) |
| Temperature Rating | 80°C / 90°C / 105°C (selectable) |

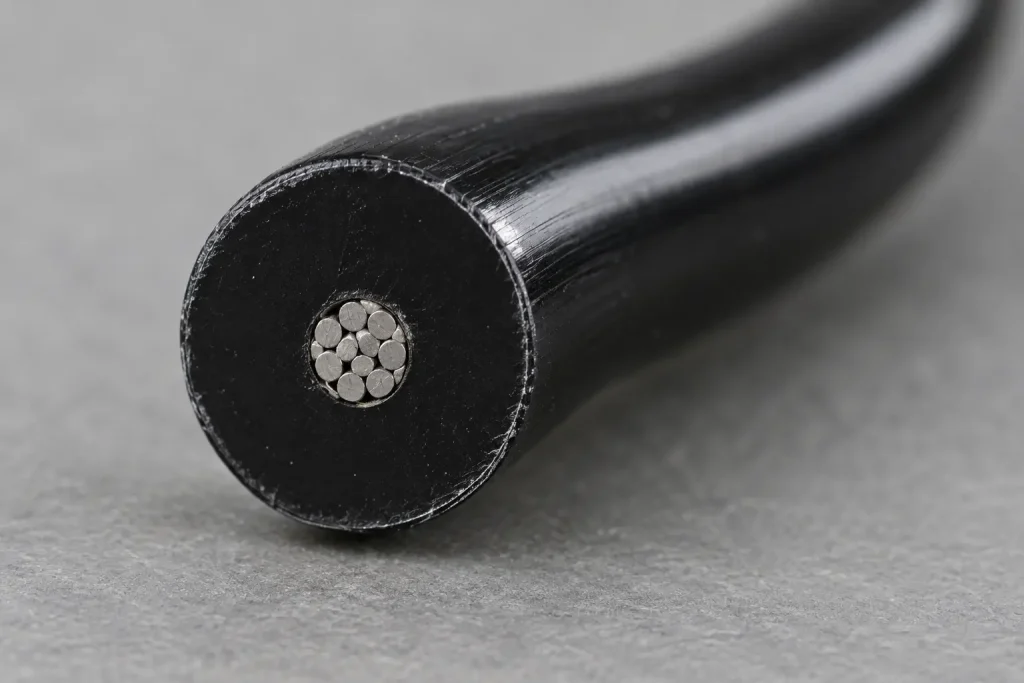

| Insulation | Extruded PVC, 30 mils (0.76 mm) min average / 27 mils (0.69 mm) min at any point |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Oil Resistance | Optional 60°C or 80°C oil-resistant grade |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 1015 · 30 AWG · 600V · 105°C · E333030 |
Engineering Notes from CableApex
Three practical points from our export desk that don’t appear in datasheets:
- Tinned vs. bare copper trade-off. For 30 AWG hook-up applications, tinned copper is recommended as default. Solderability degrades on bare copper at this gauge during transit and storage, and the tinning premium is small relative to overall per-meter cost.
- Color count for German Schaltschrank. German DIN VDE 0100-510 signal identification often requires 10+ colors. Confirm color availability at quote stage — some specialty colors may have longer lead times if not in current production run.
- Consolidation logic. 30 AWG ships at a fraction of the per-meter weight of 14 AWG, so freight cost per meter is lower. Buyers ordering 30 AWG alongside heavier gauges in the same container reduce the effective freight cost across the order.
MOQ, Documentation & Shipping
MOQ varies by AWG, color combination, and production schedule — contact us for current MOQ on 30 AWG. Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.
Related UL Styles
For 30 AWG buyers also evaluating: UL 1007 (300V / 80°C, 32-16 AWG range, lower-cost alternative if 300V isolation is sufficient), UL 1569 (300V / 105°C, 30-2 AWG range, similar precision applications), UL 1332 (FEP 200°C, 30-10 AWG range, high-temperature signal wire), and UL 1659 (PTFE 250°C, 26-4/0 AWG range, extreme environments).
