UL 10269 Detailed Specifications for German OEM Procurement
For German OEM procurement teams searching UL 10269 1000V 105C Draht Deutschland Hersteller, the procurement decision requires detailed technical specifications beyond the basic UL Style designation. This page provides the technical detail level needed for OEM specification review and supplier comparison.

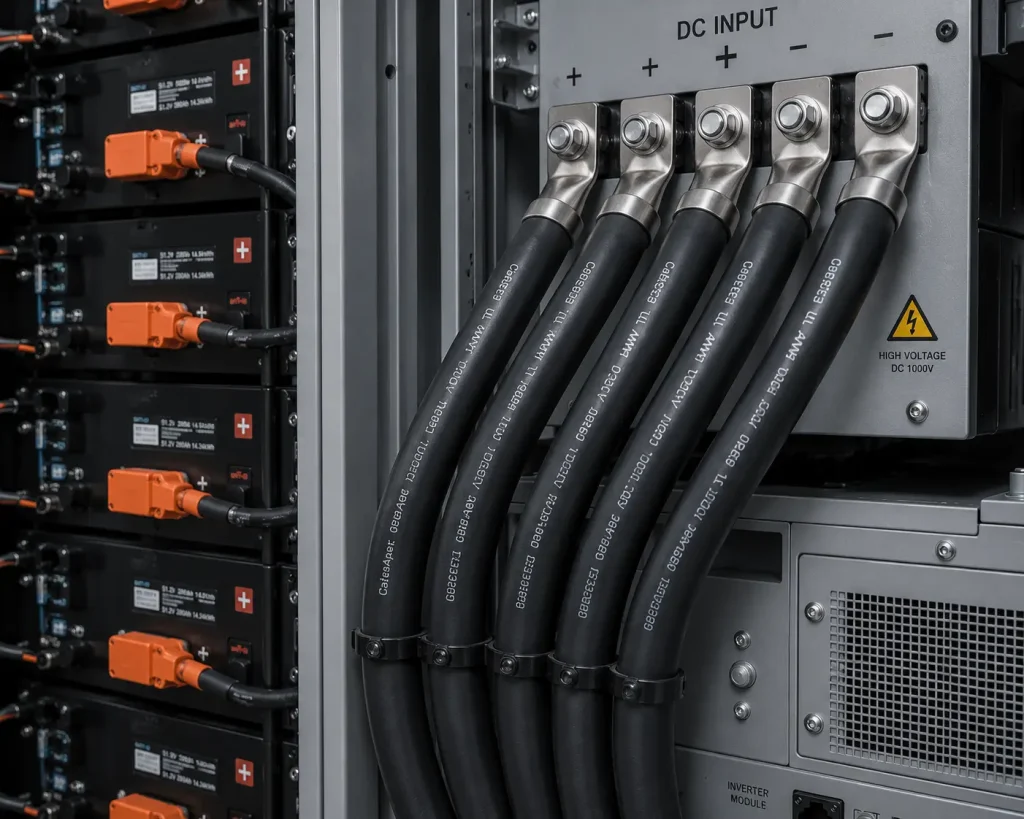

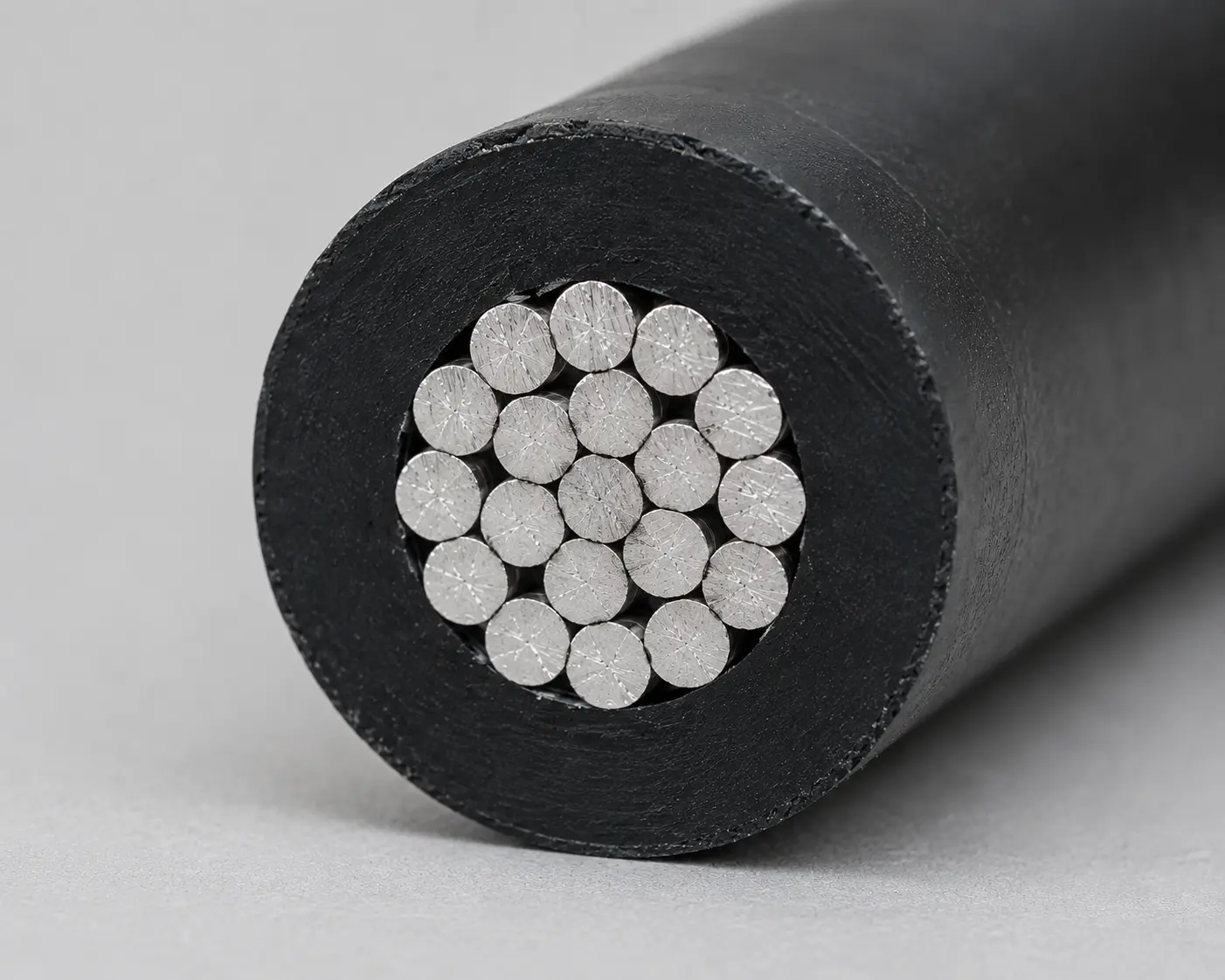

Graduated Wall Thickness Analysis
UL 10269’s 1000V rating requires PVC insulation thick enough to maintain dielectric performance across the full AWG range. UL Subject 758 specifies graduated wall thickness:
| AWG / Conductor Size | Wall Min Average | Wall Min Any Point | Notable Application |
|---|---|---|---|
| 30-10 AWG | 20 mils (0.51 mm) | 18 mils (0.46 mm) | Signal and control wiring |
| 9-2 AWG | 40 mils (1.02 mm) | 35 mils (0.89 mm) | Power feeds, mid-current circuits |
| 1-4/0 AWG | 55 mils (1.40 mm) | 50 mils (1.27 mm) | Heavy power feeds |
| 250-500 kcmil | 65 mils (1.65 mm) | 60 mils (1.52 mm) | Industrial main feeds |
| 501-1000 kcmil | 80 mils (2.03 mm) | 72 mils (1.83 mm) | Heavy industrial main feeds |
| 1001-2000 kcmil | 95 mils (2.41 mm) | 86 mils (2.18 mm) | Service entrance, switchgear bus connections |

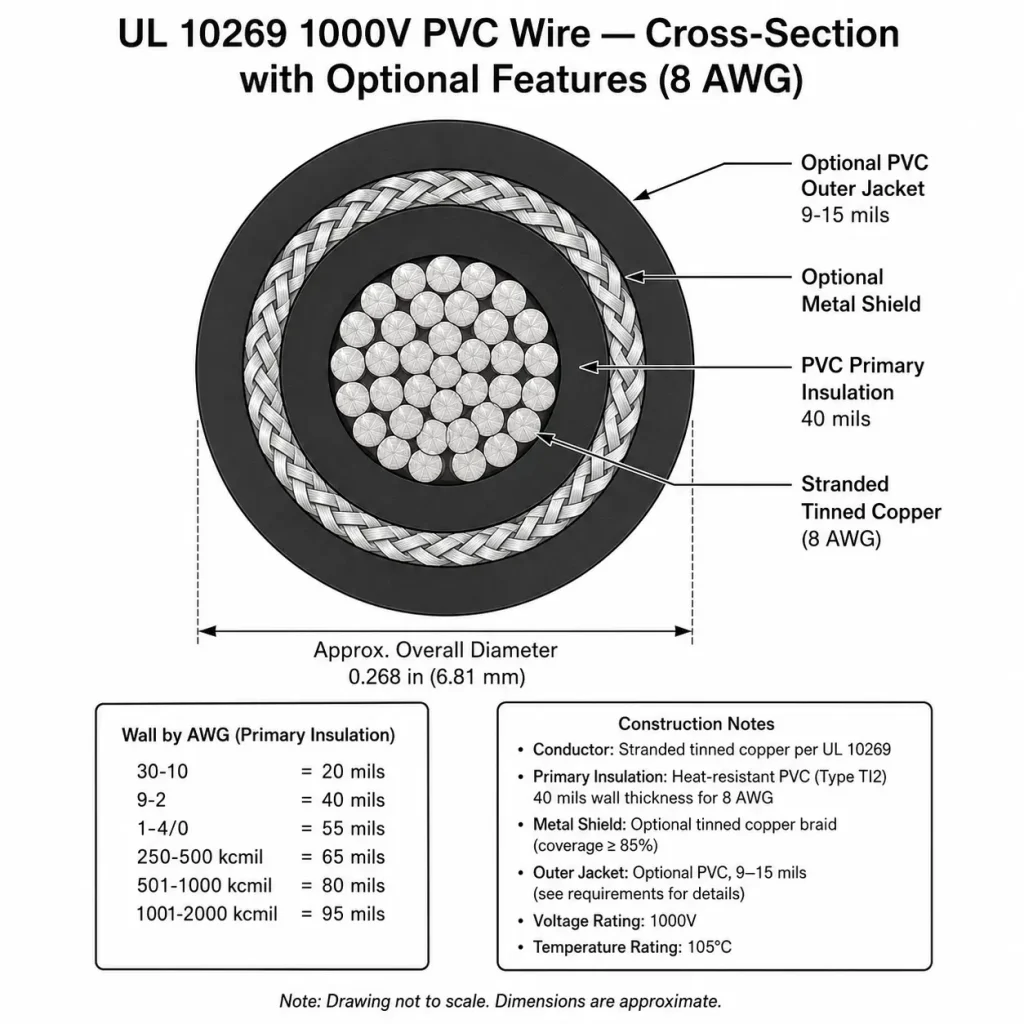

Optional Construction Features
Outer PVC Jacket — UL 10269 listing permits an optional extruded PVC outer jacket over the primary insulation. The jacket provides additional mechanical protection and second insulation layer for double-insulated applications. Typical jacket thickness is 9-15 mils depending on specification.
Metallic Shield — Optional metal foil or braided shield (typically tinned copper braid at 50-90% coverage) over the primary insulation. The shield serves EMI mitigation in applications adjacent to switching power electronics or sensitive control circuits. When shield is specified, an additional outer PVC jacket is typically applied over the shield.
Conductor Construction — Solid or stranded copper, bare or tinned. Stranded constructions for AWG sizes 9 and larger; solid available for 10 AWG and smaller. Tinned copper is preferred for corrosion resistance in industrial environments.
UL 10269 Specifications
| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 10269 |
| UL File Number | E333030 (Follow-Up Service) |
| AWG Range | 30 AWG – 2000 kcmil |
| Voltage Rating | 1000V AC |
| Temperature Rating | 105°C continuous |
| Insulation | Extruded PVC (thermoplastic) |
| Optional Outer Jacket | Extruded PVC |
| Optional Shield | Metal foil or braided shield |
| Conductor Material | Bare or tinned copper, solid or stranded |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Designated Use | Internal wiring of appliances and equipment at 1000V class |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 10269 · AWG · 1000V · 105°C · E333030 |
Engineering Notes from CableApex

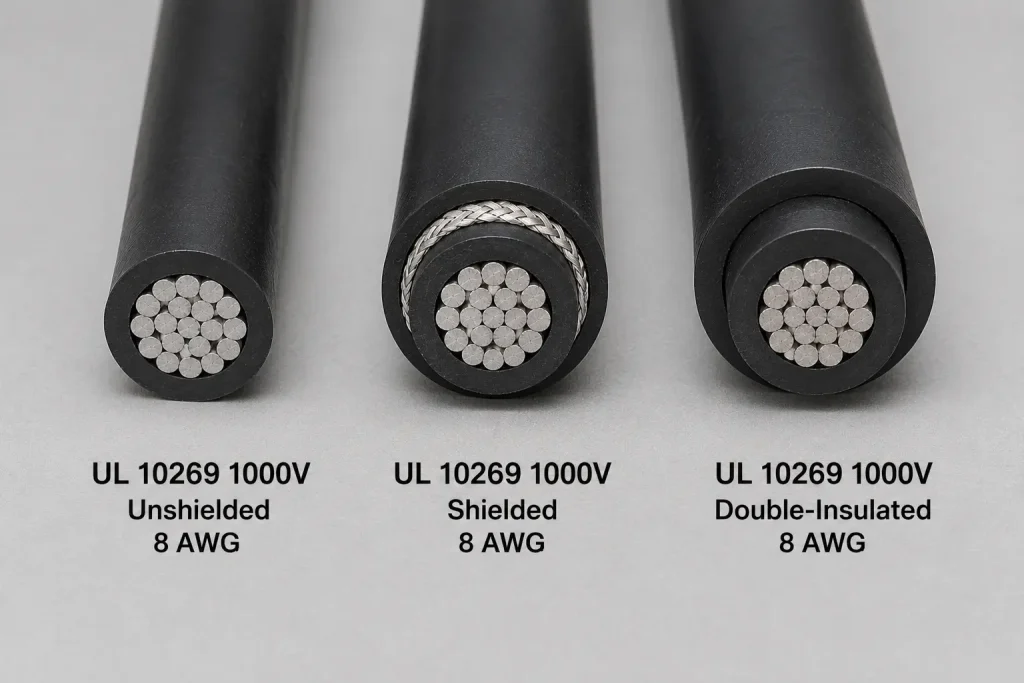

- “How do I order UL 10269 with optional shield + outer jacket?” Specify in the order: AWG, color, optional features needed. Standard construction options include unshielded (primary insulation only), shielded (primary + metal shield + outer jacket required), and double-insulated (primary + outer jacket without shield). Shielded constructions have higher MOQ due to additional production setup.
- “Cable diameter impact of optional jacket and shield?” Optional outer jacket adds approximately 0.5-1mm to overall diameter (9-15 mils per side). Metal shield + jacket adds approximately 1-2mm. For chassis routing space planning, factor in the increased overall diameter when specifying optional features.
- “Temperature rating consistency across construction options?” All UL 10269 constructions (with or without optional jacket/shield) maintain the same 105°C continuous temperature rating. Optional features add mechanical and electrical protection without affecting thermal rating.
MOQ, Packaging & Shipping

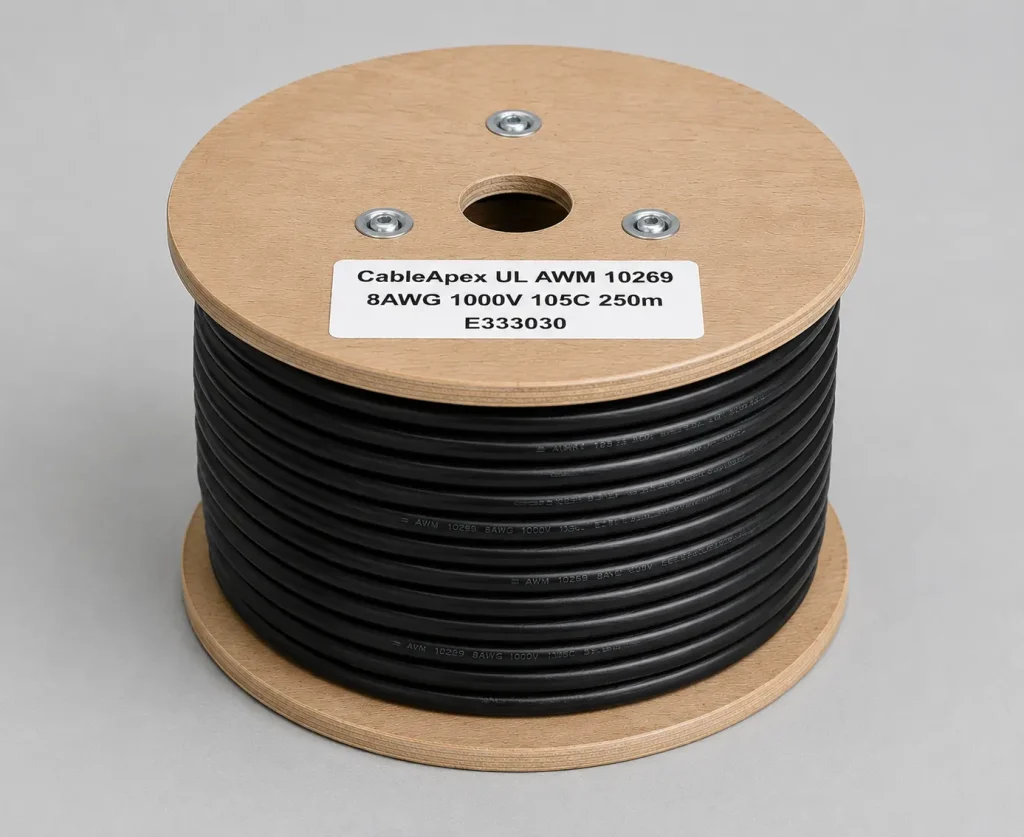

MOQ varies by AWG, color, optional features, and production schedule. Shielded constructions require higher MOQ (~5,000m typical minimum). Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.
Related UL Styles
UL 10269 buyers commonly cross-reference: UL 1015 (105°C / 600V PVC, 30-2000 kcmil — 600V alternative without 1000V requirement), UL 1569 (105°C / 300V PVC, 30-2 AWG — 300V alternative for low-voltage applications), UL 3271 (125°C / 600V XLPE, 30-2000 kcmil — XLPE motor lead alternative at 600V), and UL 3321 (150°C / 600V XLPE, 30-4/0 AWG — higher temperature XLPE).
