UL 10269 — 1000V PVC Hook-Up Wire for German OEM Applications
UL 10269 is the UL Recognized PVC AWM Style covering 1000V AC voltage class, distinguishing it from the more common UL 1015 (600V) and UL 1569 (300V) PVC Styles. For German OEM manufacturers searching UL 10269 1000V Draht Deutschland Hersteller, this Style serves applications where 600V is insufficient — typically EV charging systems, industrial battery systems, solar inverters, and specialty industrial equipment operating above the 600V threshold.

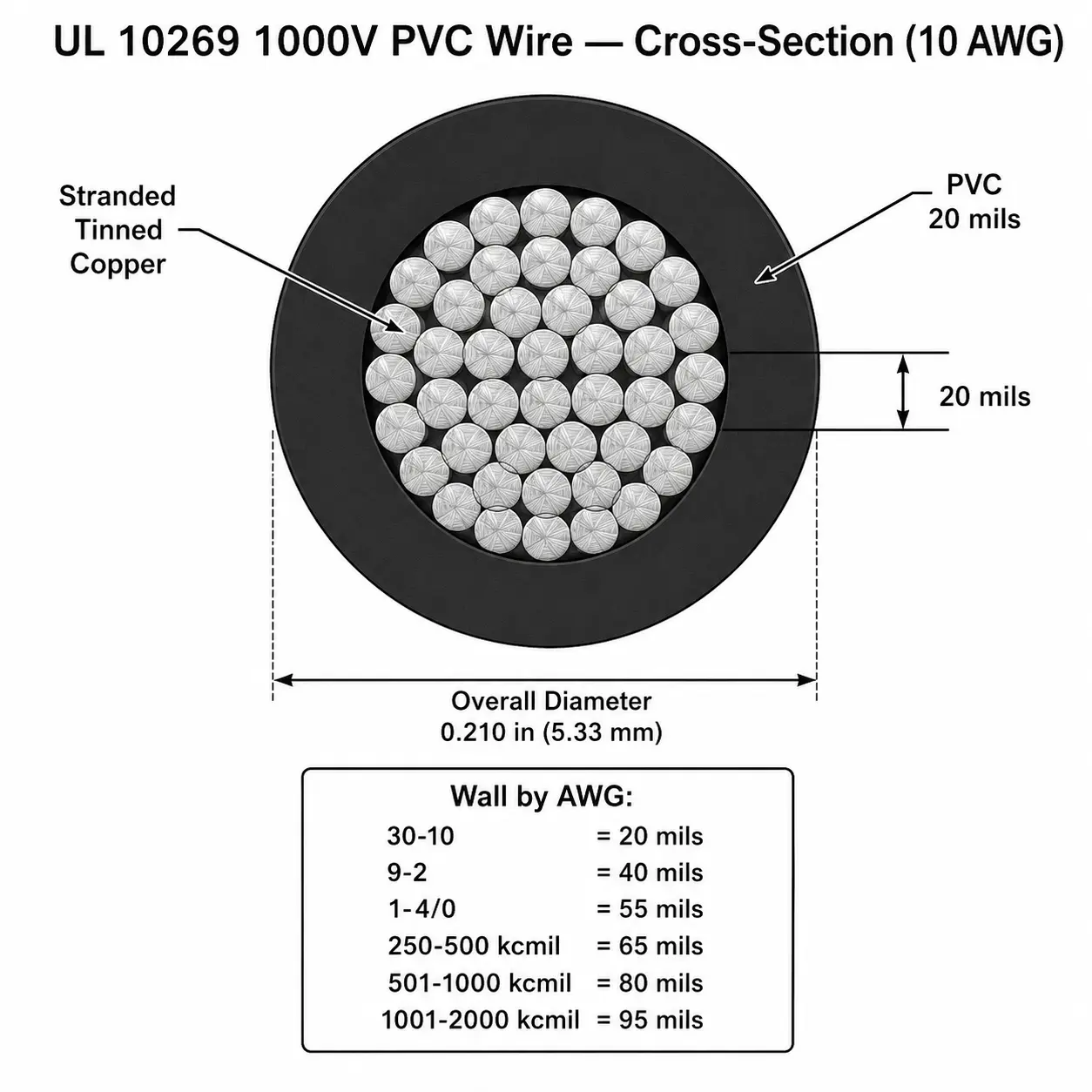

The 1000V rating requires significantly thicker PVC insulation than UL 1015 — 20 mils minimum at small gauges (30-10 AWG) scaling to 95 mils at 1001-2000 kcmil. The graduated wall thickness ensures consistent dielectric performance across the AWG range.
UL 10269 Applications

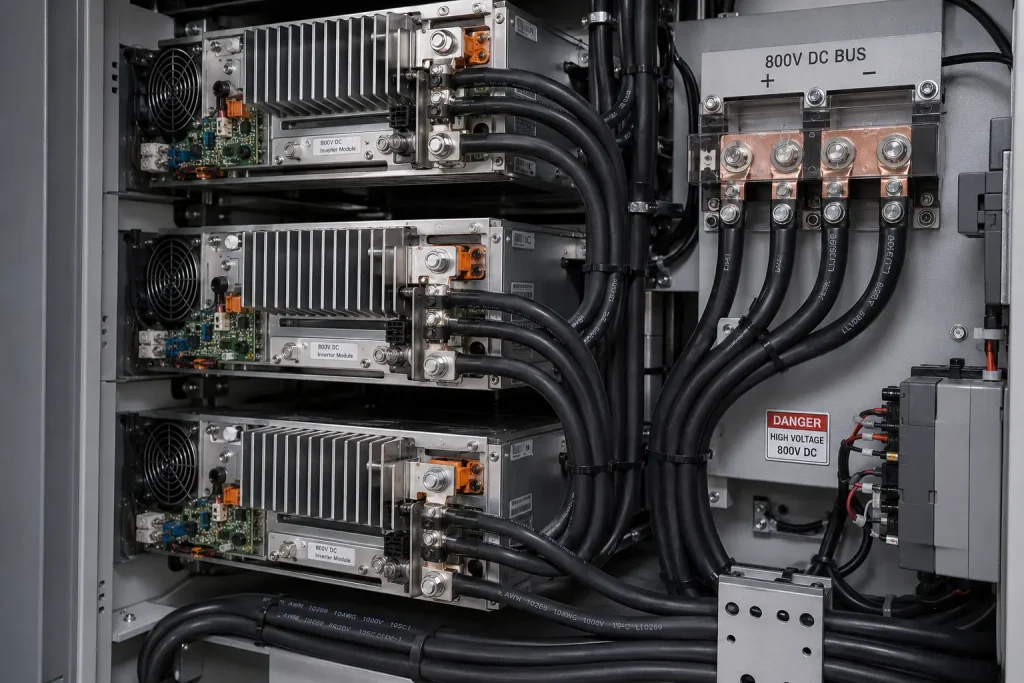

EV charging infrastructure — DC fast charging stations operating at 800V DC bus voltage need 1000V-class wire for internal DC bus distribution. UL 10269 provides the rating margin needed at these voltage levels.
Industrial battery storage systems — Commercial and utility-scale energy storage systems with 800V DC bus configurations specify UL 10269 for internal connections between battery strings and inverter inputs.
Solar inverter equipment — String inverter and central inverter internal wiring at 800-1000V DC PV array voltages uses UL 10269 for DC-side circuits where 600V wire would be insufficient.
Industrial 690V three-phase systems — European-standard 690V three-phase industrial supply (line-to-line voltage above 600V) requires 1000V-class wire for proper voltage margin.
UL 10269 Specifications
| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 10269 |
| UL File Number | E333030 (Follow-Up Service) |
| AWG Range | 30 AWG – 2000 kcmil, solid or stranded |
| Voltage Rating | 1000V AC |
| Temperature Rating | 105°C continuous |

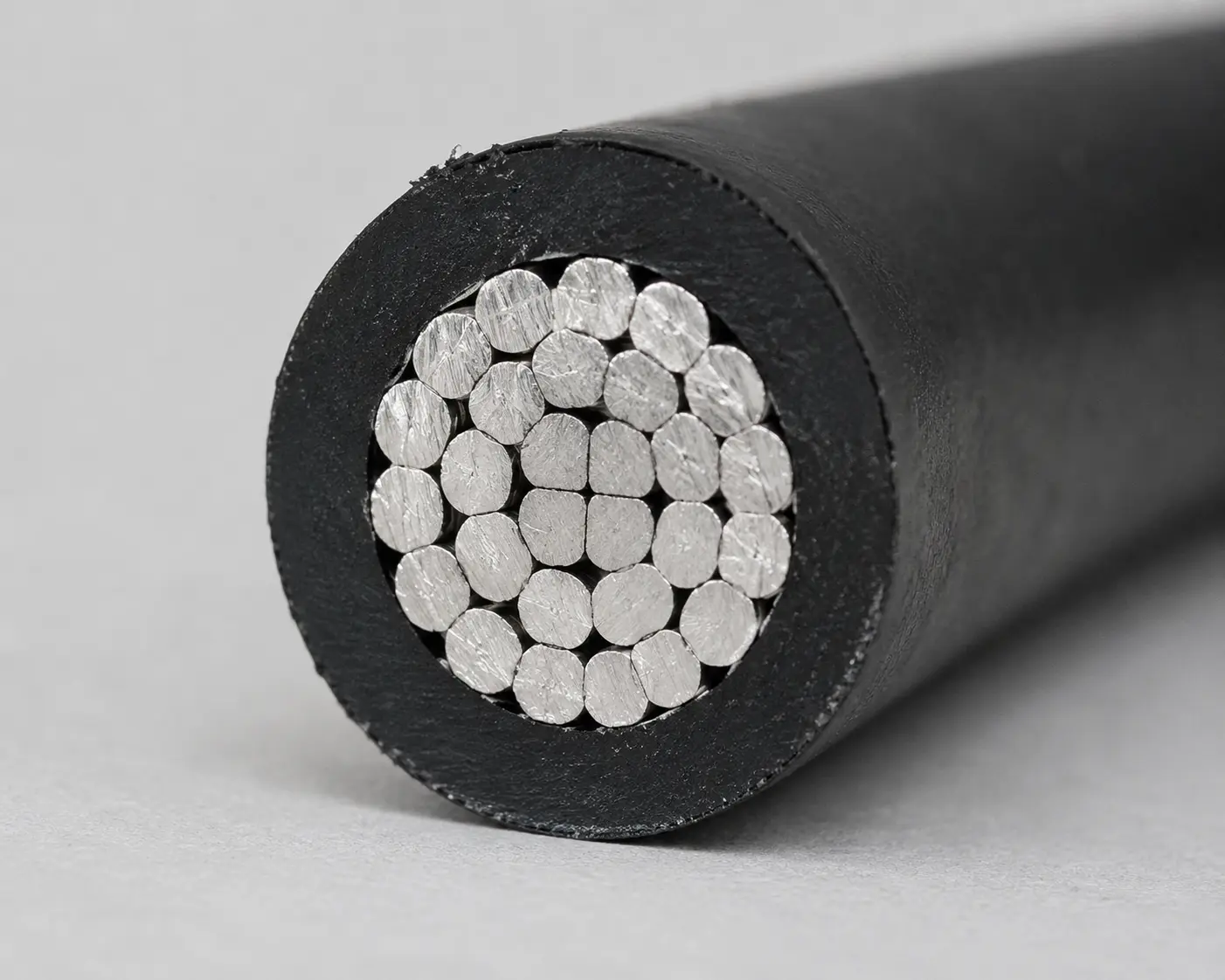

| Insulation | Extruded PVC |
| Wall (30-10 AWG) | 20 mils min average |
| Wall (9-2 AWG) | 40 mils min average |
| Wall (1-4/0 AWG) | 55 mils min average |
| Wall (250-500 kcmil) | 65 mils min average |
| Wall (501-1000 kcmil) | 80 mils min average |
| Wall (1001-2000 kcmil) | 95 mils min average |
| Optional Outer Jacket | Extruded PVC |
| Optional Shield | Metal foil or braided shield |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 10269 · AWG · 1000V · 105°C · E333030 |
Engineering Notes from CableApex
- “UL 10269 vs UL 1015 — when do I need the 1000V rating?” UL 1015 (600V) is sufficient for most industrial applications at 480V three-phase or below. UL 10269 (1000V) is required when continuous voltage exceeds 600V — common scenarios: 690V three-phase European industrial supply, 800V DC EV/solar/battery systems, specialty 750V DC industrial equipment. Specifying UL 10269 unnecessarily adds cost without benefit; the thicker wall increases material content.
- “Is UL 10269 acceptable for solar PV applications?” UL 10269 is UL Recognized AWM for internal wiring inside equipment enclosures. For solar PV string wiring exposed to outdoor environments and UV, UL-listed PV wire under UL 4703 (USE-2, RHW-2) is the appropriate specification. UL 10269 inside a sealed inverter or combiner box that is itself installed outdoors is acceptable; UL 10269 directly exposed to weather is not within the listing scope.

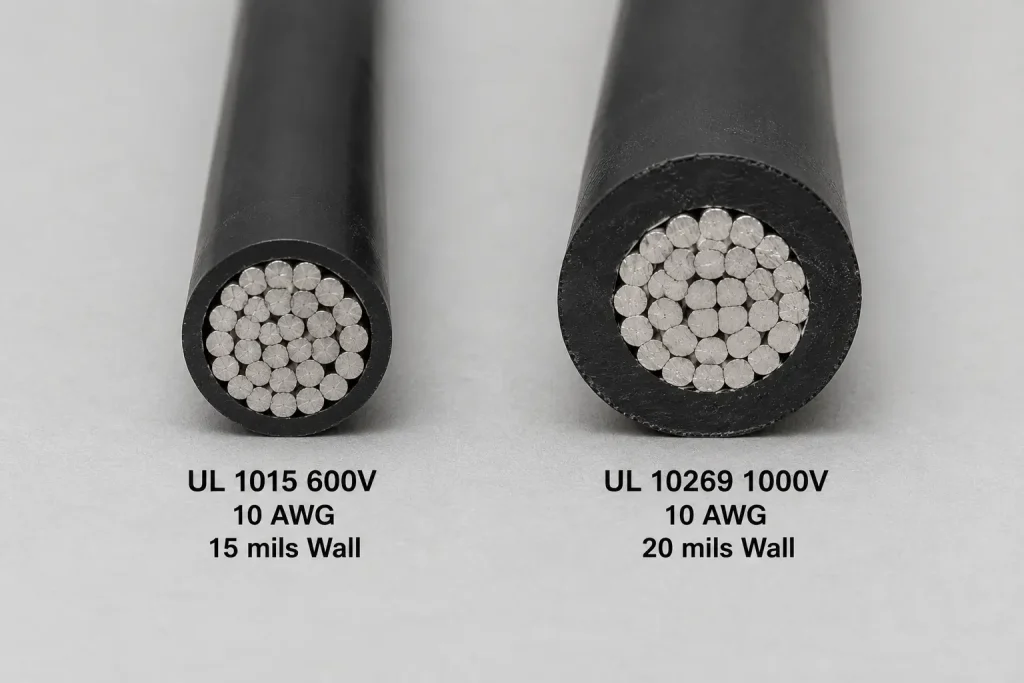

- “Pricing relative to UL 1015?” UL 10269 typically runs 15-30% above UL 1015 at equivalent AWG due to the thicker PVC wall (20 mils vs 15 mils at small gauges; 95 mils vs 30 mils at largest gauges). For OEM applications truly needing 1000V rating, the premium is justified; for applications below 600V, UL 1015 remains the cost-effective choice.
MOQ, Packaging & Shipping

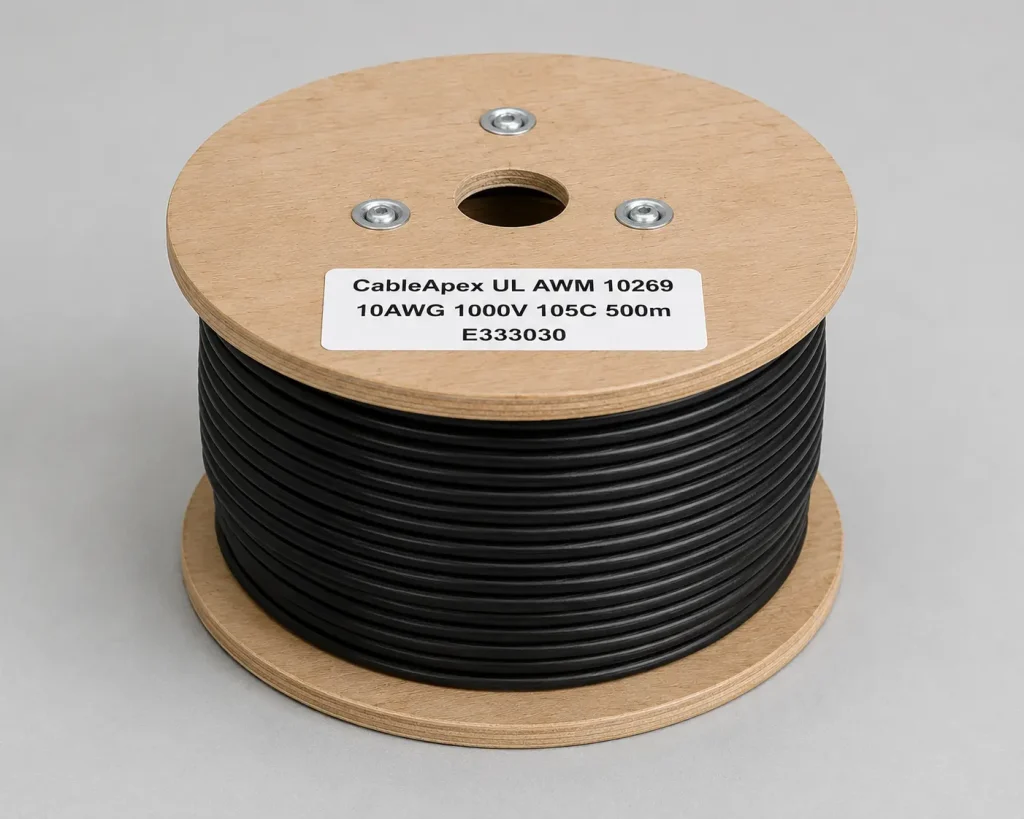

MOQ varies by AWG, color, optional features, and production schedule. Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.
Related UL Styles
UL 10269 buyers commonly cross-reference: UL 1015 (105°C / 600V PVC, 30-2000 kcmil — 600V alternative), UL 1569 (105°C / 300V PVC, 30-2 AWG — 300V alternative), UL 3271 (125°C / 600V XLPE, 30-2000 kcmil — XLPE motor lead alternative), and UL 3321 (150°C / 600V XLPE, 30-4/0 AWG — higher temperature XLPE alternative).
