UL 10269 1000V Oil Resistant PVC Wire for Vietnam and Indonesia — 80/90/105°C AWM Style 10269

UL 10269 1000V Oil Resistant PVC Wire for Vietnam and Indonesia

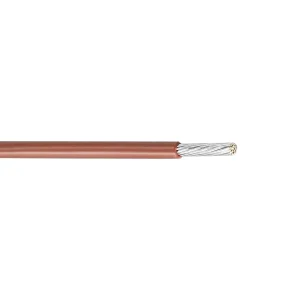

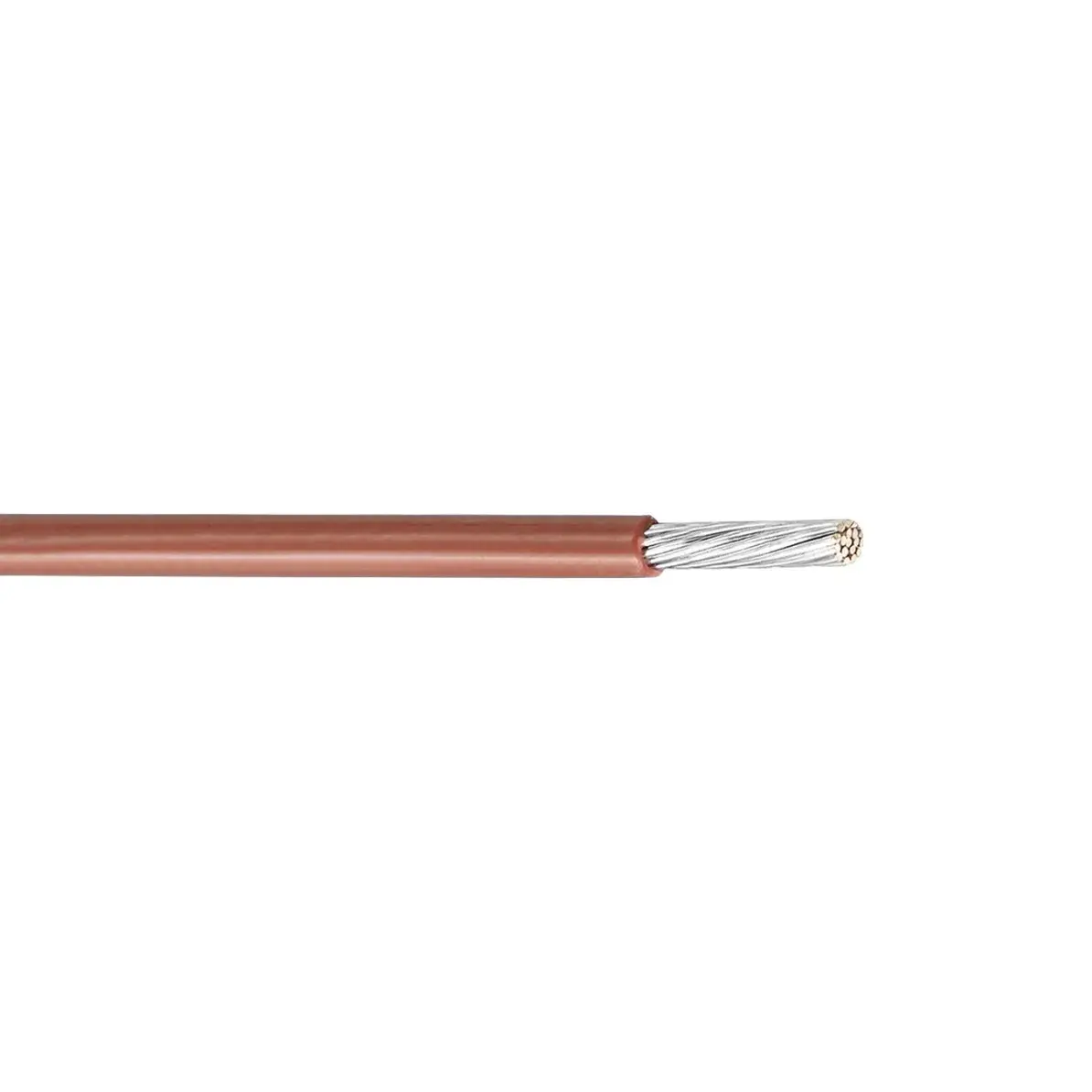

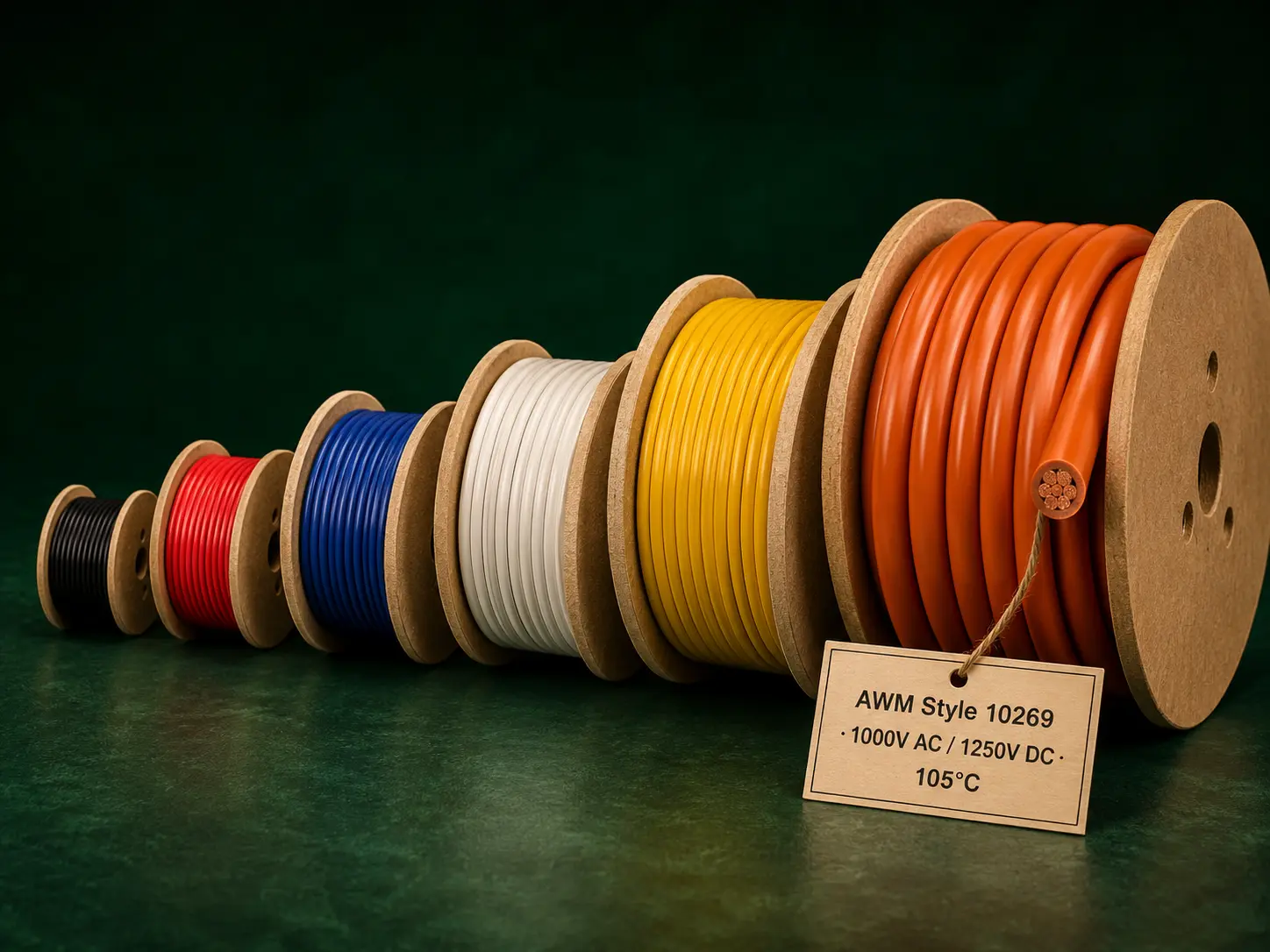

UL 10269 is an extruded PVC insulated wire rated 1000V AC or 1250V DC under UL AWM Style 10269, produced under UL Follow-Up Service File No. E333030. UL 10269 is available in three temperature ratings — 80°C, 90°C, and 105°C — and covers a conductor range from 30 AWG through to 2000 kcmil, making it one of the broadest AWM specifications in terms of conductor size coverage. The defining specification of UL 10269 is its 1000V AC voltage rating — significantly higher than the 600V rating of UL 1015 — achieved through a thicker PVC insulation wall. An optional oil resistance rating at 60°C or 80°C is available for applications where hydraulic mineral oil, machine lubricating oil, or cutting fluid contact with the wire surface is a routine operating condition.

Vietnam and Indonesia’s industrial equipment manufacturing and maintenance sectors specify UL 10269 for internal wiring in variable frequency drives (VFDs), motor control centres (MCCs), industrial servo drives, and power distribution equipment where the DC bus voltage or AC input voltage inside the equipment enclosure exceeds the 600V rating of UL 1015. The DC option at 1250V DC covers the DC bus voltage in standard 690V class VFDs and high-voltage DC power distribution systems. Vietnamese procurement engineers refer to UL 10269 as dây điện 1000V chịu dầu (1000V oil-resistant wire), while Indonesian procurement describes it as kabel tahan minyak 1000V harga grosir (1000V oil-resistant cable wholesale price). CableApex exports UL 10269 factory-direct CIF Ho Chi Minh City and CIF Surabaya from Yangzhou.

Product Specifications — UL 10269

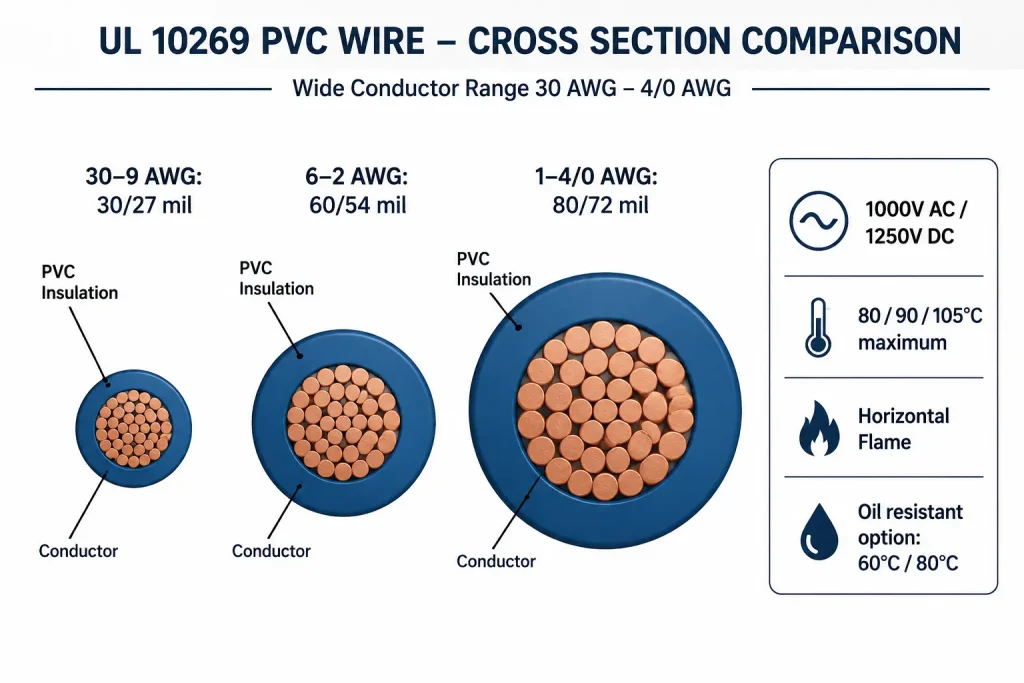

Insulation Wall Thickness by Conductor Size

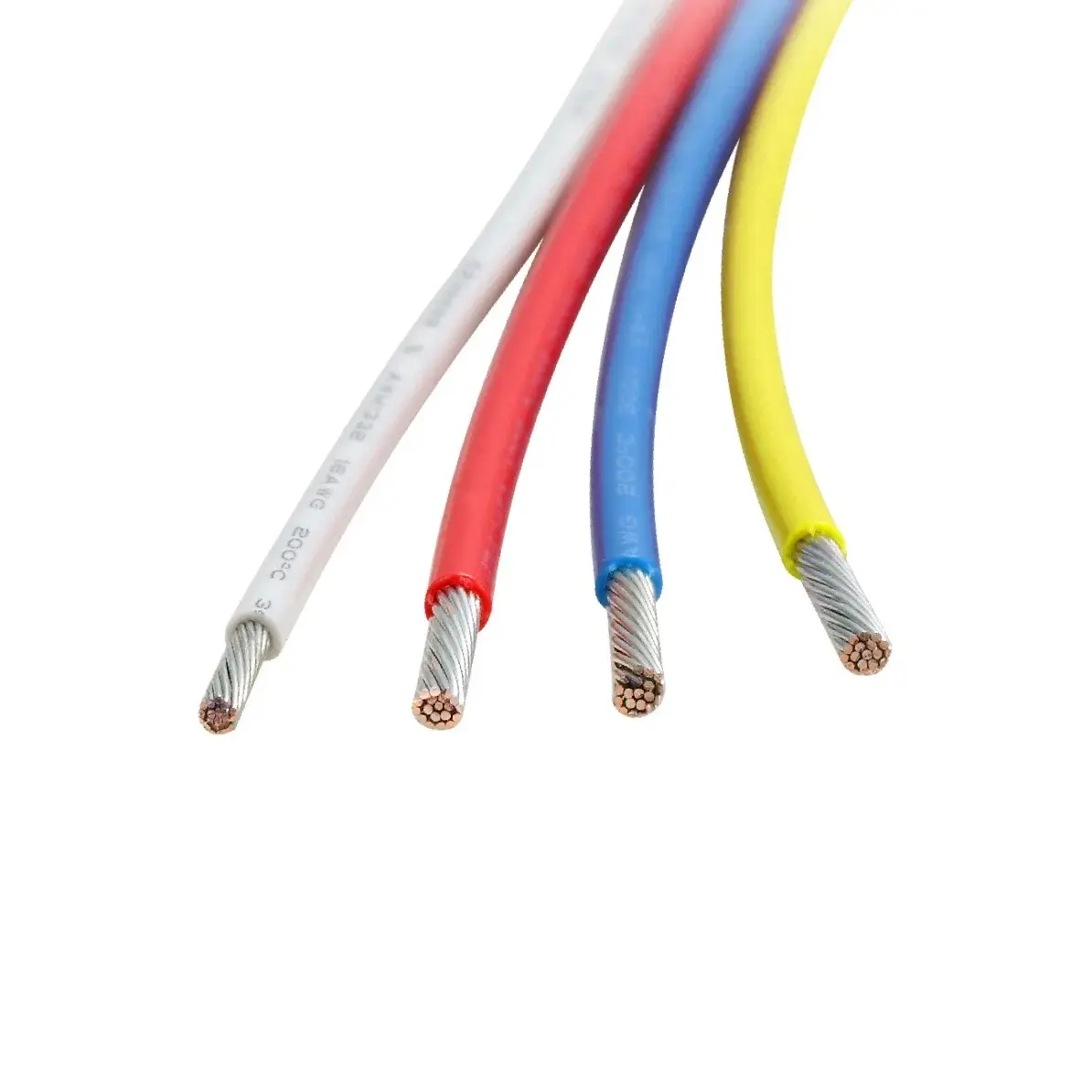

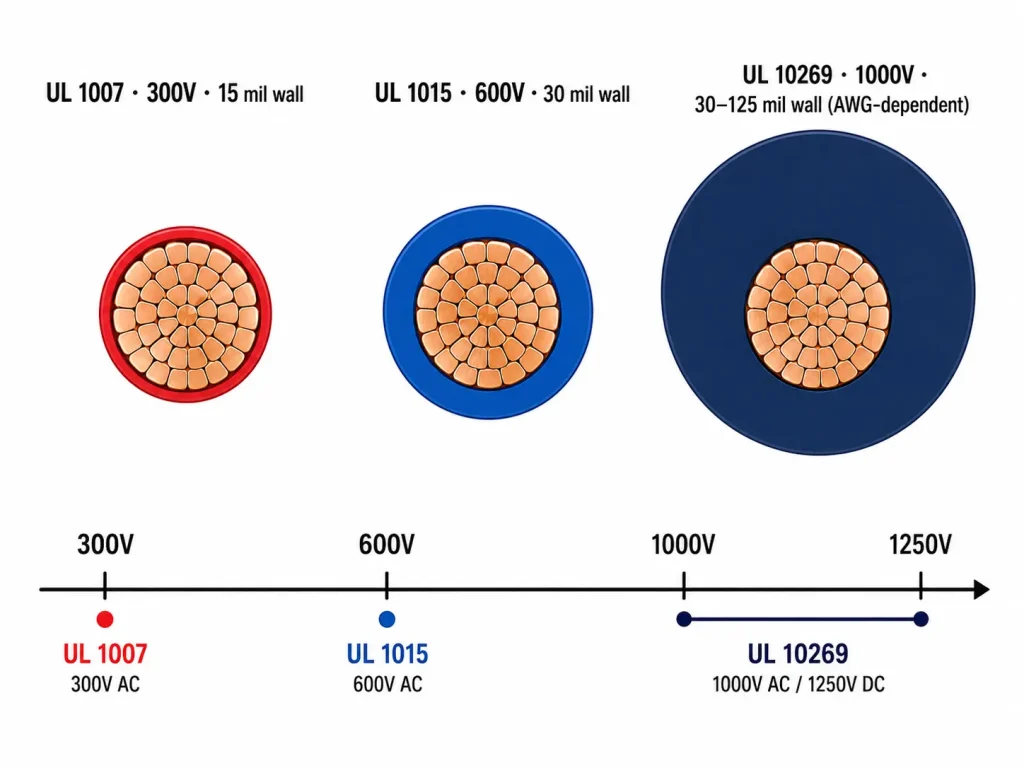

UL 10269 vs UL 1015 vs UL 1007 — Voltage Rating Comparison

Applications in Vietnam and Indonesia

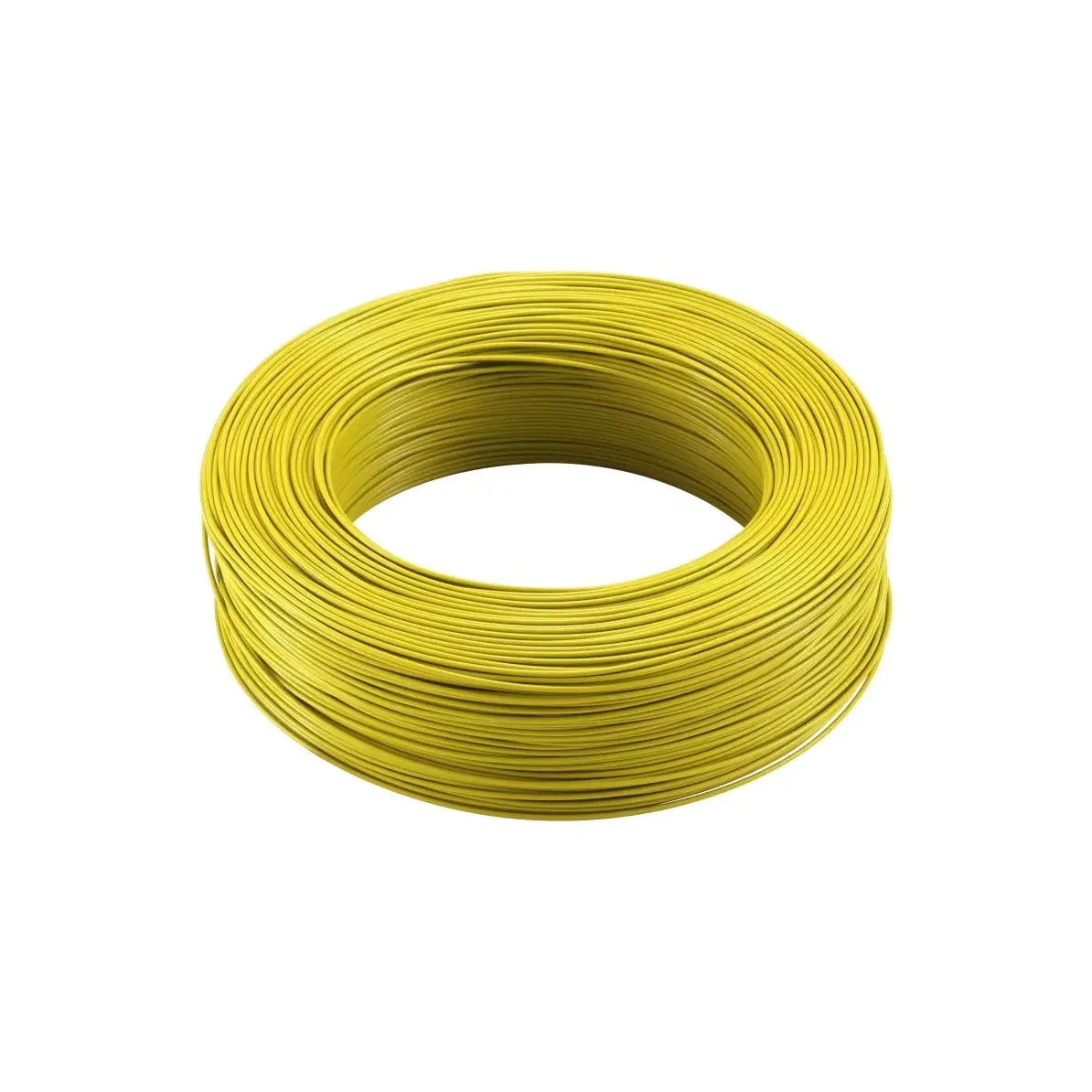

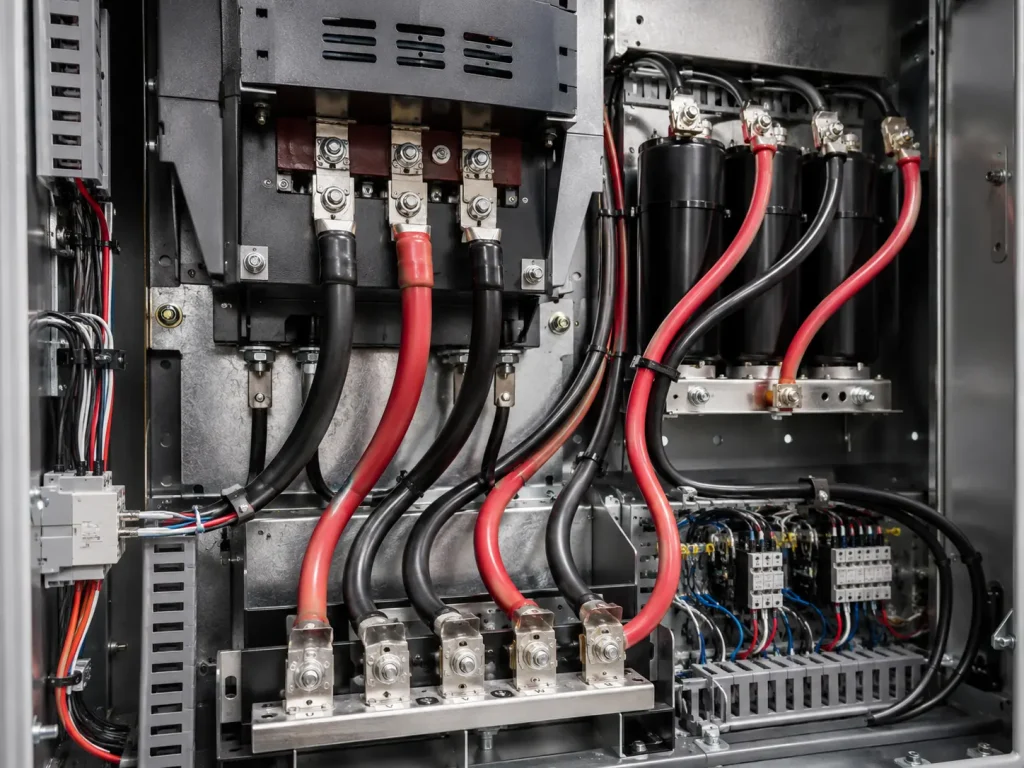

Variable frequency drive (VFD) internal wiring (Vietnam — manufacturing zones)

Vietnam’s manufacturing sector — automotive parts suppliers in Bình Dương and Đồng Nai, electronics assembly plants in the northern industrial zones, and textile machinery operations throughout the country — operates a large installed base of variable frequency drives for motor speed control. The DC bus inside a standard 400V three-phase VFD operates at approximately 560V DC, and a 690V class VFD operates at approximately 980V DC — both requiring wire rated above UL 1015’s 600V AC limit. UL 10269’s 1000V AC / 1250V DC rating covers both standard and high-voltage class VFD bus voltages with adequate margin. The optional oil resistance of UL 10269 provides additional durability in VFD cabinets installed in machine tool and metalworking environments where cutting fluid mist and machine oil vapour can enter the cabinet during operation.

Vietnamese VFD repair and maintenance operations specifying dây điện 1000V chịu dầu for DC bus and high-voltage section rewiring during VFD repair source UL 10269 factory-direct from Yangzhou. Equipment OEMs assembling VFD cabinets in Vietnam for domestic use and for export to ASEAN markets specify UL 10269 for the 1000V-rated internal wiring sections under the equipment’s UL listing requirement.

Motor control centre (MCC) internal bus wiring (Indonesia — industrial installations)

Indonesian industrial facilities — in petrochemical plants in East Java and Kalimantan, cement manufacturing plants in Sulawesi and Java, and large-scale food processing facilities throughout the archipelago — operate motor control centres where the internal wiring of the MCC must satisfy 1000V insulation requirements at the main bus wiring sections. UL 10269’s broad conductor range — from 30 AWG fine control wiring through to large cross-section power conductors — allows a single UL AWM specification to cover both the fine control circuit wiring and the heavy power bus conductors inside the same MCC enclosure.

Indonesian MCC manufacturers and panel builders in Surabaya, Jakarta, and Batam specify UL 10269 — sourced as kabel tahan minyak 1000V harga grosir factory-direct from Yangzhou — for main bus wiring and high-voltage internal wiring sections of MCC assemblies submitted for UL listing. Factory-direct procurement from CableApex eliminates the distributor markup applied to specialty high-voltage PVC wire through Indonesian electrical cable distribution channels.

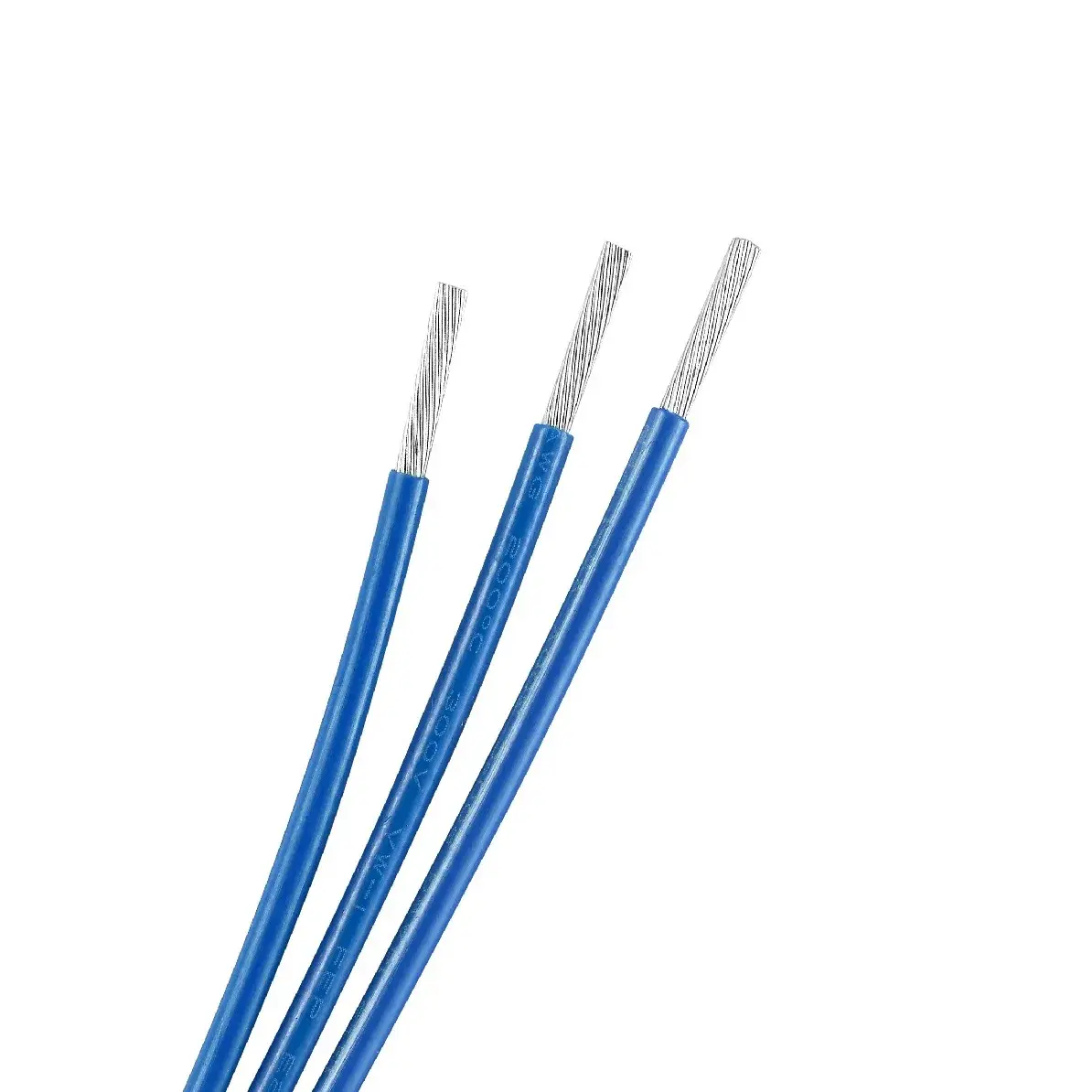

Oil-resistant wiring in hydraulic equipment (Indonesia — heavy equipment)

Indonesian heavy equipment and industrial machinery manufacturers — assembling hydraulic presses, injection moulding machines, and hydraulic lifting equipment in Bekasi, Cikarang, and Surabaya — route internal control panel wiring in environments where hydraulic fluid contact with the wire surface is a routine operational risk. The optional oil resistance grade of UL 10269 (at 60°C or 80°C) is formulated to maintain its flexibility and insulation integrity when contacted by hydraulic mineral oil — the oil-resistant PVC compound resists the plasticiser extraction that causes standard PVC wire to harden and crack over extended periods of oil contact. Specifying the oil-resistant grade of UL 10269 satisfies both the 1000V insulation requirement and the oil resistance requirement in a single wire specification.

Large conductor power distribution wiring (Vietnam and Indonesia)

UL 10269’s conductor range extends to 2000 kcmil — covering large power distribution conductors used in main switchboard incoming feeds, large motor starter main circuit wiring, and industrial power bus connections in Vietnamese and Indonesian heavy industrial facilities. For large conductor applications where both 1000V insulation and the UL AWM certification are required — such as the main incoming feed wiring in UL-listed motor control centres and power distribution panels — UL 10269 is the single specification that covers the full conductor size range from the fine control wiring to the large power conductors in the same panel assembly.

Additional applications across Vietnam and Indonesia

• Industrial CNC machine tool internal panel wiring — Vietnamese and Indonesian precision machining facilities where cutting fluid contact is routine and 1000V insulation is required
• Solar inverter DC string wiring inside the inverter enclosure — Vietnamese solar installation OEMs where DC string voltage reaches 1000V or 1250V DC
• Elevator and escalator drive control panel internal wiring — Vietnamese and Indonesian building installation contractors requiring 1000V-rated AWM for traction drive equipment
• Industrial welding equipment power section internal wiring — Indonesian welding equipment manufacturers in Bekasi and Tangerang
• Marine and offshore equipment control panel wiring — Indonesian shipbuilding and offshore equipment suppliers requiring oil-resistant 1000V-rated internal wiring

Key Features

Ordering Information

Specify AWG or kcmil size, temperature grade (80°C / 90°C / 105°C), oil resistance (standard or oil resistant at 60°C / 80°C), conductor type (solid or stranded), and quantity. MOQ 500 m per size. UL 10269 compliance documentation and RoHS Declaration supplied with every order. For 600V-rated PVC wire at 105°C, see UL 1015. Sample from 10 m.

Why CableApex for Vietnam and Indonesia

CableApex manufactures UL 10269 oil-resistant PVC wire under UL Follow-Up Service File No. E333030 in Yangzhou, China. Factory-direct export to Vietnam and Indonesia — CIF Ho Chi Minh City or CIF Surabaya, 10–14 day transit. Full UL compliance documentation for equipment OEM qualification and panel builder procurement. No distributor margin on factory-direct orders. Contact us within 24 hours.
