UL 3071 Silicone Wire Kenya — 200°C / 600V for Nairobi & Mombasa Importers and Motor Workshops
Kenya’s industrial maintenance sector — generator service operations, motor rewinding workshops, and industrial equipment repair across Nairobi and Mombasa — maintains consistent demand for UL-recognized high-temperature wire for motor lead replacement, heating element connections, and repair of North American specification equipment operating in Kenya’s manufacturing, agricultural processing, and commercial sectors. Style 3071 — 200°C / 600V silicone rubber with fiberglass braid — is the UL AWM standard for motor lead and high-temperature wiring applications requiring both the thermal performance of silicone rubber and the mechanical protection of a fiberglass braid outer covering.
Kenya imports its UL-recognized wire requirements — there is no domestic UL AWM wire manufacturer in East Africa. CableApex supplies Style 3071 directly to Kenyan importers and workshops from our Yangzhou production facility with complete UL documentation, 100-meter minimum orders matched to the cash-flow reality of East African import operations, and CIF Mombasa shipping.

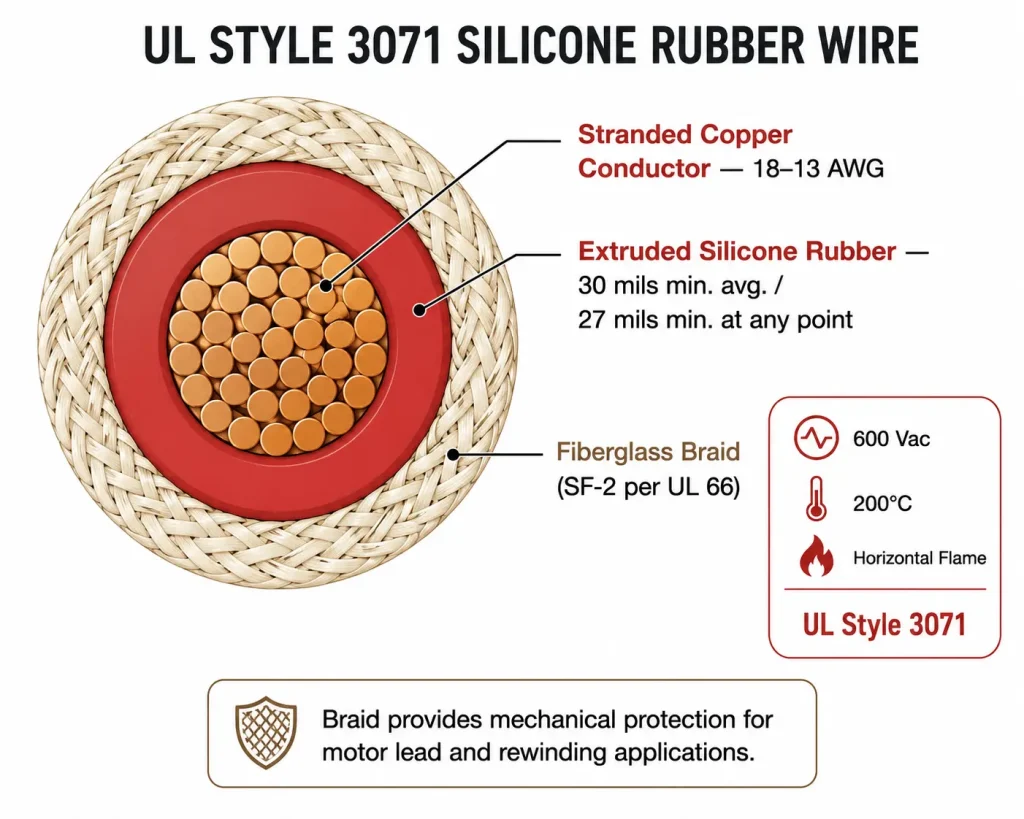

Technical Specifications — UL Style 3071
| Parameter | Value |
|---|---|
| UL Style | 3071 |
| UL Subject | 758, Section 3 |
| Temperature Rating | 200°C |
| Voltage Rating | 600 Vac |
| Flame Rating | Horizontal flame |
| AWG Range | 18 AWG – 13 AWG, solid or stranded |
| Conductor | Solid or stranded copper |

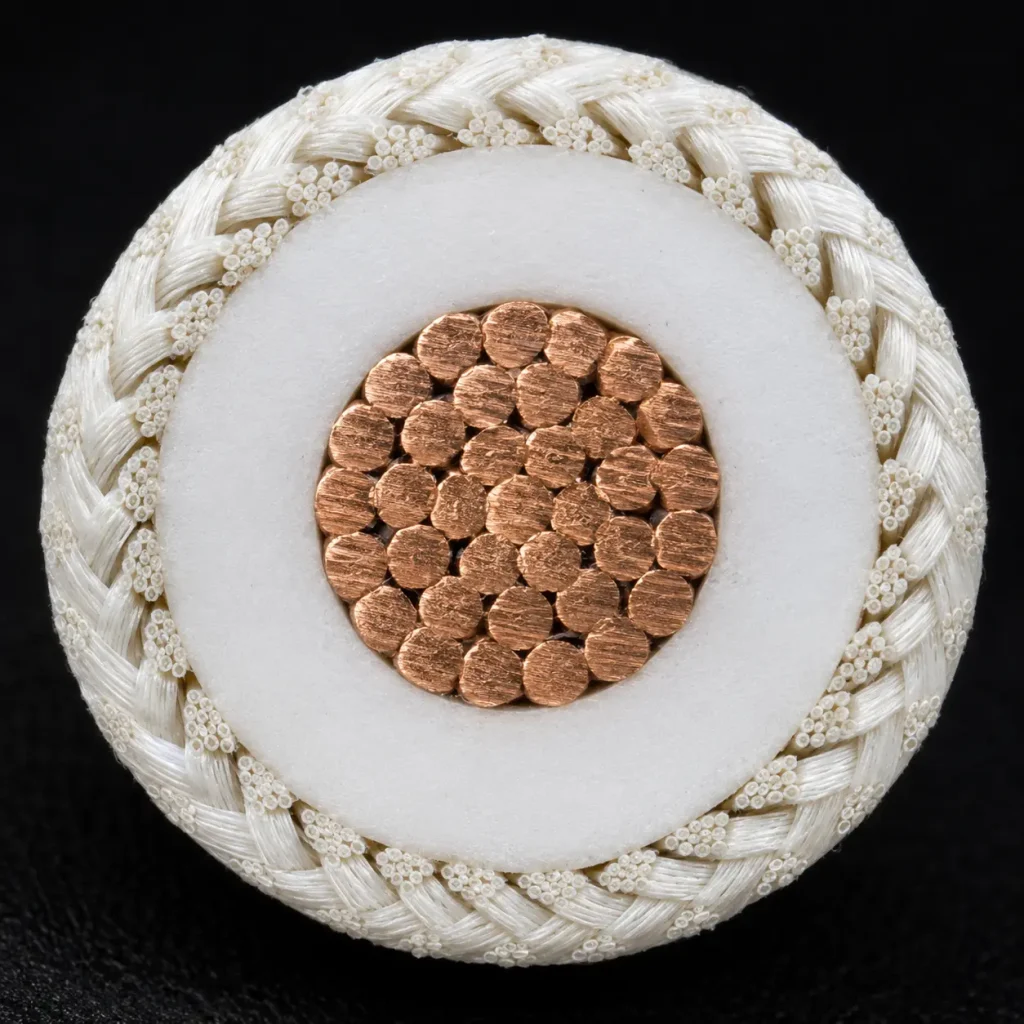

| Primary Insulation | Extruded silicone rubber (SR) — 30 mils min average / 27 mils min at any point |
| Outer Covering | Fiberglass braid (SF-2 per UL 66) |
| Typical Use | Internal wiring of appliances |
| UL Recognition | UL Recognized Component — file on record |
| MOQ | 100 meters per AWG / color |
| Shipping | CIF Mombasa / FOB Shanghai |
| Quote Response | 12 hours |
Kenya UL Wire Demand — Generator Service, Motor Repair, and East Africa Distribution
Kenya’s reliance on generator power for industrial, commercial, and institutional backup creates a substantial generator service and maintenance market — generator control panels, alternator winding repair, and generator set internal wiring replacement that requires UL-recognized wire matching the original North American specification equipment. Motor rewinding workshops across Nairobi’s industrial area and Mombasa serve the agricultural processing, manufacturing, and water pumping sectors where Class F and Class H motor rewinds require 200°C-rated motor lead wire with the mechanical protection of fiberglass braid for the rewind connection leads.

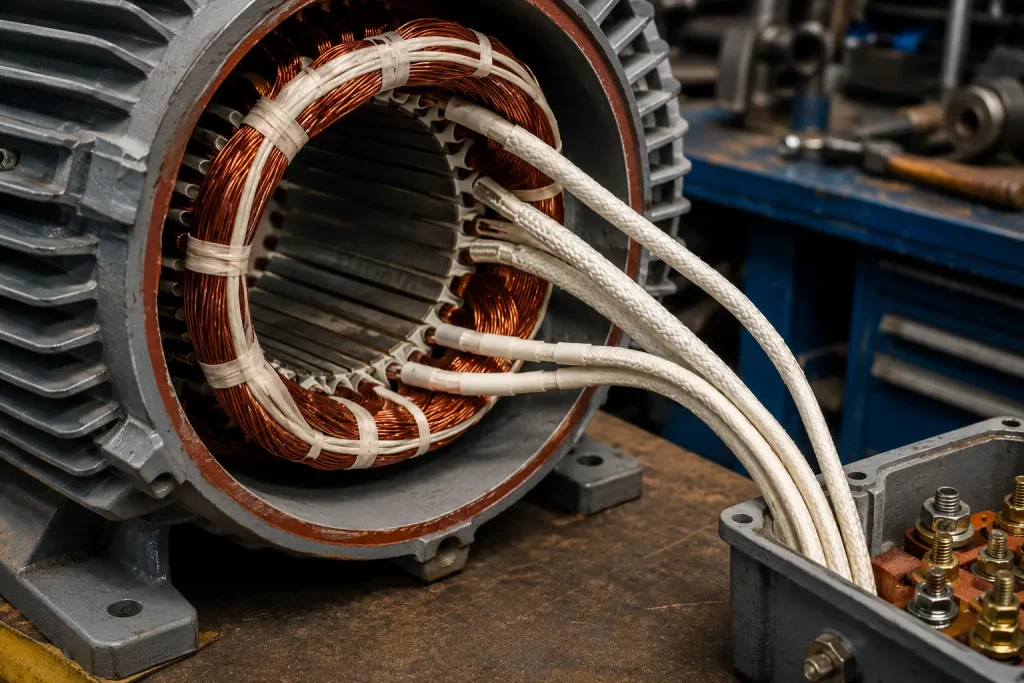

Style 3071’s combination of 200°C silicone rubber insulation and fiberglass braid outer covering makes it particularly suited to the motor rewinding application — the silicone rubber provides the Class H thermal rating while the fiberglass braid protects the wire during the mechanical handling of the rewinding process and provides abrasion resistance at the winding exit point where the lead routes through the motor end shield.
Nairobi’s position as East Africa’s commercial hub also positions Kenyan importers to serve regional markets — Uganda, Tanzania, Rwanda, and the broader East African Community — where industrial development is driving growing demand for UL-recognized electrical components. For East African import operations where foreign exchange availability and cash flow management are operational considerations, CableApex’s 100-meter minimum order allows building a UL AWM wire stock position without the large capital commitment of container-load minimum orders.
Application Categories for Kenyan Buyers
- Motor rewinding lead wire — motor winding terminal connection leads for Class F and Class H motor rewinds performed by Nairobi and Mombasa motor rewinding workshops serving agricultural processing, water pumping, and manufacturing motors, where the 200°C silicone rubber rating and fiberglass braid mechanical protection of Style 3071 provide the correct specification for rewound motor lead connections that must withstand the winding thermal environment and the mechanical handling of the rewinding process.
- Generator alternator winding connection leads — stator and exciter winding connection leads in generator alternator repair and rewind operations serving Kenya’s substantial generator service market, where the alternator winding operating temperature and the requirement for reliable long-term performance in continuous and standby generator operation require 200°C-rated wire with braid protection at the winding connection point.
- Heating element terminal leads for equipment repair — heating element connection leads in commercial and industrial heating equipment repair — water heaters, commercial cooking equipment, agricultural drying equipment — where the heating element terminal connection requires 200°C-rated wire and the fiberglass braid provides mechanical protection at the element terminal connection point.
- East Africa regional distribution stock — Kenyan electrical importers in Nairobi serving as regional distributors for the East African Community markets, building a UL AWM specialty wire inventory for resale to motor workshops, generator service operations, and industrial maintenance customers across Kenya, Uganda, Tanzania, and Rwanda where UL-recognized wire is not available from local manufacturers.

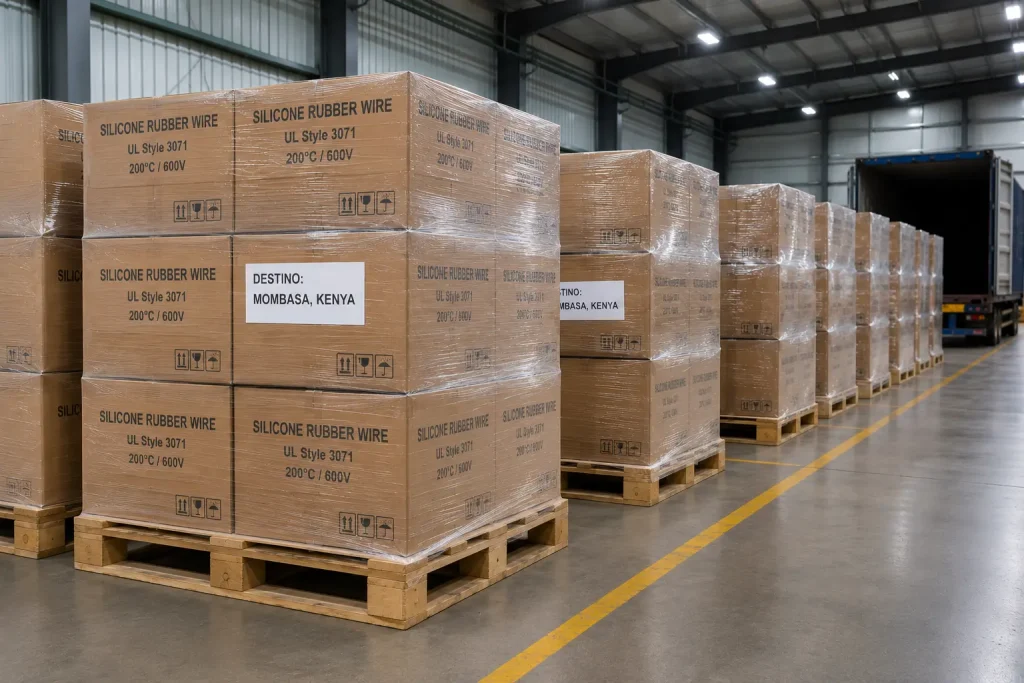

Import Logistics to Kenya — CIF Mombasa Supply
CableApex ships to Kenyan buyers under CIF Mombasa or FOB Shanghai terms. Standard lead time for UL 3071 in common AWG sizes is 20–25 working days from order confirmation, accounting for transit time to the East African port. CIF Mombasa pricing includes marine insurance and freight to Mombasa port, the primary gateway for Kenyan and East African import cargo.
Kenya import documentation provided with every shipment: commercial invoice, packing list with spool-level barcoding, bill of lading, certificate of origin (China), and UL recognition confirmation. Import documentation supporting KEBS (Kenya Bureau of Standards) requirements and the pre-export verification of conformity (PVoC) process can be provided to facilitate Kenyan customs clearance. Payment terms: T/T 30% deposit with order, 70% against copy of bill of lading for first-time buyers.
For first-time Kenyan buyers, the 100-meter MOQ allows an initial qualification order without significant foreign exchange commitment — a practical entry point for building a UL AWM wire supply relationship while managing the cash-flow and forex considerations of East African import operations.
Request a Quote — Kenya Nairobi & Mombasa Supply
Submit your AWG, color, conductor type, spool format, and annual volume estimate below. Our team responds with a formal quotation within 12 business hours. Free 10-meter wire samples available for qualification testing. CIF Mombasa and FOB Shanghai shipping terms available. KEBS and PVoC documentation support available for Kenyan customs clearance.
