UL 3071 Silicone Rubber Wire — 200°C / 600V, Horizontal Flame — México Proveedor
Style 3071 is the silicone rubber appliance wire within UL Subject 758 rated for 600 Vac service at 200°C continuous — delivering the flexibility advantage of silicone rubber insulation at a voltage class that covers motor leads, heating element connections, and internal power distribution circuits inside high-temperature appliances. Extruded silicone rubber at 30 mils minimum average wall with a Type SF-2 equivalent covering provides both the dielectric performance required at 600V and the mechanical protection needed in appliance assembly environments where wire is routed around enclosure edges and through mounting hardware.
For Mexican proveedores and OEM manufacturers sourcing high-temperature appliance wire from China, Style 3071 represents the silicone rubber answer to the 200°C internal wiring requirement — with competitive precio por metro economics from factory-direct supply and full UL recognition documentation for USMCA export compliance and NOM-aligned import clearance.

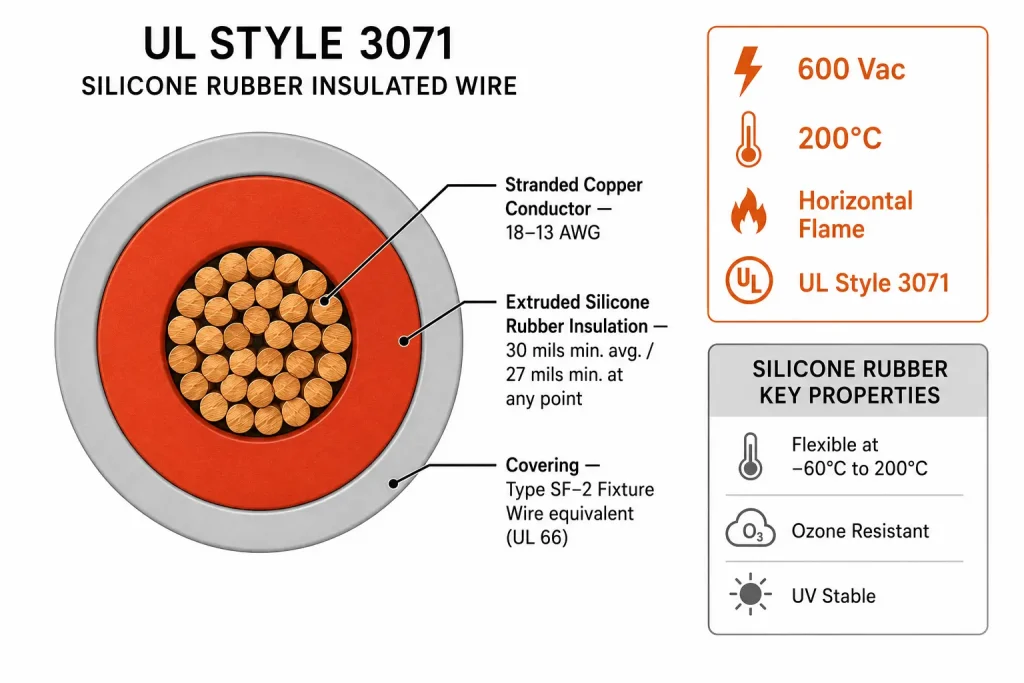

Technical Specifications — UL Style 3071
| Parameter | Value |
|---|---|
| UL Style | 3071 |
| UL Subject | 758, Section 3 |
| Temperature Rating | 200°C |
| Voltage Rating | 600 Vac |
| Flame Rating | Horizontal flame |
| AWG Range | 18 AWG – 13 AWG, solid or stranded |
| Conductor | Solid or stranded copper |
| Insulation Material | Extruded silicone rubber (SR) |

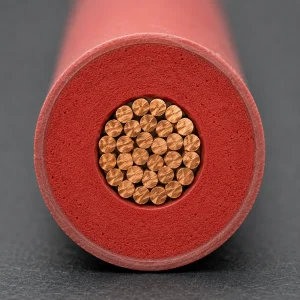

| Insulation Thickness | 30 mils min average / 27 mils min at any point |
| Covering | Same as Type SF-2 Fixture Wire (UL 66) |
| Typical Use | Internal wiring of appliances (cableado interno de aparatos de alta temperatura) |
| Available Colors | Red, black, white, yellow, green, blue (custom on request) |
| Standard Spool Length | 100 m / 200 m / 305 m |
| MOQ | Contact for quote — consultar cotización / precio por metro disponible |
Applications — Cableado de Alta Temperatura en México
Style 3071’s combination of silicone rubber flexibility, 200°C thermal rating, and 600V insulation serves application categories where both high temperature and higher voltage coexist inside sealed appliance enclosures:

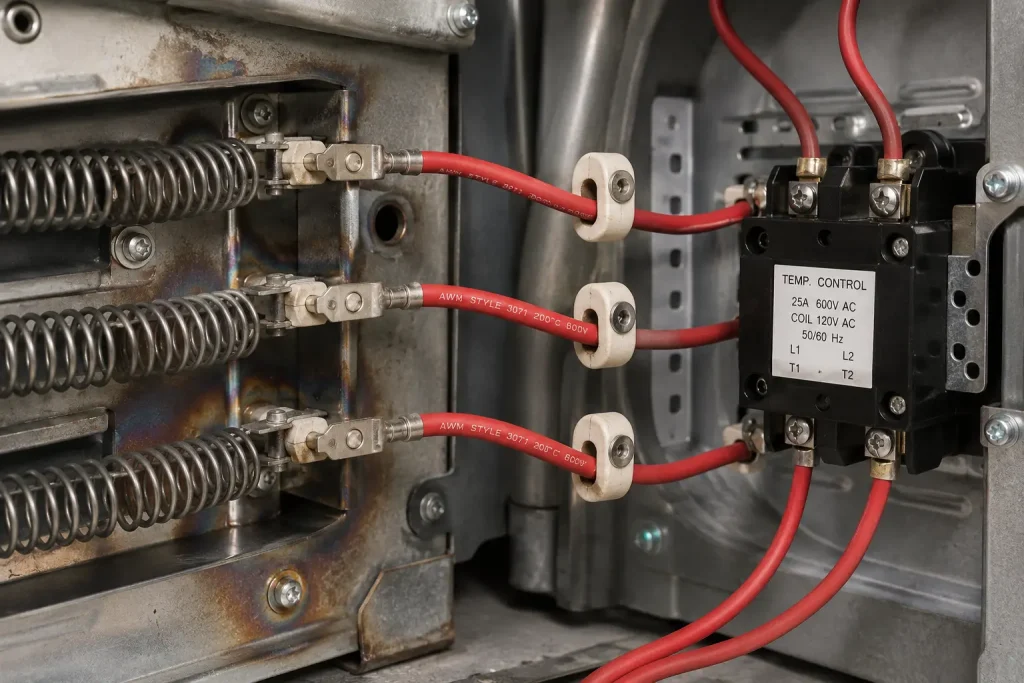

- Commercial laundry dryer heating element leads — internal wiring connecting heating element terminal blocks to temperature control contactors in commercial tumble dryers and industrial laundry equipment operated in hotel, hospital, and industrial laundry facilities across Aguascalientes and Puebla, where heating element surface proximity creates sustained 150–190°C wire surface temperature conditions demanding silicone rubber insulation rather than PVC or XLPE alternatives.
- Industrial band heater and cartridge heater wiring — connection leads for band heaters on plastic extruder barrels, injection molding nozzle heaters, and cartridge heaters in die casting equipment across Chihuahua’s automotive and industrial manufacturing sector, where the 200°C wire rating matches the heater surface temperature and the 600V rating covers the standard industrial heating circuit voltage.
- High-wattage luminaire internal wiring — internal leads in high-output commercial and industrial luminaire fixtures — metal halide, high-pressure sodium, and high-wattage LED driver housings — where lamp housing internal temperatures exceed the 105°C limit of XLPE wire and require silicone rubber insulation rated for the thermal environment adjacent to high-intensity light sources. Style 3071 satisfies the same use classification as Type SF-2 Fixture Wire, making it directly applicable to UL-listed luminaire internal wiring applications.
- Gas oven and commercial cooking equipment internal wiring — power leads and thermostat circuit wiring inside commercial convection ovens, combination steam ovens, and deck ovens used in México’s expanding industria panadera and commercial food service sector, where oven cavity thermal radiation creates sustained high-temperature conditions at internal wiring routing paths requiring 200°C-rated insulation with 600V capability for main heating circuit connections.
Engineering Notes — Silicone Rubber vs. Fluoropolymer at 200°C

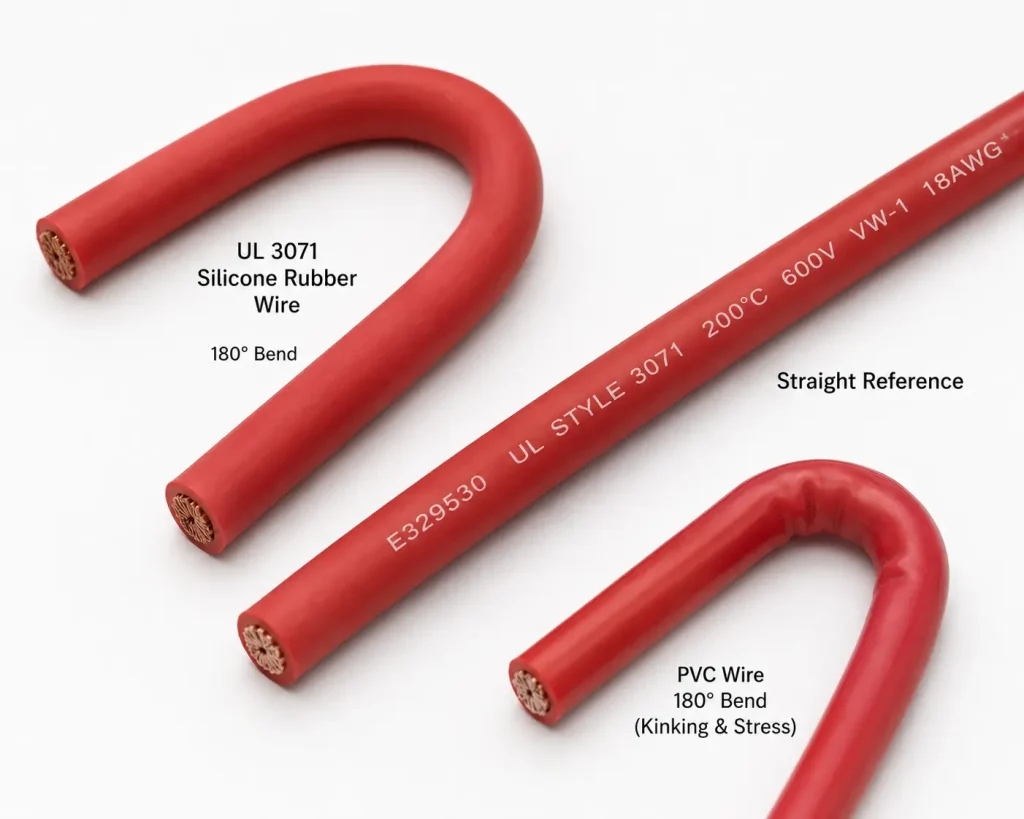

Flexibility advantage of silicone rubber: The defining practical difference between Style 3071 silicone rubber and Style 1332 FEP at the same 200°C temperature rating is flexibility. Silicone rubber maintains its pliability and low modulus at both cryogenic temperatures and 200°C sustained heat — it bends easily around tight radius curves without cracking or kinking, which FEP and PTFE constructions do not replicate at low installation temperatures. In appliance assembly environments where wire is routed around enclosure frame members and through grommets during assembly operations, silicone rubber’s handling characteristics reduce assembly time and wire damage risk compared to stiffer fluoropolymer alternatives.
Chemical resistance limitation vs. fluoropolymers: While silicone rubber excels in thermal performance and flexibility, it has lower resistance to hydrocarbon chemicals — oils, fuels, and aromatic solvents — compared to FEP and PTFE fluoropolymers. In environments where the wire surface contacts compressor oil mist, fuel vapors, or industrial solvents alongside high temperatures, Style 1332 FEP (200°C, 300V) or Style 1659 PTFE (250°C, 600V) should be evaluated as alternatives. For dry-heat environments — oven cavities, dryer drum areas, luminaire housings — silicone rubber’s chemical resistance limitation is not a practical concern.
Precio por metro comparison — silicone vs. fluoropolymer: At equivalent AWG and temperature rating, Style 3071 silicone rubber wire typically offers a more competitive precio por metro than fluoropolymer alternatives (FEP, PTFE, PFA) due to lower raw material cost of silicone rubber compound versus fluoropolymer resins. For high-temperature appliance internal wiring applications where chemical exposure is not a factor, Style 3071 delivers 200°C performance at a more favorable cost structure — an important consideration for Mexican OEM manufacturers managing component cost in competitive appliance markets.
SF-2 equivalent covering and luminaire compliance: The Type SF-2 equivalent covering on Style 3071 directly aligns this wire with UL 66 Fixture Wire standards — the same construction basis used in UL-listed luminaire internal wiring. This equivalence simplifies the compliance documentation path for Mexican luminaire manufacturers and importers seeking to specify a single UL-recognized wire that satisfies both the appliance internal wiring (AWM) and fixture wire application categories simultaneously.
Related UL Styles for Comparison
UL 3071 silicone rubber buyers commonly cross-reference: UL 3135 (200°C / 600V silicone rubber, totally enclosed appliance internal wiring without SF-2 covering requirement), UL 3172 (200°C / 600V silicone rubber with glass or aramid braid covering, enhanced mechanical protection for appliance internal wiring), UL 1332 (200°C / 300V FEP, fluoropolymer alternative at same temperature with superior chemical resistance), and UL 1659 (250°C / 600V PTFE, higher temperature fluoropolymer for applications exceeding 200°C).
Request a Quote — Solicitar Cotización / Precio por Metro
Submit your AWG, color, spool format, and annual volume estimate below. Our bilingual team responds with a formal cotización including precio por metro within 24 business hours. Wire samples available for qualification testing upon request.
