UL 3271 XLPE Motor Lead Wire — 125°C / 600V, Semi-Conductive Option, Horizontal Flame — México
Style 3271 is the 600V-rated crosslinked polyethylene motor lead wire within UL Subject 758 — the correct specification when three-phase motor lead applications demand both 125°C thermal performance and 600V insulation integrity simultaneously. Rated 600 Vac and 750 Vdc with XLPE insulation scaled proportionally across a conductor range spanning 30 AWG to 2000 kcmil, Style 3271 covers the full spectrum of industrial motor lead wiring — from fine instrumentation leads on small servo motors to heavy main power leads on large industrial drive motors.
The optional semi-conductive polymeric layer over the conductor — unique to Style 3271 within the XLPE AWM wire family — provides electrical stress grading at the conductor-insulation interface, a feature relevant for medium-voltage motor lead applications and VFD-fed motor installations where voltage transients at the motor terminal can stress the insulation system. For Mexican proveedores, motor manufacturers, and VFD system integrators, Style 3271 delivers the most technically complete XLPE motor lead specification available in the UL AWM wire family.
Technical Specifications — UL Style 3271
| Parameter | Value |
|---|---|
| UL Style | 3271 |
| UL Subject | 758, Section 3 |
| Temperature Rating | 125°C |
| Voltage Rating | 600 Vac / 750 Vdc |
| Flame Rating | Horizontal flame |
| AWG / Size Range | 30 AWG – 2000 kcmil, solid or stranded |
| Conductor | Solid or stranded copper |
| Optional Layer | Semi-conductive polymeric layer over conductor |
| Insulation Material | Extruded XLPE |
| Insulation Thickness — 30–9 AWG | 30 mils min average / 27 mils min at any point |
| Insulation Thickness — 8–2 AWG | 45 mils min average / 40 mils min at any point |
| Insulation Thickness — 1–4/0 AWG | 55 mils min average / 50 mils min at any point |
| Insulation Thickness — 213–500 kcmil | 65 mils min average / 58 mils min at any point |
| Insulation Thickness — 501–1000 kcmil | 80 mils min average / 72 mils min at any point |
| Insulation Thickness — 1001–2000 kcmil | 95 mils min average / 86 mils min at any point |
| Typical Use | Motor leads or internal wiring of appliances (alambre para motor industrial) |
| Optional Marking | 2,500 V Peak — For Electronic Use Only |
| Available Colors | Black, white, red, yellow, green, blue, brown (custom on request) |
| Standard Spool Length | 100 m / 200 m / 305 m |
| MOQ | Contact for quote — consultar cotización |
Motor Lead Applications — Alambre para Motor Industrial en México
Style 3271’s 600V / 125°C XLPE construction serves the full range of industrial motor lead applications across México’s manufacturing and process industry sectors:

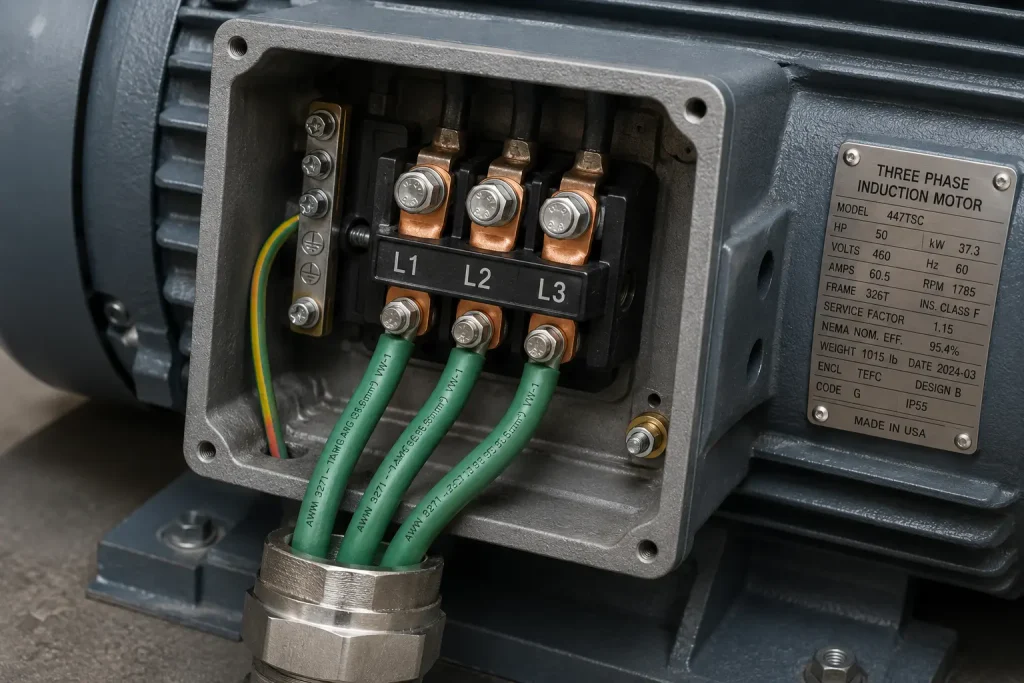

- Three-phase induction motor terminal leads — stator winding terminal connection leads in NEMA and IEC frame three-phase induction motors manufactured and rebuilt across Monterrey’s industrial motor rewinding and manufacturing sector, where 380V and 480V three-phase supply voltages demand 600V-rated lead wire and sustained motor winding temperatures at full load demand 125°C thermal rating at the terminal connection point.
- Variable frequency drive output motor leads — the section of motor lead wiring between VFD output terminals and motor terminal boxes in automated manufacturing equipment across Aguascalientes’ automotive body assembly and stamping operations, where VFD switching transients generate voltage spikes significantly above the nominal bus voltage and where the optional semi-conductive layer provides additional insulation stress protection at the conductor interface.
- Heavy industrial pump motor leads — main power lead connections for large centrifugal pump motors in water treatment plants, mining dewatering systems, and industrial process fluid handling operations across Baja California Sur’s mining and infrastructure sectors, where large-frame motors draw sustained high current at elevated winding temperatures and require both 600V insulation integrity and 125°C thermal capability at the motor terminal block.
- Compressor motor winding leads in refrigeration systems — terminal lead wiring for large semi-hermetic and open-type compressor motors in industrial refrigeration systems used in México’s cold chain logistics and food processing industries, where 600V motor supply voltage and sustained compressor motor winding temperatures create the combined thermal-voltage stress condition that Style 3271 is specifically engineered to handle.
Engineering Notes — Semi-Conductive Layer and VFD Motor Lead Considerations

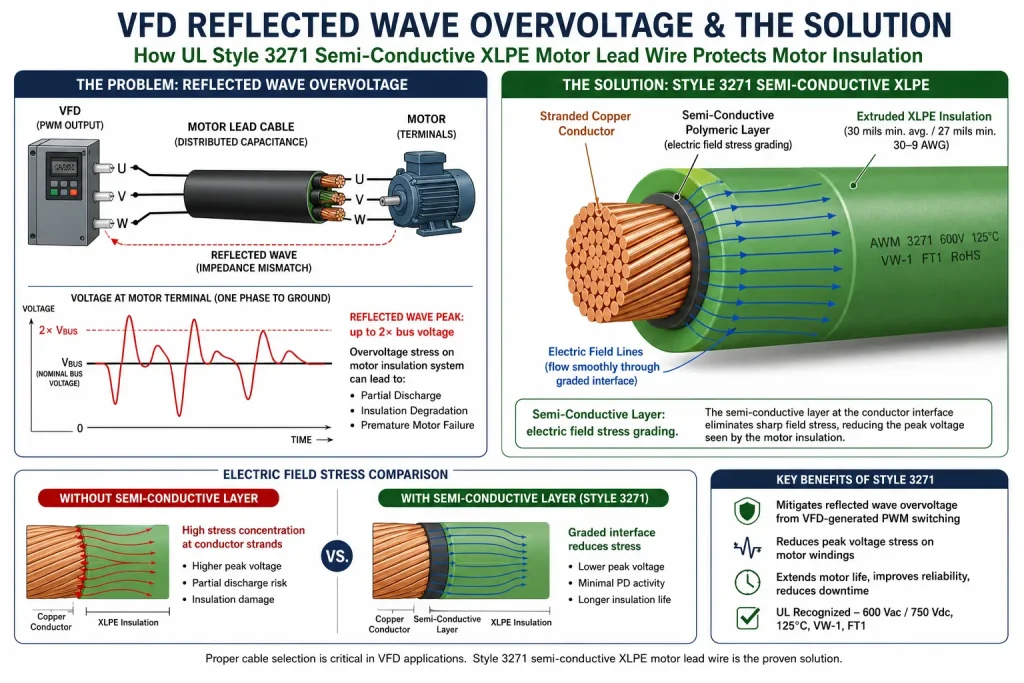

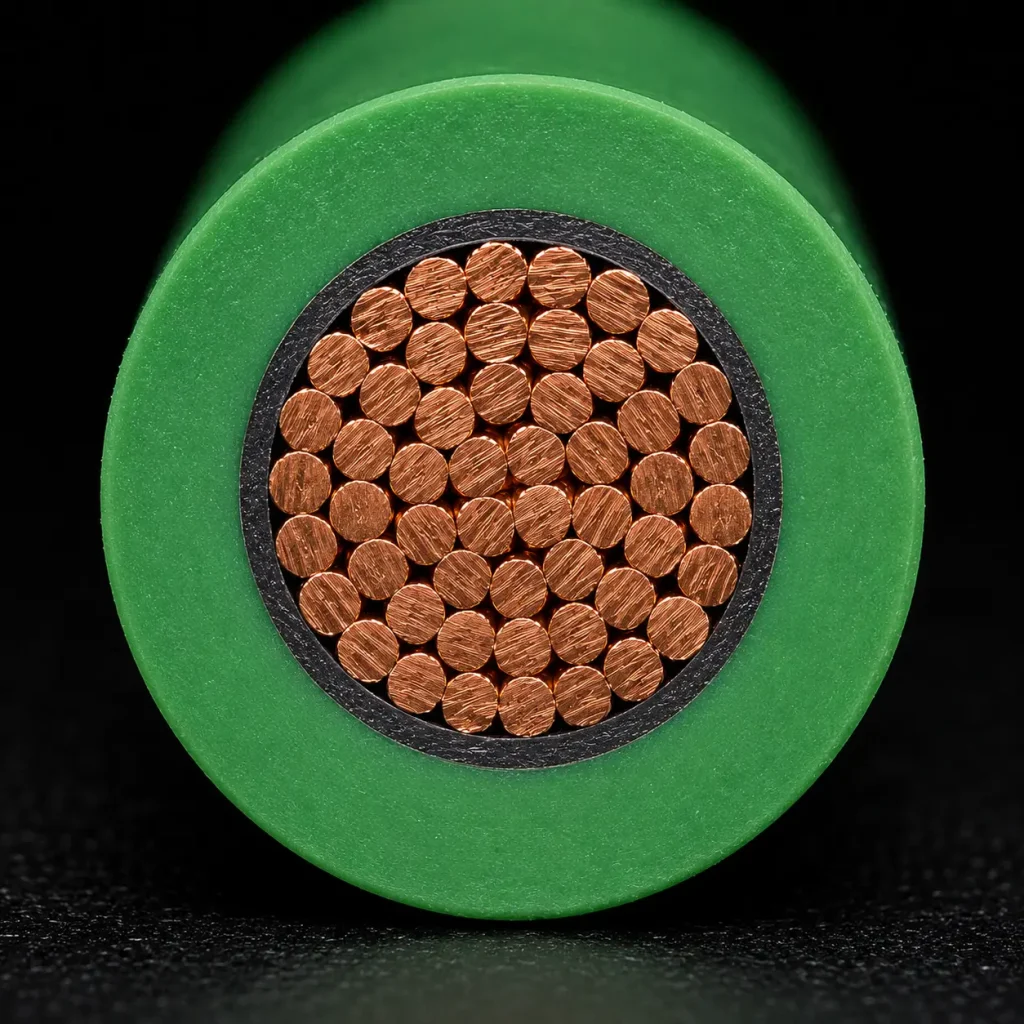

What the semi-conductive layer does: The optional semi-conductive polymeric layer applied over the conductor — between the conductor surface and the XLPE insulation — serves as an electrical stress-grading layer. At the conductor-insulation interface, microscopic air voids and surface irregularities create localized electric field concentrations that can initiate partial discharge activity under high-voltage stress. The semi-conductive layer fills these surface irregularities with a controlled-resistivity material that smooths the electric field gradient at the interface, reducing partial discharge inception and extending insulation service life under sustained electrical stress. This is the same principle used in medium-voltage power cable construction — applied here in the AWM motor lead wire context.
VFD-fed motor installations and insulation stress: Motors driven by variable frequency drives experience voltage transients at the motor terminal that significantly exceed the nominal DC bus voltage — a phenomenon known as reflected wave overvoltage. In a 480V VFD system, reflected wave peaks at the motor terminal can reach 900–1200V depending on cable length and VFD switching speed. Style 3271 at 600V rating with the optional semi-conductive layer provides the most robust insulation system available in the UL AWM wire family for VFD output motor lead applications — though for installations where reflected wave analysis indicates peak voltages consistently exceeding 600V, additional mitigation measures such as output reactors or dV/dt filters should be specified at the drive system level.

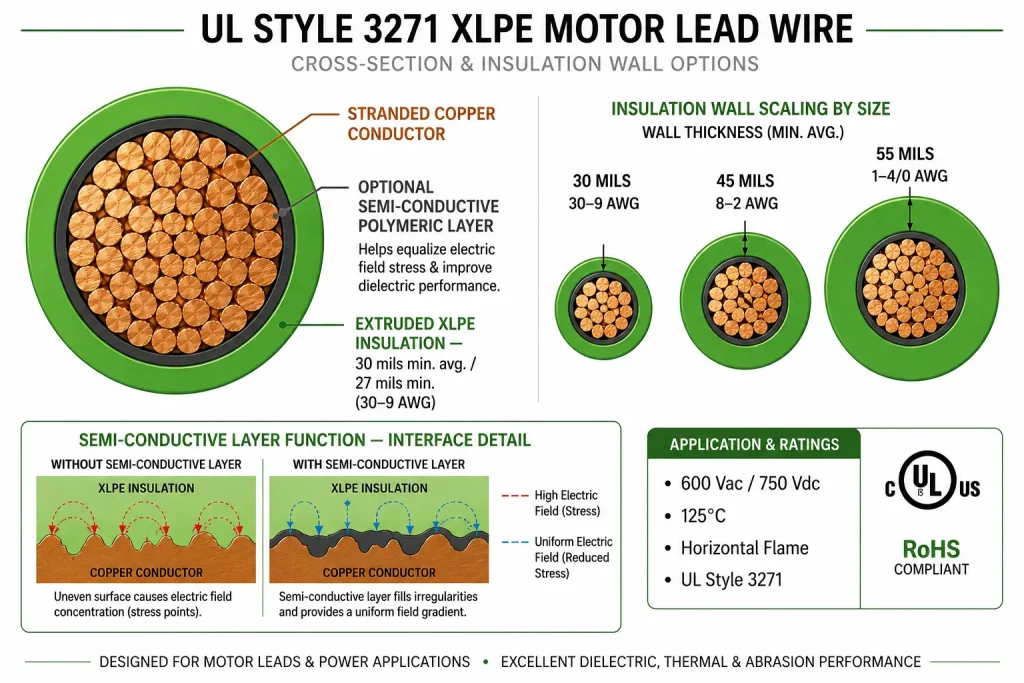

Scaled insulation wall across AWG range: Unlike Style 3266 where the 15-mil wall is uniform across the full certified range, Style 3271 scales the XLPE insulation wall proportionally with conductor size — from 30 mils at 30–9 AWG up to 95 mils at 1001–2000 kcmil. This scaling maintains dielectric integrity at 600V across the complete conductor size range. When specifying Style 3271 for heavy-gauge motor lead applications above 4/0 AWG, confirm the scaled insulation wall dimensions against motor terminal lug bore sizing to ensure mechanical compatibility at the termination point.
750 Vdc rating for DC motor and converter applications: The 750 Vdc rating qualifies Style 3271 for internal lead wiring in DC motor drives, battery storage systems, and DC-coupled renewable energy converters — application categories expanding rapidly across México’s industrial and commercial construction sectors. At heavy gauges in the kcmil range, Style 3271 is one of the few UL AWM wire styles offering both 750 Vdc rating and 125°C thermal capability in a single certified construction.
Related UL Styles for Comparison
UL 3271 motor lead buyers commonly cross-reference: UL 3266 (125°C / 300V XLPE, same temperature class at lower voltage for single-phase and low-voltage motor lead applications), UL 3321 (150°C / 600V XLPE, higher temperature motor lead for Class F and Class H insulation system motor applications), UL 1015 (80–105°C / 600V PVC, standard voltage class at lower temperature rating for general appliance internal wiring), and UL 3666 (105°C / 600V XLPE, intermediate temperature alternative at same voltage class).
Request a Quote — Solicitar Cotización
Submit your AWG, semi-conductive layer requirement, color, spool format, and annual volume estimate below. Our bilingual team responds with a formal cotización within 24 business hours. Wire samples available for motor qualification testing upon request.
