UL 3271 XLPE Motor Lead Wire Poland — 125°C / 600V for Wrocław & Gdańsk EMS and Drive Systems
Polish EMS manufacturers and industrial equipment exporters producing three-phase motor-driven equipment for North American OEM customers face a specific internal wiring compliance requirement: motor lead wire connecting stator winding terminals to the motor terminal box must carry UL AWM recognition under UL Subject 758. Style 3271 — rated 125°C and 600 Vac with XLPE insulation — is the correct UL AWM specification for this application, covering the thermal and voltage demands of three-phase motor lead wiring in industrial drives, heat pumps, compressors, and automated manufacturing equipment assembled in Poland for export to U.S. and Canadian markets.
There is no local UL AWM wire manufacturer in Poland. Polish EMS factories and motor equipment assemblers must import UL-recognized motor lead wire — and CableApex supplies Style 3271 directly from Yangzhou with complete UL documentation, 12-hour quote response, and 100-meter minimum orders matched to the procurement scale of Poland’s contract manufacturing sector.
Technical Specifications — UL Style 3271
| Parameter | Value |
|---|---|
| UL Style | 3271 |
| UL Subject | 758, Section 3 |
| Temperature Rating | 125°C |
| Voltage Rating | 600 Vac / 750 Vdc |
| Flame Rating | Horizontal flame |
| AWG Range | 30 AWG – 2000 kcmil, solid or stranded |
| Conductor | Solid or stranded copper |

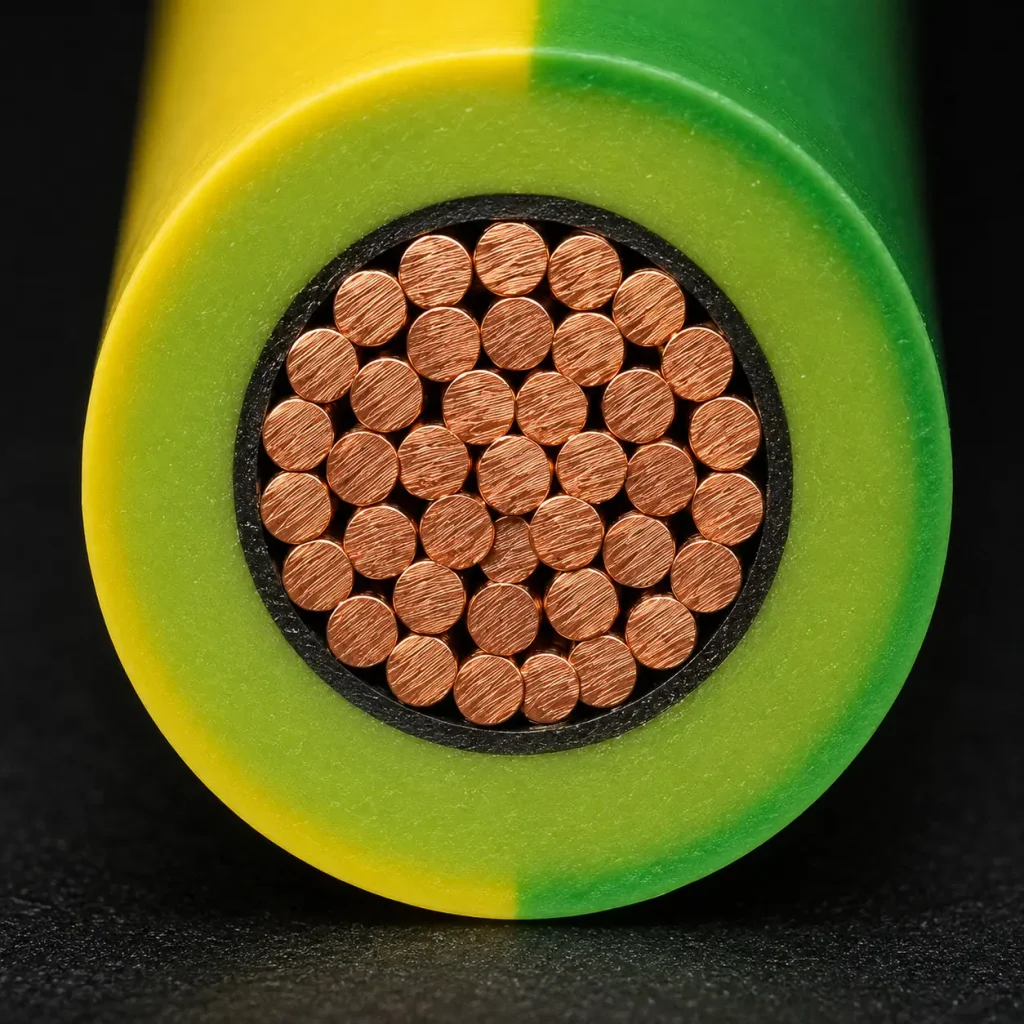

| Optional Layer | Semi-conductive polymeric layer over conductor |
| Insulation Material | Extruded XLPE |
| Insulation — 30–9 AWG | 30 mils min average / 27 mils min at any point |
| Insulation — 8–2 AWG | 45 mils min average / 40 mils min at any point |
| Insulation — 1–4/0 AWG | 55 mils min average / 50 mils min at any point |
| Typical Use | Motor leads or internal wiring of appliances |
| Optional Marking | 2,500 V Peak — For Electronic Use Only |
| UL Recognition | UL Recognized Component — file on record |

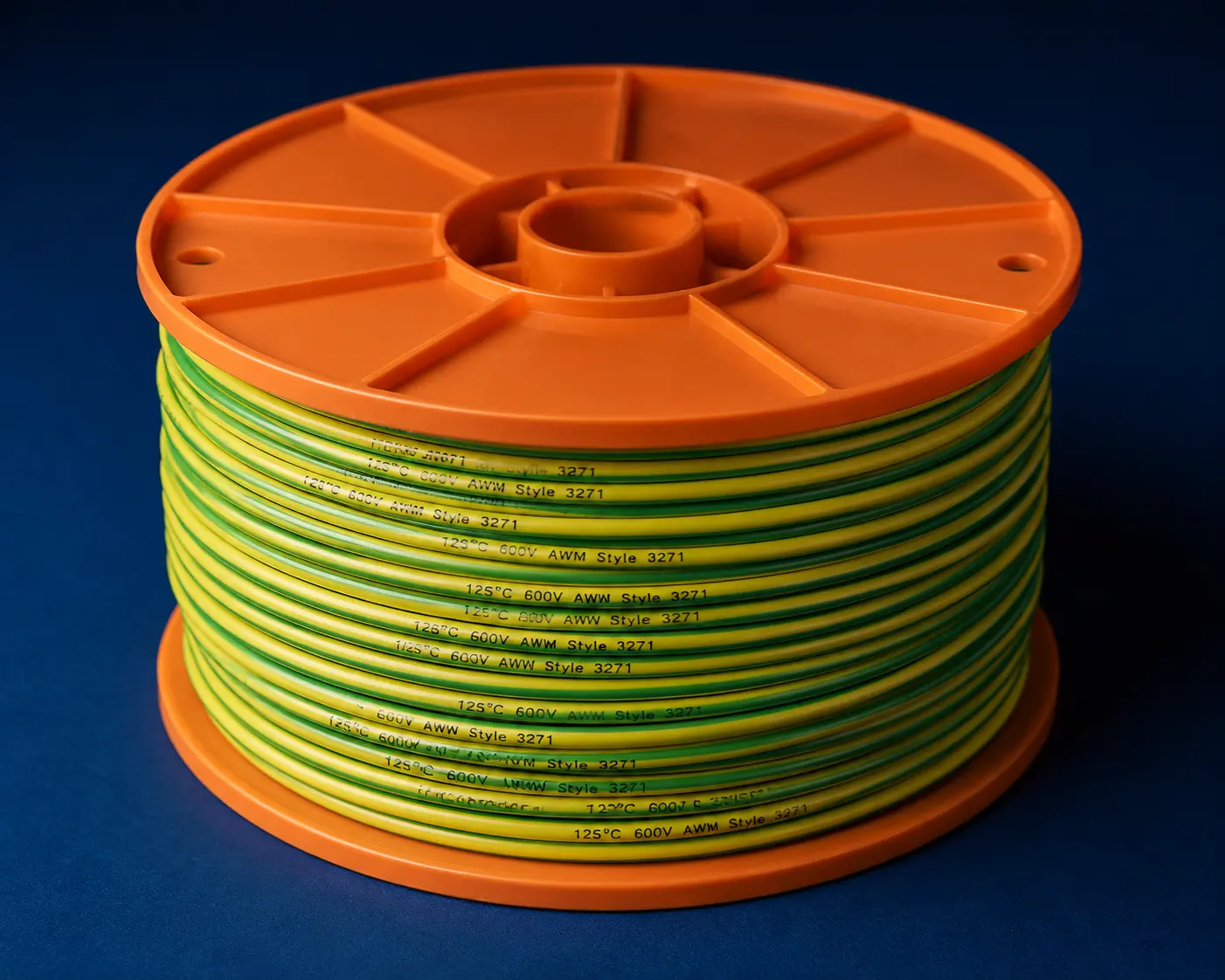

| MOQ | 100 meters per AWG / color |
| Quote Response | 12 hours |
Poland Motor Equipment Export — Why UL 3271 Is the Required Specification
Poland’s industrial equipment manufacturing sector has expanded significantly as a hub for contract manufacturing of motor-driven equipment destined for North American markets — heat pumps, compressors, industrial fans, conveyor drives, and automated manufacturing equipment assembled in Wrocław, Gdańsk, and Katowice for U.S. and Canadian OEM customers. When these products carry UL product certification, the motor lead wire inside the motor terminal box must be traceable to a UL Recognized Component under UL Subject 758.
Style 3271 is specifically certified as motor lead wire — the UL use description explicitly states “for use as motor leads or internal wiring of appliances.” This explicit motor lead certification simplifies compliance documentation for Polish manufacturers: the wire’s UL recognition directly matches the application in the finished product’s UL certification file, without the interpretation questions that arise when a general-purpose AWM wire is specified for motor lead applications.
For Polish heat pump manufacturers in particular — a sector growing rapidly in response to EU heating decarbonization policy — compressor motor lead wiring must satisfy both the European equipment standard requirements and the North American UL requirements when heat pumps are exported to the U.S. market. UL 3271 at 125°C and 600V covers the compressor motor terminal lead specification for the majority of residential and light commercial heat pump compressor motor designs.
Motor Lead Applications for Polish Buyers
- Three-phase induction motor terminal leads for EMS export — stator winding terminal connection leads in NEMA and IEC frame three-phase induction motors assembled by Polish EMS companies for North American OEM customers across industrial automation, HVAC, and commercial equipment categories, where 600V-rated UL AWM motor lead wire is required throughout the motor terminal connection wiring.

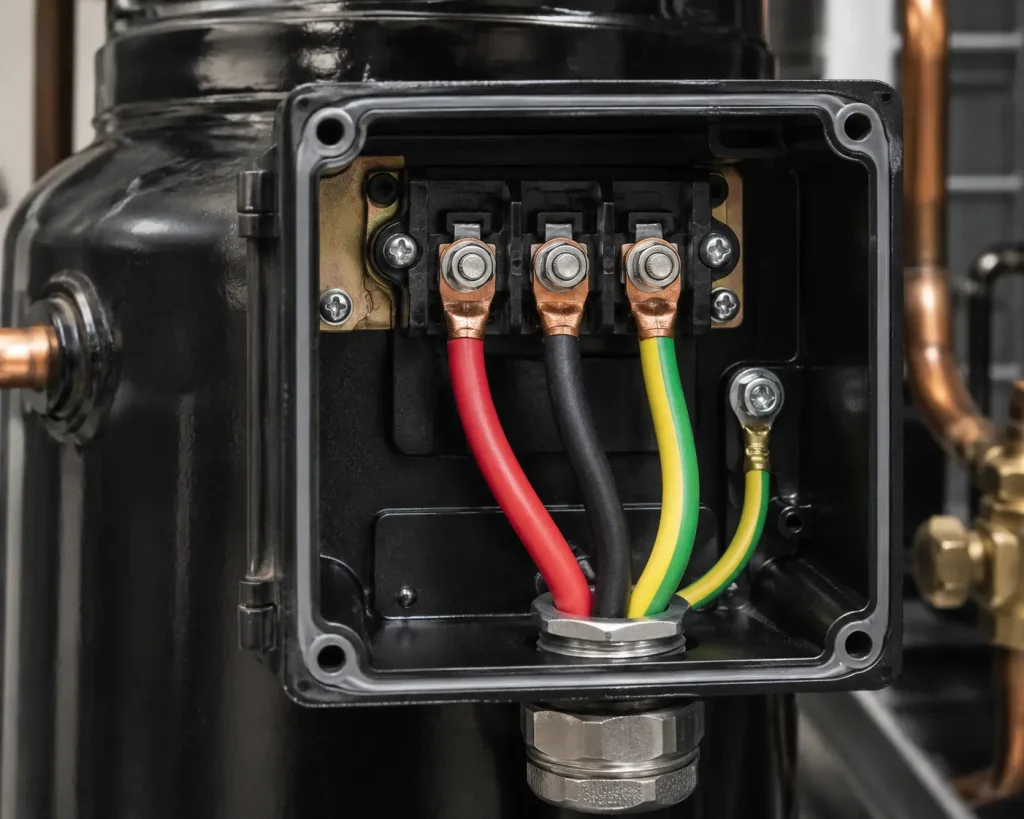

- Heat pump compressor motor leads — terminal lead wiring for hermetic and semi-hermetic compressor motors in heat pump units assembled in Poland for export to North American markets, where compressor motor winding temperatures under continuous duty reach 110–120°C and the 125°C thermal rating of Style 3271 provides the required safety margin at the motor terminal connection point.
- Variable frequency drive output motor leads — the motor lead section between VFD output terminals and motor terminal boxes in automated manufacturing equipment and conveyor drive systems assembled across Wrocław’s technology manufacturing corridor, where VFD switching transients generate voltage spikes above nominal bus voltage and the optional semi-conductive layer of Style 3271 provides additional insulation stress protection at the conductor interface.
- Industrial fan and pump motor lead replacement — motor rewinding operations and maintenance contractors across Poland’s industrial zones in Katowice and Gdańsk require UL-recognized motor lead wire in small quantities for Class F and Class H motor winding repair where the finished motor will be reinstalled in North American market equipment requiring UL component traceability in the service documentation.
Engineering Notes — UL 3271 vs UL 3266 for Polish Motor Applications

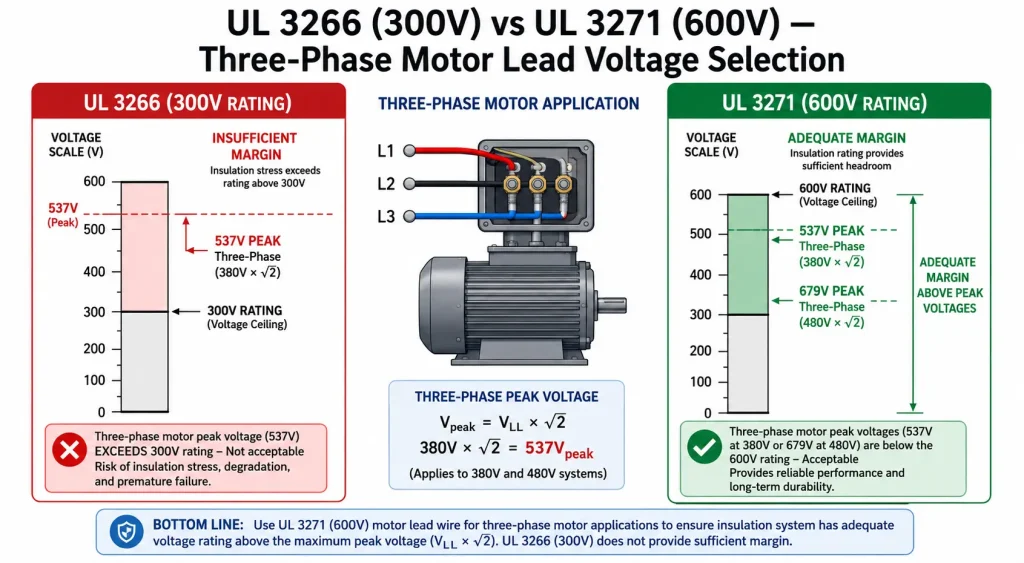

Voltage rating determines the correct style: Polish engineers specifying UL XLPE motor lead wire must select between Style 3266 (125°C / 300V) and Style 3271 (125°C / 600V) based on the motor supply voltage. For three-phase 380V and 480V motors — the standard industrial motor voltages in both Polish and North American markets — peak line voltage reaches 537V and 679V respectively. Style 3266 at 300V does not provide adequate safety margin for 380V or 480V three-phase applications. Style 3271 at 600V is the correct specification for all standard three-phase industrial motor lead applications in the Polish export manufacturing context.

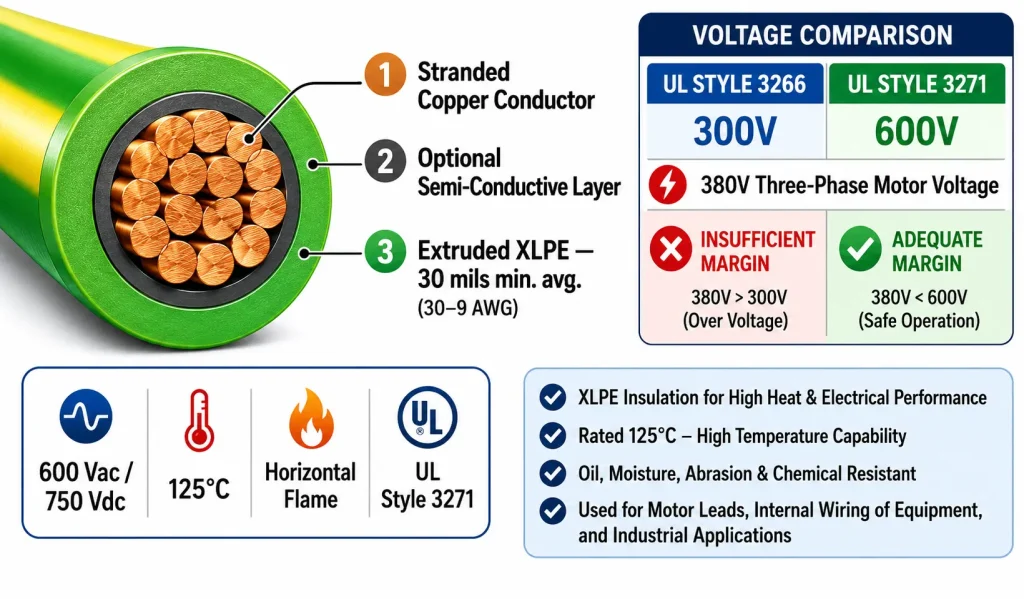

Semi-conductive layer for VFD-fed motors: The optional semi-conductive polymeric layer over the conductor in Style 3271 provides electrical stress grading at the conductor-insulation interface — the same principle used in medium-voltage power cable construction. For motors driven by variable frequency drives, where switching transients generate voltage peaks significantly above nominal bus voltage at the motor terminal, specifying the semi-conductive layer option provides the most robust insulation system available in the UL AWM motor lead wire family for VFD-fed motor applications.
750 Vdc rating for DC motor and inverter applications: The 750 Vdc rating of Style 3271 qualifies it for internal lead wiring in DC motor drives, battery storage systems, and DC-coupled renewable energy systems — application categories relevant to Poland’s growing renewable energy equipment manufacturing sector. At heavy gauges in the kcmil range, Style 3271 is one of the few UL AWM wire styles offering both 750 Vdc rating and 125°C thermal capability in a single certified construction.
Request a Quote — Poland Motor Lead Wire Supply
Submit your AWG, semi-conductive layer requirement, color, spool format, and annual volume estimate below. Our team responds with a formal quotation within 12 business hours. Free 10-meter wire samples available for motor qualification testing. CIF Hamburg and FOB Shanghai shipping terms available for Polish buyers.
