The UL-Designated Motor Lead Style — Why UL 3271 Matters
Among the 26 AWM Styles produced by CableApex under UL File No. E333030, only one carries the explicit UL Subject 758 designation “For use as Motor Leads” in addition to general internal wiring use. That Style is UL 3271. German engineers searching UL 3271 600V XLPE Motorleitung Deutschland are working with the AWM Style that UL itself identifies as the appropriate choice for motor lead applications — not a Style being repurposed from internal wiring duty.
This designation matters in two practical ways:
- Compliance documentation simplicity. When the end-product motor undergoes UL evaluation, specifying UL 3271 as the motor lead requires no additional justification. Specifying UL 3266 (which is listed only for “Internal Wiring”) for the same role may invite UL evaluator questions about appropriate use.

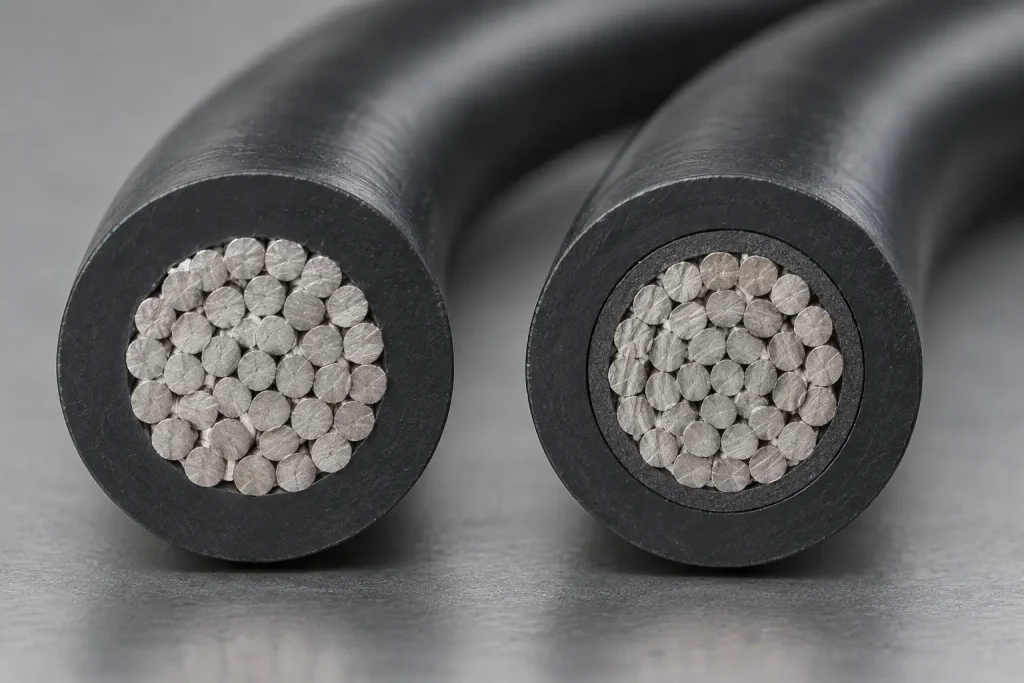

- Construction features designed for motor applications. UL 3271 includes an optional semi-conductive polymeric layer over the conductor — a feature absent from UL 3266 — which addresses corona discharge and partial discharge concerns in motors fed by VFDs (variable-frequency drives) or operating at higher voltages.
UL 3271 Voltage and Temperature — Why XLPE at 600V AC / 750V DC
UL 3271 carries a 600V AC and 750V DC continuous voltage rating with a 125°C temperature rating, plus an optional “2,500V peak — for electronic use only” tag designation. The combination is specifically tuned for North American industrial motor applications:
- 600V AC covers 480V three-phase industrial supply (the dominant industrial voltage class in North America) with safety margin per UL 1004 motor standards and NEC 430 motor branch circuit requirements.
- 750V DC covers DC industrial motor applications, battery-powered traction motors, and DC bus connections in industrial drives.

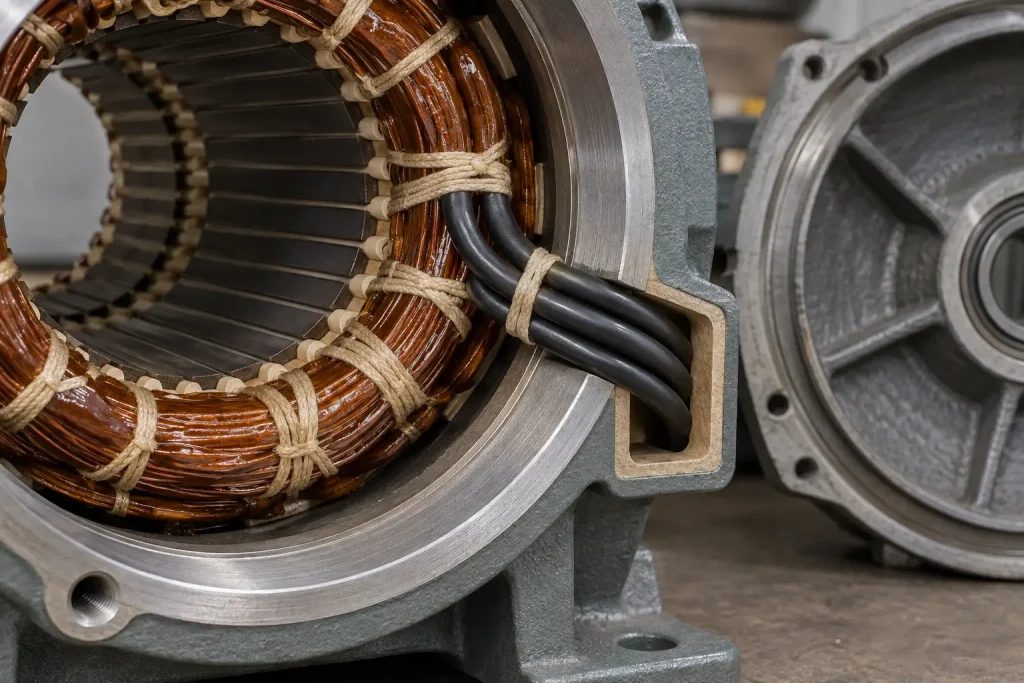

- 125°C XLPE handles motor stator and lead-exit zone temperatures during continuous operation. The thermoset cross-linked structure of XLPE — unlike thermoplastic PVC — does not soften or flow during transient over-temperature events, providing safety margin for motor stall, locked-rotor, and thermal protection scenarios.
- 2,500V peak rating covers the voltage spike envelope from VFD-driven motors where PWM switching transients can briefly exceed steady-state voltage by 2-4x at the motor terminals.
Three Real German Motor Applications for UL 3271
Case 1 — 480V Three-Phase Servo Motor for CNC Machine Export (5.5 kW)
A German Maschinenbau OEM produces CNC machining centers for North American shops. The spindle servo motor is 480V three-phase, 5.5 kW continuous (~9A line current). Stator winding temperature reaches 110°C at full load. Motor is fed by a regenerative VFD with PWM switching at 4 kHz.
Specification: UL 3271 with optional semi-conductive layer, 14 AWG (sufficient for 9A at 125°C), stranded tinned copper. The semi-conductive layer addresses partial discharge concerns at the conductor-insulation interface caused by VFD switching transients. UL 3271 is the correct choice; UL 3266 at 300V would be voltage-disqualified.
Case 2 — 480V Three-Phase Pump Motor for Industrial Water Treatment (15 kW)
A German pump manufacturer produces industrial process pumps for chemical and water treatment plants. The pump motor is 480V three-phase, 15 kW (~22A line current). Direct-line operation, no VFD, ambient cabinet temperature inside the pump enclosure reaches 95°C.
Specification: UL 3271 without semi-conductive layer (no VFD application requiring it), 10 AWG stranded tinned copper. Standard XLPE construction at 30 mils (0.76 mm) minimum average wall provides 600V AC dielectric performance with 125°C temperature margin over the 95°C cabinet ambient.
Case 3 — 600V DC Battery-Powered Industrial AGV Drive Motor (10 kW)
A German automated guided vehicle (AGV) manufacturer produces industrial logistics AGVs for US warehouse applications. The drive motor is 600V DC fed from a lithium-ion battery pack, 10 kW continuous (~17A). Motor housing temperature reaches 105°C during continuous duty cycles.
Specification: UL 3271 12 AWG stranded tinned copper. The 750V DC voltage rating covers the 600V DC battery system with margin for regenerative braking transients. UL 3266 at 300V would be voltage-disqualified for this DC bus voltage.
UL 3271 Specifications
| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 3271 |
| UL File Number | E333030 (Follow-Up Service) |
| UL Designated Use | Motor Leads or Internal Wiring of appliances |

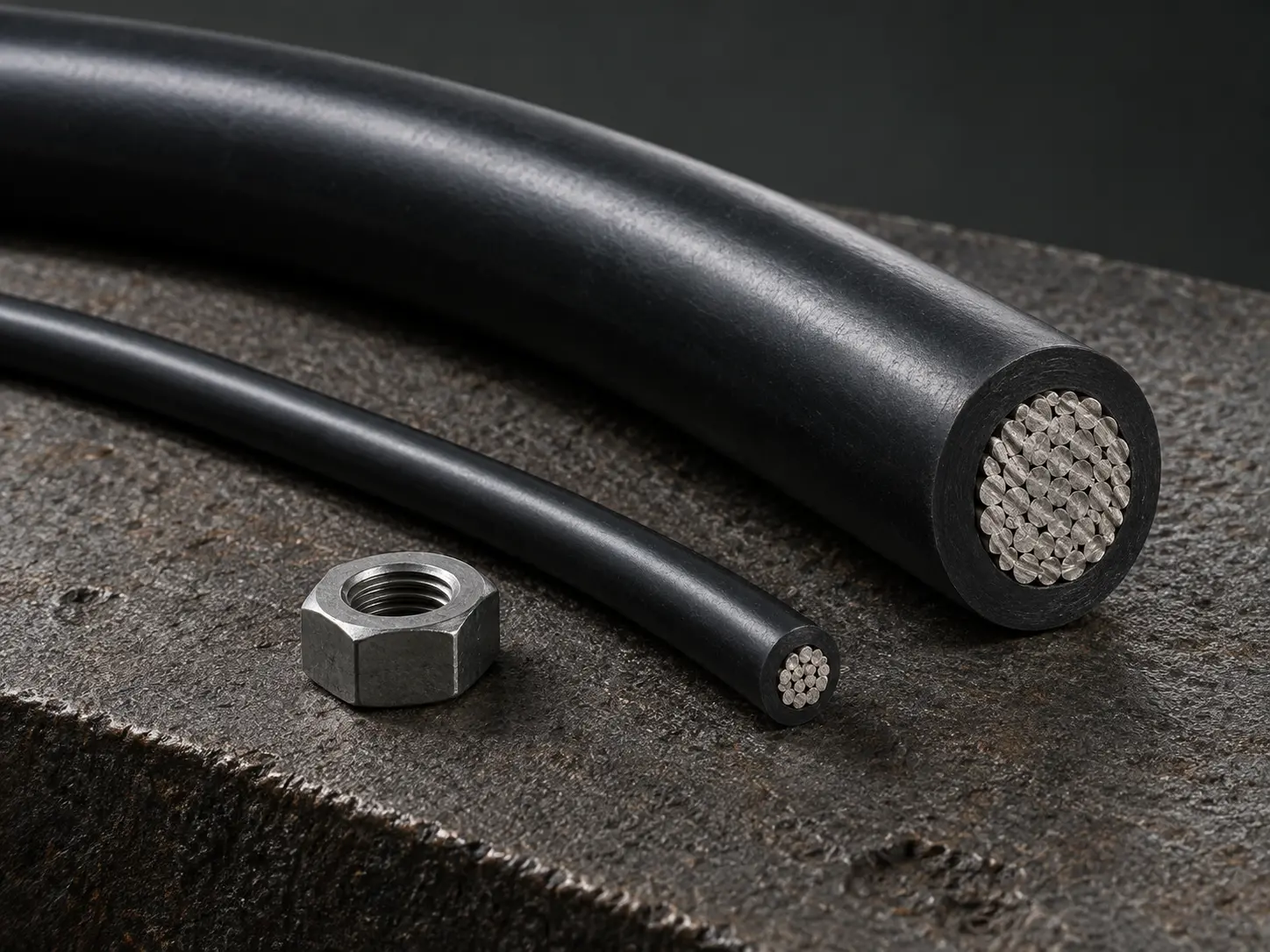

| AWG Range | 30 AWG – 2000 kcmil, solid or stranded |
| Conductor Material | Bare or tinned copper, solid or stranded round |
| Voltage Rating | 600V AC / 750V DC (2,500V peak — for electronic use only, when tag indicates) |
| Temperature Rating | 125°C |
| Insulation | Extruded XLPE (cross-linked polyethylene) |

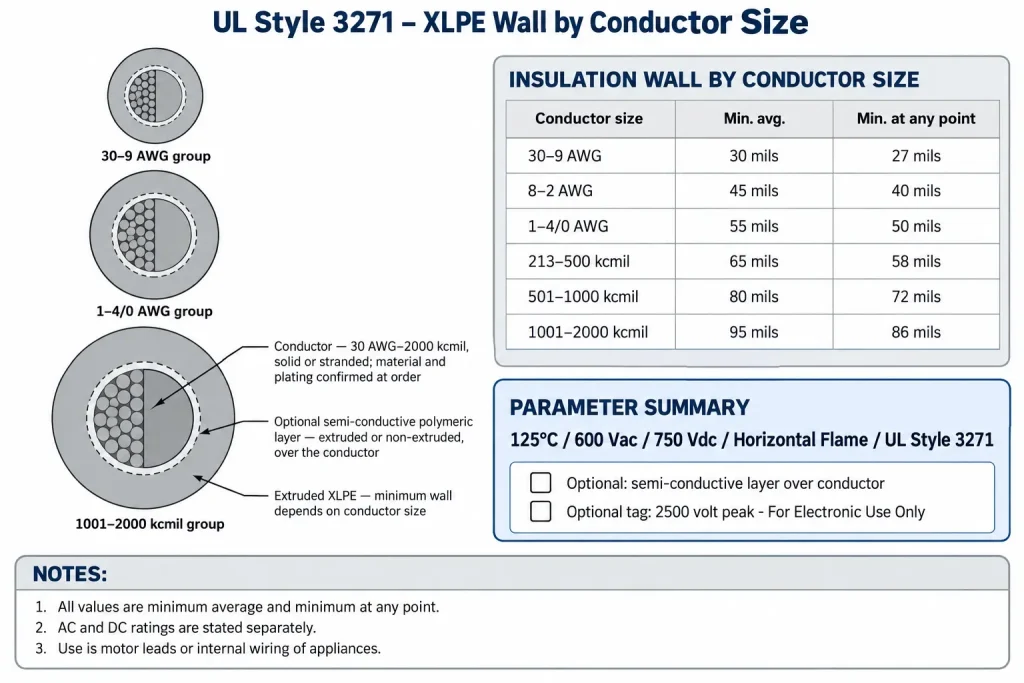

| Insulation Wall (30-9 AWG) | 30 mils (0.76 mm) min avg / 27 mils (0.69 mm) min at any point |
| Insulation Wall (8-2 AWG) | 45 mils (1.14 mm) min avg / 40 mils (1.02 mm) min at any point |
| Insulation Wall (1-4/0 AWG) | 55 mils (1.40 mm) min avg / 50 mils (1.27 mm) min at any point |
| Insulation Wall (213-500 kcmil) | 65 mils (1.65 mm) min avg / 58 mils (1.47 mm) min at any point |
| Insulation Wall (501-1000 kcmil) | 80 mils (2.03 mm) min avg / 72 mils (1.83 mm) min at any point |
| Insulation Wall (1001-2000 kcmil) | 95 mils (2.41 mm) min avg / 86 mils (2.18 mm) min at any point |
| Optional Feature | Extruded or non-extruded semi-conductive polymeric layer over conductor (for VFD/high-voltage motor applications) |
| Insulation Type | Thermoset (does not soften at elevated temperature) |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 3271 · AWG · 600V · 125°C · E333030 |
Engineering Notes from CableApex
Three points German motor OEM engineers raise specifically about UL 3271:
- “When do I need the semi-conductive polymeric layer option?” The semi-conductive layer is a UL 3271-specific option (UL 3266 does not offer it) that addresses corona discharge at the conductor-insulation interface. For motors fed by VFDs above 240V, the PWM switching transients create voltage stress concentrations at insulation discontinuities and conductor-strand peaks. The semi-conductive layer equalizes the electric field at the conductor surface, reducing partial discharge that would otherwise degrade the XLPE insulation over time. For direct-line 480V three-phase motors without VFD, the semi-conductive layer is generally not required. For VFD-fed motors above 240V, specify the semi-conductive layer option.
- “How does UL 3271 compare to NEMA MG-1 motor lead requirements?” NEMA MG-1 governs motor design and includes Part 31 specifically for definite-purpose inverter-fed motors. UL 3271 with semi-conductive layer satisfies the corona-resistance considerations addressed in NEMA MG-1 Part 31. For Part 30 (NEMA Premium efficiency motors not specifically inverter-rated), standard UL 3271 without semi-conductive layer is typically sufficient. CableApex provides the UL Recognition reference letter that supports motor manufacturers’ compliance documentation under either NEMA MG-1 part.
- “What’s the practical difference between 30 mils and 45 mils insulation wall on UL 3271?” UL 3271 specifies different minimum wall thicknesses by AWG range — 30 mils for 30-9 AWG, 45 mils for 8-2 AWG, increasing further for larger gauges. The wall thickness scales with conductor diameter to maintain dielectric strength as voltage stress concentrates differently at different conductor sizes. This is why UL 3271 wall is thicker than UL 3266 (which is 15 mils across its full 32-10 AWG range) — the higher voltage rating (600V vs 300V) requires greater dielectric thickness, and the broader AWG range (30 AWG to 2000 kcmil vs 32-10 AWG) requires graduated thickness specifications.
