Engineering Notes — The 8 AWG Wall Transition and High-Current Specification

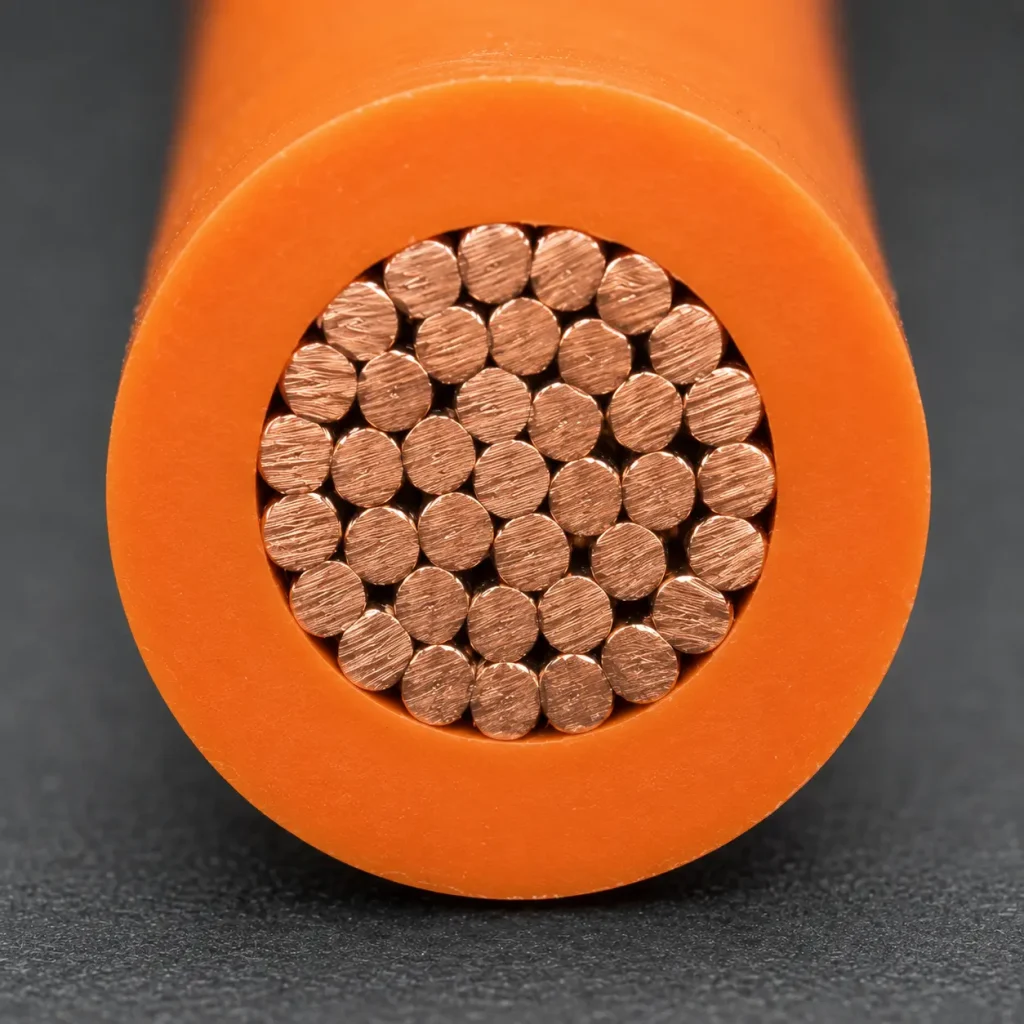

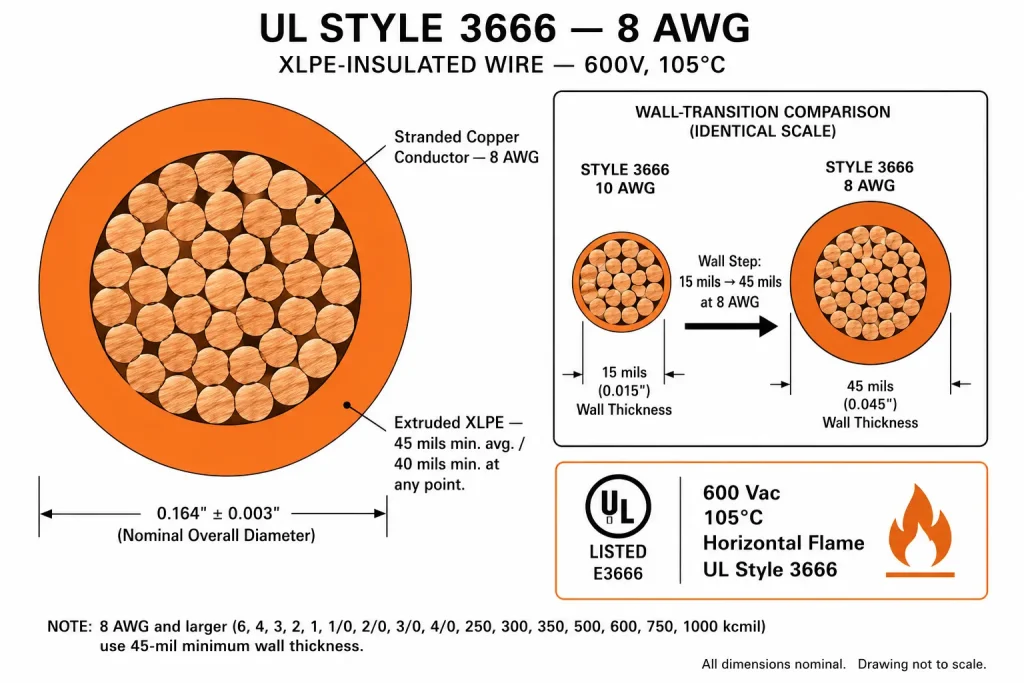

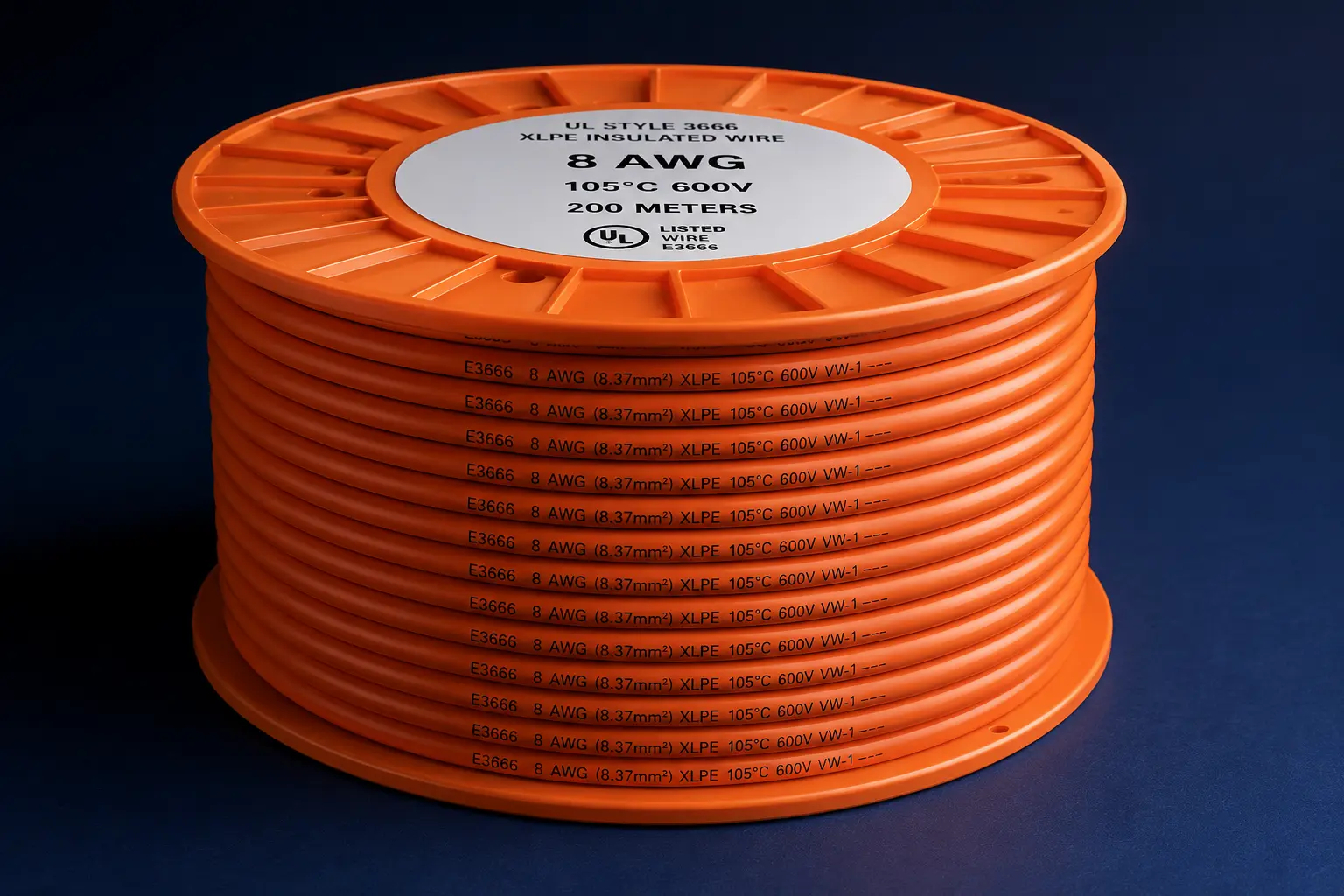

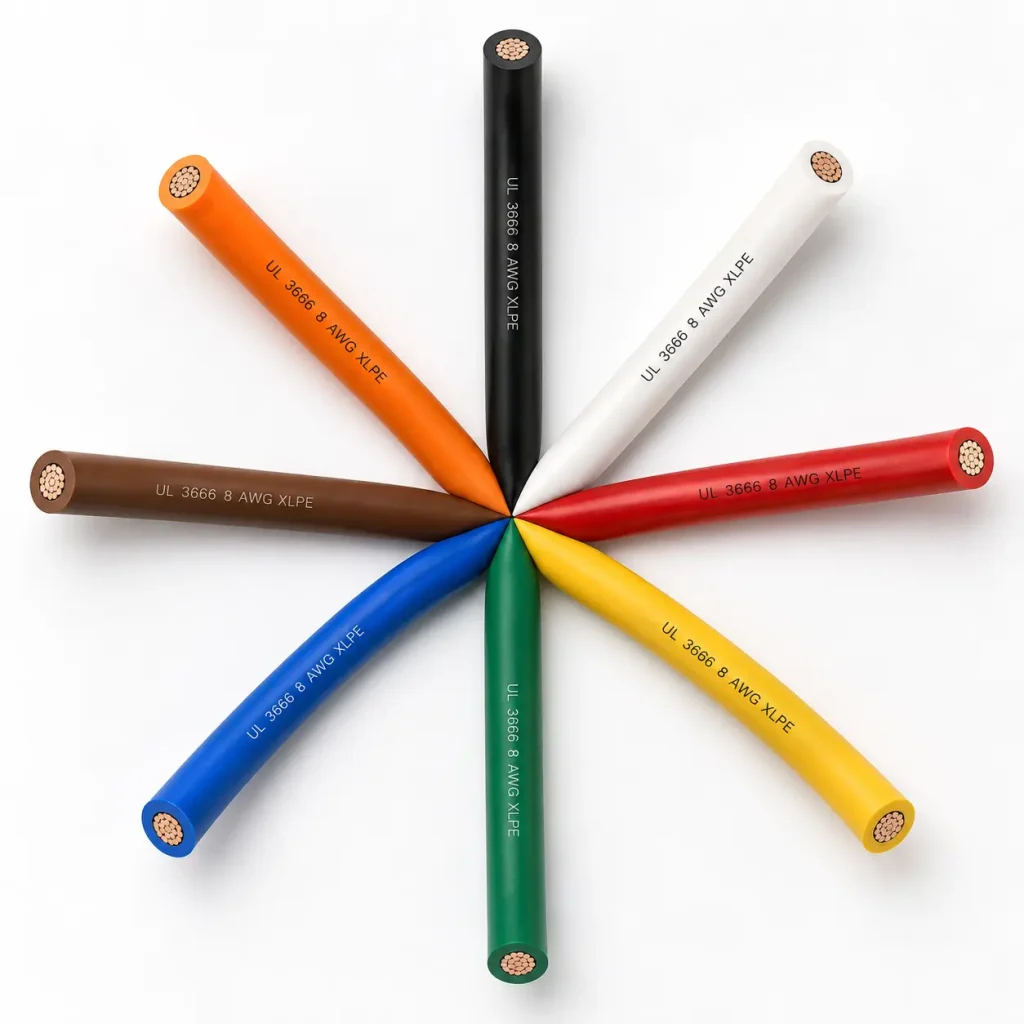

Wall step-up at 8 AWG — from 15 mils to 45 mils: The most significant specification transition within Style 3666 occurs at 8 AWG, where the insulation wall triples from 15 mils minimum average (32–10 AWG range) to 45 mils minimum average. This is not a gradual scaling — it is a discrete step reflecting a fundamental change in the insulation design philosophy at heavier gauges. Below 10 AWG, the thin-wall construction relies on XLPE’s high dielectric strength per unit thickness to achieve 600V rating in a compact profile. At 8 AWG and above, the wall thickness steps up to provide both dielectric integrity and the mechanical robustness needed when handling and terminating heavier conductors in industrial assembly and field installation environments. Factor this wall step-up into outer diameter calculations when transitioning from 10 AWG to 8 AWG builds within the same harness design.

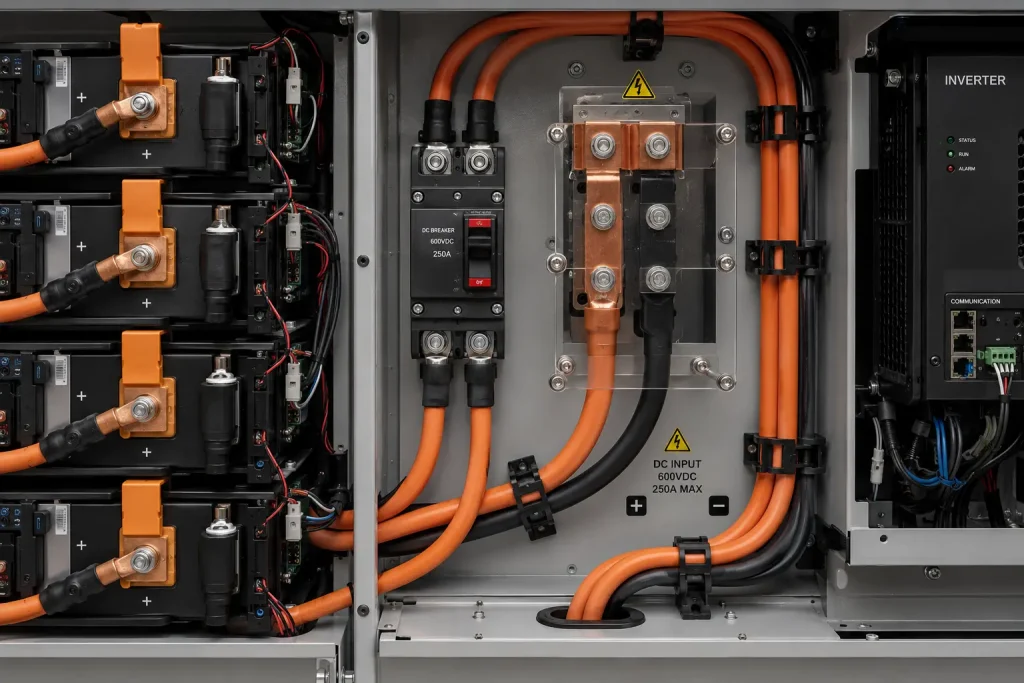

Current capacity at 8 AWG for solar and EV applications: UL 3666 8 AWG stranded copper carries approximately 40–50 A continuous in open-air conditions, derated appropriately for bundled installation inside sealed enclosures. In solar energy storage applications, 8 AWG handles the DC bus interconnect current between battery modules and inverter inputs at system voltages up to 600 Vdc — the 600V rating of Style 3666 directly aligns with the maximum DC bus voltage of many residential and light commercial battery storage systems. In Level 2 EV charging station internal wiring, 8 AWG at 600V handles the 32–40 A AC feed from the input breaker to the power electronics board inside the charging station enclosure.

XLPE vs. PVC at 8 AWG — environmental stability advantage: At 8 AWG where the wire may be routed near ventilation openings or in partially exposed positions within equipment enclosures, XLPE’s resistance to environmental stress cracking, moisture absorption, and UV degradation provides a long-term reliability advantage over PVC. In solar energy equipment deployed outdoors in México’s high-UV environments — Sonora’s desert solar farms, Querétaro’s industrial rooftop installations — XLPE insulation maintains its mechanical and dielectric properties over extended service life where PVC would show UV-induced brittleness and cracking at exposed wire surfaces.

Tinned copper option for DC bus connections: In solar energy storage and EV charging applications where wire terminations connect to busbar lugs and battery terminals using mechanical compression connections, bare copper is standard. However, in humid coastal environments — Sonora’s Gulf of California coast, Guanajuato’s inland humid zones — where battery terminal corrosion is a documented maintenance issue, the tinned copper conductor option provides a corrosion-resistant termination surface that maintains low contact resistance at battery and busbar connection points over multi-year service cycles.
