UL 5334 Composite Mica Glass Wire — 450°C 300V Oven Internal Wiring for German Heat Equipment Export

Composite Mica Glass — A Different Insulation Approach

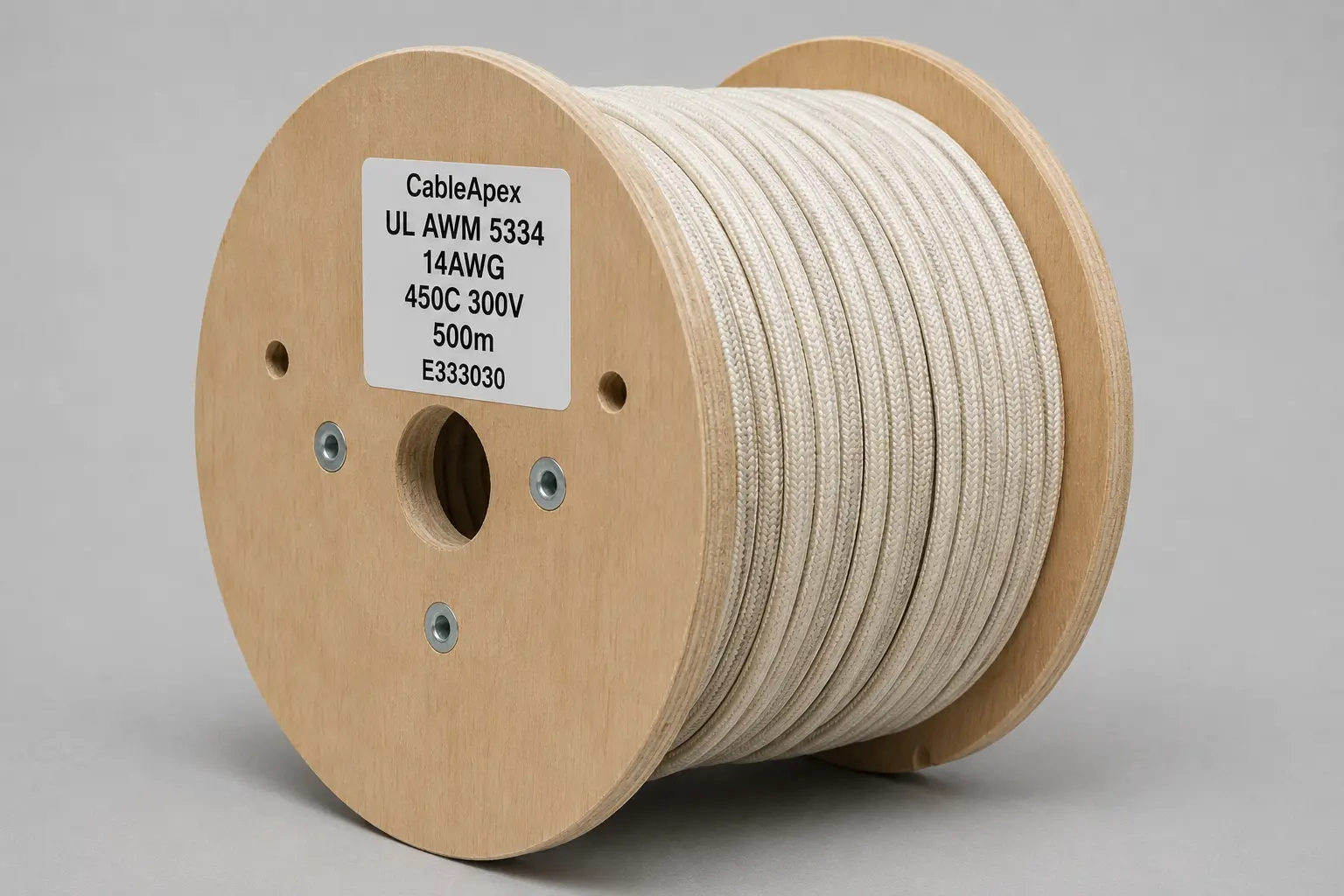

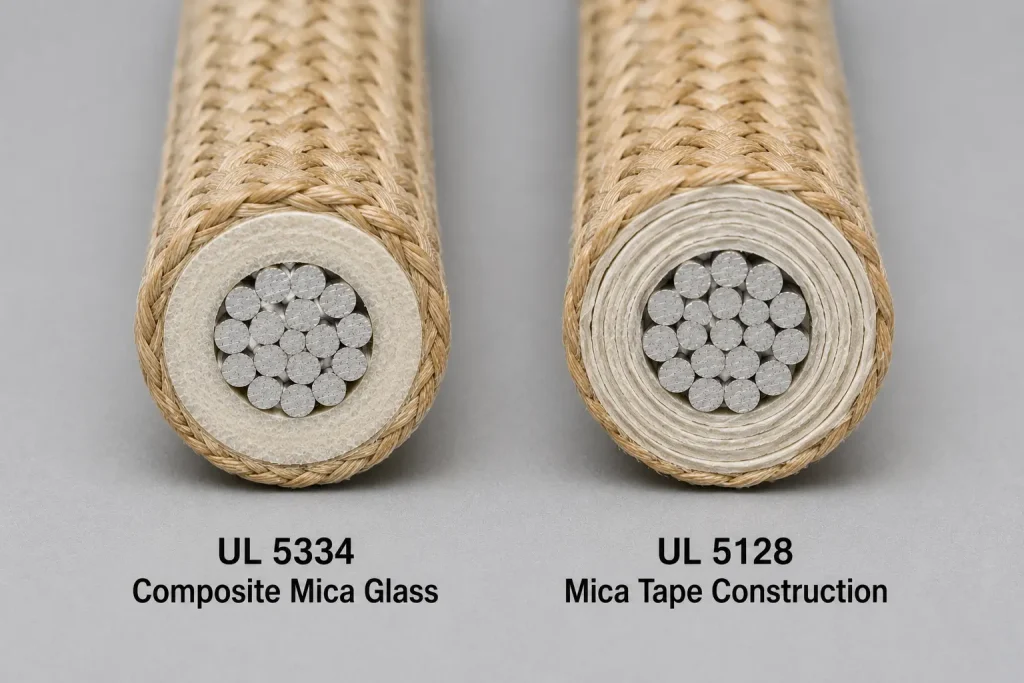

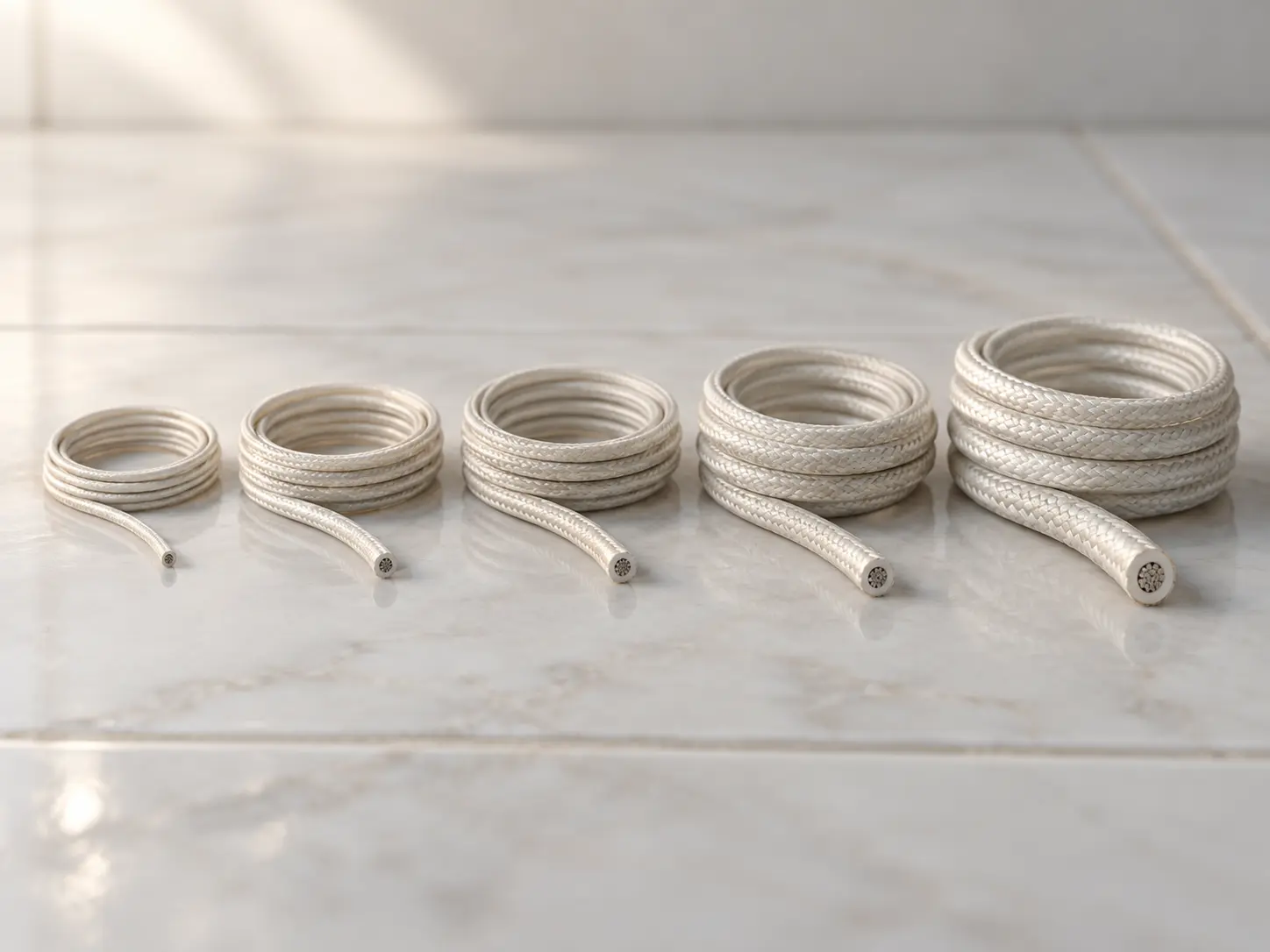

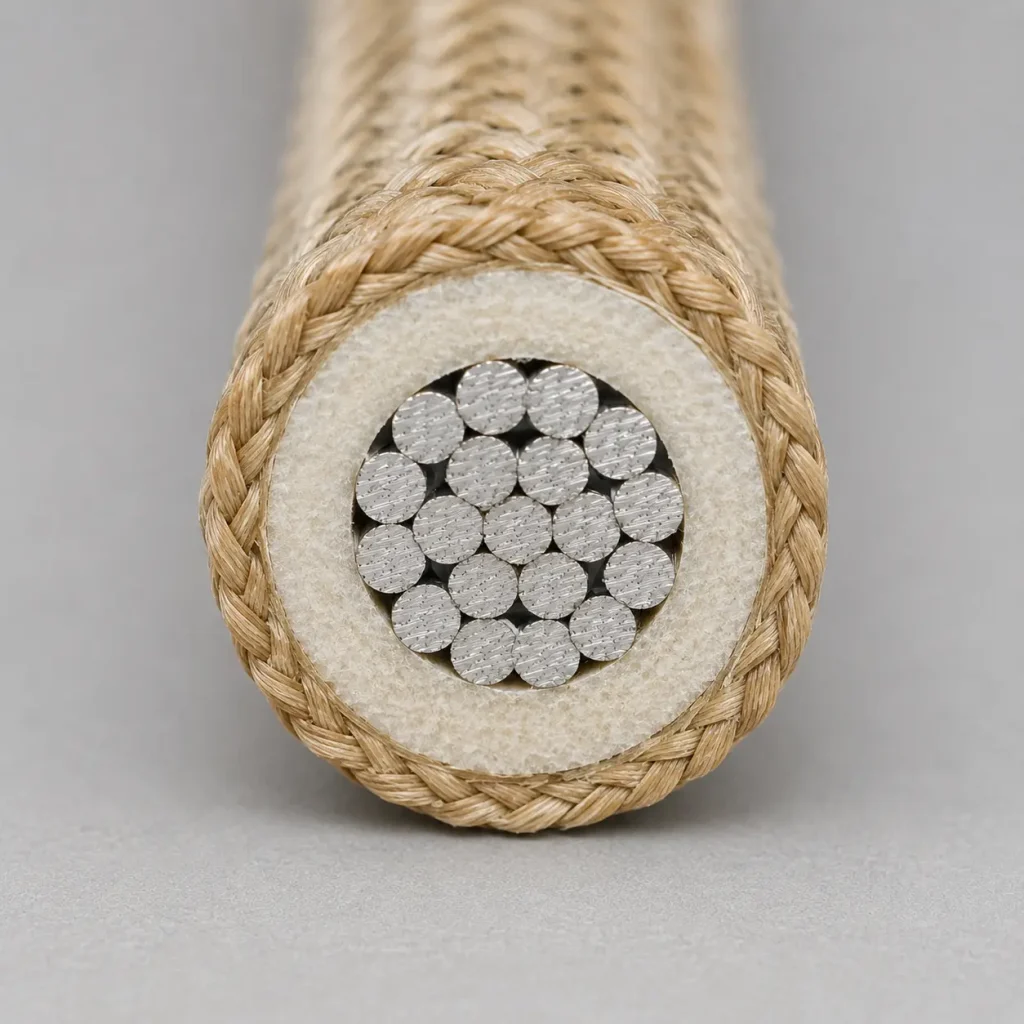

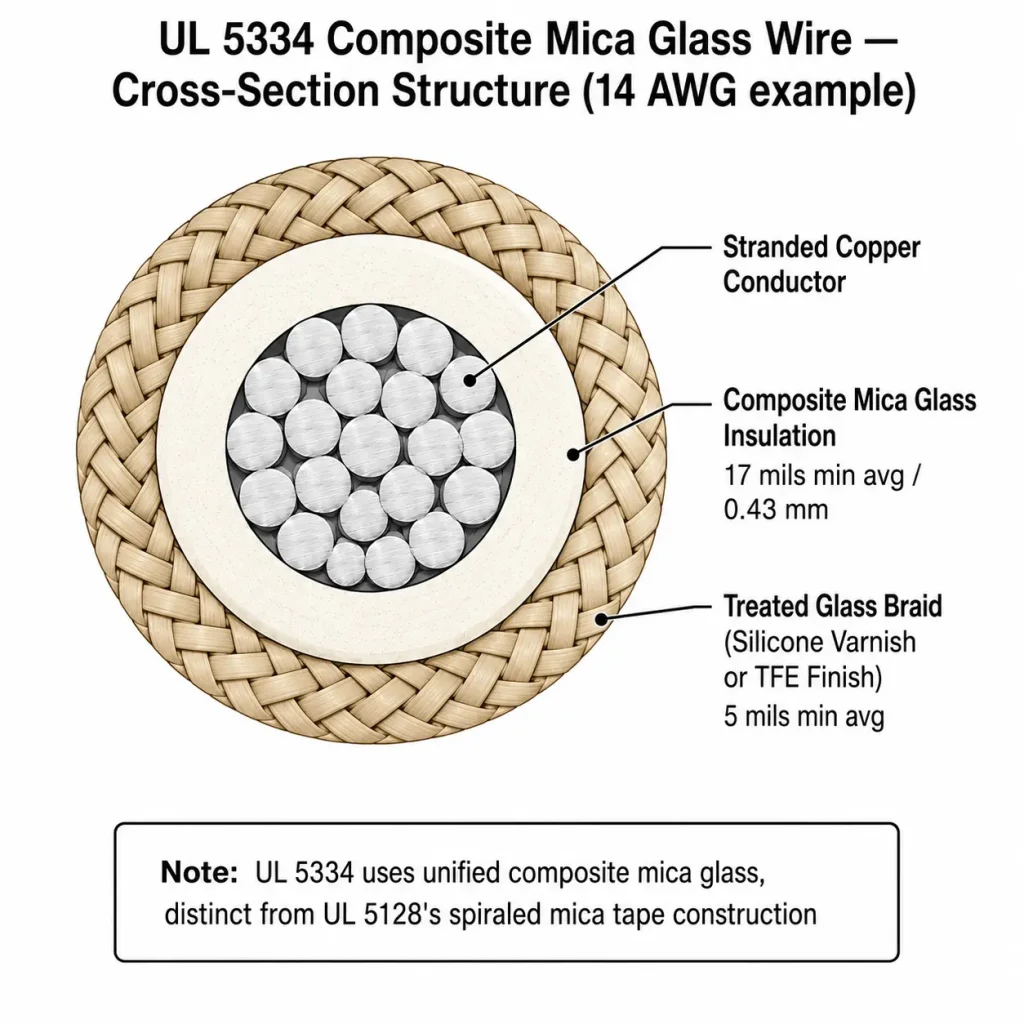

Among the mica-insulated UL Recognized Styles produced by CableApex under File E333030, UL 5334 uses a distinct insulation construction. Where UL 5107 and UL 5128 use mica tape spirally wrapped around the conductor (creating multiple discrete tape layers), UL 5334 uses composite mica glass — a unified mineral-glass composite material formed as a single insulation layer.

The technical difference matters in three ways:

Mechanical stability. Composite mica glass has no inter-layer interfaces that can shift, slip, or delaminate over thermal cycles. Mica tape constructions can develop microscopic layer shifts after thousands of heating cycles — for static installations this is acceptable, but for applications where thermal cycling stresses the insulation repeatedly, composite construction provides better long-term integrity.

Insulation uniformity. Tape-wrapped mica creates a slight spiral structure that, while electrically sound, has subtle thickness variations along the wire length. Composite construction creates uniform insulation thickness without spiral patterns — relevant for precision applications where consistent dielectric properties matter along the wire.

Production process. Composite mica glass is applied to the conductor in a single integrated process rather than the multi-pass tape-wrapping operation used for UL 5107/5128. This affects production scheduling, cost structure, and AWG range capability.

Why UL Subject 758 Specifies “Ovens” for UL 5334

The UL listing language for UL 5334 reads: “Wiring of ovens or similar high-temperature equipment where protected from mechanical abuse.” This is distinctive — UL 5107 says “Internal wiring of high-temperature equipment,” and UL 5128 says “Internal wiring of high-temperature equipment.” Only UL 5334 specifically mentions ovens.

The reason connects to the application history of composite mica glass wire. Industrial baking ovens, drying ovens, and powder coating cure ovens were the primary historical application for this construction, driving its specific UL listing language. The 450°C continuous temperature rating is precisely tuned for typical industrial oven internal environments — sustained temperatures in the 200-400°C range with brief excursions during heat-up cycles.

For German engineers searching UL 5334 450C Mica Glass Braid Leitung Germany, this oven-specific listing context matters: UL 5334 is most often specified by German oven manufacturers exporting to North America, where the composite mica glass construction has decades of field service track record in oven applications.

German Oven Manufacturer Applications

German manufacturers of industrial baking ovens, commercial drying equipment, and powder coating cure ovens for North American export commonly specify UL 5334 for:

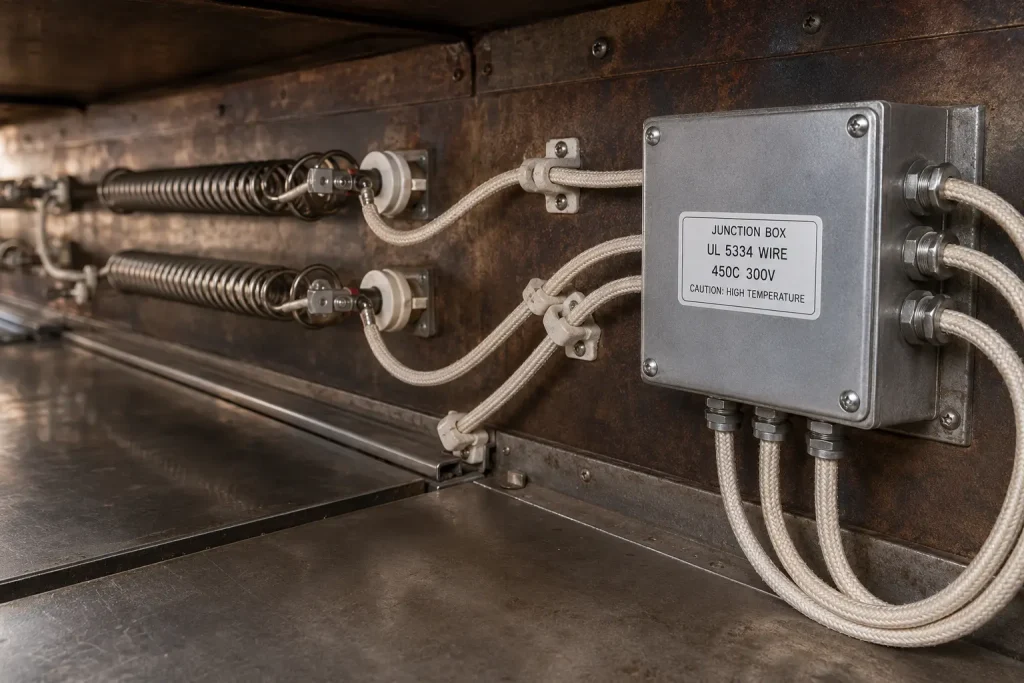

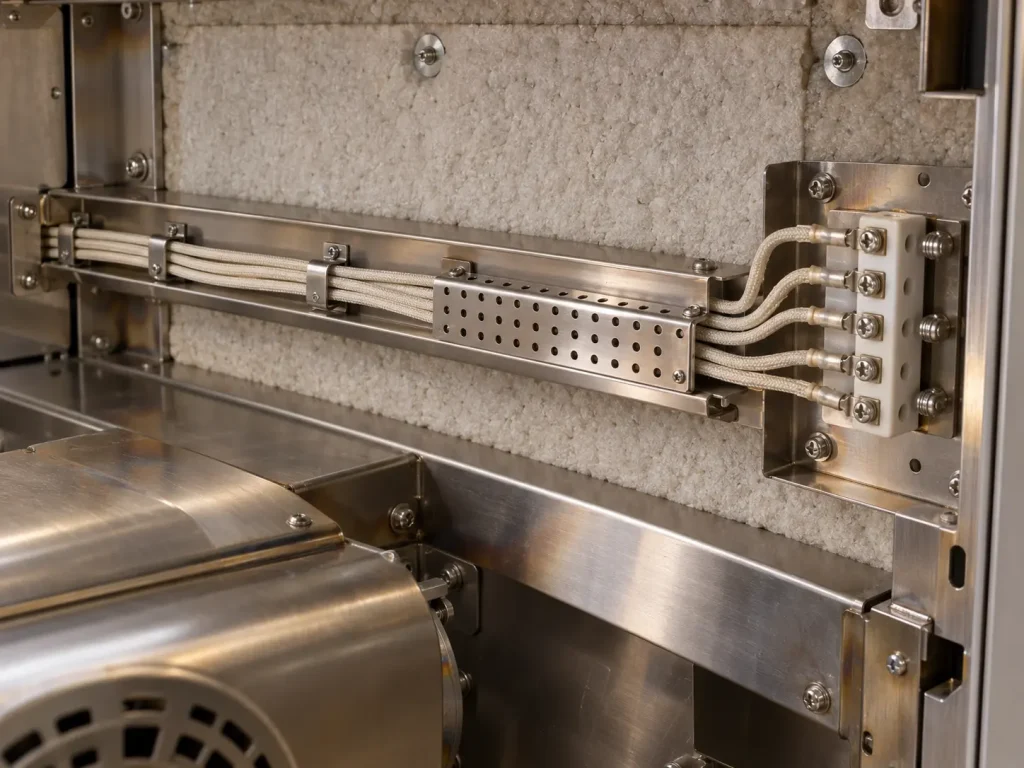

Heating element direct connections inside oven chambers — Where the wire terminal is mounted on a ceramic insulator inside the heated chamber, with the wire routing through the chamber wall to the external control panel. The 450°C composite insulation survives sustained chamber temperatures while the SS304 optional shield (when specified) provides mechanical robustness in the harsh oven interior.

Thermocouple lead extensions inside oven chambers — Type K or Type N thermocouples mounted on internal racks or product-contact surfaces require lead extensions that survive the chamber environment. UL 5334’s 300V isolation envelope easily covers thermocouple signal levels while the temperature rating ensures the wire doesn’t degrade over service.

Internal junction box connections — Some commercial ovens use junction boxes mounted within the oven cavity to distribute power to multiple heating zones. UL 5334 wires connecting the junction box terminals to individual heating element banks handle both the temperature and the routing complexity inside the oven structure.

UL 5334 Specifications

Engineering Notes from CableApex

1. “UL 5334 vs UL 5128 — both are 450°C / 300V mica wires, which should I choose?” The choice depends on construction priority. UL 5128 uses mica tape (better for OEM customers familiar with traditional mica tape wire and existing UL Listing dossiers that specify UL 5128). UL 5334 uses composite mica glass (better mechanical stability over thermal cycles, more uniform insulation thickness). For new oven designs entering UL certification, UL 5334’s oven-specific listing language often simplifies the UL evaluation process. For existing oven designs with mature UL Listings, the existing Style specification (whether 5128 or 5334) is typically the easier path. Both Styles produced under same E333030 file.

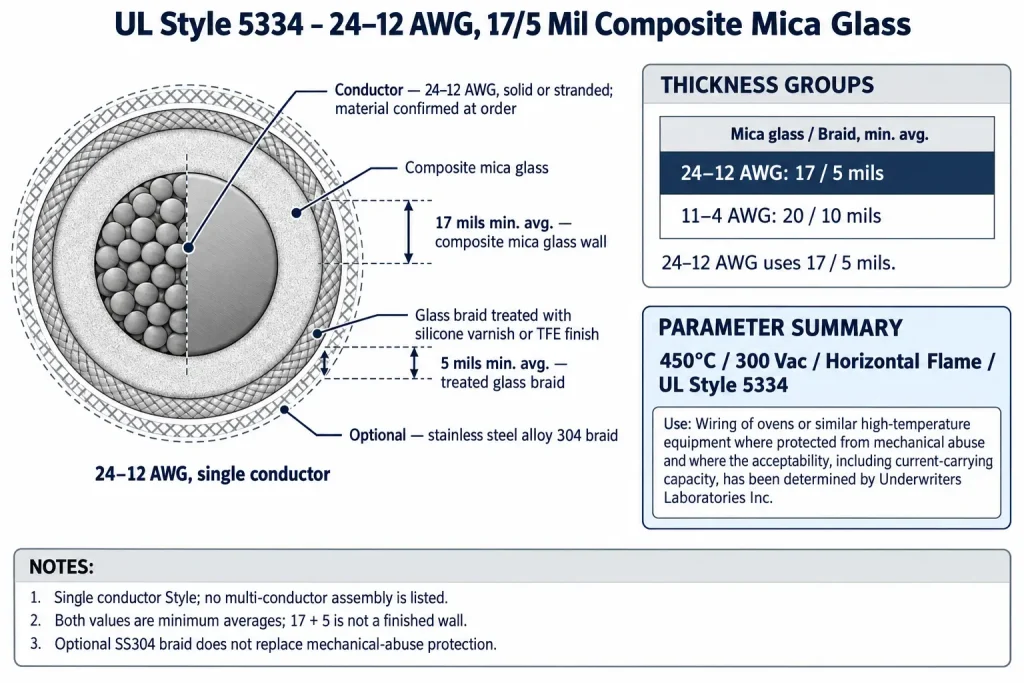

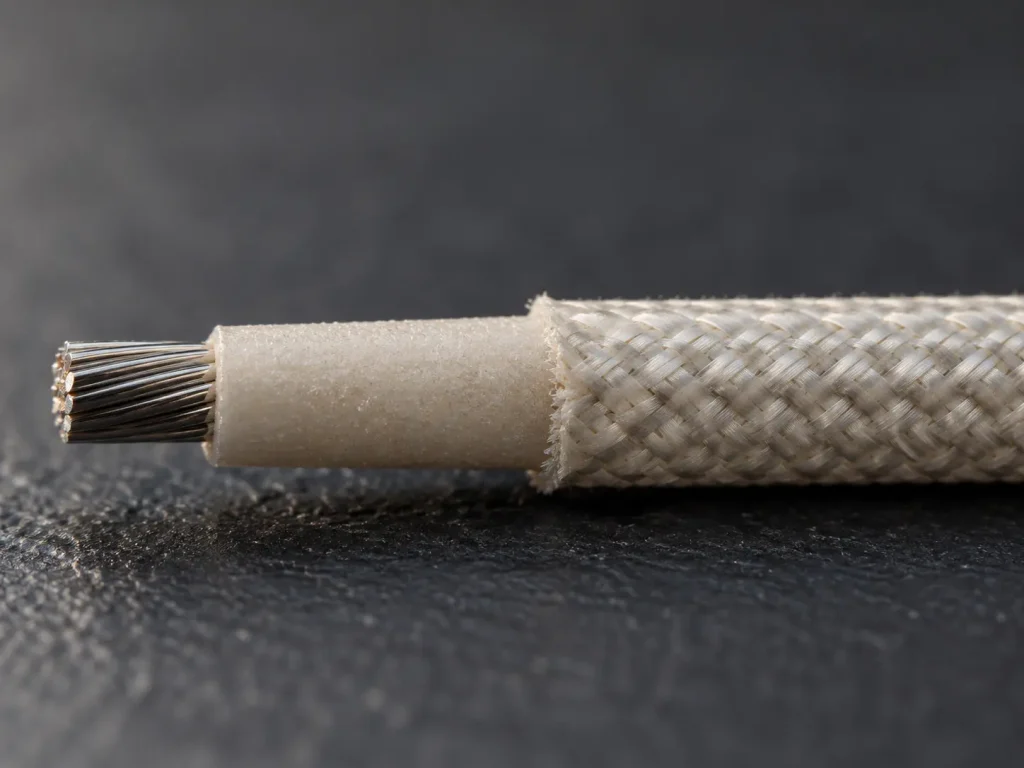

2. “Why is the glass braid thinner on UL 5334 than UL 5128?” UL 5334’s composite mica glass provides more uniform mechanical strength than mica tape, allowing thinner glass braid covering while maintaining equivalent mechanical robustness. UL 5128’s 7 mils braid for 24-12 AWG vs UL 5334’s 5 mils braid reflects this. The combined wall (mica + braid) is similar between the two Styles (UL 5128: 15+7=22 mils total; UL 5334: 17+5=22 mils total for 24-12 AWG), but the construction logic differs.
3. “How do I order UL 5334 with the SS304 shield option?” Specify in the order: AWG, color requirements, conductor type (solid/stranded, bare/tinned), and “with SS304 shield” or “without shield.” The SS304 shield adds production setup and material cost — typically 25-40% premium over unshielded UL 5334. For most enclosed oven applications, the unshielded variant is sufficient because the wire is protected by the oven chassis structure. Specify the shield when the wire routes through areas with mechanical exposure (oven door pass-throughs, removable rack mounting points) or when EMI shielding is required for adjacent control signals.

MOQ, Packaging & Shipping

MOQ varies by AWG, optional shield, and production schedule — contact us for current MOQ on UL 5334. Composite mica glass production has different setup requirements than mica tape production — MOQs are typically similar in absolute meter terms but production scheduling may differ. Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.

Related UL Mica Styles for Comparison

UL 5334 buyers commonly cross-reference: UL 5128 (450°C / 300V mica tape + glass braid, 24-4 AWG — mica tape construction at same temp/voltage), UL 5107 (200°C or 450°C / 600V mica tape + glass braid, 26-550 kcmil — higher voltage and wider AWG range), UL 5335 (450°C / 600V mica + glass braid, 22-4/0 AWG — higher voltage alternative), and UL 1659 (250°C / 600V PTFE, 26-4/0 AWG — fluoropolymer alternative for applications below 250°C).
