UL 1015 in 16 AWG for Fixed Internal Appliance Wiring
UL AWM Style 1015 is a single conductor with extruded PVC insulation, with 80°C, 90°C or 105°C rating options, voltage ratings of 600 Vac or 750 Vdc, and a Horizontal Flame designation. The official Use is internal wiring of appliances.
This page is positioned around one conductor size: 16 AWG. That is its commercial differentiator, and the Style-level requirement that follows from it is specific — 16 AWG falls within the verified 30–9 AWG group, so the applicable insulation requirement is 30 mils minimum average with 27 mils minimum at any point.
Everything else about a 16 AWG Style 1015 order — conductor material, finish, stranding, dimensions, colour, termination — comes from the drawing rather than from the size.

Verified UL Style 1015 Specification
| Parameter | Style-level information |
|---|---|
| UL AWM Style | 1015 |
| Construction | Single conductor with extruded insulation |
| Temperature rating | 80°C, 90°C or 105°C |
| Voltage rating | 600 Vac or 750 Vdc |
| Flame | Horizontal Flame |
| Optional oil rating | 60°C or 80°C Oil |
| Full Style conductor range | 30 AWG–2000 kcmil |
| Conductor form | Solid or Stranded |
| Insulation | Extruded PVC |
| 30–9 AWG | 30 mil average / 27 mil minimum |
| 8–7 AWG | 45 mil average / 40 mil minimum |
| 6–2 AWG | 60 mil average / 54 mil minimum |
| 1–4/0 AWG | 80 mil average / 72 mil minimum |
| 250–500 kcmil | 95 mil average / 86 mil minimum |
| 550–1000 kcmil | 110 mil average / 99 mil minimum |
| 1100–2000 kcmil | 125 mil average / 112 mil minimum |
| Marking | General |
| Official Use | Internal Wiring of Appliances |
| Optional tag — not a voltage rating | 2,500 V peak – for electronic use only |

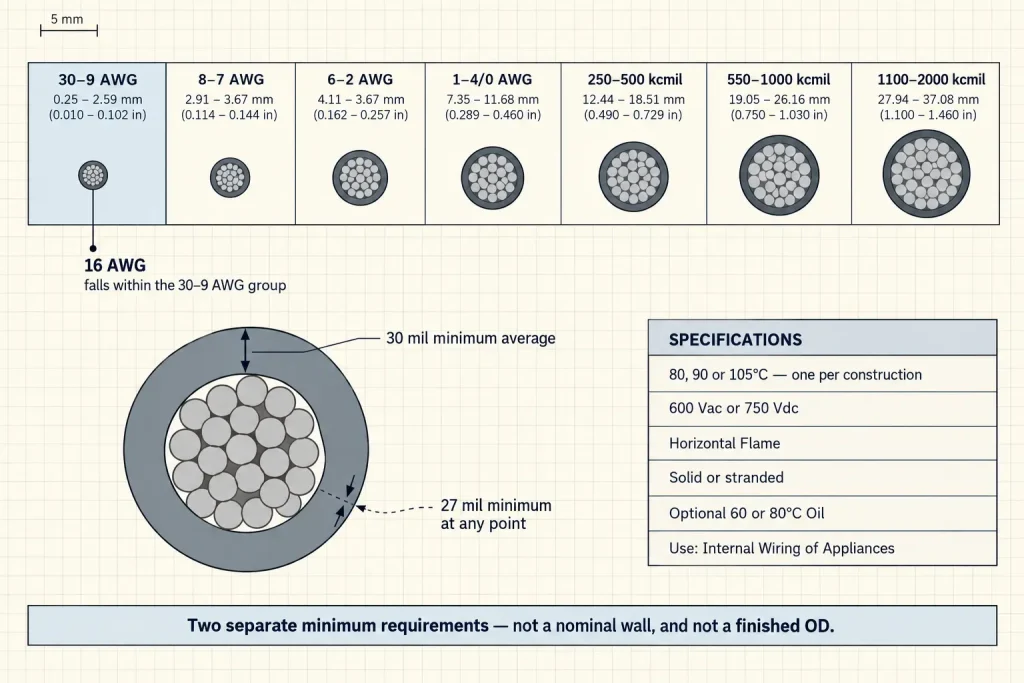

16 AWG belongs to the 30–9 AWG group. The Style-level wall requirement for 16 AWG is therefore 30 mils minimum average and 27 mils minimum at any point. The complete Style range appears above for accuracy; it does not mean this page is intended to cover every conductor size.
What the 30/27 Mil Requirement Is and Is Not
The two figures are separate requirements. The first governs the average across the wall; the second sets a floor at every individual point on it.
Neither is a nominal value. The requirement is not a 30 mil nominal wall, not an exact 30 mil wall, not a guaranteed 0.030-inch dimension and not a uniform 30 mil insulation. A compliant construction meets both minimums; it does not produce one fixed thickness.
Because of that, the finished outside diameter cannot be inferred from the figure either, which the dimensional section below returns to.
Why 16 AWG Is Specified
The correct basis for choosing 16 AWG is documentary: the customer drawing, the existing wire specification, the appliance design, or the approved bill of materials.
No electrical-performance comparison is offered here to justify the size. Style 1015 provides no ampacity, and no current value is derived from AWG alone. Nothing on this page states that 16 AWG balances current-carrying capacity, carries more current than smaller sizes, suits medium-current circuits, is appropriate for a particular motor or heater circuit, or is more substantial than signal wire.
Wire-size suitability is established by the complete appliance design, and this page supplies the Style-level requirements that follow once the size is fixed.
No Universal Current Rating
No ampacity is published for Style 1015 in 16 AWG. No maximum amps, continuous current, recommended current, power capacity or wattage figure appears here.
Style 1015 Product iQ does not define one universal ampacity, and a current value is not derived from the conductor size.

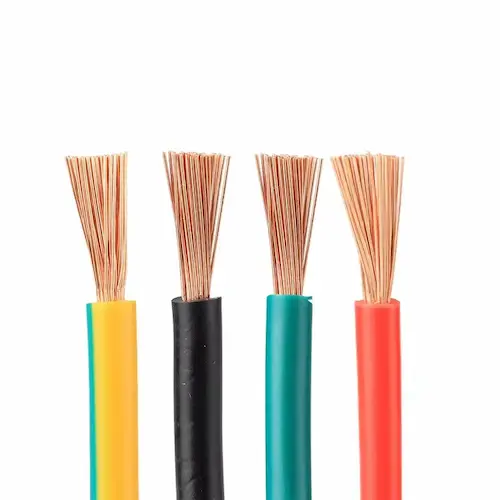

16 AWG Appliance Contexts

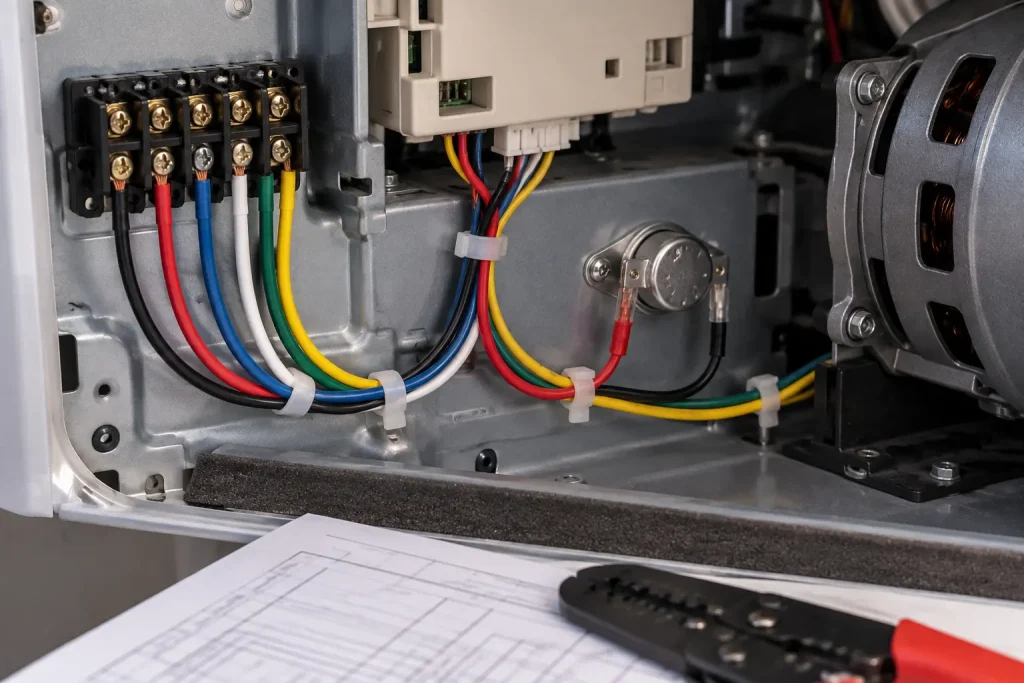

The commercial contexts this page addresses are 16 AWG fixed internal appliance leads, component-to-component appliance wiring, drawing-controlled appliance internal wiring requiring 16 AWG, internal appliance connections where the engineering drawing specifies 16 AWG, and bulk 16 AWG wire for appliance internal lead production.
Not every appliance requires 16 AWG, and UL does not separately approve any of these examples through the Style. They describe when a buyer arrives at this page, not what the Style certifies.
The official Use does not extend to building wiring, field wiring, branch circuits, tray, conduit, raceway, machine field wiring, external appliance cords or general electrical equipment wiring.

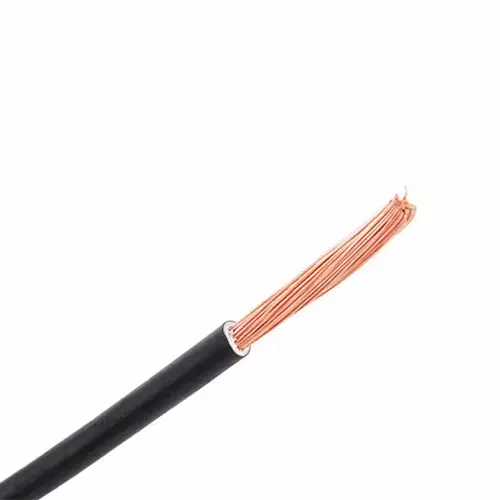

Conductor Material, Finish and Stranding
Style 1015 establishes solid or stranded form and nothing else about the conductor. It does not universally establish copper, bare copper, tinned copper, silver-plated copper or nickel-plated copper, and it establishes no strand count, strand diameter, lay length or conductor resistance.
So 16 AWG stranded copper, 16 AWG tinned copper and 16 AWG bare copper are none of them presented here as the universal construction of this page. Where a buyer requires tinned copper or another conductor finish, that is an RFQ requirement confirmed against the applicable qualified construction.
No strand count is published — not 16/26, not 26/30, not 41/34, not any other configuration — and no strand diameter or conductor diameter is stated. No verified SKU datasheet has been supplied for this page, so detailed stranding remains an RFQ field. The same applies to conductor resistance: no ohm/km, ohm/1000 ft or maximum DC resistance value is published, because AWG alone does not establish one.

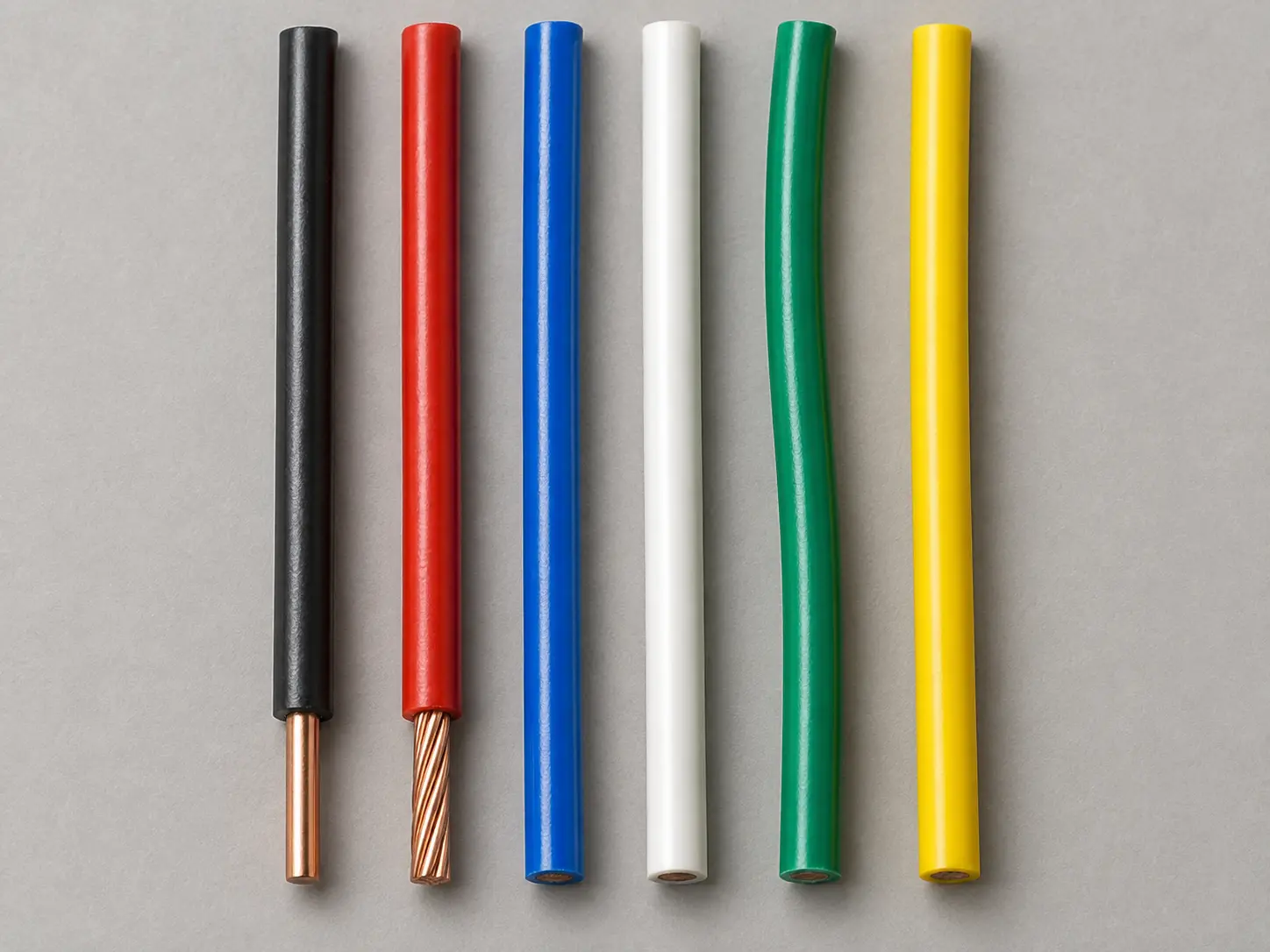

Solid or Stranded

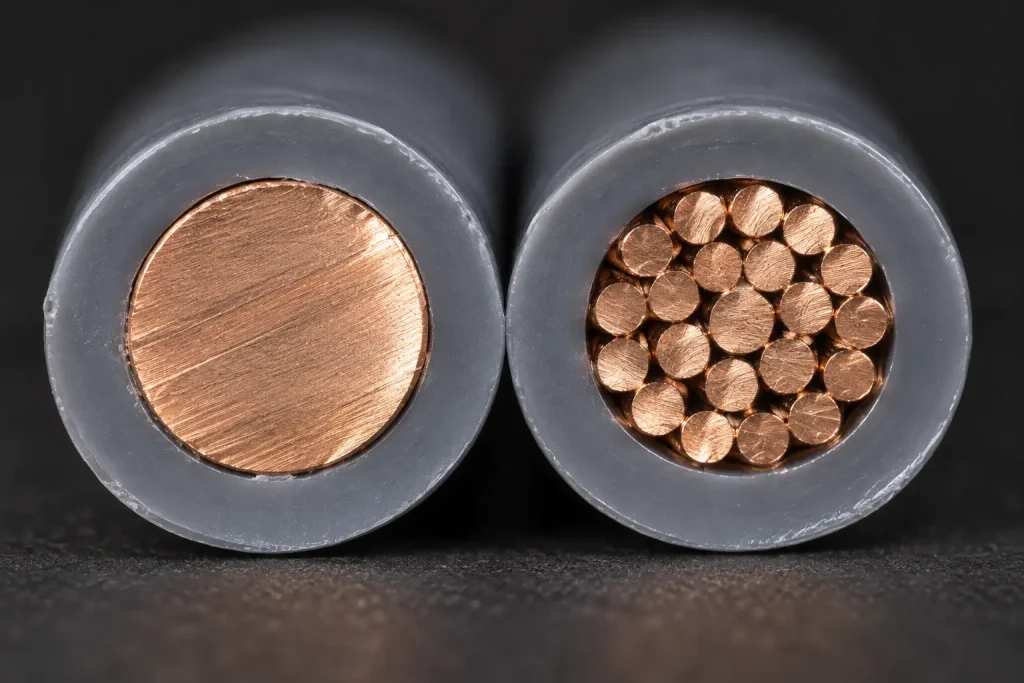

Both forms are permitted at Style level, so the 16 AWG product is not assumed here to be stranded.
The wire is not described as flexible, high-flex or extra-flexible either. No flex class or flex-cycle rating is established by the Style data, and the conductor form should be stated in the enquiry where the drawing fixes it.
Temperature Rating
Style 1015 includes 80°C, 90°C and 105°C rating options, and the applicable ordered construction must be confirmed for the required rating.
This page is not described as universally 105°C, and one wire does not carry all three options simultaneously. Where the appliance drawing specifies a rating, it belongs in the enquiry, because a compliant 16 AWG Style 1015 construction may be 80°C.
600 Vac, 750 Vdc and the Optional Tag
The verified ratings are 600 Vac or 750 Vdc, used accurately here and not written as 600/750 Vac, 750 Vac, 600V AC/DC or 750V AC/DC. Where commercial text uses the shorthand 600V, the technical position remains 600 Vac or 750 Vdc.
The Style separately permits a tag stating 2,500 V peak – for electronic use only. That is not the normal voltage rating and is not written as 2500V wire, 2.5 kV appliance wire, 2500 Vac, 2500 Vdc or 2.5 kV continuous. It is not a commercial feature of this page.
PVC Insulation
The verified insulation is extruded PVC. No PVC hardness, flame-retardant formulation, abrasion performance, chemical resistance, UV resistance, water resistance or cut-through performance figure is published, and no performance is inferred from generic PVC properties.
Oil performance is claimed only where the optional rating is confirmed, which the next section covers.

Optional Oil Rating
Style 1015 includes an optional 60°C or 80°C Oil rating. Not all Style 1015 16 AWG constructions carry it.
Where oil exposure matters at the lead position, the applicable optional rating is specified in the enquiry and confirmed for the ordered construction.
Horizontal Flame
The verified Style designation is Horizontal Flame. VW-1, FT1 and vertical flame are not claimed here, and any additional flame requirement is separately confirmed for the ordered construction.
Finished OD
Style 1015 defines no universal 16 AWG finished outside diameter, and none is published here. Generic published dimensions for 16 AWG wire found elsewhere are not treated as CableApex product specifications.
Actual OD depends on the actual conductor construction, the solid or stranded form, the actual conductor diameter, the PVC extrusion and manufacturing tolerance. The ordered construction controls the dimension.
Where the buyer controls dimensions, supply the maximum finished OD, the OD tolerance, the terminal entry and the routing clearance.
Termination
No claim is made here that 16 AWG is easy to terminate. Style 1015 establishes no terminal compatibility, crimp performance, strip force, solderability, connector fit or termination retention.
Where the appliance drawing controls termination, request the terminal part number, the connector, the strip length, the conductor material, the conductor finish and the stranding as applicable. Those inputs allow the construction to be checked against the interface.
Routing
No routing advantage is attributed to 16 AWG here — not manageable routing, organized routing, compact routing or better layout.
Actual routing depends on the finished OD, the bend geometry, the equipment design, the terminal layout and the harness arrangement. Style 1015 provides no bend-radius value, and none is invented.
Bulk Wire and Processed Leads
This page primarily represents single-conductor Style 1015 wire. Nothing here implies that a quotation includes cutting, stripping, crimping, terminals, connectors or finished harnesses.
Where processed 16 AWG leads are required, those requirements are separately specified and confirmed, and stating which is needed in the first enquiry avoids quoting the wrong scope.
What Style 1015 Does Not Define
- Conductor material, plating, strand count, strand diameter, lay length and conductor diameter
- Conductor resistance, ampacity, current rating and power rating
- Finished OD and OD tolerance
- Bend radius and flex life
- Terminal, connector, cut length and colour
- MOQ, stock, lead time and production capacity
Each requires the customer specification, verified SKU documentation, the applicable qualified construction, or commercial confirmation.
Common Procurement Errors
- 16 AWG assumed to define one universal strand count. The Style defines none.
- All 16 AWG Style 1015 assumed to be tinned copper. Conductor material is not set at Style level.
- All Style 1015 assumed to be 105°C. 80°C and 90°C are equally options.
- The 750 Vdc rating omitted.
- 2,500 V peak treated as normal working voltage.
- The 30 mil minimum-average requirement called an exact nominal wall.
- One universal finished OD assumed.
- Ampacity published from 16 AWG alone.
- 16 AWG assumed automatically easier to terminate.
- Internal wiring of appliances expanded into general equipment wiring.
16 AWG RFQ Checklist
- UL AWM Style 1015 requirement
- 16 AWG confirmation
- Solid or stranded requirement
- Conductor material
- Conductor finish or plating
- Detailed stranding, if controlled
- 80°C, 90°C or 105°C requirement
- 600 Vac or 750 Vdc requirement
- Optional Oil rating, if required
- Insulation colour
- Maximum finished OD, if controlled, and OD tolerance
- Terminal or connector requirement
- Cut length, if processed leads are requested
- Bulk wire or processed lead requirement
- Appliance type
- Wire location inside the appliance
- Customer drawing
- Current wire specification
- Quantity, packaging and destination
- Required compliance documentation
None of these values is invented here, and no requested configuration is presented as automatically available.
Selection
No statement is made here that a smaller AWG would be sufficient, that a larger AWG provides more current, or that another insulation family would be better. AWG selection comes from the equipment design.
Different AWM Styles are evaluated according to their own Use, temperature, voltage, construction, insulation and the customer’s requirements, and against the actual appliance specification rather than by comparison in the abstract.
UL Marking and Documentation
Material is supplied as UL-recognized component wire where supplied under qualified manufacturing scope, and UL marking is applied according to the confirmed ordered construction. The Style-level marking designation is General.
CSA AWM, FT1, VW-1 and dual UL / CSA certification are not claimed here; any additional certification depends on the ordered construction. Applicable RoHS / REACH documentation can be confirmed according to the ordered construction.
