UL 10362 14 AWG PFA Wire for Industrial Heater Internal Wiring

UL AWM Style 10362 14 AWG PFA wire, rated 250°C and 600 Vac, is a specific conductor-size configuration within Style 10362’s broader 30 AWG–4/0 AWG range, commonly specified for internal lead connections inside industrial heaters and thermal-processing equipment. This page focuses on the 14 AWG SKU — its confirmed PFA insulation thickness, dimensional scope, and what still needs to be specified in an RFQ — rather than a general overview of the full Style 10362 range.

The Confirmed UL 10362 14 AWG Construction

Parameter	UL 10362
UL AWM Style	10362
Description	Single Conductor with Extruded Insulation
Featured Conductor Size	14 AWG
Style Conductor Range	30 AWG – 4/0 AWG, solid or stranded
Temperature Rating	250°C
Voltage Rating	600 Vac
Insulation	Extruded PFA
14 AWG Insulation Thickness	10 mils min. average / 8 mils min. at any point (30–10 AWG group)
UL-Defined Use	Internal Wiring

600 Vac is the confirmed rating throughout this page — this page does not write it as 600 Vdc or as “up to 600V.”

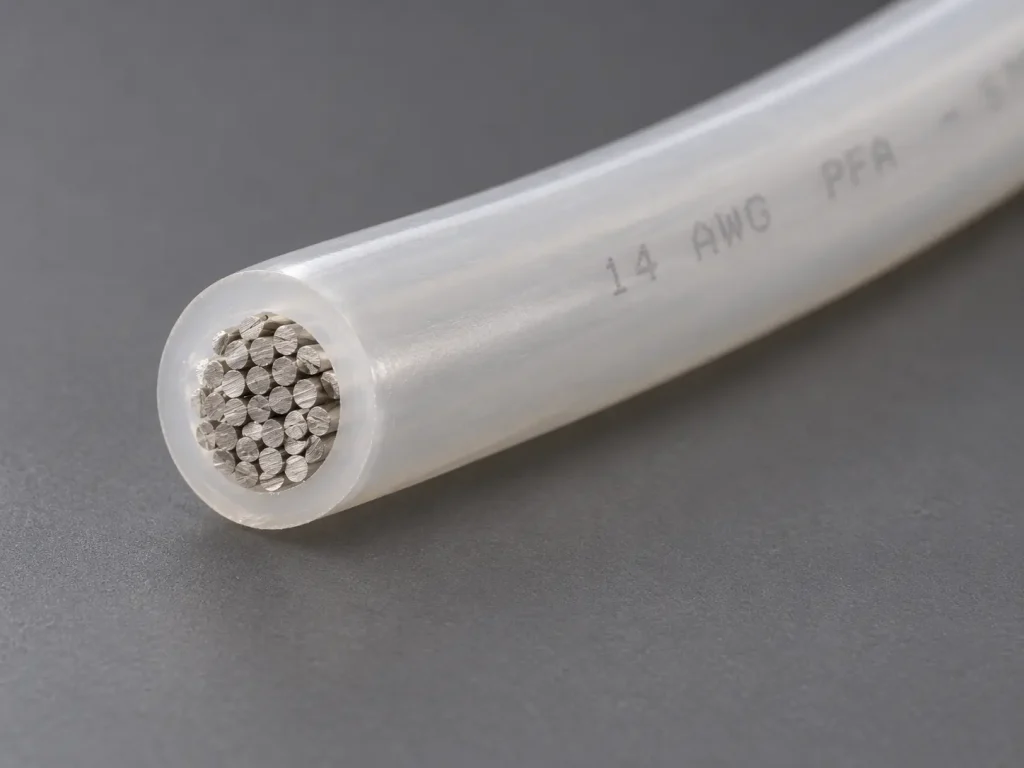

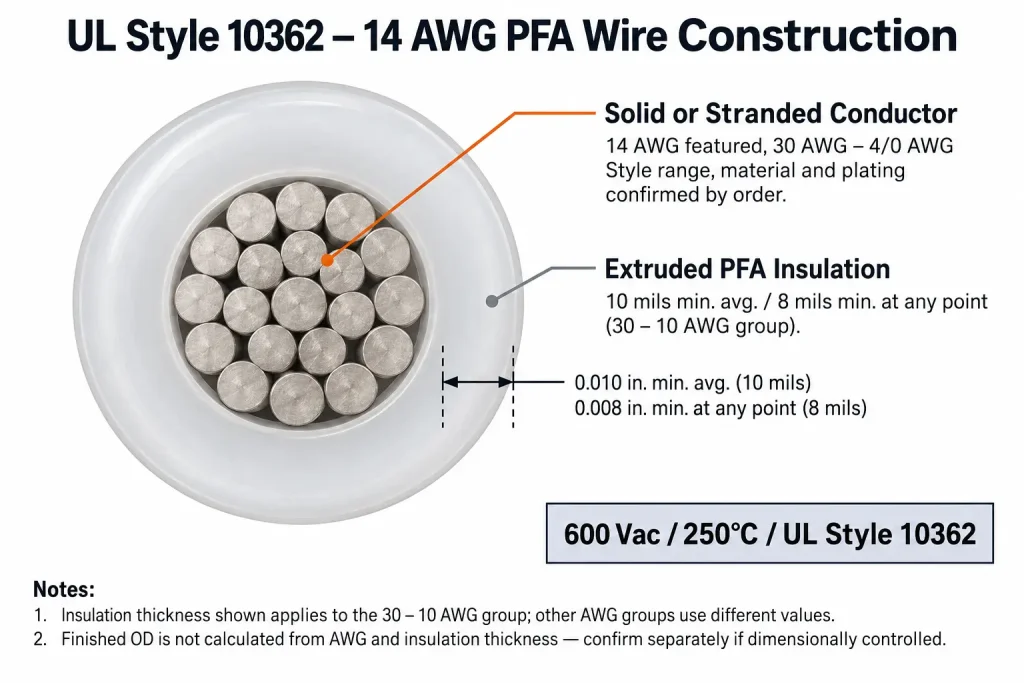

10 Mil Minimum-Average PFA Insulation at 14 AWG

14 AWG falls within UL 10362’s 30–10 AWG construction group, which specifies extruded PFA insulation at 10 mils minimum average thickness and 8 mils minimum thickness at any point. This is distinct from the Style’s other groups — the 8–2 AWG group specifies 30 mils / 27 mils, and the 1–4/0 AWG group specifies 45 mils / 41 mils — and this page uses only the values applicable to the featured 14 AWG size.

Conductor Material and Finish: An RFQ Field

UL Style 10362 permits solid or stranded conductor construction at 14 AWG. This page does not state that UL 10362 wire is stranded copper with tinned copper as an optional finish, or any other fixed default — conductor material and finish are not established by the Style data and should be stated in your RFQ if controlled by your BOM. Where a specific plating, such as bare or tinned copper, is required, include it as a distinct specification item rather than assuming a default.

Finished OD Must Be Confirmed Separately

This page does not derive a finished outside diameter from 14 AWG plus the 10 mil PFA insulation figure. If your industrial heater design has terminal-entry limits, routing channels, grommet restrictions, or connector cavity limits, state the maximum finished OD in your RFQ. No dimension is invented on this page.

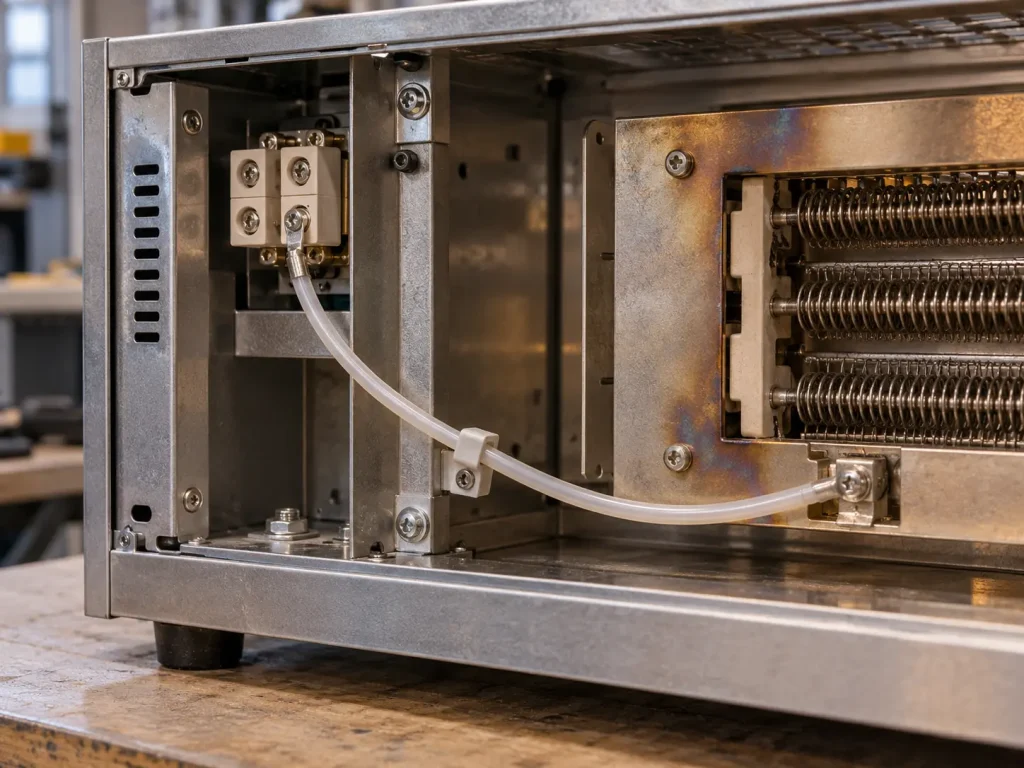

Industrial Heater and Thermal-Processing Equipment Internal Wiring

The confirmed UL 10362 use is Internal Wiring. Realistic commercial contexts for this 14 AWG configuration include internal lead connections in industrial heaters, wiring near thermal control and heating sections, high-temperature interconnects in electrical heating equipment, and OEM heater assemblies and thermal-processing units where a 14 AWG PFA construction is specified. “Industrial heater” is a commercial application context a buyer brings to this page — it is not a separate UL-defined Use category, and final applicability depends on the actual equipment design.

What UL 10362 Does Not Automatically Define

The Style data does not automatically define: conductor material, conductor plating, strand count, strand diameter, conductor resistance, ampacity, current rating, finished OD, bend radius, flexibility class, stock status, MOQ, lead time, reel length, or production capacity. These require separate order confirmation — none of them are invented on this page.
