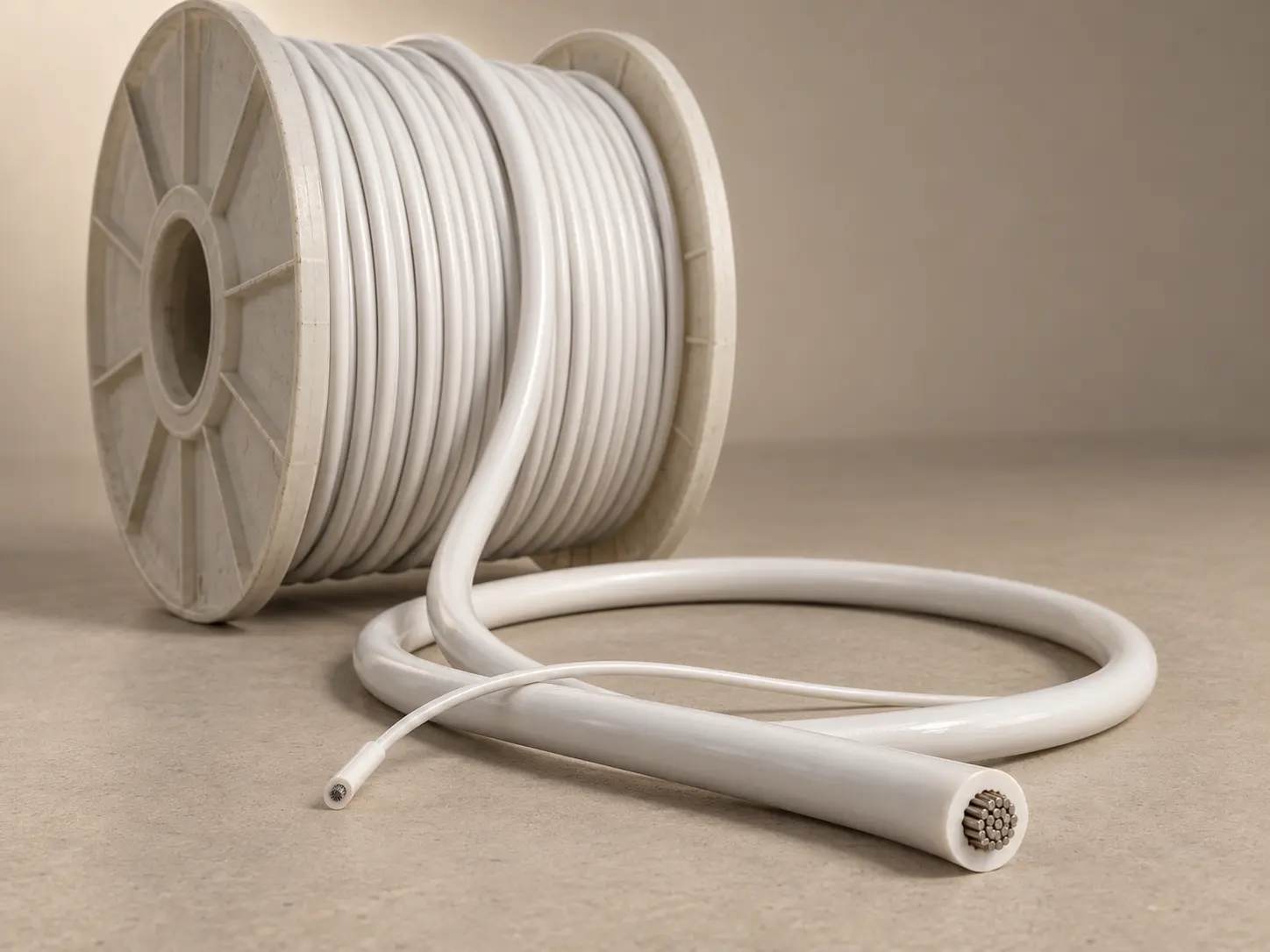

UL 1659 in 8 AWG for UAE and Saudi Arabia Sourcing
UL AWM Style 1659 is a single conductor with extruded insulation, rated 250°C and 600 Vac with Horizontal Flame. The Style conductor range is 26 AWG through 4/0 AWG, solid or stranded round, and the insulation is PTFE / TFE.
This page is positioned around one conductor size: 8 AWG. That size belongs to the Style’s 8–2 AWG insulation group, so the verified requirement for it is 30 mils minimum average with 27 mils minimum at any point.
The commercial context is B2B sourcing into the UAE and Saudi Arabia — OEM procurement teams, component distributors, and technical RFQs built on an approved drawing or bill of materials. Geography does not alter the temperature rating, the voltage rating, the construction or the Use.
The official Use is internal wiring, and 8 AWG does not expand it.
Verified UL Style 1659 Specification
| Parameter | Style-level information |
|---|---|
| UL AWM Style | 1659 |
| Product description | Single conductor with extruded insulation |
| Page-specific size | 8 AWG |
| Temperature rating | 250°C |
| Voltage rating | 600 Vac |
| Flame | Horizontal Flame |
| Optional rating | Oil Res 80°C |
| Optional rating | Gasoline Resist |
| Style conductor range | 26 AWG–4/0 AWG |
| Conductor form | Solid or Stranded Round |
| Insulation | PTFE / TFE |
| 26–10 AWG insulation | 20 mil minimum average / 18 mil minimum at any point |
| 8–2 AWG insulation | 30 mil minimum average / 27 mil minimum at any point |
| 1–4/0 AWG insulation | 45 mil minimum average / 40 mil minimum at any point |
| 8 AWG applicable insulation | 30 mil minimum average / 27 mil minimum at any point |
| Optional covering | Mica tape wrap |
| Optional braid | Treated glass braid |
| Marking | General |
| Official Use | Internal wiring |
Seven clarifications belong with that table. 8 AWG is the page-specific procurement size. It falls in the 8–2 AWG insulation group, so 30/27 mil is the verified 8 AWG wall requirement. The Style range does not equal inventory. 9 AWG has no insulation-thickness row in the supplied Product iQ data. The optional Oil Resistance, Gasoline Resistance, mica tape wrap and treated glass braid are not mandatory. And conductor material, plating, stranding, resistance, finished OD and ampacity all require separate confirmation.

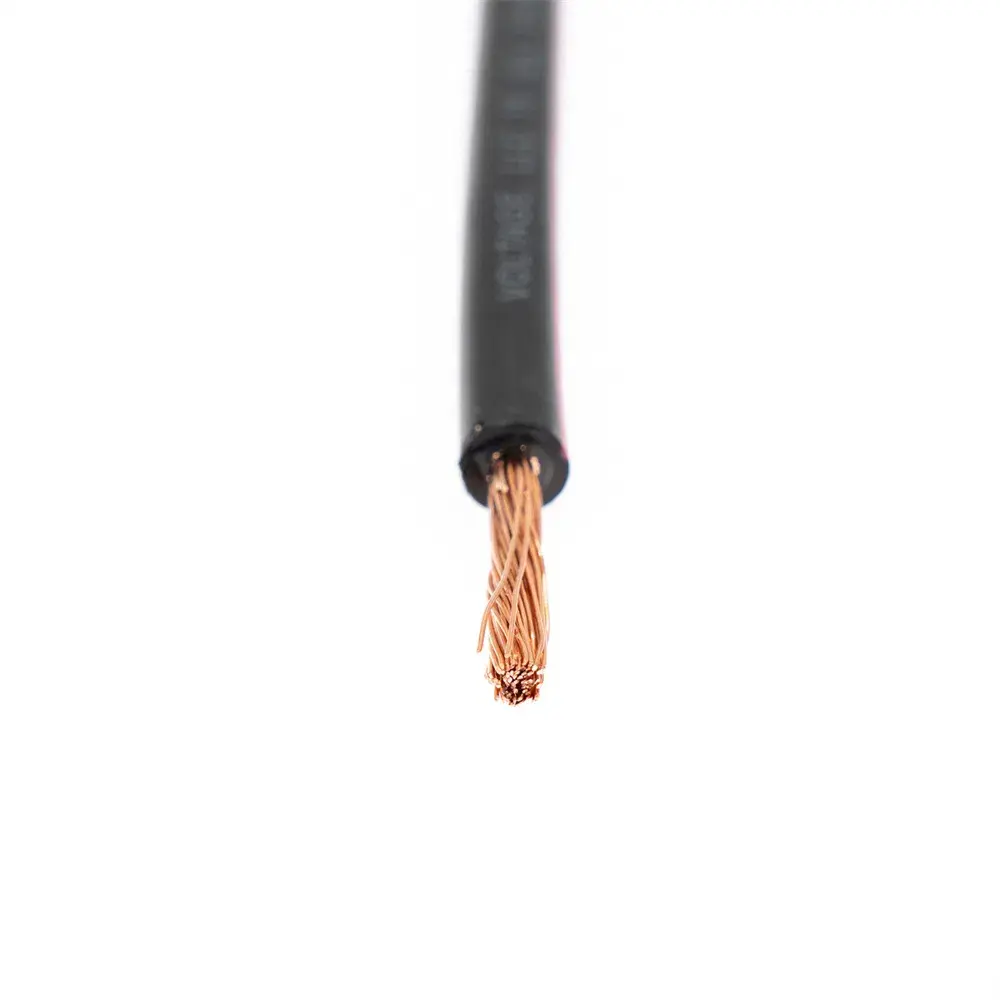

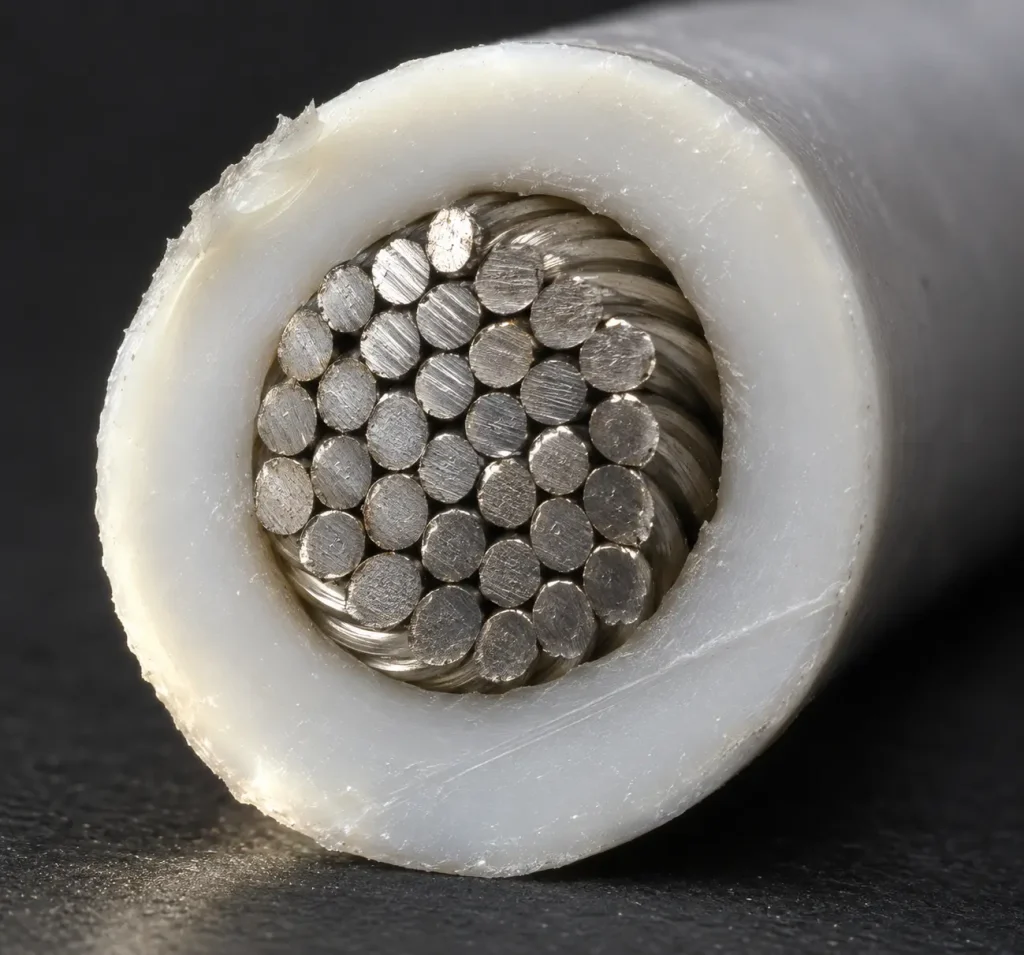

What 30/27 Mil Does and Does Not Establish
The two figures are separate requirements: the first governs the average across the wall, the second sets a floor at every individual point on it.
Neither is a nominal value. The requirement is not a 30 mil nominal wall, not an exact 30 mil wall and not a 27 mil nominal figure. A compliant 8 AWG construction satisfies both minimums without producing one fixed dimension.
It follows that no finished outside diameter can be derived from them, which the dimensional section below returns to.
8 AWG Is a Conductor Size, Not a Current Rating
This deserves stating plainly, because conductor size is the most common route to an unsupported performance claim.
Style 1659 provides no ampacity. Without a verified current rating, 8 AWG does not become a high-current wire, a heavy-current lead or a power wire — those are performance descriptions built on data the Style does not supply.
The accurate framing is simply 8 AWG Style 1659 wire, or a larger-conductor Style 1659 procurement requirement. Where a buyer needs a current rating confirmed, the relevant inputs are the equipment design, the installation conditions, the ambient temperature, the bundling conditions and the applicable engineering requirement — not the AWG number.
No current value is published, calculated or recommended on this page.

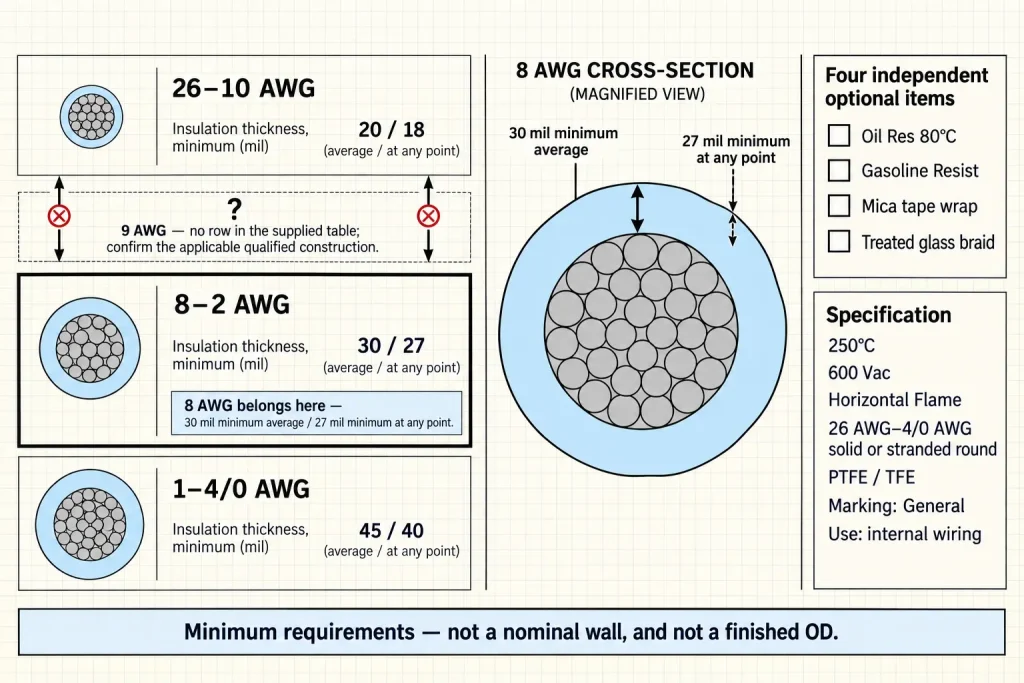

The 9 AWG Gap
The verified insulation table reads 26–10 AWG, then 8–2 AWG, then 1–4/0 AWG. There is no 9 AWG row.
That gap is not closed here by rewriting the first group as 26–9 AWG or by folding 9 AWG into the 8–2 AWG group alongside this page’s size.
Where a UAE or Saudi buyer requests 9 AWG, the applicable qualified construction must be confirmed before any insulation-wall specification is published.
Style Range Is Not Inventory
26 AWG through 4/0 AWG is the Style-level construction scope. It does not prove that every size is in stock, routinely manufactured, available with every optional feature, or available at one standard minimum quantity.
The full range appears in the table for technical accuracy. The procurement role of this page remains 8 AWG, and commercial availability is confirmed per RFQ.
250°C and 600 Vac
The verified temperature rating is 250°C. It is stated here without a continuity qualifier — not 250°C continuous, not continuous-duty, not continuous operation at 250°C — because the Style record states 250°C and nothing further. No 260°C practical maximum is published, and no lower temperature limit is invented.
The verified voltage rating is 600 Vac, used with the AC designation in technical sections and not converted into 600 Vdc, 600V AC/DC, 750 Vdc or 1000V.
Conductor Material, Plating and Stranding
The Style establishes the conductor size range and the solid or stranded round form. It establishes nothing else about the conductor.
Copper, bare copper, tinned copper, silver-plated copper and nickel-plated copper are none of them universally defined by Style 1659, and no strand count, strand diameter or lay length is stated here. This page therefore does not present 8 AWG as stranded tinned copper, and it does not offer silver or nickel plating as options available on request.
Conductor material, conductor plating or finish, the solid or stranded choice and the strand construction are RFQ fields, confirmed against the applicable qualified construction. Where a supplier-specific 8 AWG datasheet is available for a given order, SKU-level conductor information can be added at that point.
Metric Cross-Section
Generic AWG-to-metric conversion data is not presented here as a verified qualified-construction parameter. The page states 8 AWG.
Where a buyer requires a metric conductor cross-section — common in UAE and Saudi procurement documents — the actual qualified conductor construction should be confirmed rather than a generic conversion assumed.
No Universal Conductor Resistance
No conductor resistance value is published for 8 AWG. The Style defines neither a universal conductor material nor a universal strand construction, which is precisely why one universal resistance figure cannot exist.
No value is substituted from generic AWG charts, conductor tables or other manufacturers’ data. Where resistance is controlled by the customer, a maximum conductor resistance should be stated as an RFQ field and verified against the proposed construction.
No Universal Finished OD
Style 1659 provides the 8 AWG insulation-wall minimums. It does not provide one universal finished outside diameter, and none is calculated here from generic AWG dimensions plus a minimum wall.
Actual finished OD depends on the conductor material, the solid or stranded construction, the actual conductor diameter, the PTFE/TFE extrusion, whether the optional mica tape is present, whether the optional treated glass braid is present, and manufacturing tolerance. With two independent optional outer items available, the spread between constructions at the same size can be considerable.
Where dimensional control is required, request the maximum finished OD, the OD tolerance, the routing clearance and the terminal entry.
PTFE / TFE, and What the Material Name Does Not Supply
The formal construction is PTFE, TFE, and the technical specification keeps both. Commercial search language may use PTFE wire, but the official construction is not replaced with FEP, PFA or ETFE.
What the material name does not supply is product performance. No universal chemical resistance is claimed here, and no compatibility is promised with hydrocarbons, acids, alkalis, solvents, corrosive atmospheres or named process chemicals. No outgassing, low-outgassing or contamination-related performance is claimed either, and no surface-finish characteristic is published.
Where chemical compatibility matters to a buyer, the useful inputs are the chemical or fluid type, the concentration, the temperature, the exposure method and the customer’s material requirement. The applicable construction can then be reviewed against them.
Four Optional Items, Each Confirmed Separately
Oil Res 80°C. An optional Style rating whose optional status stays explicit. It is not converted into oil-resistant 250°C PTFE wire, universal oil resistance or petrochemical oil resistance, and the rating is at 80°C rather than at the Style temperature.
Gasoline Resist. Also optional, and not applied to every Style 1659 construction. It is not expanded into all petroleum chemicals, all hydrocarbon vapours or all fuels.
Mica tape wrap. An optional covering. This page’s 8 AWG construction is not presented as automatically containing mica, and no performance benefit is attributed to it.
Treated glass braid. An optional braid. Not all Style 1659 wire is braided, and no braid thickness, coverage, treatment material, abrasion performance or flame performance is invented.
The four are independent. Specifying Style 1659 in 8 AWG does not automatically provide any of them, and each belongs in the RFQ as its own line where required.
Horizontal Flame
The verified Style flame designation is Horizontal Flame. VW-1, FT1, vertical flame, flameproof and fire-resistant characterisations are not claimed here, and any additional flame requirement depends on separate confirmation for the exact ordered construction.

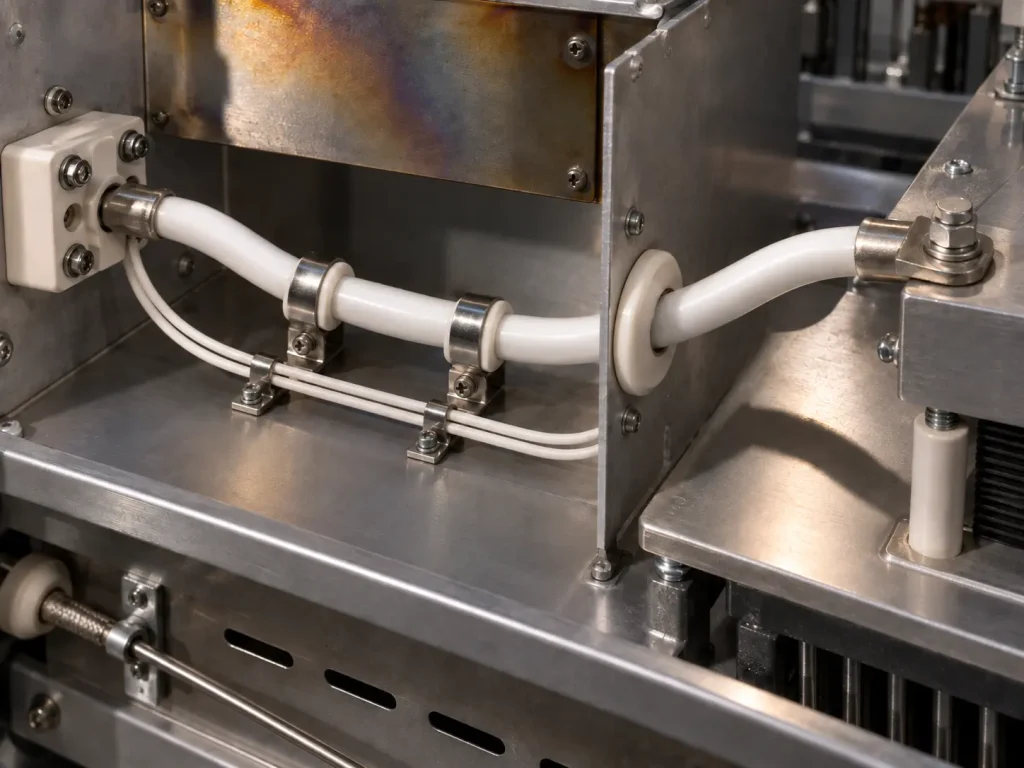

Internal Wiring Is the Use
The official Use is internal wiring, and the larger conductor size does not change it.
The page is not extended into power distribution, field wiring, building wiring, branch circuits, facility power leads, tray cable, conduit cable, external process wiring or offshore field wiring.
Where a buyer’s equipment drawing specifically requires Style 1659 in 8 AWG for internal wiring within a product, that requirement is evaluated on its own terms against the drawing and the qualified construction. This page stays at the Style-level Use boundary.
UAE and Saudi Arabia Sourcing
This page addresses UAE buyers requesting 8 AWG Style 1659, Saudi buyers sourcing 8 AWG PTFE/TFE internal wire, regional component distributors, and OEM RFQs requiring this size.
No named end users, project usage, approved-vendor status, supply history or procurement qualification is claimed, and no named regional project is used as a customer reference or SEO qualifier.
What the destination affects is the commercial side of the enquiry: the quantity, the packaging, the destination city or port, the Incoterm and the documentation the buyer needs.
Commercial Terms and Documentation
No minimum order quantity, sample quantity, stock position, lead time, transit time, production capacity, quotation response time, fixed Incoterm or fixed port is published here, and no manufacturing or quality-control procedures are described.
Required documentation should be listed in the RFQ and confirmed for the ordered construction and shipment. Applicable RoHS / REACH documentation can be confirmed according to the ordered construction. Colour is treated the same way and is an RFQ field.
Bulk Wire and Processed Leads
This page primarily represents UL AWM Style 1659 single-conductor wire in 8 AWG.
Nothing here implies that supply automatically includes cutting, stripping, crimping, terminals, connectors or finished harnesses. Processed-wire requirements are separately specified and confirmed.
What Style 1659 Does and Does Not Define
The Style does define: 250°C; 600 Vac; Horizontal Flame; optional Oil Res 80°C; optional Gasoline Resist; 26 AWG–4/0 AWG; solid or stranded round; PTFE / TFE; size-dependent insulation walls; an optional mica tape wrap; an optional treated glass braid; marking General; and the Use, internal wiring.
The Style does not define:
- Conductor material, conductor plating, strand count, strand diameter and lay length
- A product-specific metric conductor cross-section
- Conductor resistance
- Finished OD and OD tolerance
- Ampacity and current rating
- Chemical compatibility with all media
- Outgassing performance and surface finish
- A minimum operating temperature or a 260°C practical maximum
- Bend radius, flex-cycle life and colour
- MOQ, stock, lead time, production capacity and shipping term
Each requires the customer specification, verified SKU documentation, the applicable qualified construction, or commercial confirmation.
Common Procurement Errors
- Publishing a universal 8 AWG ampacity. The Style provides none.
- Publishing a conductor resistance without a verified SKU conductor construction.
- Publishing one finished OD for 8 AWG.
- Assuming 8 AWG is universally stranded tinned copper.
- Assuming silver or nickel plating is automatically available.
- Calling 250°C continuous service.
- Publishing a 260°C practical maximum.
- Claiming universal chemical resistance from the material name.
- Claiming VW-1 when only Horizontal Flame is verified.
- Turning 8 AWG into unrestricted power-distribution wire.
- Using a named regional project as a verified customer reference.
- Assuming optional Oil Res 80°C is standard.
- Assuming optional Gasoline Resist is standard.
- Assuming the optional mica tape or treated glass braid is mandatory.
- Assuming the full Style range is stocked.
8 AWG RFQ Checklist — UAE and Saudi Arabia
- UL AWM Style 1659 requirement
- 8 AWG requirement
- Solid or stranded round requirement
- Required conductor material
- Required conductor finish or plating
- Strand construction, if controlled
- 250°C Style requirement
- 600 Vac requirement
- Whether Oil Res 80°C is required
- Whether Gasoline Resist is required
- Whether the optional mica tape wrap is required
- Whether the optional treated glass braid is required
- Exact internal-wiring application
- Customer drawing or bill of materials
- Existing wire specification
- Maximum finished OD, if controlled
- OD tolerance
- Maximum conductor resistance, if controlled
- Insulation colour
- Bulk wire or processed lead requirement
- Quantity
- Packaging
- Destination: UAE or Saudi Arabia
- Destination city or port
- Requested Incoterm
- Required compliance or shipping documentation
None of these values is invented here, and no requested configuration is presented as automatically available.
UL Marking and Documentation
Material is supplied as UL-recognized component wire where supplied under qualified manufacturing scope, and UL marking is applied according to the confirmed ordered construction. The Style-level marking designation is General.
CSA AWM, FT1, VW-1 and dual UL / CSA certification are not claimed here; any additional certification depends on the ordered construction. Applicable RoHS / REACH documentation can be confirmed according to the ordered construction.
