UL 3304 10000V Silicone Ignition Wire for Vietnam and Indonesia — 200°C Gas Range Burner AWM Style 3304

UL 3304 10000V Silicone Ignition Wire for Vietnam and Indonesia

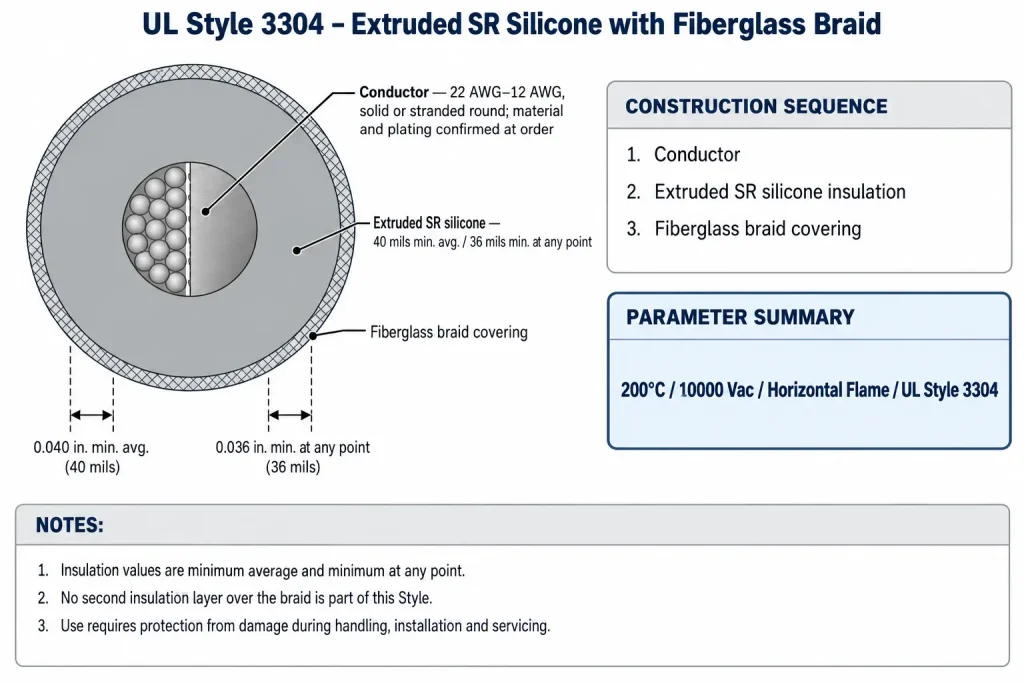

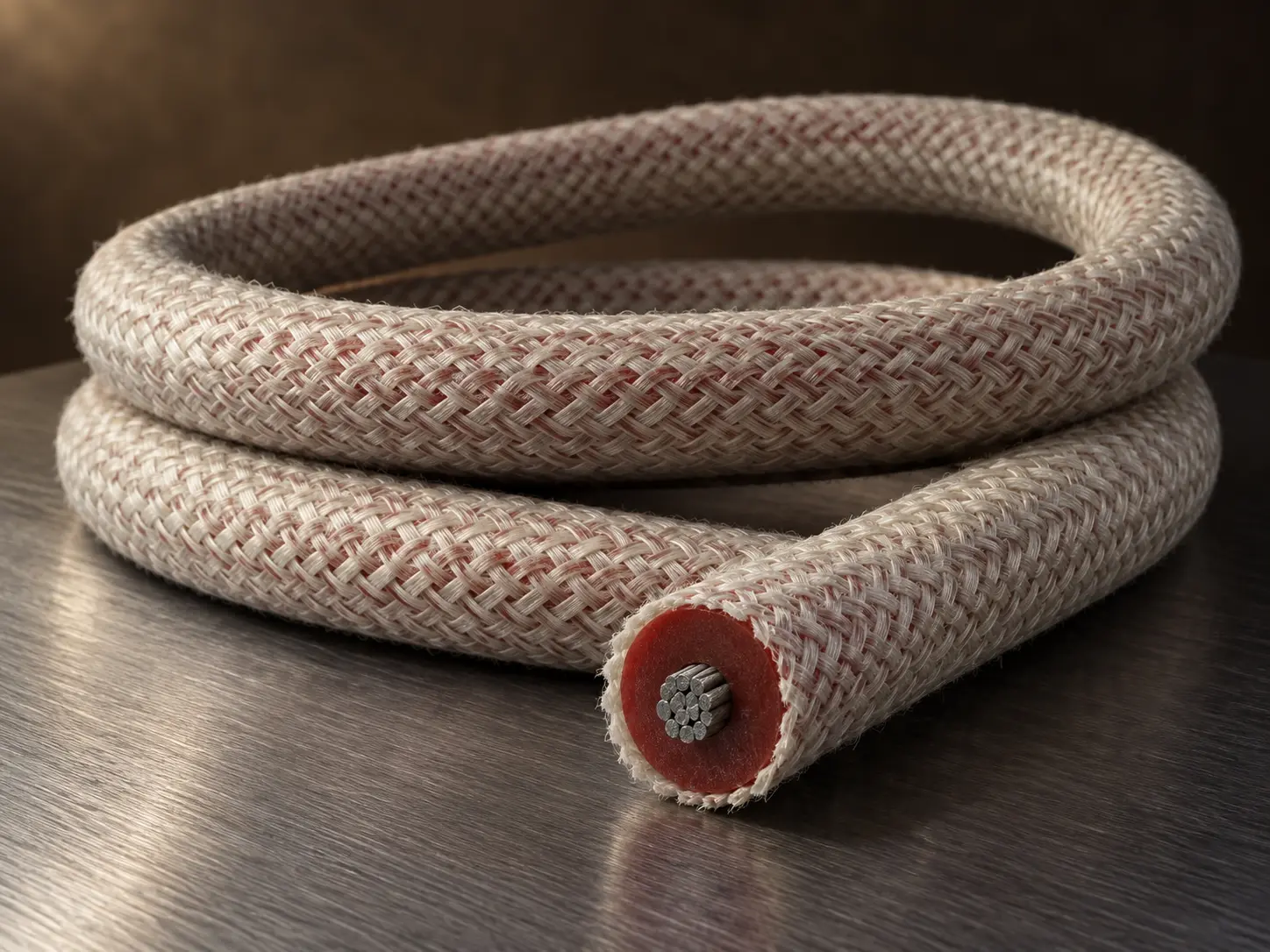

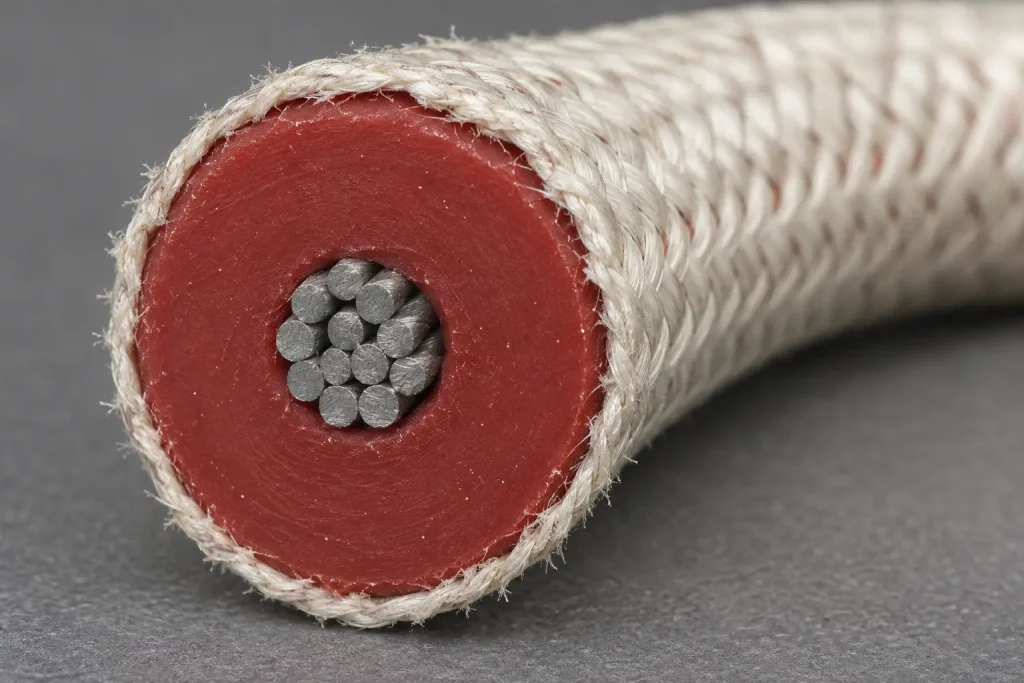

UL 3304 is an extruded silicone rubber insulated wire with a fiberglass braid outer covering, rated 200°C and 10000V AC under UL AWM Style 3304, produced under UL Follow-Up Service File No. E333030. UL 3304 covers a conductor range from 22 AWG to 12 AWG in solid or stranded round construction, with a silicone rubber insulation wall of 40 mils minimum average thickness and 36 mils minimum at any point. The fiberglass braid outer covering provides mechanical protection for the silicone rubber insulation during the repeated handling, installation, and servicing cycles that the ignition lead wire in gas appliances undergoes over the appliance service life. UL 3304 is specifically designated for internal wiring of electronic ignition systems in gas ranges and gas or fuel oil burner systems where the wire is protected from damage during handling, installation, and servicing of the appliance.

The 10000V AC voltage rating of UL 3304 is the defining characteristic that distinguishes ignition wire from standard internal wiring specifications. Electronic ignition systems in gas ranges and fuel oil burners generate a high-voltage spark — typically 6000V to 10000V AC — to ignite the gas or fuel oil at the burner. The ignition lead wire carries this high-voltage pulse from the ignition module to the spark electrode at the burner, and must be rated for the full 10000V AC ignition voltage to maintain safe insulation integrity at the wire routing location inside the gas appliance enclosure during the repeated high-voltage ignition pulses over the appliance’s service life. Standard AWM wire specifications (UL 1015, UL 3071) rated at 300V or 600V are not appropriate for this application — only UL 3304’s 10000V AC rating covers the ignition voltage requirement under UL 758.

Vietnamese and Indonesian gas appliance OEMs and gas burner system manufacturers describe UL 3304 as dây đánh lửa silicone 10000V (10000V silicone ignition wire) in Vietnam and as kabel ignition silikon 10000V (10000V silicone ignition cable) in Indonesia. CableApex exports UL 3304 factory-direct CIF Ho Chi Minh City and CIF Surabaya from Yangzhou.

Product Specifications — UL 3304

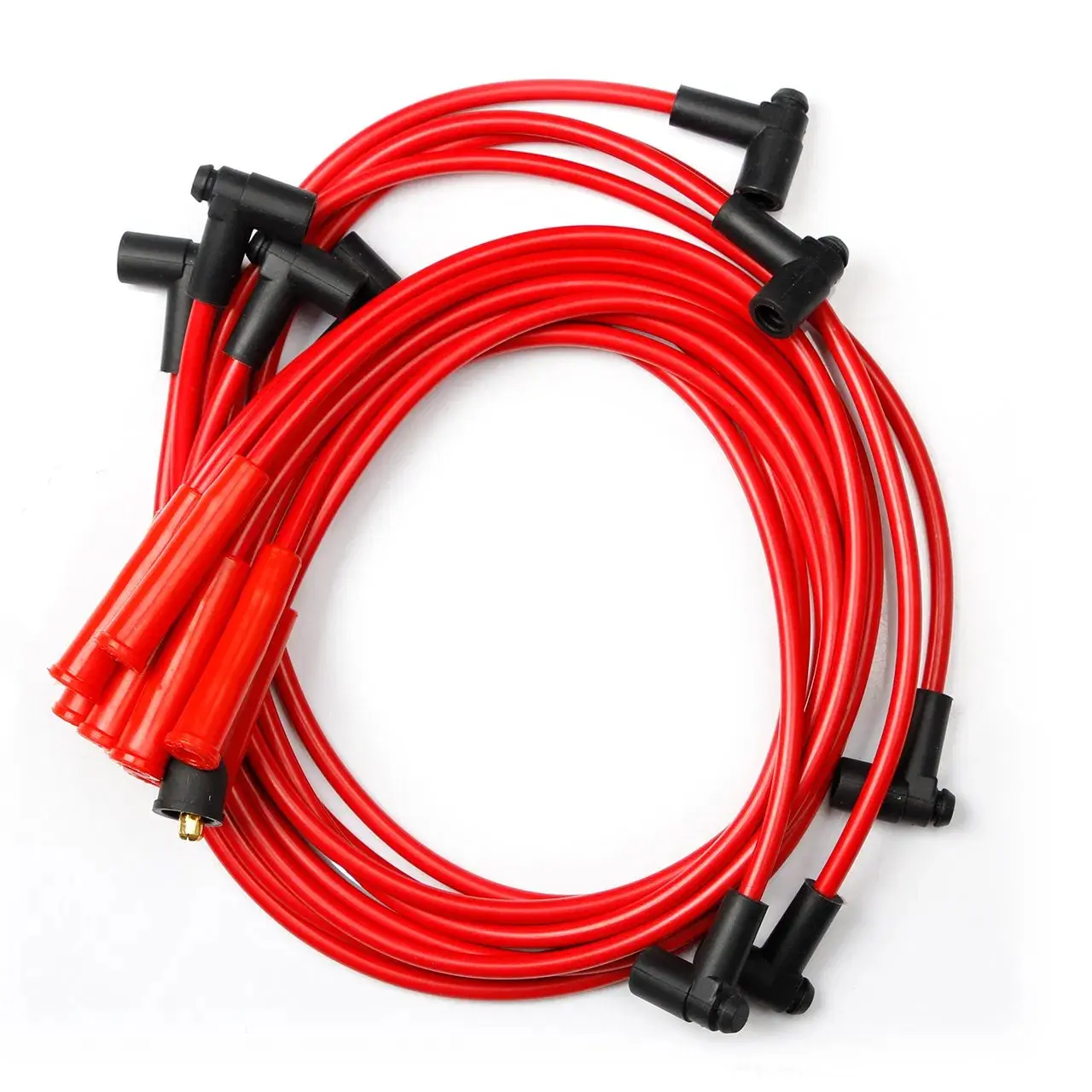

UL 3304 vs UL 3573 — Single vs Dual Insulation Ignition Wire

Applications in Vietnam and Indonesia

Gas range electronic ignition lead wire (Vietnam — appliance manufacturing)

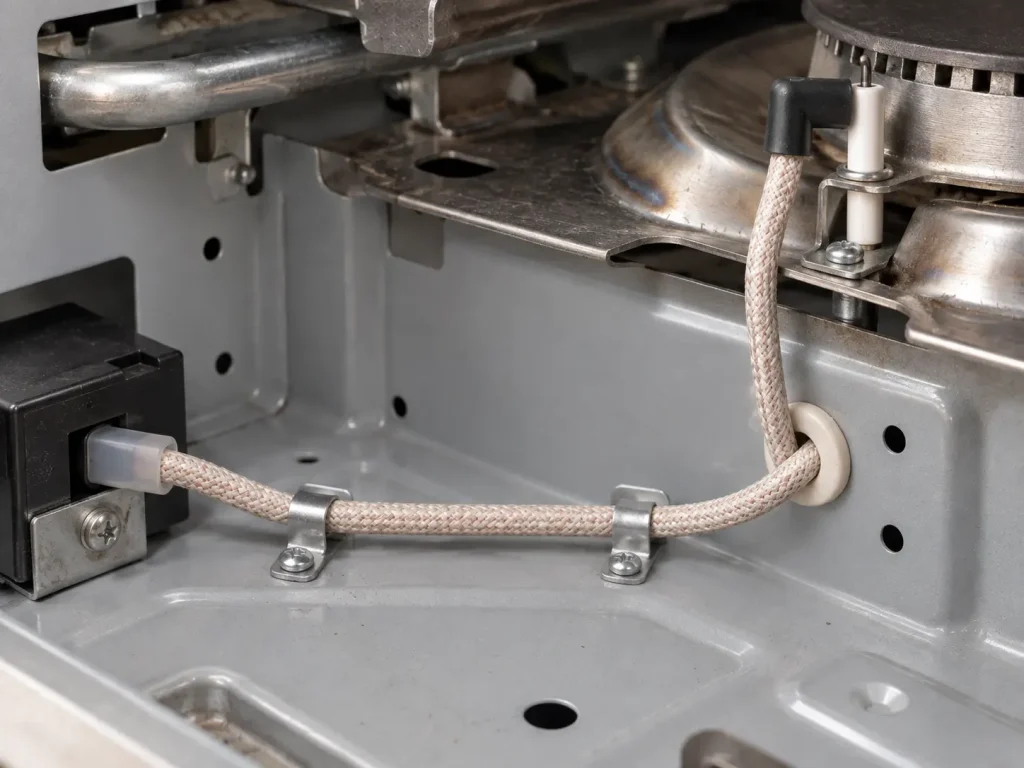

Vietnam’s growing domestic gas appliance manufacturing sector — producing gas cooking ranges, gas hobs, and tabletop gas burner appliances for the domestic Vietnamese market and for export to regional markets — requires UL 3304 ignition wire for the internal ignition lead connection from the piezoelectric or electronic ignition module to the spark electrode at each burner. The ignition lead wire in a domestic gas range typically routes from the ignition module mounted on the control panel, through the appliance internal space, to the spark electrode at each burner port — a routing that exposes the wire to the cooking zone ambient temperature and to the repeated mechanical stress of appliance assembly and customer servicing. UL 3304’s 200°C silicone rubber insulation handles the elevated temperature at the burner routing location, the fiberglass braid provides mechanical protection during assembly and servicing, and the 10000V AC rating covers the full ignition voltage pulse generated by the electronic ignition module.

Vietnamese gas appliance OEMs in Bình Dương, Đồng Nai, and Ho Chi Minh City assembling gas ranges for domestic sale and for export to ASEAN markets source UL 3304 as dây đánh lửa silicone 10000V factory-direct from CableApex in Yangzhou — the UL AWM Style 3304 recognition under File No. E333030 satisfying the UL component recognition requirement for gas appliances submitted for UL listing for export to North American markets.

Gas burner system ignition lead wire (Indonesia — commercial and industrial)

Indonesia’s large commercial and industrial gas burner sector — serving commercial kitchens, industrial process heating, hotel and restaurant catering equipment, and industrial drying and baking ovens operating on natural gas or LPG — sources UL 3304 as kabel ignition silikon 10000V for the ignition lead connections in commercial gas burner controllers and industrial gas burner management systems. Commercial and industrial gas burners typically use electronic ignition modules generating 8000V to 10000V AC ignition pulses for reliable spark ignition in large-diameter burner port assemblies — the higher ignition voltage required for large commercial burner port ignition compared to domestic gas range burners. UL 3304’s 10000V AC rating covers the full ignition voltage range for both domestic and commercial gas burner ignition systems, making it the single ignition wire specification that covers the complete range of gas burner applications in the Vietnamese and Indonesian gas appliance market.

Fuel oil burner ignition lead wire (Vietnam and Indonesia)

Vietnamese and Indonesian fuel oil burner system manufacturers assembling fuel oil burners for industrial process heating, commercial boiler systems, and industrial furnace firing specify UL 3304 for the ignition lead wire from the high-voltage ignition transformer to the ignition electrode in the burner assembly. Fuel oil burner ignition systems — which use a high-voltage transformer generating 8000V to 10000V AC to produce a continuous arc ignition spark for reliable fuel oil atomisation ignition — require ignition lead wire rated for continuous 10000V AC exposure at the transformer output terminal, rather than the pulsed ignition voltage of gas range electronic ignition systems. UL 3304’s 10000V AC rating and 200°C silicone rubber insulation cover both the ignition voltage and the elevated ambient temperature at the burner assembly ignition electrode routing location in fuel oil burner systems operating at sustained high firing rates in Vietnamese and Indonesian industrial process heating applications.

Additional applications across Vietnam and Indonesia

• Commercial catering equipment ignition wiring — Vietnamese and Indonesian hotel and restaurant equipment manufacturers assembling commercial gas cooking equipment requiring UL 3304 ignition lead wire for UL listing submission
• Industrial gas furnace ignition systems — Vietnamese and Indonesian industrial furnace manufacturers where the ignition lead wire must be rated for 10000V AC and 200°C at the burner ignition electrode routing location
• Gas water heater ignition wiring — Vietnamese and Indonesian gas water heater manufacturers assembling domestic and commercial gas water heaters requiring UL AWM Style 3304 ignition lead wire
• LPG appliance ignition systems — Vietnamese and Indonesian LPG appliance manufacturers assembling LPG-fuelled commercial cooking and heating equipment requiring 10000V AC rated ignition lead wire

Key Features

Ordering Information

Specify AWG (22–12 AWG), conductor type (solid or stranded), and quantity. MOQ 500 m per AWG. UL 3304 compliance documentation and RoHS Declaration supplied with every order. For dual-layer silicone ignition wire at the same 10000V AC rating, see UL 3573. For standard 200°C silicone rubber wire at 600V, see UL 3071. Sample from 10 m.

Why CableApex for Vietnam and Indonesia

CableApex manufactures UL 3304 silicone ignition wire under UL Follow-Up Service File No. E333030 in Yangzhou, China. Factory-direct export to Vietnam and Indonesia — CIF Ho Chi Minh City or CIF Surabaya, 10–14 day transit. Full UL compliance documentation for gas appliance OEM qualification and export product listing. No distributor margin on factory-direct orders. Contact us within 24 hours.
