UL 1015 14 AWG Hook-Up Wire — 80/90/105°C / 600V PVC, Horizontal Flame — México Wholesale
Style 1015 in 14 AWG combines the 600Vac / 750Vdc insulation rating of the 1015 family with a conductor size that handles the continuous current demands of motor leads, compressor terminals, and internal power distribution circuits inside sealed appliance enclosures. Certified under UL Subject 758 with extruded PVC insulation at 30 mils minimum average wall — the scaled build required for this voltage class — and available in 80°C, 90°C, and 105°C temperature grades to match the thermal environment of your specific application.
For Mexican wholesale buyers and maquiladora procurement teams sourcing UL-recognized wire from China, 14 AWG Style 1015 is one of the most frequently specified gauges across appliance, HVAC, and industrial control panel assembly lines. CableApex supplies this product with the UL Recognized Component Mark on every wire surface and a complete compliance documentation package for USMCA audit requirements and NOM-aligned import clearance.
Technical Specifications — UL Style 1015 / 14 AWG
| Parameter | Value |
|---|---|
| UL Style | 1015 |
| UL Subject | 758, Section 1 |
| Temperature Rating | 80°C / 90°C / 105°C (optional: 60°C oil resistant / 80°C oil resistant) |
| Voltage Rating | 600 Vac / 750 Vdc |
| Flame Rating | Horizontal flame |
| AWG Size | 14 AWG (certified range: 30 AWG – 2000 kcmil) |
| Conductor | Solid or stranded copper |
| Insulation Material | Extruded PVC |
| Insulation Thickness | 30 mils min average / 27 mils min at any point (30–9 AWG range) |
| Typical Use | Internal wiring of appliances (cableado interno de aparatos) |
| Optional Marking | 2,500 V Peak — For Electronic Use Only |
| Available Colors | Black, white, red, yellow, green, blue, brown, orange, gray (custom on request) |

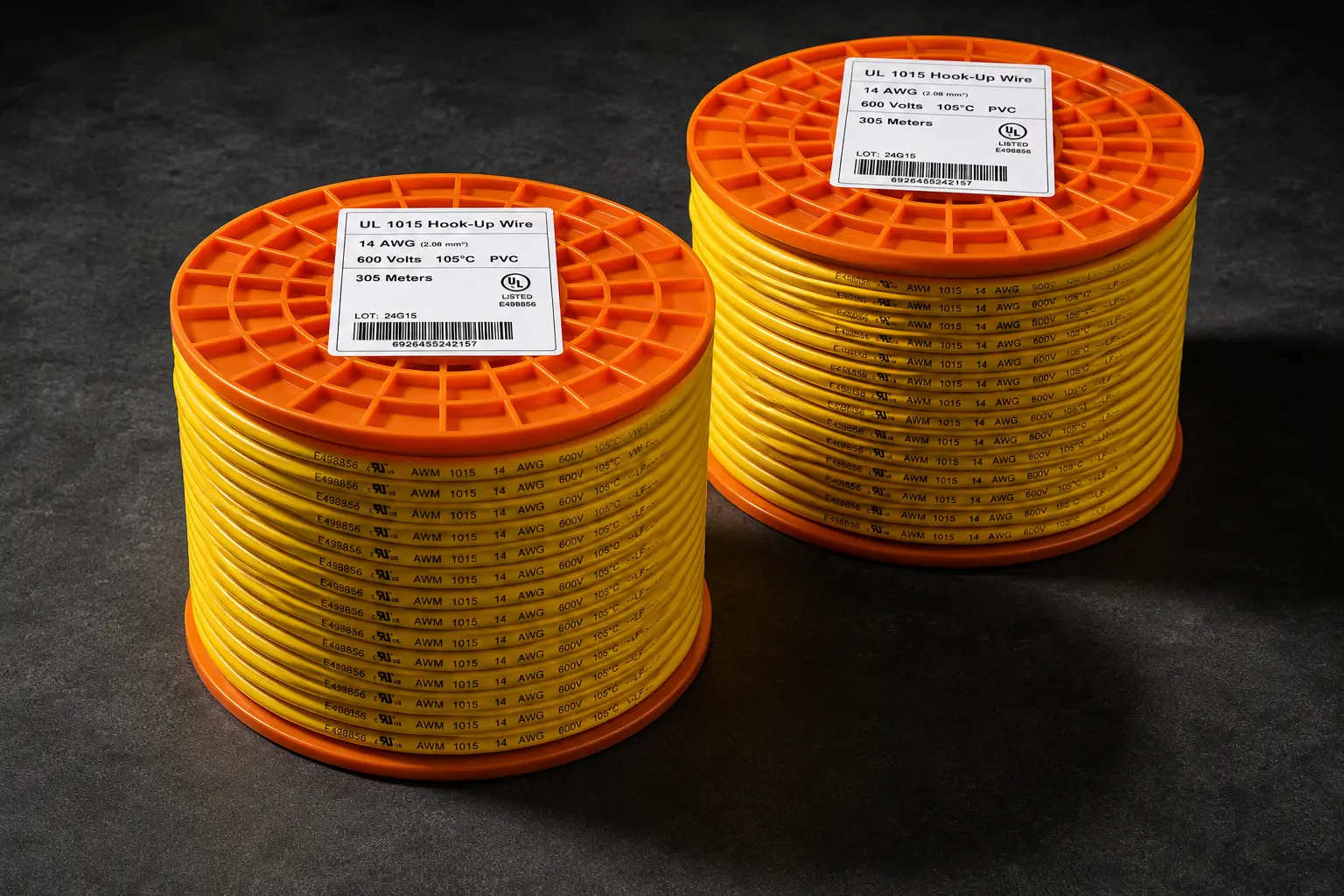

| Standard Spool Length | 100 m / 200 m / 305 m |
| MOQ | Contact for quote — consultar cotización |
Applications — Aplicaciones Típicas en el Mercado Mexicano
14 AWG at 600V is one of the most versatile internal wiring specifications in Mexican appliance and industrial equipment manufacturing. The gauge handles significant continuous current while remaining manageable in harness routing through standard appliance enclosure geometries:
- Compressor motor terminal leads — hermetic and semi-hermetic compressor start and run winding connections in commercial refrigeration units, walk-in coolers, and rooftop HVAC packaged units assembled across Nuevo León and Coahuila, where both the 600V rating and 14 AWG current capacity align with motor terminal block specifications.

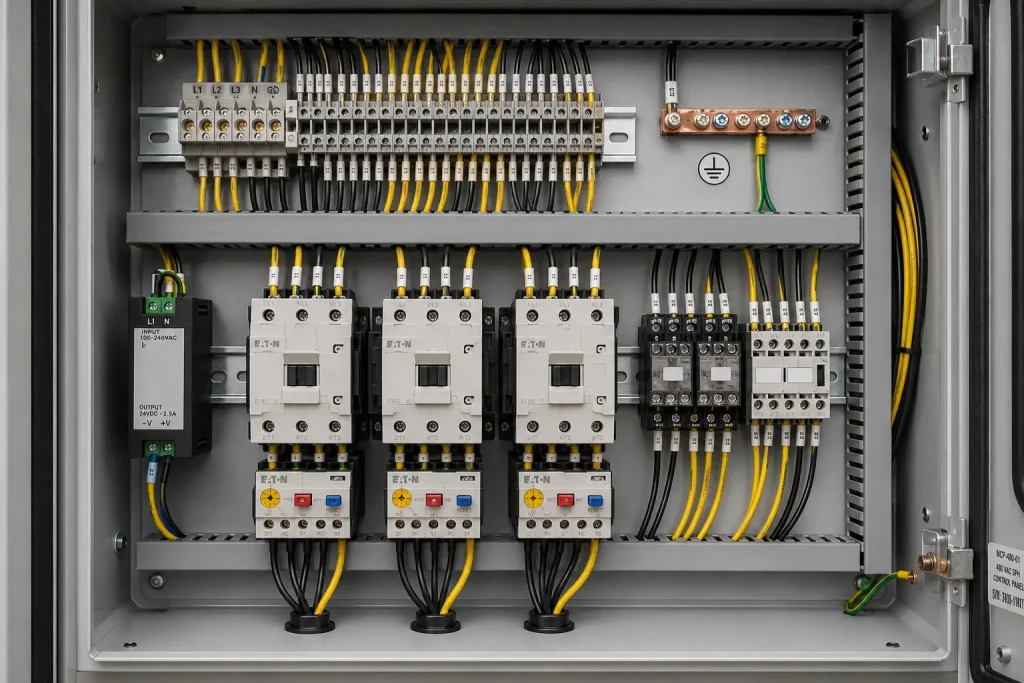

- Industrial control panel internal wiring — 600V control voltage circuits inside motor control centers, soft-starter panels, and variable frequency drive enclosures manufactured in Mexico’s automotive Tier 1 supplier corridor from San Luis Potosí to Aguascalientes, where UL-recognized wire is required by OEM quality specifications.
- Washing machine and dryer motor leads — main drive motor supply and winding leads in large-capacity front-load appliances assembled for U.S. retail export under USMCA, where the 600V insulation rating provides safety margin above the 240V single-phase supply voltage.
- Wholesale supply for distribuidores — Mexican electrical wholesale distributors stocking UL-recognized appliance wire for resale to local appliance repair shops, small OEM manufacturers, and industrial maintenance operations across México specify 14 AWG 1015 as a core SKU alongside 12 AWG and 16 AWG builds.
Engineering Notes — 14 AWG in the Style 1015 Context

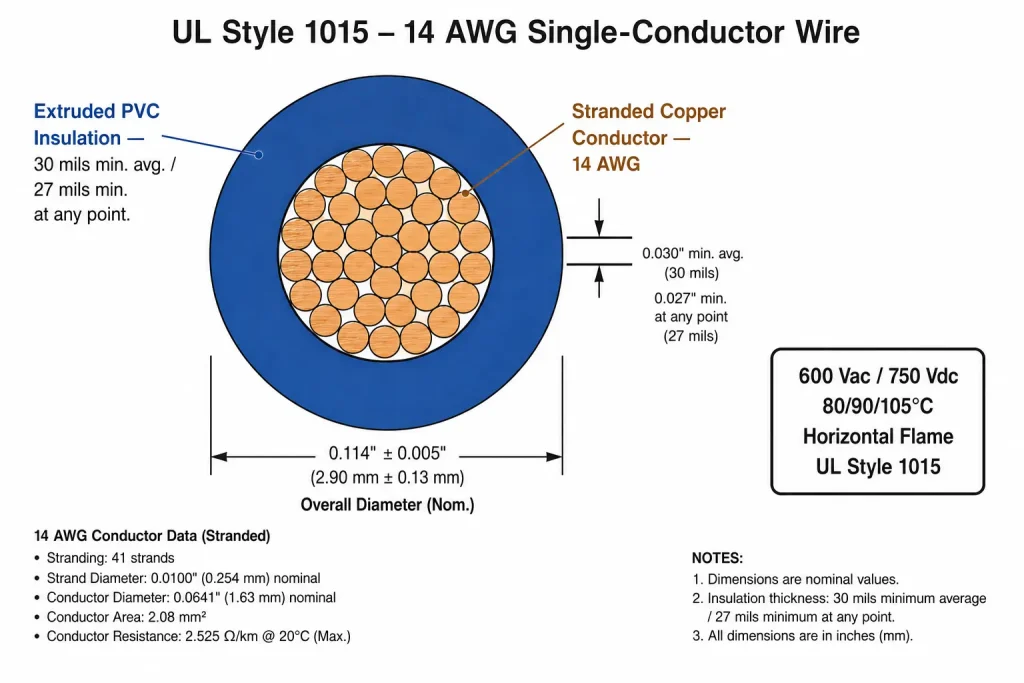

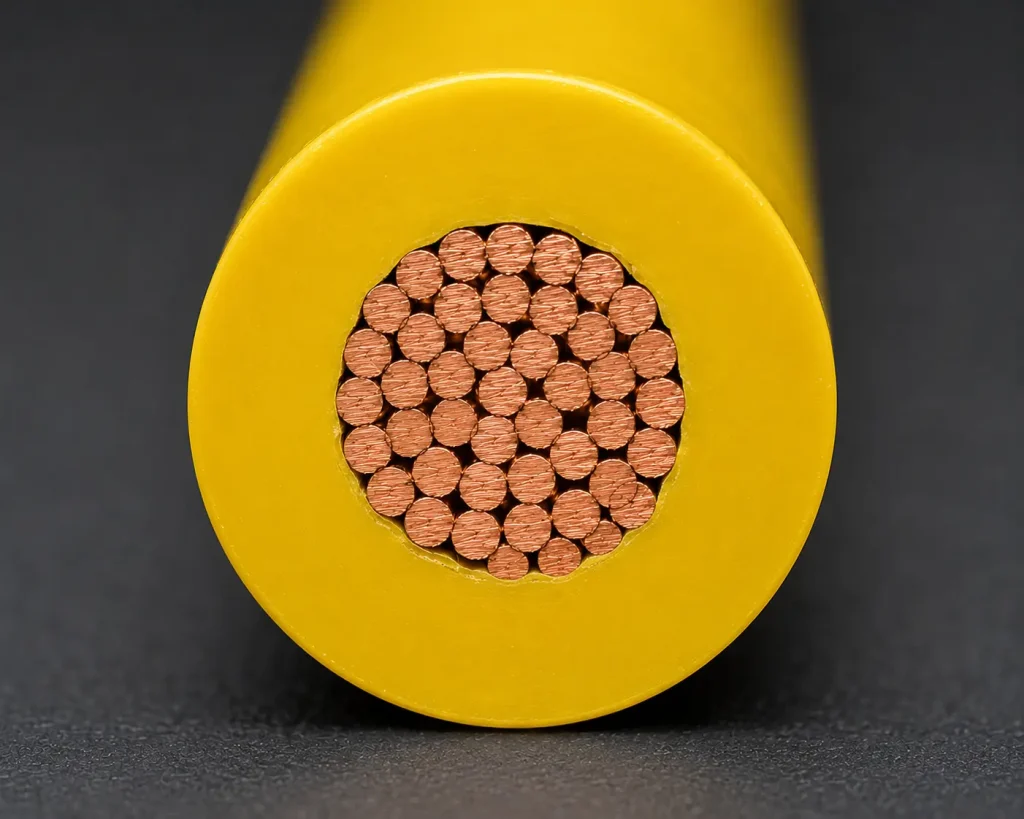

30-mil insulation wall vs. Style 1007’s 15-mil: At 14 AWG, Style 1015 carries exactly double the insulation wall of Style 1007 — 30 mils versus 15 mils minimum average. This doubling reflects the jump from 300V to 600V dielectric requirement and results in a noticeably larger overall wire diameter. Factor this into conduit fill calculations and harness routing space allocation, particularly in compact appliance enclosures where wire diameter is a design constraint.
Temperature grade selection for México’s tropical zones: For appliances deployed in México’s Gulf Coast and Yucatán Peninsula regions — Veracruz, Tabasco, Campeche, Mérida — where ambient temperatures inside sealed enclosures can reach 55–65°C under continuous summer operation, the 105°C grade provides the most conservative thermal margin and is the recommended default for compressor and motor lead applications in these climates.
750 Vdc for DC motor and inverter applications: The 750 Vdc rating qualifies Style 1015 14 AWG for internal wiring in DC bus-fed motor drives, solar micro-inverter assemblies, and battery storage system harnesses — all growing application categories in México’s expanding renewable energy and EV-adjacent manufacturing sectors.

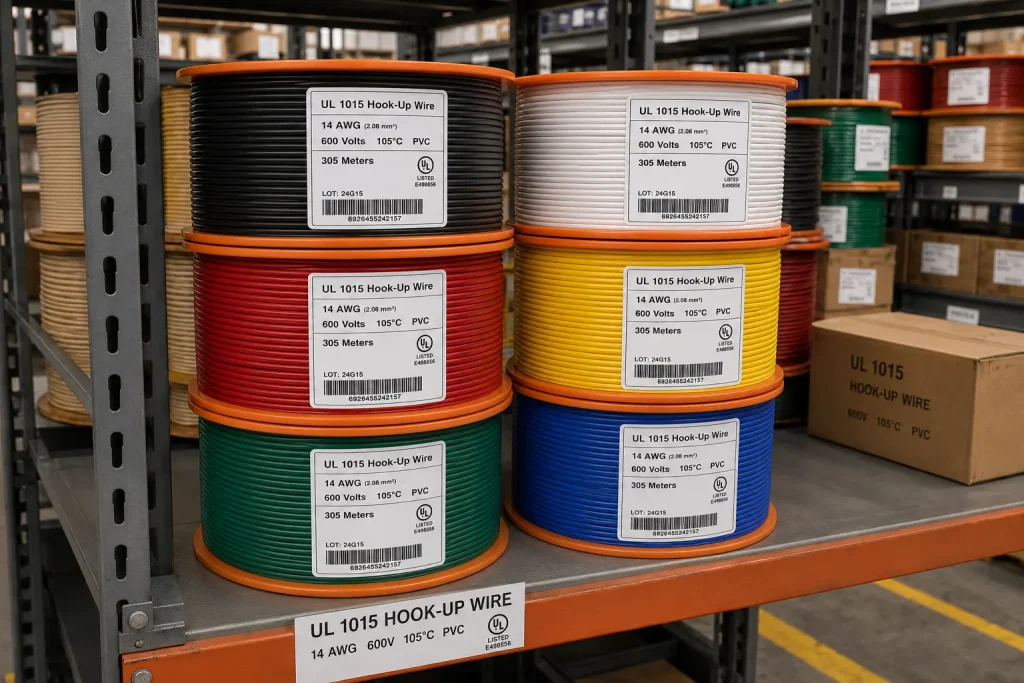

Wholesale volume and color kit options: Mexican wholesale buyers typically specify color-coded kits aligned to NOM-001-SEDE conductor identification requirements. CableApex supplies pre-configured color assortments — typically black, white, red, green, and yellow — packaged per-spool on a single pallet for streamlined warehouse intake at distributor facilities.
Related UL Styles for Comparison
UL 1015 14 AWG buyers commonly cross-reference: UL 1015 12 AWG (same style, heavier gauge for higher current motor and power leads), UL 1007 14 AWG (300V / 80°C PVC, lighter insulation wall for lower-voltage internal circuits at same conductor size), UL 10269 (80–105°C / 1000V PVC, for applications requiring voltage rating above 600V), and UL 3271 (125°C / 600V XLPE, higher temperature motor lead alternative at equivalent voltage class).
Request a Quote — Solicitar Cotización
Submit your AWG, temperature grade, color, spool format, and annual volume estimate below. Our bilingual team responds with a formal cotización within 24 business hours. Wire samples available for qualification testing upon request.
