UL 1015 Hook-Up Wire — 80/90/105°C / 600V PVC Insulation, Horizontal Flame — México
Style 1015 is the 600V-rated PVC appliance wire within UL Subject 758 — the natural step up from Style 1007 when internal circuits exceed 300V or when insulation wall thickness requirements demand a heavier build. Rated 80°C, 90°C, or 105°C depending on build specification, and 600 Vac or 750 Vdc, with extruded PVC insulation scaled by conductor size, Style 1015 covers the full spectrum of internal appliance wiring from fine 30 AWG signal paths to 2000 kcmil power distribution conductors.
For Mexican OEM manufacturers and importers, Style 1015 is the workhorse wire for appliances requiring both UL recognition and 600V insulation integrity — compressor motor leads, industrial control panel wiring, and main power feeds inside sealed enclosures destined for both domestic NOM-compliant and USMCA export markets.
Technical Specifications — UL Style 1015
| Parameter | Value |
|---|---|
| UL Style | 1015 |
| UL Subject | 758, Section 1 |
| Temperature Rating | 80°C / 90°C / 105°C (optional: 60°C oil resistant / 80°C oil resistant) |
| Voltage Rating | 600 Vac / 750 Vdc |
| Flame Rating | Horizontal flame |
| AWG / Size Range | 30 AWG – 2000 kcmil, solid or stranded |
| Conductor | Solid or stranded copper |
| Insulation Material | Extruded PVC |
| Insulation Thickness — 30–9 AWG | 30 mils min average / 27 mils min at any point |
| Insulation Thickness — 8–7 AWG | 45 mils min average / 40 mils min at any point |
| Insulation Thickness — 6–2 AWG | 60 mils min average / 54 mils min at any point |
| Insulation Thickness — 1–4/0 AWG | 80 mils min average / 72 mils min at any point |
| Insulation Thickness — 250–500 kcmil | 95 mils min average / 86 mils min at any point |
| Insulation Thickness — 550–1000 kcmil | 110 mils min average / 99 mils min at any point |
| Insulation Thickness — 1100–2000 kcmil | 125 mils min average / 112 mils min at any point |
| Typical Use | Internal wiring of appliances (cableado interno de aparatos) |
| Optional Marking | 2,500 V Peak — For Electronic Use Only |

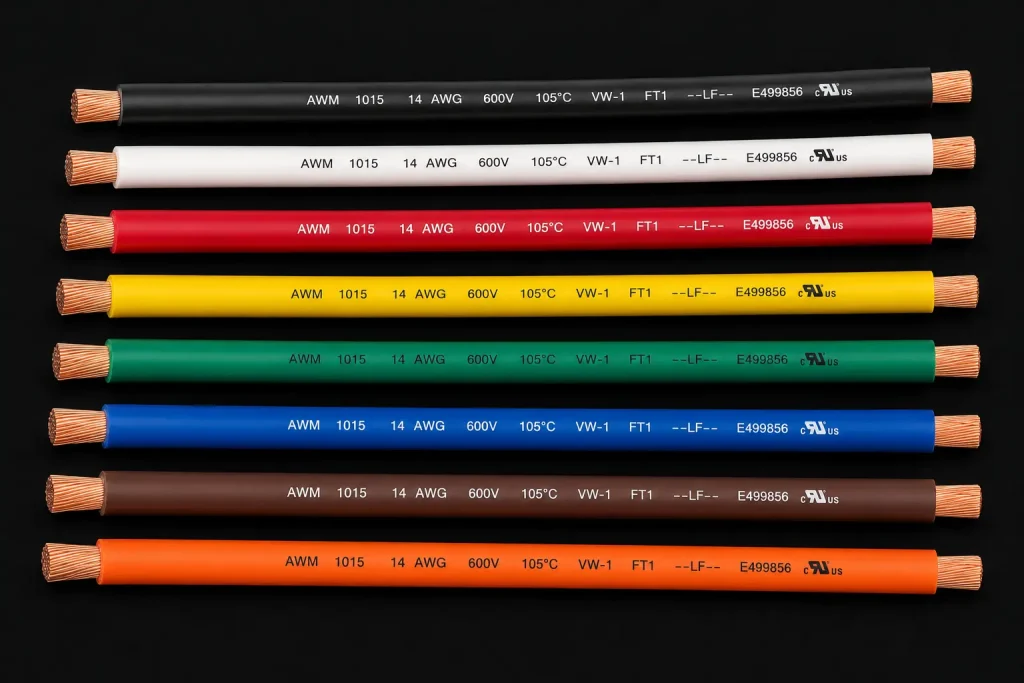

| Available Colors | Black, white, red, yellow, green, blue, brown, orange, gray (custom on request) |

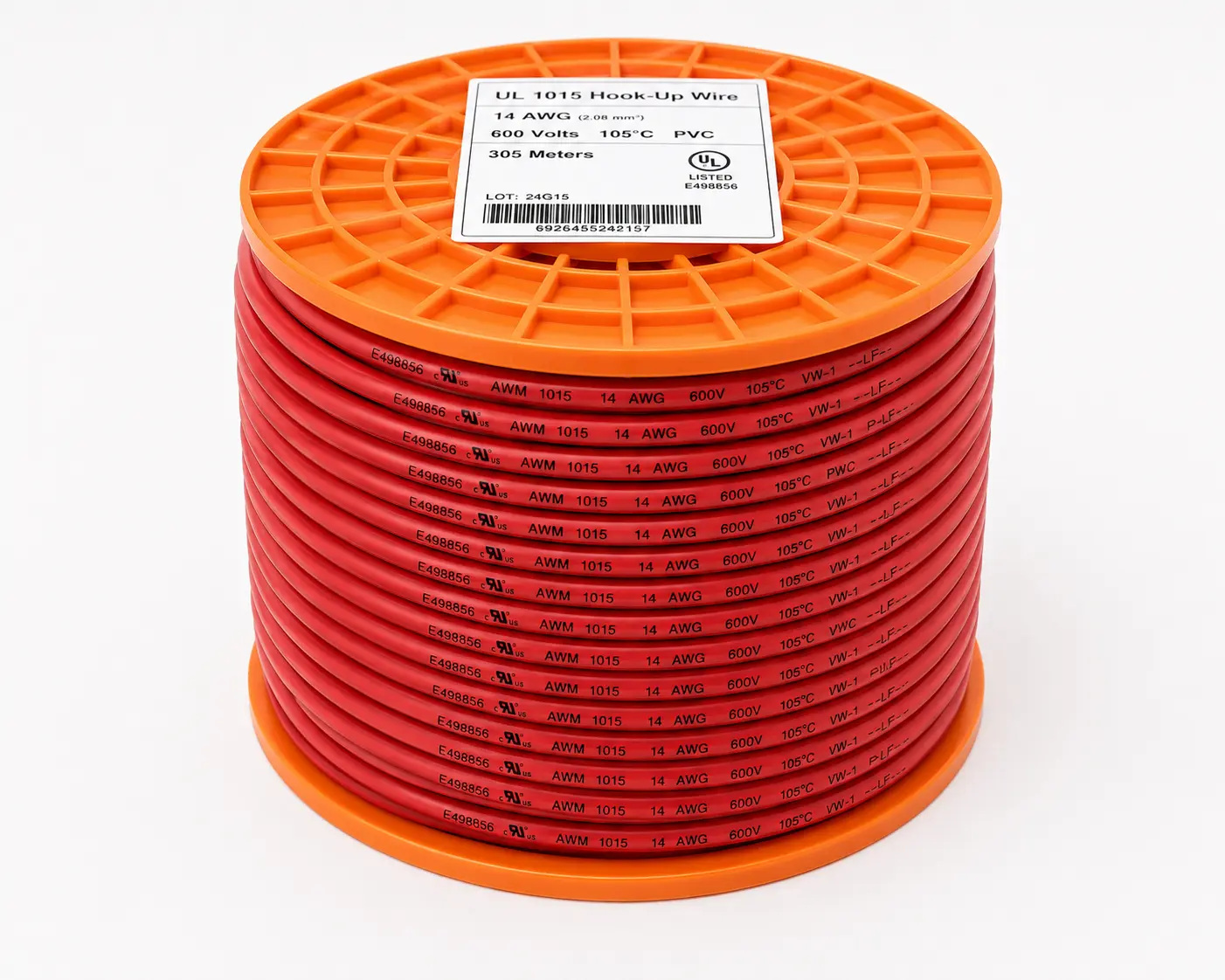

| Standard Spool Length | 100 m / 200 m / 305 m |
| MOQ | Contact for quote — consultar cotización |
Applications — precio fábrica for Mexican Industrial Buyers
Style 1015’s 600V rating opens it to a wider range of internal appliance wiring scenarios than the 300V-rated Style 1007 family. Key application categories for the Mexican market include:

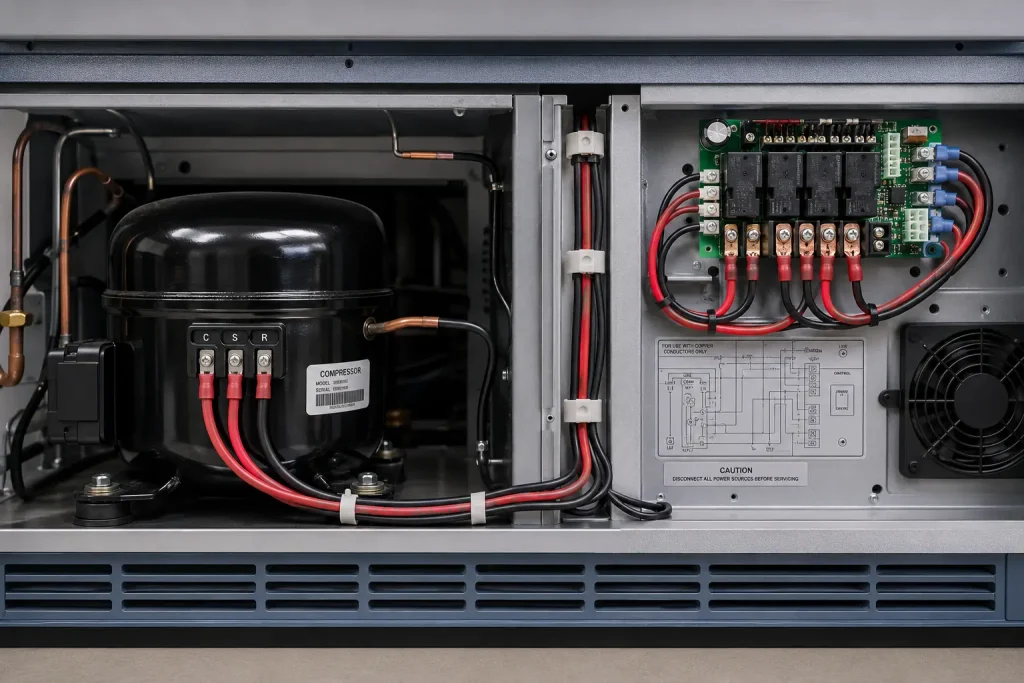

- Compressor motor leads in refrigeration equipment — hermetic compressor start and run windings in commercial refrigerators and freezers assembled in Monterrey and Guadalajara, where the 600V insulation rating satisfies motor lead requirements under UL and NOM compliance frameworks.
- Industrial control panel wiring — internal interconnects in motor control centers, variable frequency drive panels, and PLC enclosures manufactured or imported into México’s automotive and food processing industries, where 600V-rated wire is the standard specification for control voltage circuits.
- HVAC compressor and fan motor leads — split-type and packaged air conditioning units assembled across Nuevo León and Coahuila for both domestic and U.S. export markets under USMCA, requiring UL-recognized 600V wire for compressor terminal connections.
- Power tool and motor winding connections — internal supply leads in industrial power tools and single-phase motor assemblies where peak voltages under switching conditions exceed the 300V ceiling of Style 1007.
Engineering Notes — Scaled Insulation Wall and Temperature Options

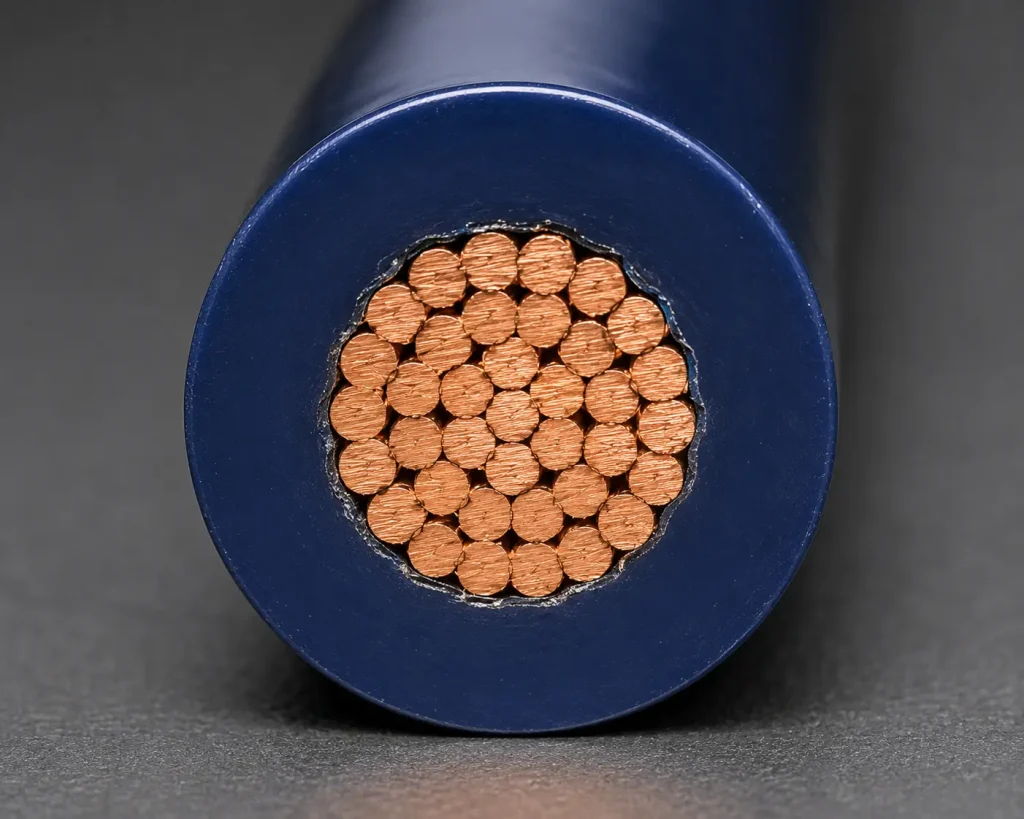

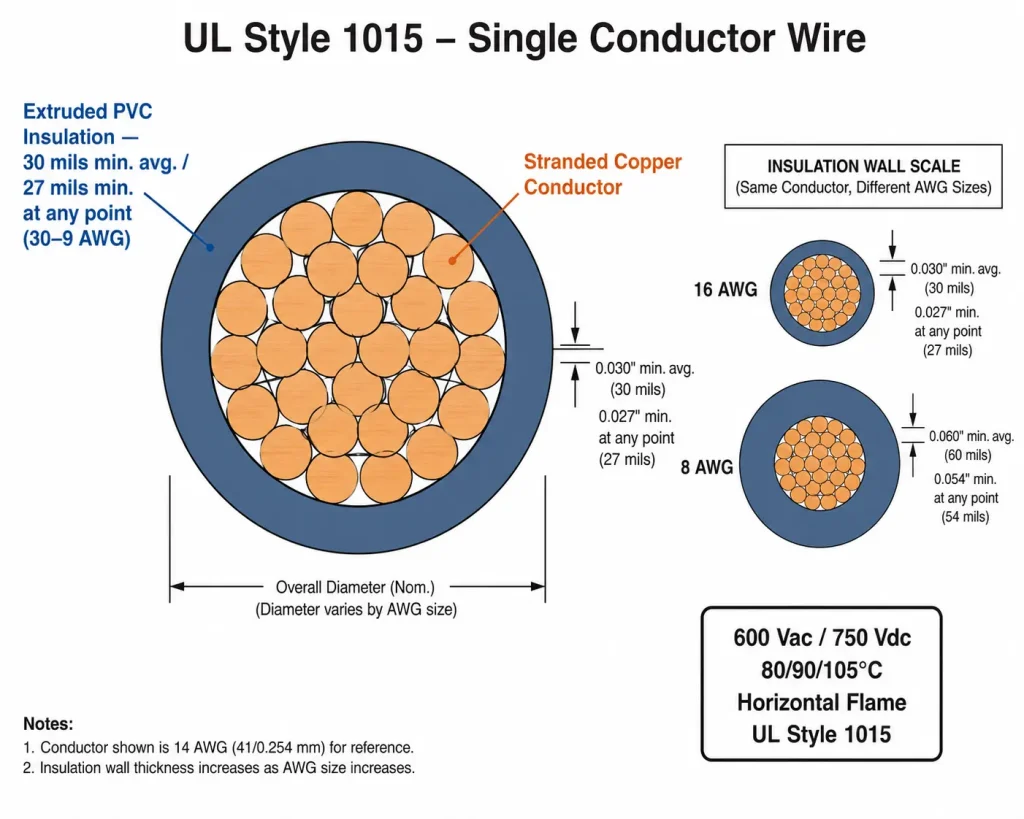

Insulation wall scales with conductor size: Unlike Style 1007’s uniform 15-mil wall, Style 1015 specifies a graduated insulation thickness — from 30 mils at 30–9 AWG up to 125 mils at 1100–2000 kcmil. This scaling ensures the dielectric strength of the insulation remains proportional to the physical demands of heavier conductors and higher current-carrying environments. When specifying, confirm the wall thickness for your exact AWG against the table above.
Three temperature ratings on a single style: Style 1015 covers 80°C, 90°C, and 105°C builds under the same UL style number. The physical PVC compound changes between temperature grades — specify the exact temperature rating at order time. For applications where internal enclosure ambient exceeds 70°C under load, the 105°C grade provides meaningful safety margin and is the preferred specification for sealed motor enclosures in tropical climate deployments across southern México.
750 Vdc rating for DC bus applications: The 750 Vdc rating makes Style 1015 suitable for internal wiring in DC-coupled systems — solar inverter assemblies, battery management system harnesses, and DC motor drive internal connections — increasingly relevant in México’s growing renewable energy equipment manufacturing sector.
Oil resistance for compressor environments: The optional 80°C oil-resistant build is essential for refrigeration compressor lead wiring where PVC insulation contacts compressor oil under operating temperatures. Specify explicitly at order stage — not assumed by default.
Related UL Styles for Comparison
UL 1015 buyers commonly cross-reference: UL 1007 (80°C / 300V PVC, lighter insulation wall for lower-voltage appliance internal wiring), UL 1569 (80–105°C / 300V PVC, thinner wall single conductor for compact routing), UL 10269 (80–105°C / 1000V PVC, for appliances requiring voltage rating above 600V), and UL 3271 (125°C / 600V XLPE, higher temperature motor lead alternative at same voltage class).
Request a Quote — Solicitar Cotización
Submit your AWG, temperature grade, color, spool format, and annual volume estimate below. Our bilingual team responds with a formal cotización within 24 business hours. Wire samples available for qualification testing upon request.
