UL 3239 — The 5000V DC Silicone Wire Niche
UL 3239 occupies a specific niche in the silicone rubber wire family: 5000V DC rating that fills the gap between standard 600V/750V silicone Styles (UL 3071, UL 3135, UL 3172) and the extreme 10,000V silicone Styles for ignition systems (UL 3304, UL 3573). The 5kV DC rating serves applications where standard 600V wire is insufficient but the extreme dielectric performance of 10kV ignition wire is unnecessary.
For German engineers searching UL 3239 high voltage DC wire Germany export, this Style addresses growing demand from electric vehicle high-voltage battery systems (typically operating at 400-800V DC bus with switching transients reaching 2-4 kV peak), energy storage interconnects, medical X-ray equipment, and industrial high-voltage DC test equipment.
Voltage Headroom Analysis — Why 5kV DC Matters
| Application | Continuous DC Voltage | Transient Peak Voltage | UL Wire Choice |
|---|---|---|---|
| EV 400V battery system | 400V DC nominal | 1.5-2 kV PWM transients | UL 10269 (1000V) or UL 3239 (5000V) for margin |
| EV 800V battery system | 800V DC nominal | 2.5-3.5 kV PWM transients | UL 3239 (5000V) recommended |
| Energy storage 1500V system | 1500V DC nominal | 3-4 kV transients | UL 3239 (5000V) recommended |
| Medical X-ray 1-3 kV | 1-3 kV DC | 3-4 kV peak | UL 3239 (5000V) standard choice |
| Industrial spark/arc 5-8 kV | 5-8 kV DC | 10 kV peak | UL 3304 or UL 3573 (10kV) |
UL 3239’s 5kV DC rating provides comfortable voltage margin for the growing class of high-voltage DC systems operating between 800V and 3000V with switching transients up to 4kV peak.
UL 3239 in German High-Voltage DC Export Applications

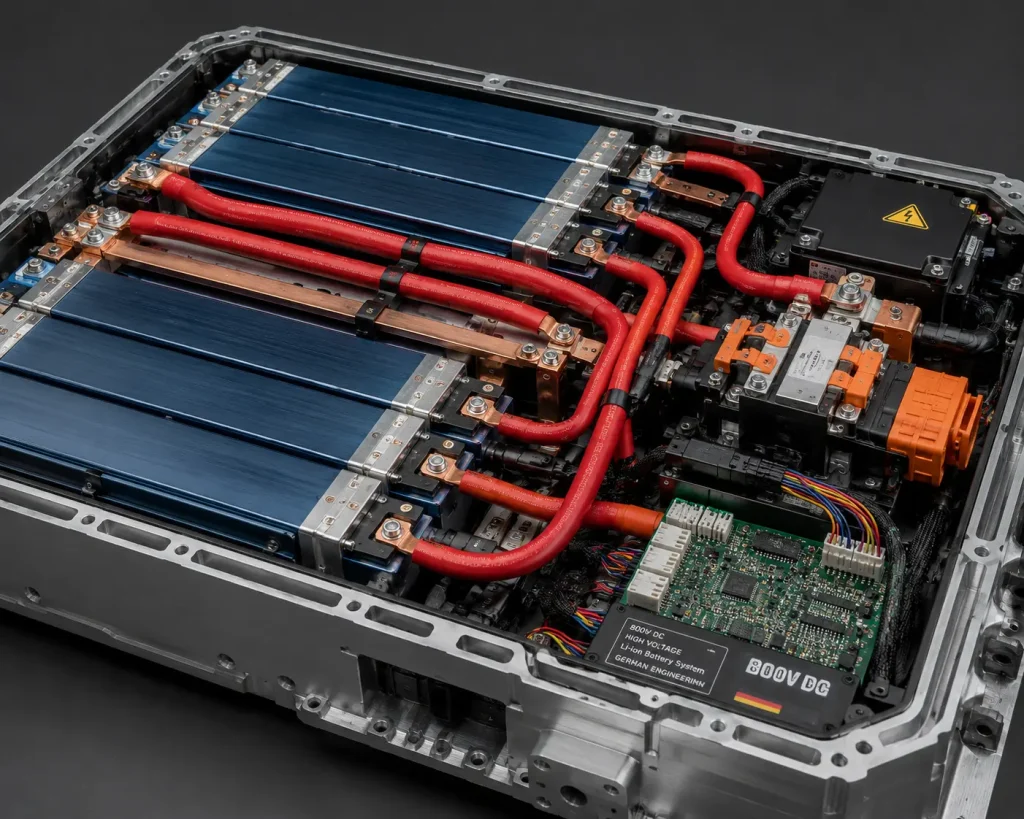

German EV Battery Pack Manufacturers producing 800V high-voltage battery packs for North American EV and commercial vehicle customers (Porsche Taycan-class architectures, electric truck systems) use UL 3239 for internal cell module interconnects and battery management system high-voltage sense wiring. The 5kV margin accommodates PWM switching transients from inverter operation.
German Energy Storage System Integrators producing 1500V DC commercial battery storage systems for North American utility and commercial energy storage projects use UL 3239 for DC bus interconnects between battery strings and inverter input terminals. The combined 5kV DC rating and 150°C temperature rating handle both the voltage and the elevated temperatures inside battery enclosures.
German Medical X-Ray Equipment Manufacturers producing diagnostic X-ray systems, CT scanners, and mammography equipment for US/Canadian hospitals use UL 3239 for high-voltage circuit wiring inside the X-ray tube housing assembly. The 1-3 kV DC anode voltages plus transient ripple are well within UL 3239’s 5kV rating.

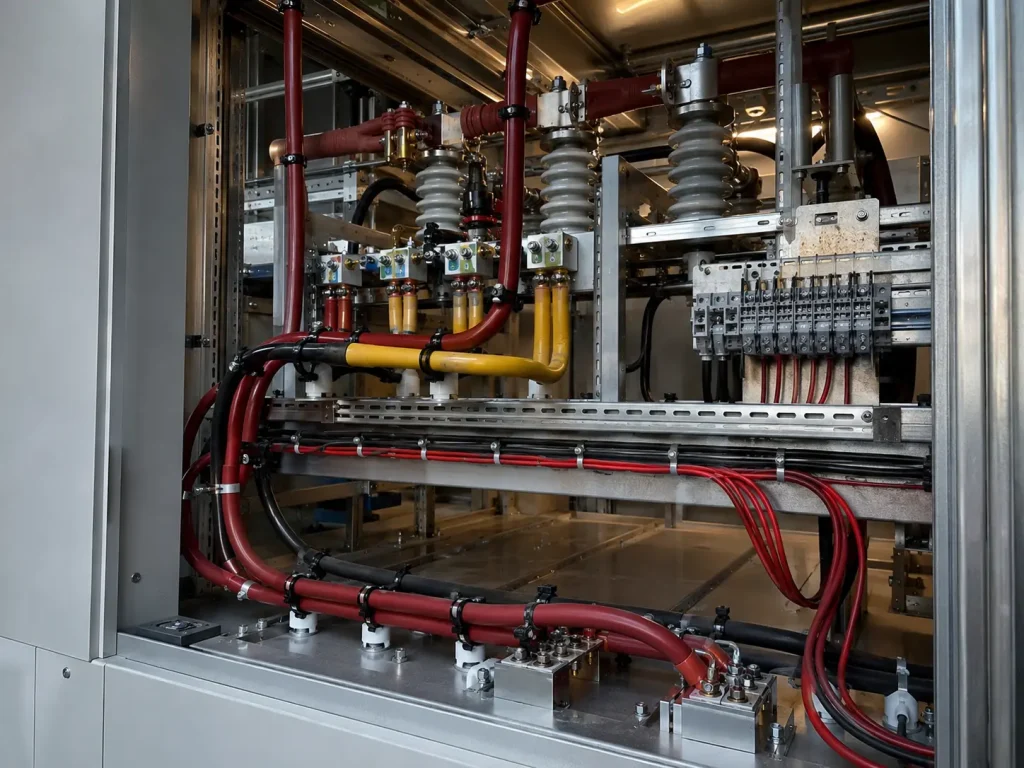

German Industrial High-Voltage Test Equipment manufacturers producing dielectric test equipment, surge generators, and high-voltage calibration systems use UL 3239 for internal high-voltage circuit wiring at the 1-5 kV class.

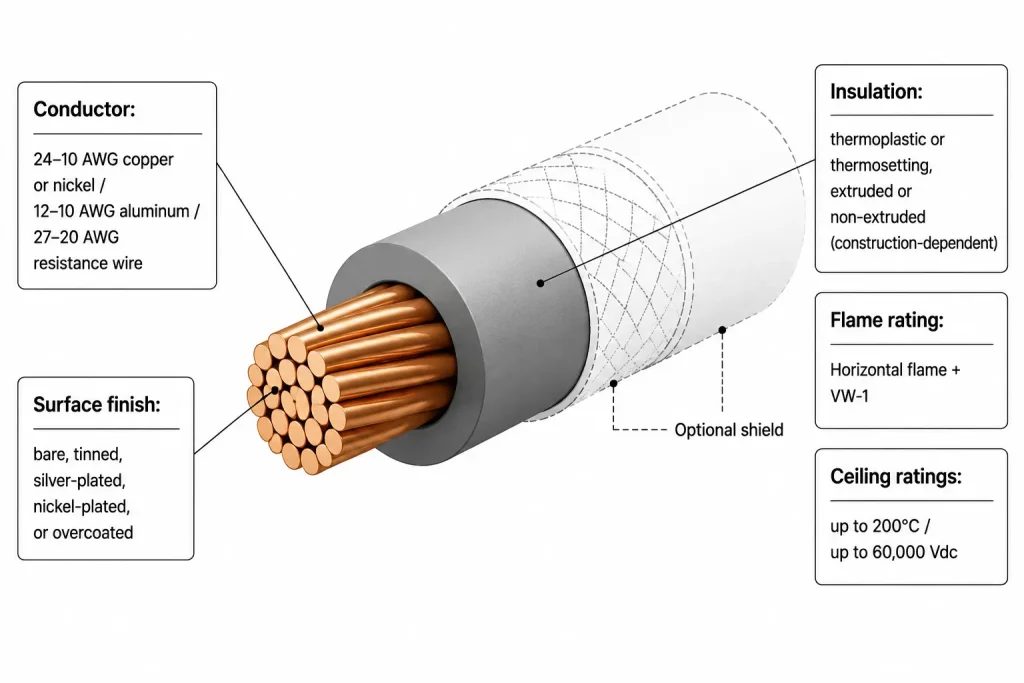

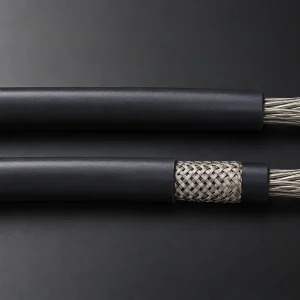

UL 3239 Specifications

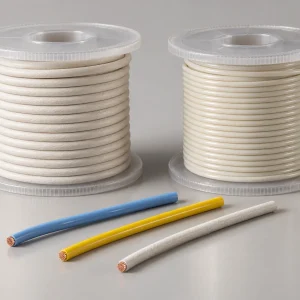

| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 3239 |
| AWG Range | 32 AWG – 4/0 AWG, solid or stranded |
| Voltage Rating | 5000V DC |
| Temperature Rating | 150°C continuous |

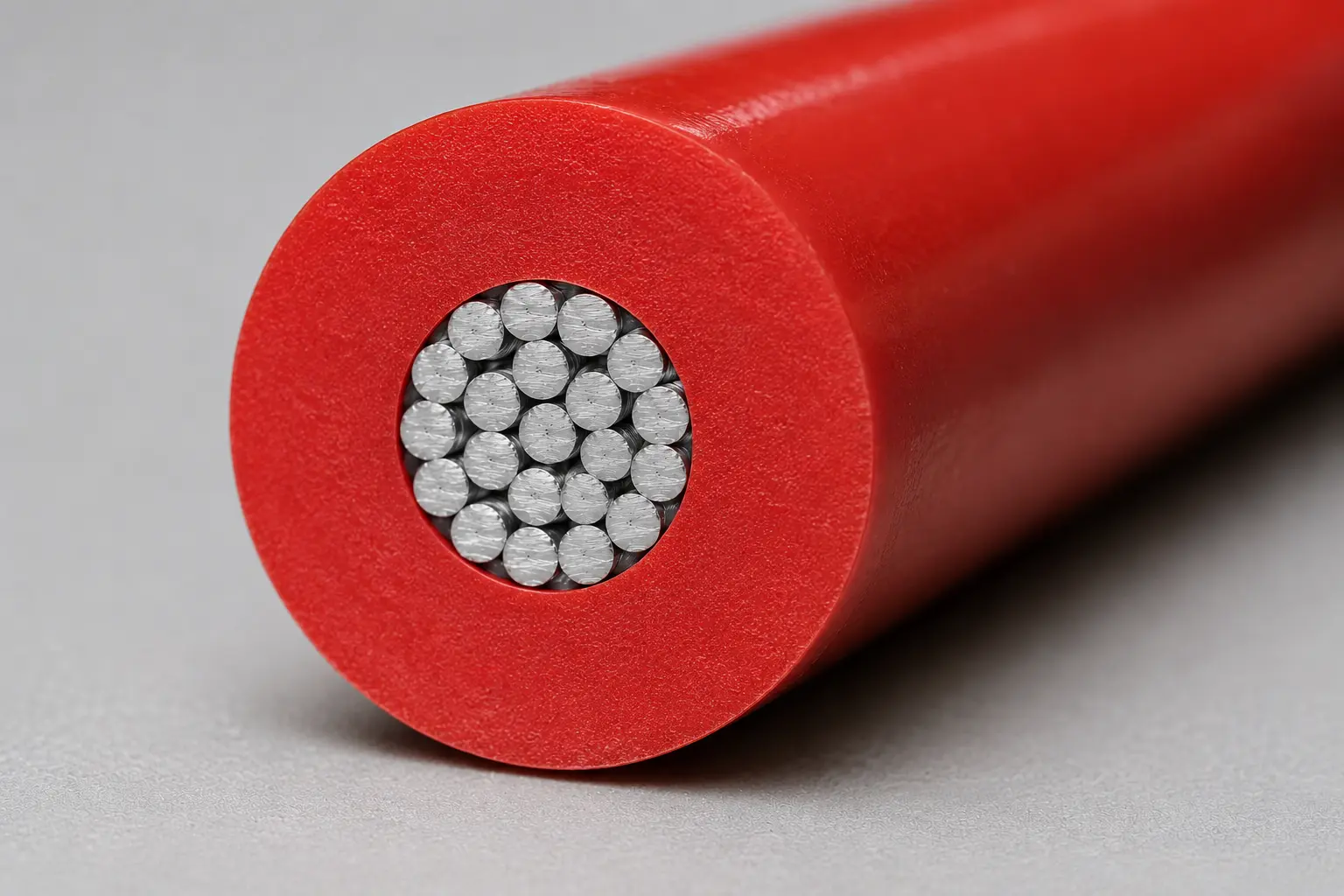

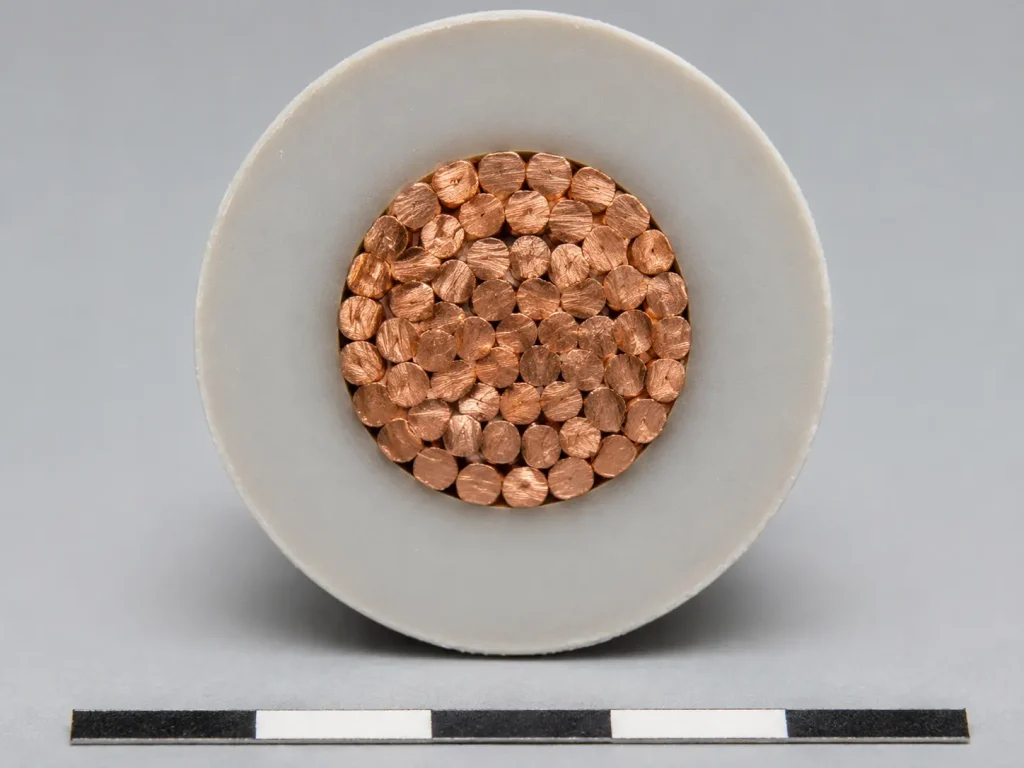

| Insulation | Extruded silicone rubber (SR) |

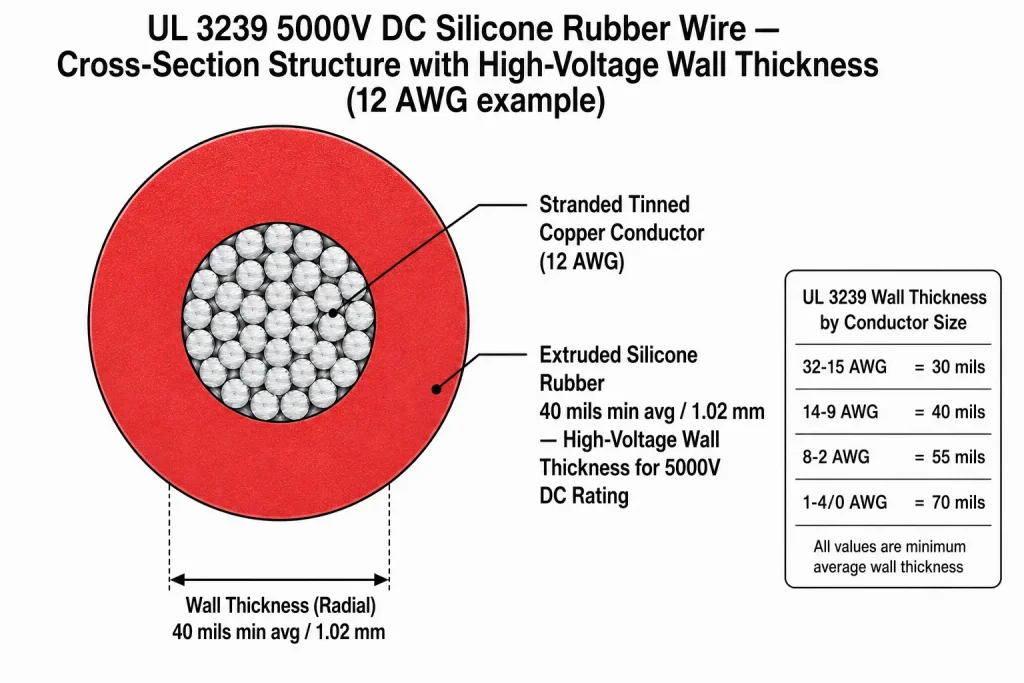

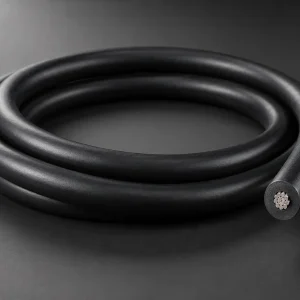

| Wall (32-15 AWG) | 30 mils (0.76 mm) min avg / 27 mils (0.69 mm) min any point |
| Wall (14-9 AWG) | 40 mils (1.02 mm) min avg / 36 mils (0.91 mm) min any point |
| Wall (8-2 AWG) | 55 mils (1.40 mm) min avg / 50 mils (1.27 mm) min any point |
| Wall (1-4/0 AWG) | 70 mils (1.78 mm) min avg / 63 mils (1.60 mm) min any point |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Designated Use | Internal wiring of high-voltage DC equipment |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |

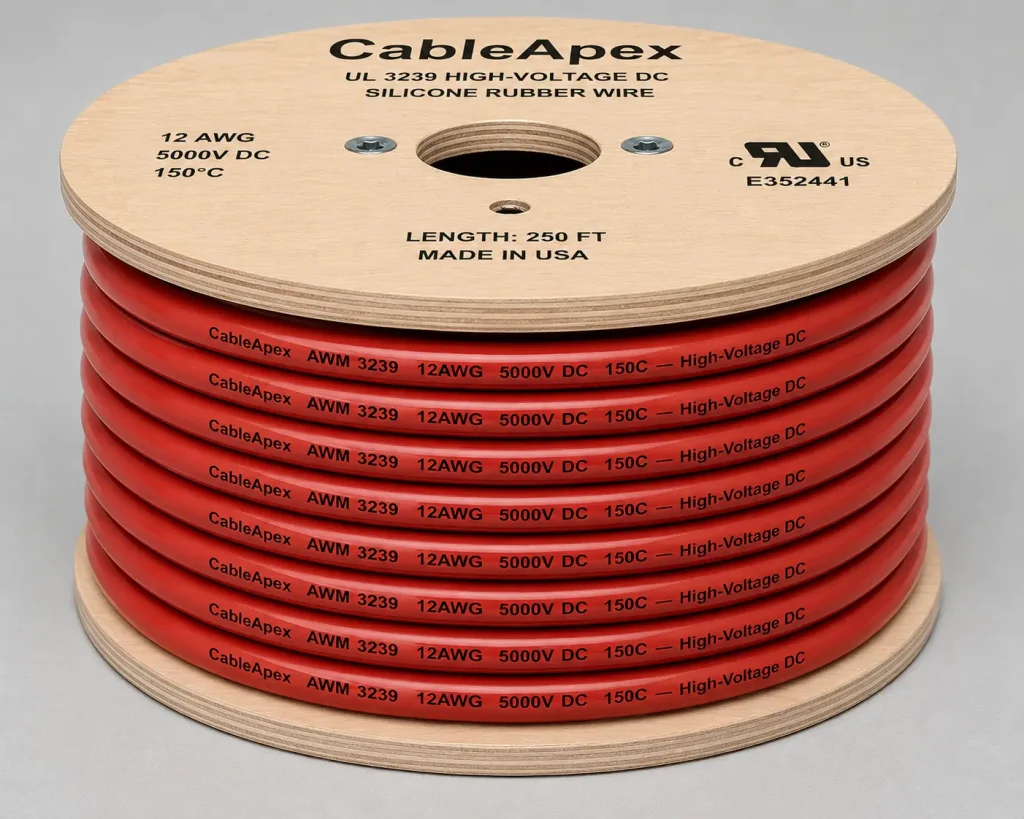

| Marking | CableApex · UL AWM 3239 · AWG · 5000V DC · 150°C |
Engineering Notes from CableApex
- “UL 3239 vs UL 10269 for 800V EV battery systems — which?” UL 10269 is 1000V AC rated PVC wire; UL 3239 is 5000V DC rated silicone rubber. For 800V DC EV battery systems with PWM switching transients reaching 2.5-3.5 kV, UL 10269’s 1000V rating provides marginal headroom while UL 3239’s 5000V provides comfortable margin. Conservative German OEM practice: specify UL 3239 for the high-voltage interconnect wiring with greatest transient exposure (near inverter outputs, near contactor switching), use UL 10269 for less-exposed portions of the 800V system.
- “Termination considerations for 5kV DC wire?” Terminations must maintain the 5kV dielectric envelope. Standard low-voltage compression lugs are not appropriate — use high-voltage rated terminations with sufficient creepage and clearance distances. For 5kV applications, typical creepage requirement is 15-25 mm depending on environment. Heat-shrink boots over crimped terminations help maintain the dielectric envelope at the termination point. Consult equipment-level high-voltage design standards for full termination requirements.
- “Why silicone insulation for high-voltage DC instead of PVC?” Silicone rubber has higher dielectric strength than PVC at equivalent wall thickness, and silicone’s flexibility supports the routing complexity typical of high-voltage DC equipment internal wiring. PVC can handle 1000V class effectively (UL 10269), but for the 5kV class UL 3239 covers, silicone provides better long-term dielectric performance and more conservative margins. Silicone’s higher temperature rating (150°C vs PVC’s 105°C) also accommodates the elevated temperatures inside high-power DC equipment.
MOQ, Packaging & Shipping

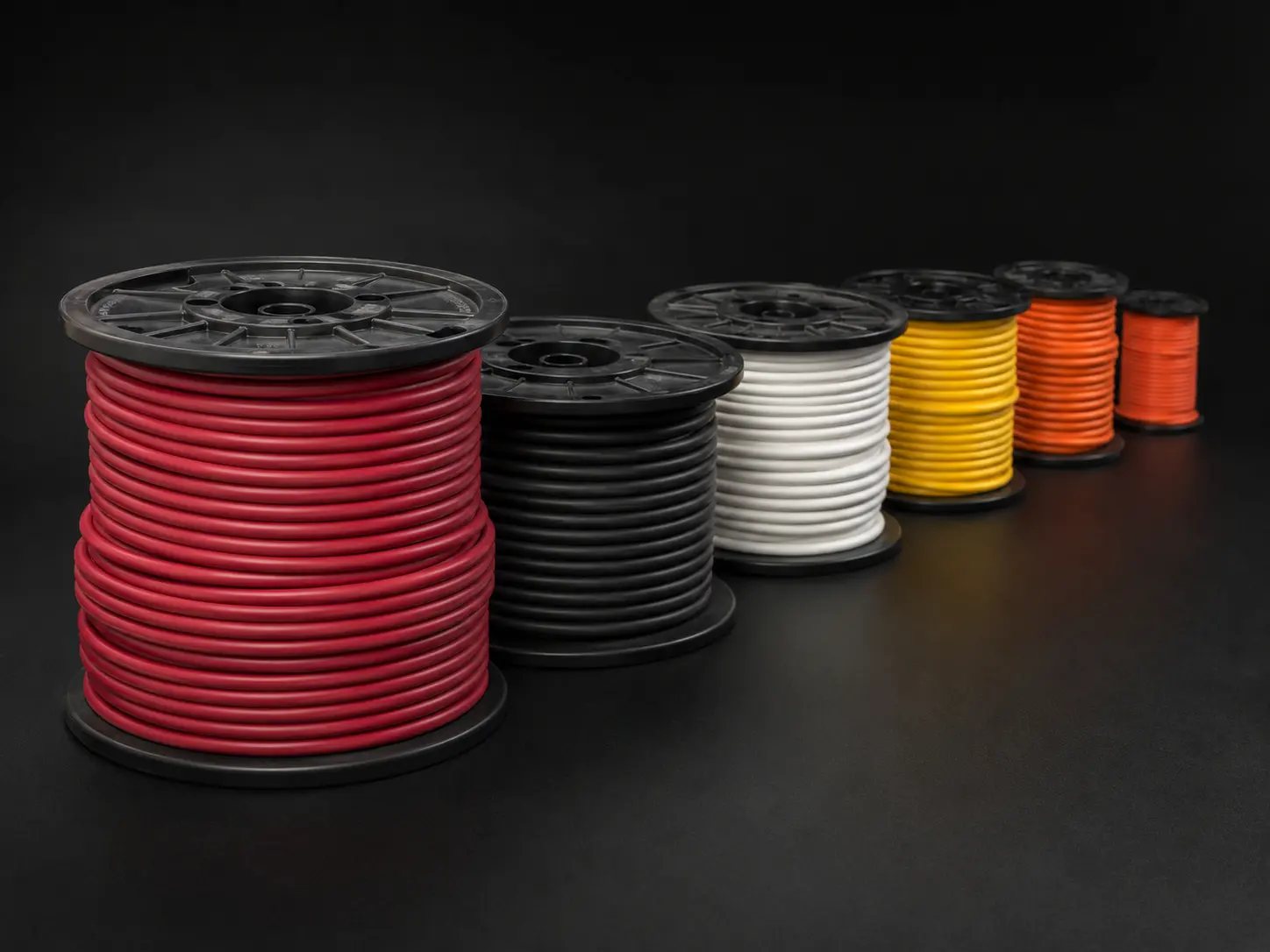

MOQ varies by AWG and production schedule. UL 3239 production scheduling typically requires 30-35 day CIF lead time due to silicone rubber processing and high-voltage testing verification of each production batch. Standard packaging: spools or reels per customer specification. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter, RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 30–35 days from Shanghai or Ningbo origin port.
Related UL High-Voltage Wire Styles
UL 3239 buyers commonly cross-reference: UL 10269 (105°C / 1000V AC PVC, 30-2000 kcmil — lower voltage class alternative), UL 3304 (200°C / 10,000V silicone, 22-12 AWG — extreme high voltage for ignition systems), UL 3573 (200°C / 10,000V three-layer silicone, ignition applications — alternative 10kV Style), and UL 3271 (125°C / 600V XLPE motor lead, 30-2000 kcmil — for lower voltage class motor applications).
