UL 1911 High Voltage Wire

UL 1911 Wire Ratings and Product Selection

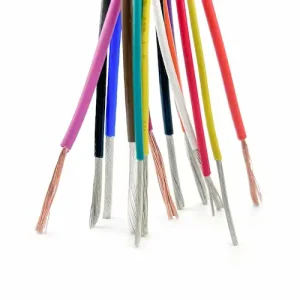

This category groups the available UL Style 1911 products and helps buyers confirm the construction required for their application. UL Style 1911 is a high voltage wire under UL Subject 758, Section 1, rated 250°C at 50,000 V DC maximum, covering 24 AWG to 10 AWG in solid or stranded round construction. Individual ratings depend on the applicable facing page. The stated use is internal wiring of electronic gas ignitor systems.

Because the Style file lists the insulation as any material with details on the facing page, the construction is not fixed at Style level. Reviewing the products below is a starting point; the applicable insulation material, individual voltage rating and full construction must be confirmed before quotation and order.

UL Style 1911 Technical Specifications

UL AWM Style1911
UL Subject758, Section 1
Temperature250°C
Voltage50,000 V DC maximum; see the applicable facing page for individual ratings
Conductor24–10 AWG, solid or stranded round
InsulationAny material; see the applicable facing page for details
FlameHorizontal flame
MarkingGeneral
UseInternal wiring of electronic gas ignitor systems

Construction and Individual Rating Confirmation

The insulation entry in the UL Style 1911 file reads “any material; see facing page for details.” This is a scope statement rather than an availability statement — it does not mean that every insulation material is automatically available, and it does not mean that a particular material can be supplied simply because the Style permits it in principle.

The applicable insulation material and the individual voltage rating both depend on the confirmed facing-page construction. The 50,000 V DC figure is the Style maximum; the rating that applies to a specific product is the one shown on the applicable facing page for that construction, and it may be considerably lower.

Buyers must confirm the required construction before quotation and order. Do not assume that a specific insulation material is available under this Style without a separate confirmed basis for that construction.

Application Boundary

UL Style 1911 is intended for internal wiring of electronic gas ignitor systems.

Final suitability for a particular installation depends on the equipment design, the actual operating temperature, the DC voltage, the current, the routing arrangement, the mechanical protection provided along the routed path, whether the wire is subject to repeated movement, the ordered construction and the final certification requirements applying to the equipment. None of these is established by the Style rating alone.

UL Style 1911 is not supplied or positioned as building wiring, field wiring, general power cable, unrestricted high-voltage equipment wiring, direct flame wiring, open furnace wiring or direct heating-element wiring.

UL Marking and Documentation

CableApex is not the UL file holder. Supply is coordinated through a partner manufacturing scope.

The applicable UL construction, the actual marking and the order documentation must be confirmed before order. Only products bearing the applicable UL Mark should be treated as certified and covered under the corresponding UL Follow-Up Service. Where RoHS, REACH or other documents are required, specify them at quotation stage so availability can be confirmed for the construction being supplied.

Flame-Test Options

The UL Style 1911 source rating is Horizontal flame. FT-1 or VW-1 testing can be discussed for a confirmed construction or an agreed order requirement.

UL High Voltage Wire Style Comparison

Four high-voltage Styles are available. The table below uses the parameters stated in each applicable Style file.

ParameterUL 1911UL 3239UL 3304UL 3573
Temperature250°C200°C maximum200°C200°C
Voltage50,000 V DC maximum60,000 V DC10,000 V AC10,000 V AC
Individual ratingsSee applicable facing pageTemperature and voltage per facing pageFixed at Style levelFixed at Style level
Conductor24–10 AWG, solid or stranded roundSee applicable Style file22–12 AWG, solid or stranded round22–12 AWG, solid or stranded round
InsulationAny material; see facing pageExtruded or non-extruded thermoplastic and/or thermosettingExtruded silicone, 40 mils min avg / 36 mils min at any point; fiberglass braidSilicone inner 30 mils min avg / 27 mils min at any point; fiberglass braid or serve; silicone outer over braid 10 mils min at any point
FlameHorizontal flameHorizontal flame and VW-1 flameHorizontal flameHorizontal flame
UseInternal wiring of electronic gas ignitor systemsInternal wiring of TV receivers or where acceptability has been determined by ULElectronic ignition or similar applications in gas ranges or gas/fuel-oil burner systems, protected from damage during handling, installation and servicingElectronic ignition or similar applications in gas ranges or gas/fuel-oil burner systems, protected from damage during handling, installation and servicing

Full ranges are available under UL 3239, UL 3304, UL 3573 and the High Voltage Wire parent category. Selection between Styles should follow the voltage form and level, the required construction and the equipment design rather than a single rating figure.

Request a Quote

Send the following with your enquiry so the construction can be confirmed:

  • Required DC voltage
  • AWG size
  • Solid or stranded requirement
  • Required conductor material or plating, for feasibility confirmation
  • Required insulation construction
  • Colour
  • Quantity
  • Reel length
  • Packaging format
  • Required marking
  • Equipment type
  • Routing condition
  • End application
  • Required documents
  • Requested Incoterm
  • Destination

Minimum order quantity, sample availability, pricing, reel length, packaging, marking, lead time and documents are confirmed at quotation stage.
