Style 3321 occupies the top of the XLPE wire temperature hierarchy within UL Subject 758 — rated 150°C continuous at 600 Vac and 750 Vdc, with XLPE insulation scaled proportionally across 30 AWG to 4/0 AWG and an optional braid covering for enhanced mechanical protection. The 150°C rating positions Style 3321 in the IEC Class F insulation system category, making it the appropriate wire specification for motor leads and internal wiring in heavy-duty industrial motors designed to Class F or Class H insulation standards, and for appliance internal wiring in high-ambient enclosure environments where 125°C-rated XLPE constructions operate with inadequate thermal margin under sustained full-load conditions.
For Mexican heavy industry equipment importers, motor rewinding operations, and industrial OEM manufacturers sourcing from China, Style 3321 provides the UL-recognized thermal performance step above Style 3271 — the same 600V insulation class, the same XLPE material family, but with a 25°C thermal ceiling increase that transforms the wire’s suitability for the most thermally demanding industrial motor and appliance wiring applications.
Technical Specifications — UL Style 3321
| Parameter | Value |
|---|---|
| UL Style | 3321 |
| UL Subject | 758, Section 3 |
| Temperature Rating | 150°C |
| Voltage Rating | 600 Vac / 750 Vdc |
| Flame Rating | Horizontal flame |
| AWG Range | 30 AWG – 4/0 AWG, solid or stranded |
| Conductor | Solid or stranded copper |
| Insulation Material | Extruded XLPE |

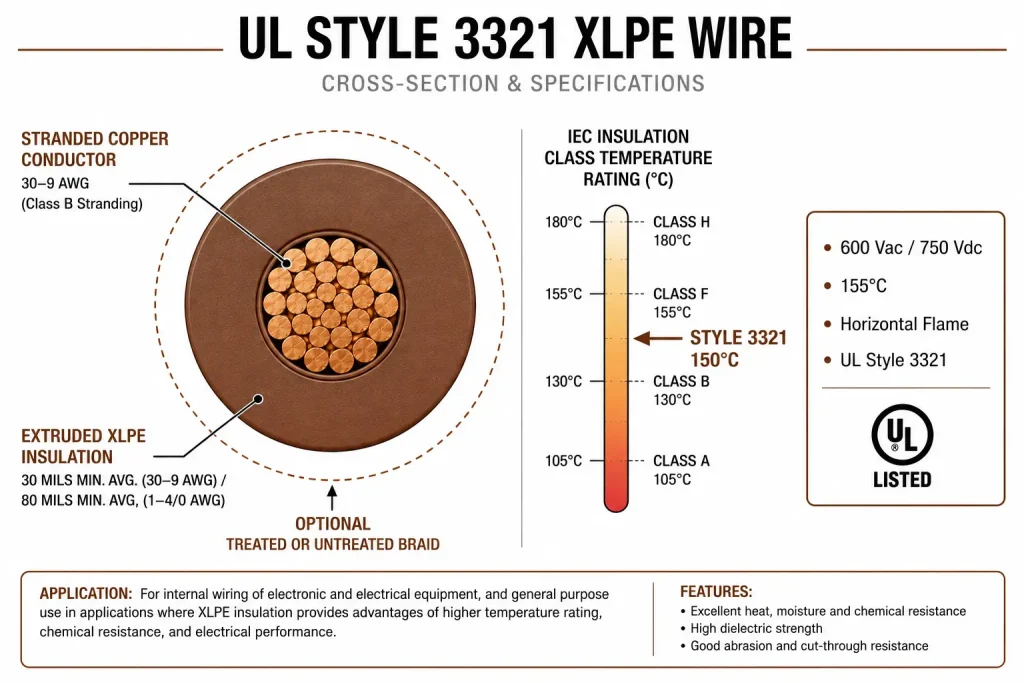

| Insulation Thickness — 30–9 AWG | 30 mils min average / 27 mils min at any point |
| Insulation Thickness — 8–4 AWG | 45 mils min average / 40 mils min at any point |
| Insulation Thickness — 3–2 AWG | 60 mils min average / 54 mils min at any point |
| Insulation Thickness — 1–4/0 AWG | 80 mils min average / 72 mils min at any point |
| Optional Covering | Treated or untreated braid |
| Typical Use | Internal wiring of appliances (cableado interno de equipos industriales pesados) |
| Available Colors | Black, white, red, yellow, green, blue, brown (custom on request) |

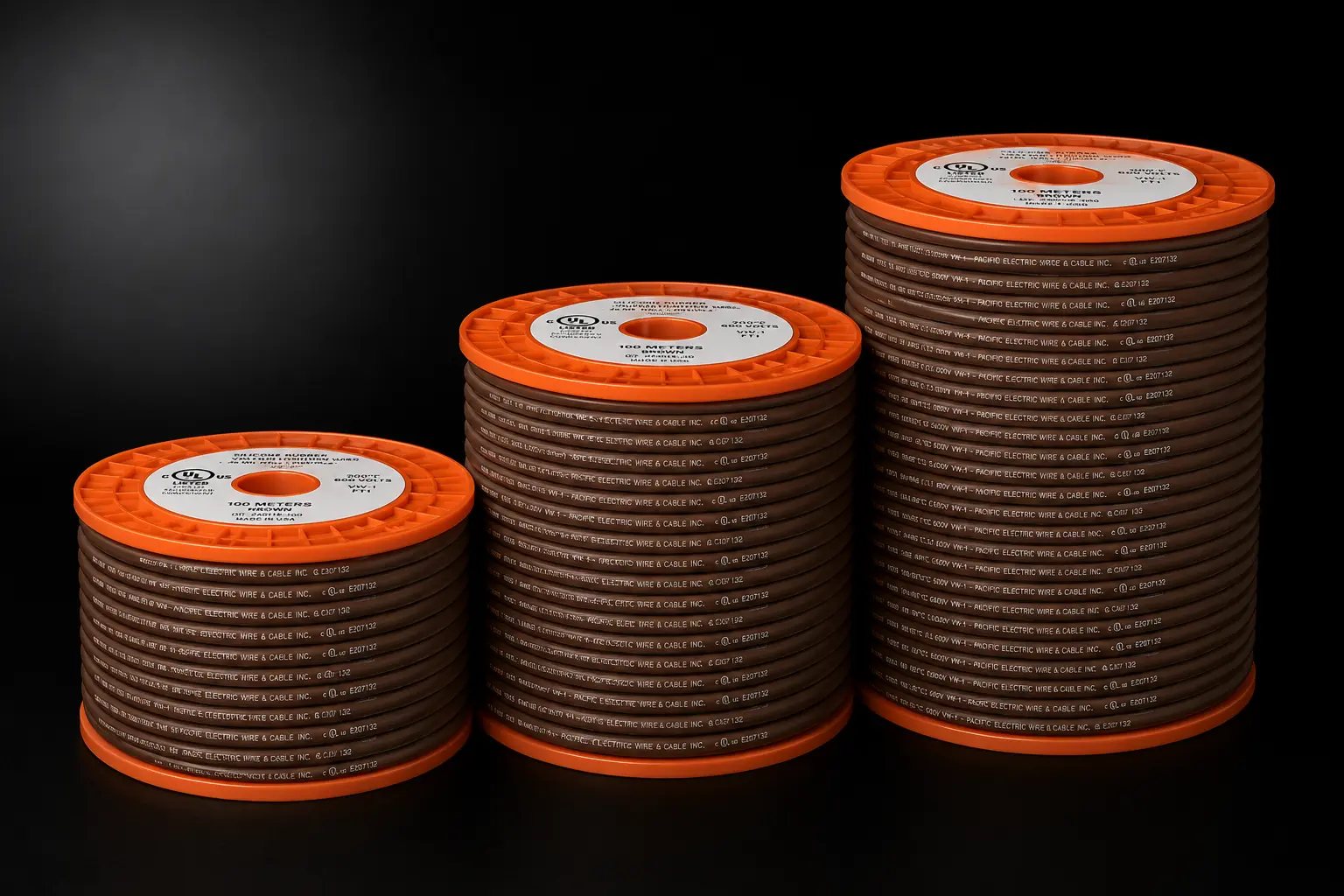

| Standard Spool Length | 100 m / 200 m / 305 m |
| MOQ | Contact for quote — consultar cotización |
Engineering Notes — 150°C Class F Rating and the XLPE Thermal Upgrade Path
IEC insulation classes and Style 3321’s position: The IEC insulation class system organizes electrical insulation materials by continuous operating temperature — Class A at 105°C, Class B at 130°C, Class F at 155°C, and Class H at 180°C. Style 3321’s 150°C UL rating aligns with Class F insulation system territory — the thermal class specified for heavy-duty industrial motors designed for high continuous load operation with limited cooling. When a motor nameplate specifies “Insulation Class F,” the motor lead wire connecting the winding terminals to the external terminal box should carry a thermal rating at or above the Class F boundary. Style 3321 at 150°C satisfies this requirement; Style 3271 at 125°C does not.
The 25°C step from 3271 to 3321 — practical significance: Moving from Style 3271 (125°C) to Style 3321 (150°C) adds 25°C of continuous thermal headroom at the same 600V insulation class. In practical terms, this step matters in two scenarios: first, when motor winding temperature measurements under full continuous load exceed 120°C at the terminal connection point — where 125°C-rated wire operates with less than 5°C margin, inadequate for safe long-term service; second, when ambient enclosure temperatures in high-heat industrial environments push the wire surface temperature above 125°C independent of current-generated heat. Style 3321’s 150°C ceiling provides 30°C of margin above a 120°C measured temperature — the minimum acceptable margin for long-term insulation reliability.

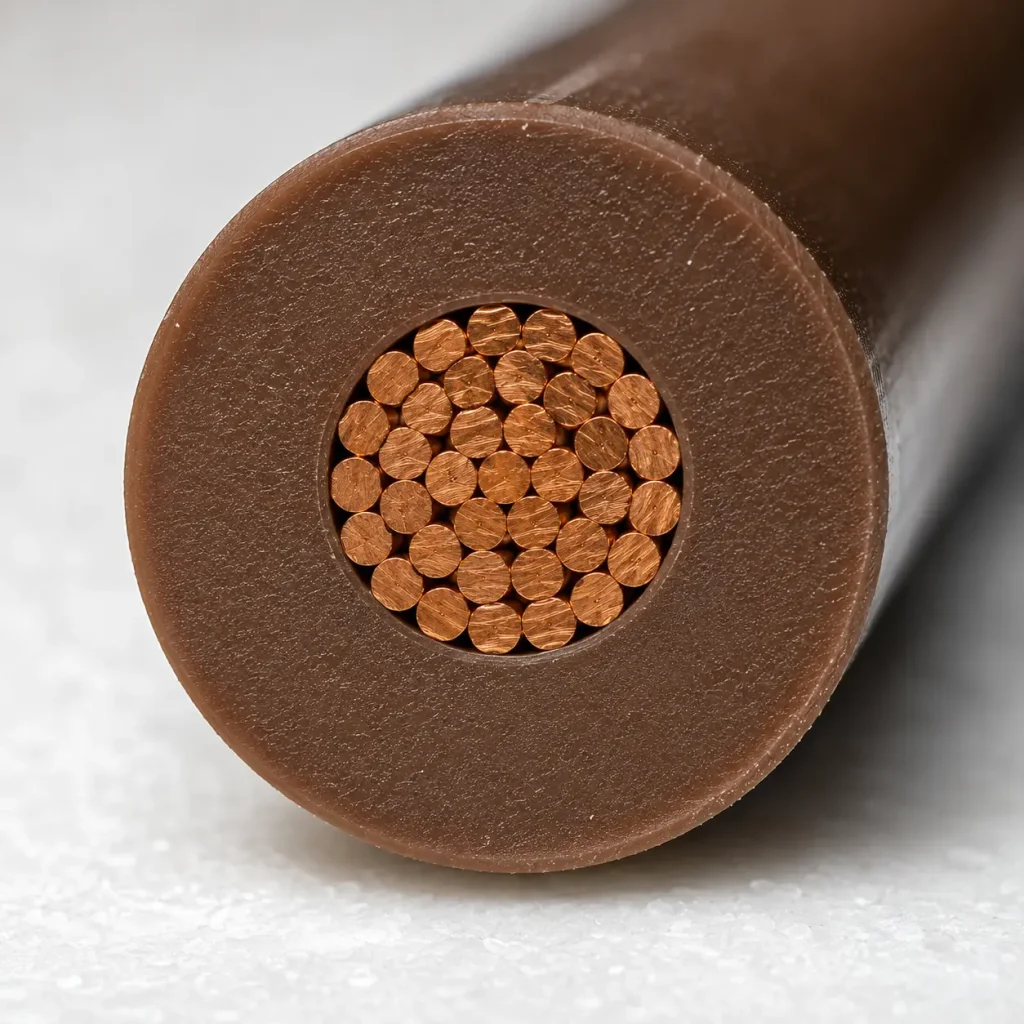

Scaled insulation wall at heavy AWG: Style 3321’s insulation wall scales from 30 mils at 30–9 AWG to 80 mils at 1–4/0 AWG. The 80-mil wall at 4/0 AWG reflects the combined dielectric requirement at 600V and the mechanical protection needed for heavy-gauge conductor termination handling in industrial motor assembly. At 4/0 AWG, confirm terminal lug bore sizing against the 80-mil insulation wall outer diameter — the overall wire OD at this gauge is substantially larger than at lighter AWG sizes.
Optional braid covering — treated vs. untreated: The optional braid covering for Style 3321 is available in treated or untreated versions. Treated braid — impregnated with varnish or resin — provides enhanced abrasion resistance and prevents braid fraying at cut ends, making it preferable for motor terminal box environments where the wire end is handled repeatedly during motor rewinding and servicing. Untreated braid provides basic mechanical protection at lower cost — appropriate for static internal routing paths where abrasion risk is lower. Specify the braid treatment at order time based on the servicing environment of your application.
Applications — Equipos Industriales Pesados en México
Style 3321’s 150°C / 600V XLPE construction serves the thermal demands of México’s heavy industry equipment sector where 125°C-rated alternatives reach their limits:

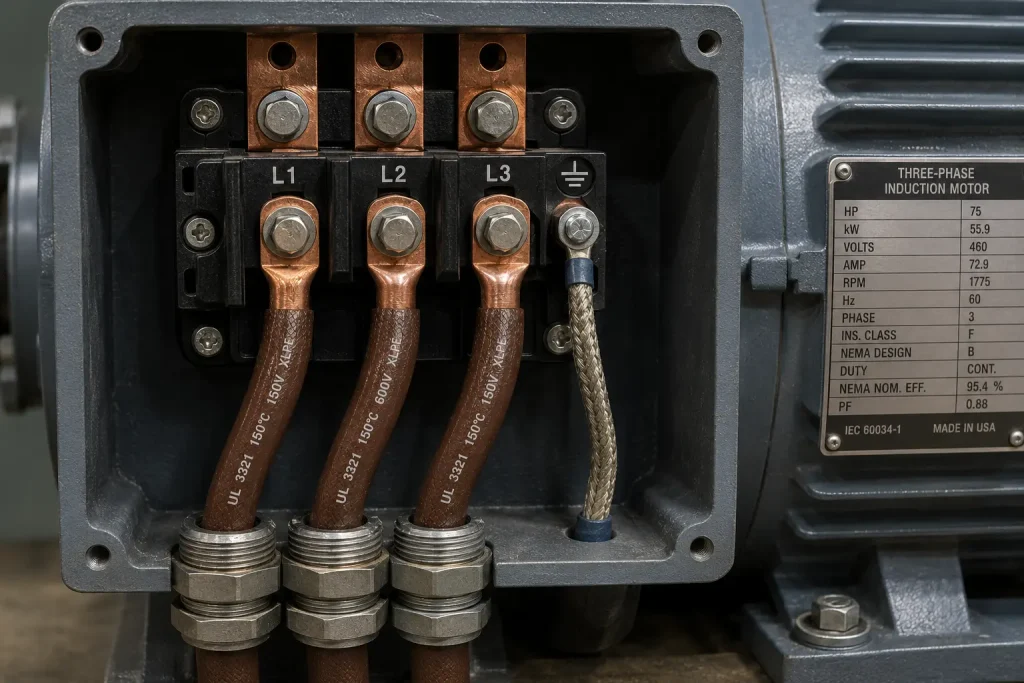

- Heavy-duty induction motor rewinding lead wire — terminal lead wires used in motor rewinding operations serving México’s mining, steel, and cement industries across Coahuila and Durango’s industrial corridor, where Class F and Class H wound motors returning from rewind require replacement terminal leads rated at or above 150°C to match the insulation class of the new winding system and restore original design thermal margins.
- Metallurgical and steel processing equipment wiring — internal wiring of drive motors and ancillary equipment in steel rolling mills, electric arc furnace auxiliaries, and continuous casting line drive systems across Monterrey’s steel manufacturing complex, where radiant heat from molten metal processes creates sustained high-ambient temperature conditions at motor terminal connection points requiring 150°C-rated wire as a minimum specification.
- Large industrial compressor motor leads — terminal lead wiring for large open-type and semi-hermetic compressor motors in industrial refrigeration systems and petrochemical process compressor trains across Tamaulipas and Veracruz’s industrial port zones, where high-load compressor motor winding temperatures at full continuous compression duty reach 130–145°C and require 150°C-rated motor lead wire at the terminal block connection points.
- High-ambient industrial oven conveyor motor wiring — internal power leads for conveyor drive motors installed inside or immediately adjacent to industrial curing ovens, paint drying ovens, and powder coating cure tunnels across Durango and Coahuila’s metal fabrication and automotive parts finishing operations, where motor enclosure temperatures in oven-adjacent positions routinely exceed 130°C and require 150°C-rated wire for the motor terminal and internal power lead connections.
Related UL Styles for Comparison

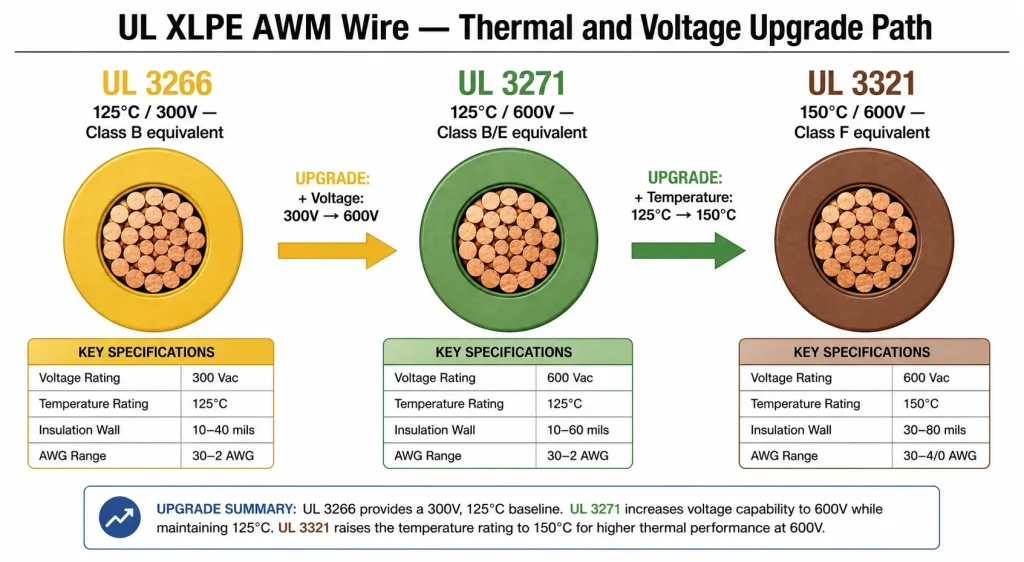

UL 3321 150°C buyers commonly cross-reference: UL 3271 (125°C / 600V XLPE, lower thermal class motor lead for Class B/E insulation system motors), UL 3071 (200°C / 600V silicone rubber, higher temperature flexible alternative for the most thermally demanding motor environments), UL 3135 (200°C / 600V silicone rubber, totally enclosed high-temperature appliance internal wiring), and UL 5107 (200–450°C / 600V mica tape, for extreme temperature applications beyond silicone rubber limits).
Request a Quote — Solicitar Cotización
Submit your AWG, braid covering requirement, color, spool format, and annual volume estimate below. Our bilingual team responds with a formal cotización within 24 business hours. Wire samples available for motor qualification testing upon request.
