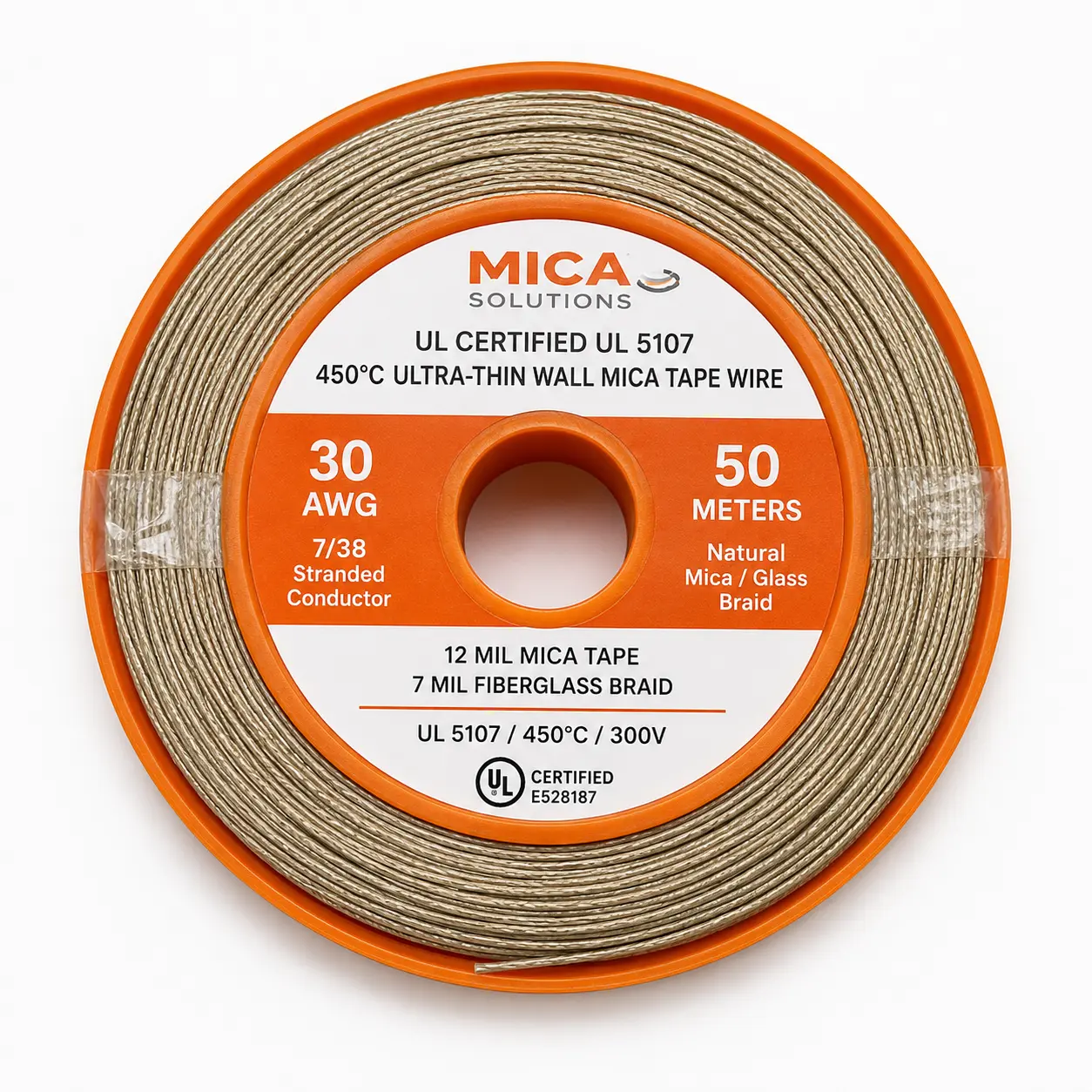

Style 5360 holds a unique position in the UL Subject 758 mica wire family: it specifies the thinnest mica insulation wall of any style in the family at fine gauges — 12 mils minimum average at 30–12 AWG — producing the most compact overall wire profile available in any 450°C-rated UL AWM wire construction. For precision equipment applications where routing space inside high-temperature chambers is measured in millimeters and wire diameter directly determines whether a design is feasible, Style 5360’s ultra-compact construction at 300V rating provides the maximum thermal performance in the minimum physical space — a specification combination unavailable in any other single UL AWM wire style.
For Mexican semiconductor equipment distributors, laboratory instrument importers, and precision industrial equipment suppliers, Style 5360 addresses the high-temperature internal wiring requirements of precision equipment categories where both extreme temperature rating and minimum wire diameter are simultaneously non-negotiable design constraints — semiconductor wafer processing chambers, laboratory tube furnaces, and analytical instrument high-temperature reaction zones.
Technical Specifications — UL Style 5360
| Parameter | Value |
|---|---|
| UL Style | 5360 |
| UL Subject | 758, Section 5 |
| Temperature Rating | 200°C or 450°C |
| Voltage Rating | 300 Vac |
| Flame Rating | Horizontal flame |
| AWG Range | 30 AWG – 4/0 AWG (solid or stranded 26–8 AWG; stranded only above 8 AWG) |
| Conductor | Solid or stranded copper |
| Insulation System | Non-extruded mica tape with glass braid |
| Insulation — 30–12 AWG | Mica 12 mils min avg + Glass braid 7 mils min avg |
| Insulation — 11–8 AWG | Mica 16 mils min avg + Glass braid 7 mils min avg |
| Insulation — 7–4 AWG | Mica 20 mils min avg + Glass braid 15 mils min avg |
| Insulation — 3–4/0 AWG | Mica 25 mils min avg + Glass braid 20 mils min avg |
| Optional Shield | 36–30 AWG Type “A” Nickel / 27% min nickel-coated copper |
| Optional Assembly | Single conductor or multi-conductor cabled, max OD 1.500 inches; mica glass binder and/or fiberglass fillers; optional overall treated glass braid |
| Typical Use | Internal wiring — not subjected to repeated flexing or mechanical abuse (cableado interno de precisión a alta temperatura) |
| Available Colors | Natural mica/glass (standard); custom on request |
| Standard Spool Length | 50 m / 100 m |
| MOQ | Contact for quote — consultar cotización |
Engineering Notes — Ultra-Thin Wall and Precision Equipment Specification

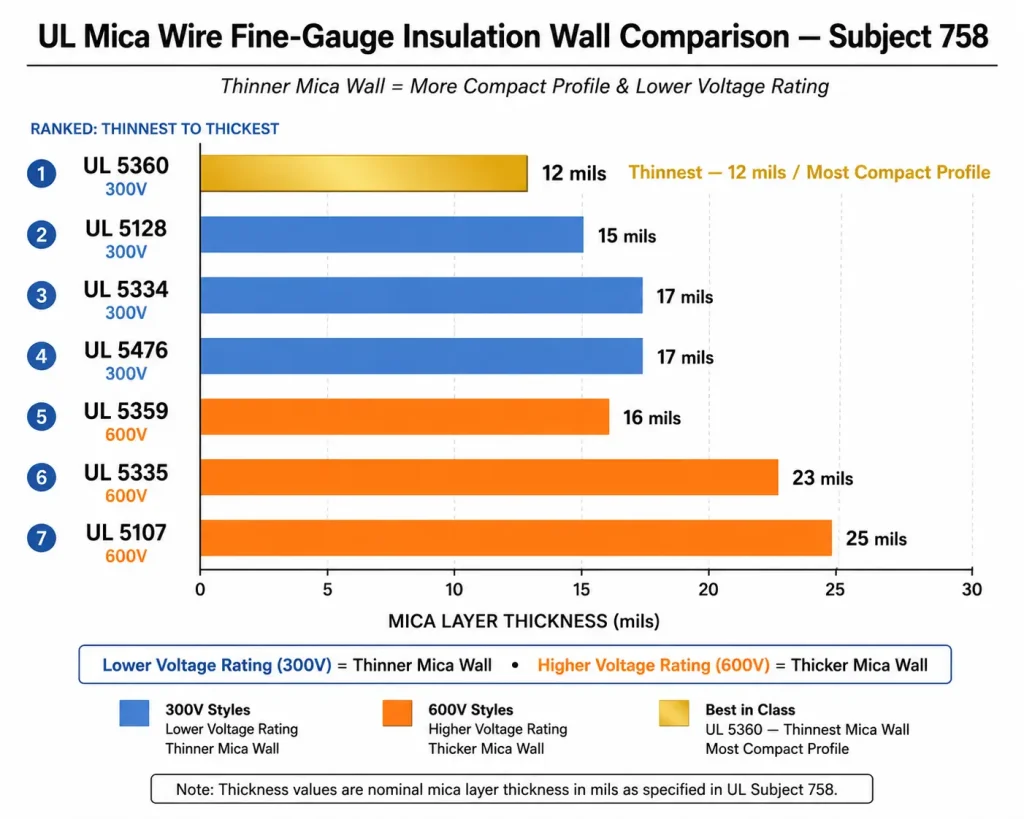

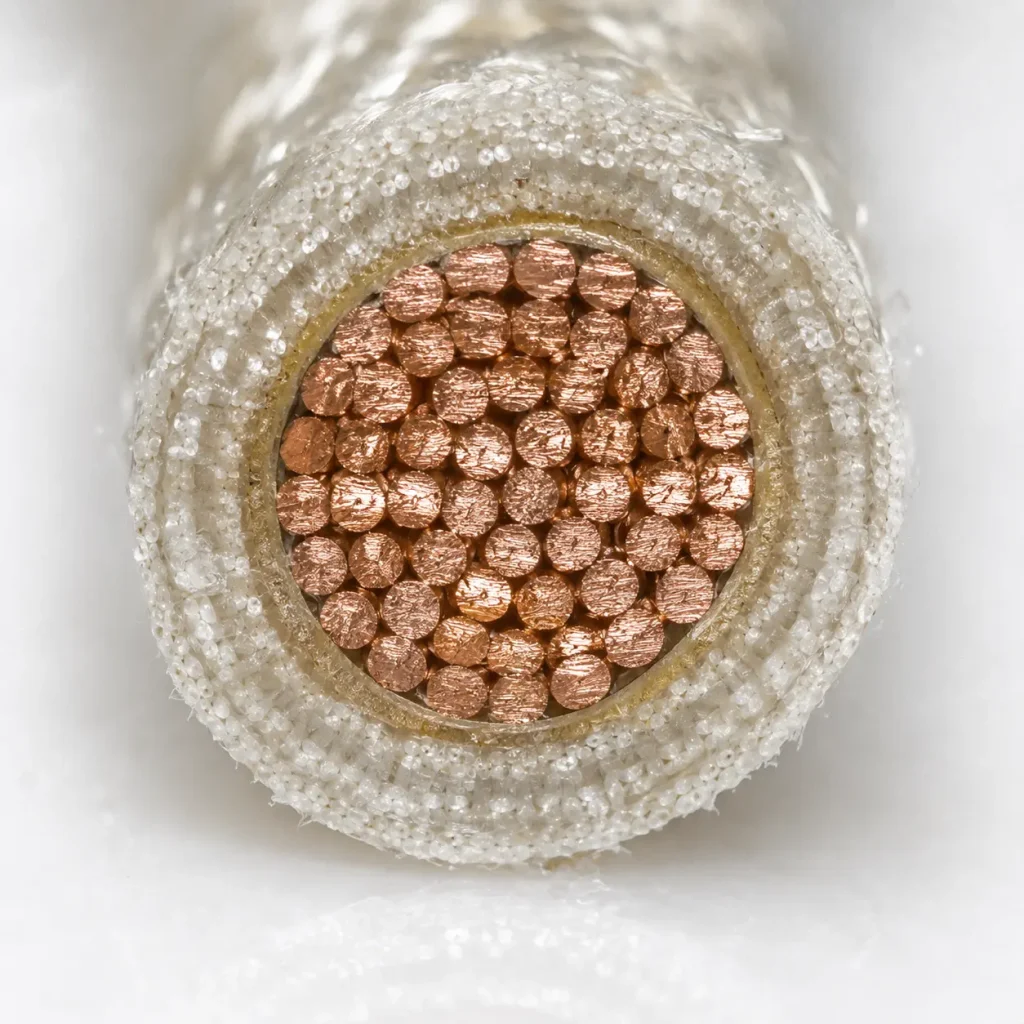

12-mil mica wall — the thinnest in Subject 758 mica family: The 12-mil minimum average mica layer of Style 5360 at 30–12 AWG is the thinnest mica insulation specification in the entire UL Subject 758 mica wire family. For reference: Style 5359 specifies 16 mils, Style 5476 specifies 17 mils, Style 5334 specifies 17 mils, Style 5128 specifies 15 mils, and Style 5107 specifies 25 mils at the fine-gauge tier. The 12-mil construction of Style 5360 is made possible by the 300V voltage rating — a lower voltage requirement permits a thinner dielectric barrier while maintaining adequate insulation safety margin. In practical wire outer diameter terms, the 12-mil mica plus 7-mil glass braid of Style 5360 at 24 AWG produces an overall insulated conductor OD approximately 0.010–0.015 inches smaller than Style 5359 at the same AWG — a significant difference in precision equipment applications where routing through 2–3mm diameter ceramic guide tubes is a standard installation requirement.

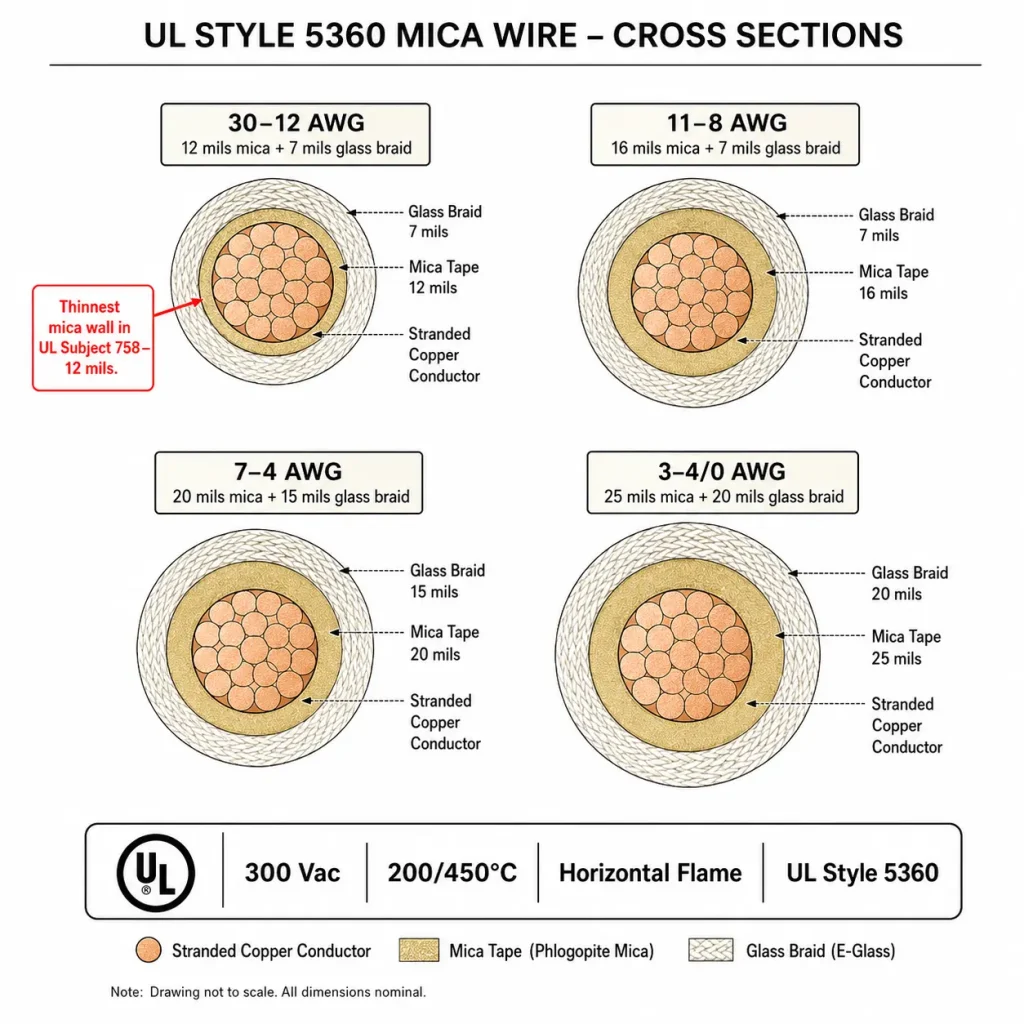

Four-tier AWG wall scaling — unique to Style 5360: Style 5360 is the only mica wire style in Subject 758 with four distinct insulation wall thickness tiers, compared to the three tiers of most other mica styles. The additional tier at 11–8 AWG — with 16 mils mica and 7 mils glass braid, distinct from both the 12-mil fine-gauge tier and the 20-mil mid-gauge tier — reflects a more granular insulation scaling approach that optimizes wire outer diameter across a wider AWG range. For precision equipment designs specifying conductors in the 10–8 AWG range, the 16-mil wall tier of Style 5360 provides a more compact profile than the abrupt step to 20 mils that would occur without this intermediate tier.
300V adequacy for precision equipment circuits: Semiconductor processing equipment, laboratory furnaces, and analytical instrument heating systems operate their internal control and measurement circuits almost exclusively within the 24–240V range — comfortably within Style 5360’s 300V rating. The 12-mil ultra-thin mica wall at 300V provides adequate dielectric safety margin for all standard precision equipment internal wiring voltages. The only scenario where 300V rating requires careful review in precision equipment is when 277V AC heating control circuits are used — peak voltage of 277V AC is approximately 392V peak, which marginally exceeds the 300V rating and would require evaluation of whether the 300V rating applies to peak or RMS voltage for the specific application. For standard 120V and 240V heating control circuits, Style 5360 at 300V provides fully adequate insulation safety margin.
Nickel shield for EMI-sensitive precision measurements: In precision laboratory and semiconductor equipment where internal wiring routes in close proximity to high-power RF heating generators, magnetic field generating coils, or high-current switching power supplies, the optional nickel or nickel-coated copper shield on Style 5360 provides electromagnetic shielding of low-level sensor signal leads — thermocouple signals, resistance temperature detector (RTD) leads, and analog control signals — against induced noise from adjacent high-power circuits. At 450°C operating temperatures in the shielded zone, nickel shield material maintains its mechanical and electrical shielding integrity better than copper-based shield materials, which soften and anneal at elevated temperatures reducing shield coverage consistency.
Precision High-Temperature Applications — Equipos de Precisión en México
Style 5360’s ultra-thin wall construction and 450°C rating serve the precision equipment high-temperature wiring needs of México’s semiconductor, laboratory, and analytical instrument sectors:

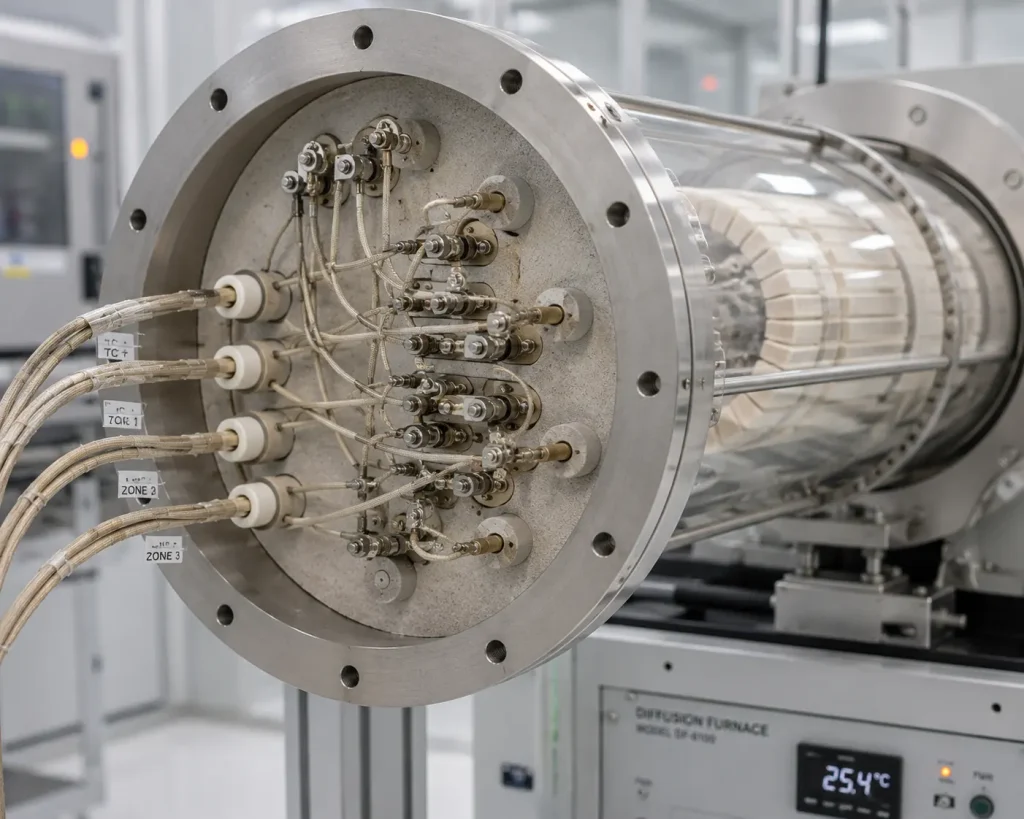

- Semiconductor wafer processing equipment heater leads — heating element terminal connection wires and zone temperature controller signal leads inside semiconductor wafer processing chambers — CVD reactors, diffusion furnaces, and thermal oxidation systems — installed in semiconductor manufacturing facilities across Tijuana and Mexicali’s growing electronics and semiconductor equipment manufacturing zone, where chamber internal wiring routing paths in the heated zone reach 400–450°C and the ultra-compact wire profile of Style 5360 allows routing through the narrow ceramic guide channels in the chamber wall structure without the diameter compromise required by thicker-wall mica wire alternatives.
- Laboratory tube furnace internal wiring — heating element power leads and thermocouple monitoring wires inside laboratory tube furnaces and box furnaces installed in university research facilities, materials testing laboratories, and R&D centers across Ensenada’s scientific research corridor and Mexicali’s university research zone, where laboratory furnace operating temperatures of 300–1000°C create 400–450°C wire surface temperatures at the heating element terminal routing positions requiring mica insulation and the compact 12-mil wall fits within the tight wiring channels of laboratory furnace heating element support structures.
- Analytical instrument high-temperature reaction zone wiring — internal wiring of thermogravimetric analyzers (TGA), differential scanning calorimeters (DSC), and gas chromatograph column oven heating systems in analytical instrument installations across Tijuana’s medical device and pharmaceutical manufacturing sector, where instrument heating zone internal temperatures reach 300–600°C and the ultra-fine 30 AWG capability of Style 5360 serves the precision thermocouple measurement leads in instrument heating chambers where wire stiffness and diameter at the measurement junction point are critical performance parameters.
- Precision industrial heating system control wiring — temperature controller signal leads, safety thermostat circuit wiring, and heating element terminal connections in precision industrial heating systems used for crystal growth, optical fiber drawing, and specialty materials processing operations across Baja California’s advanced manufacturing sector, where process temperature uniformity requirements demand precision temperature measurement and control circuit wiring with minimal thermal mass at the measurement point — a requirement that Style 5360’s fine-gauge 30 AWG capability directly addresses.
Related UL Styles for Comparison
UL 5360 single conductor buyers commonly cross-reference: UL 5359 (200–450°C / 600V mica tape, higher voltage class with 16-mil fine-gauge wall for applications requiring 600V insulation), UL 5476 (450°C / 600V mica tape, alternative 600V construction with 17-mil fine-gauge wall), UL 5128 (450°C / 300V mica, alternative 300V construction with stainless steel braid option for corrosive environments), and UL 1659 (250°C / 600V PTFE, for precision equipment wiring where 250°C thermal rating is sufficient and fluoropolymer flexibility is preferred).
Request a Quote — Solicitar Cotización
Submit your AWG, temperature rating (200°C or 450°C), shield requirement, optional assembly configuration, spool format, and annual volume estimate below. Our engineering team responds with a formal cotización within 24 business hours. Wire samples available for precision equipment qualification testing upon request.
