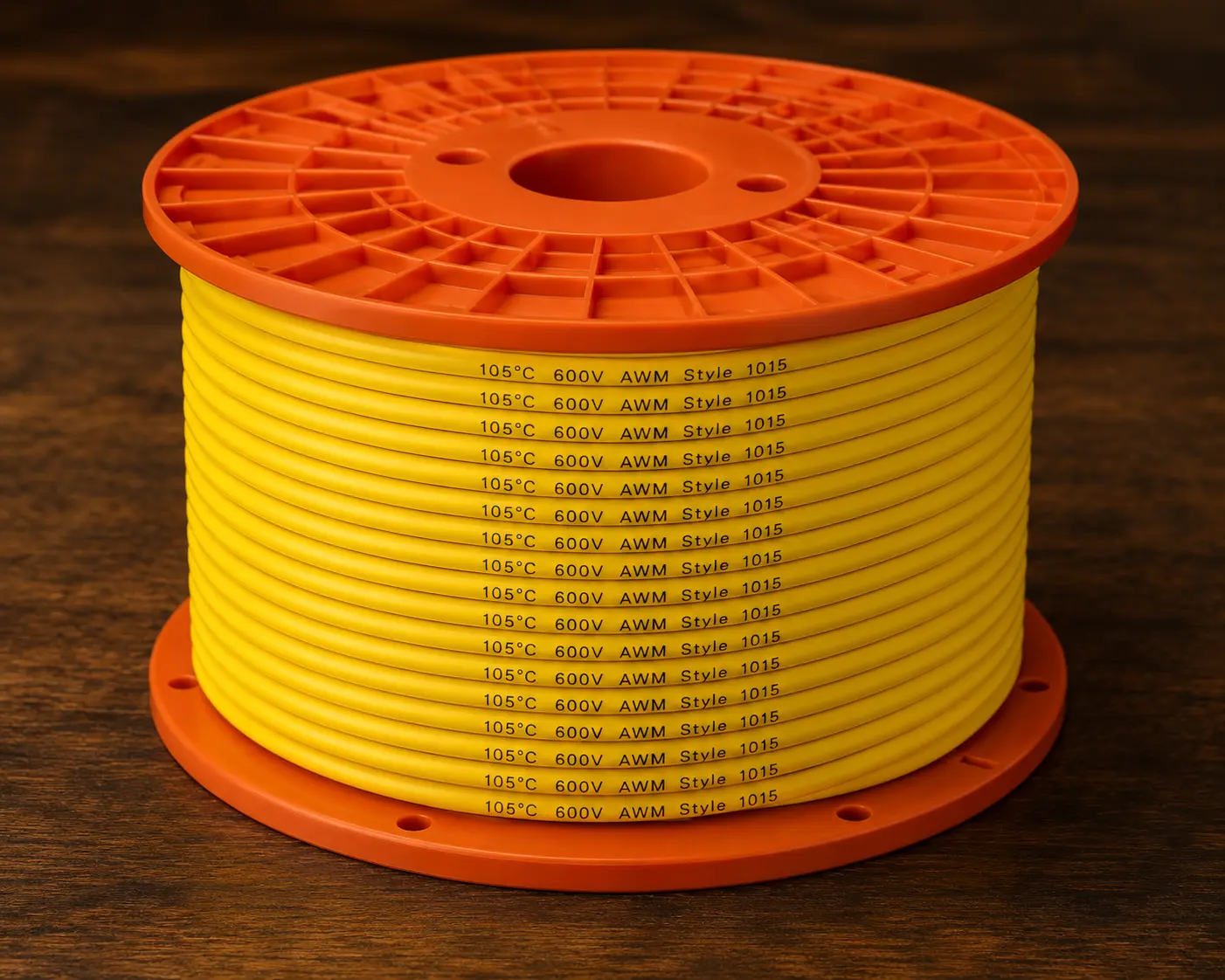

UL 1015 Wire Nigeria — 80/90/105°C / 600V PVC for Lagos Importers & Generator Panel Assemblers
Nigeria’s electrical equipment import and industrial control panel assembly sector — concentrated in Lagos, Abuja, and Kano — maintains consistent demand for UL-recognized internal wiring wire for generator control panels, industrial control cabinet assembly, and MRO replacement wiring in North American specification equipment operating across Nigeria’s oil and gas, telecommunications, and manufacturing sectors. Style 1015 — rated 80/90/105°C and 600V under UL Subject 758 — is the standard UL AWM wire specification for this application range.
CableApex supplies Style 1015 directly to Nigerian electrical importers and panel assemblers from our Yangzhou production facility with complete UL compliance documentation, 100-meter minimum orders, and CIF Lagos shipping — providing factory-direct pricing without the markup layers of multi-tier distribution chains that currently serve the Nigerian UL wire import market.
Technical Specifications — UL Style 1015
| Parameter | Value |
|---|---|
| UL Style | 1015 |
| UL Subject | 758, Section 1 |
| Temperature Rating | 80°C / 90°C / 105°C (optional: 60°C oil resistant / 80°C oil resistant) |
| Voltage Rating | 600 Vac / 750 Vdc |
| Flame Rating | Horizontal flame |
| AWG Range | 30 AWG – 2000 kcmil, solid or stranded |

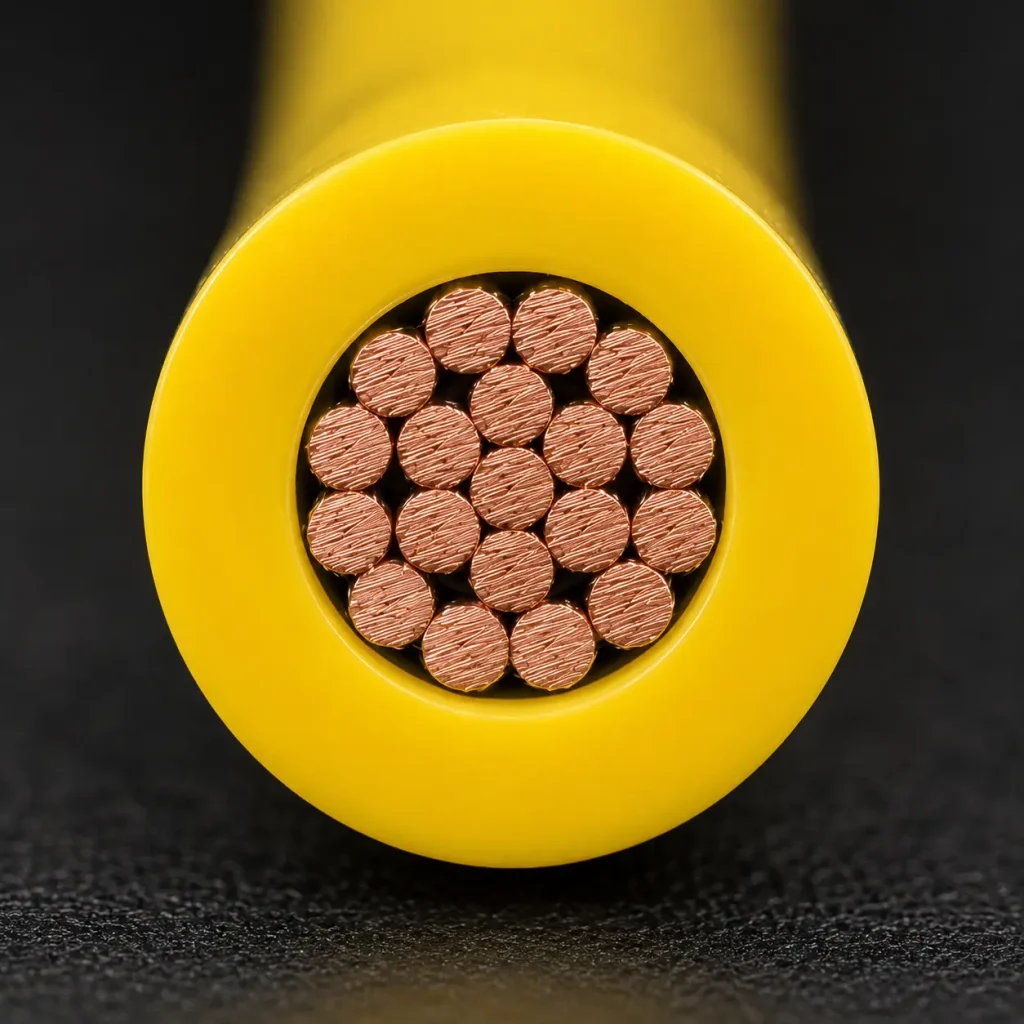

| Conductor | Solid or stranded copper |
| Insulation Material | Extruded PVC |

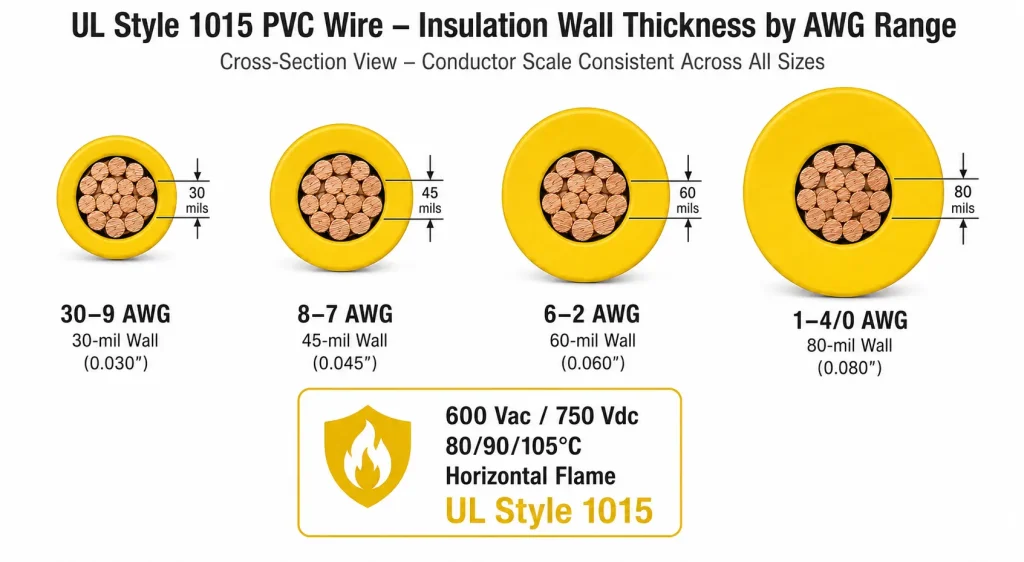

| Insulation — 30–9 AWG | 30 mils min average / 27 mils min at any point |
| Insulation — 8–7 AWG | 45 mils min average / 40 mils min at any point |
| Insulation — 6–2 AWG | 60 mils min average / 54 mils min at any point |
| Insulation — 1–4/0 AWG | 80 mils min average / 72 mils min at any point |
| Typical Use | Internal wiring of appliances and control panels |
| UL Recognition | UL Recognized Component — file on record |
| MOQ | 100 meters per AWG / color |
| Shipping | CIF Lagos / FOB Shanghai |
| Quote Response | 12 hours |
Nigeria UL Wire Demand — Generator Panels, Industrial Controls, and MRO
Nigeria’s persistent power supply challenges have created one of Africa’s largest generator and standby power markets — with large industrial, commercial, and institutional consumers operating significant generator fleets requiring regular maintenance, control panel servicing, and internal wiring replacement. Generator control panels assembled in Nigeria for Caterpillar, Cummins, Perkins, and Himoinsa generator sets are typically built to North American electrical standards — requiring UL-recognized internal wiring throughout the control panel for compliance with the generator OEM’s panel builder specifications and the end customer’s insurance and facility requirements.
Nigeria’s oil and gas sector — operating facilities across the Niger Delta and offshore — maintains substantial stocks of North American specification electrical equipment requiring UL-recognized replacement wire for MRO maintenance operations. Facility management teams operating Shell, Chevron, TotalEnergies, and independent producer facilities specify UL AWM wire for internal wiring replacement in control panels and instrumentation enclosures to maintain compliance with original equipment specifications and insurance underwriter requirements.
Lagos’ role as West Africa’s primary import gateway — with Apapa and Tin Can Island ports handling the majority of electrical equipment imports for Nigeria and neighboring markets — positions Nigerian importers to serve not only the domestic Nigerian market but also neighboring West African countries where UL-recognized wire demand is growing alongside infrastructure development and oil and gas sector expansion.
Application Categories for Nigerian Importers

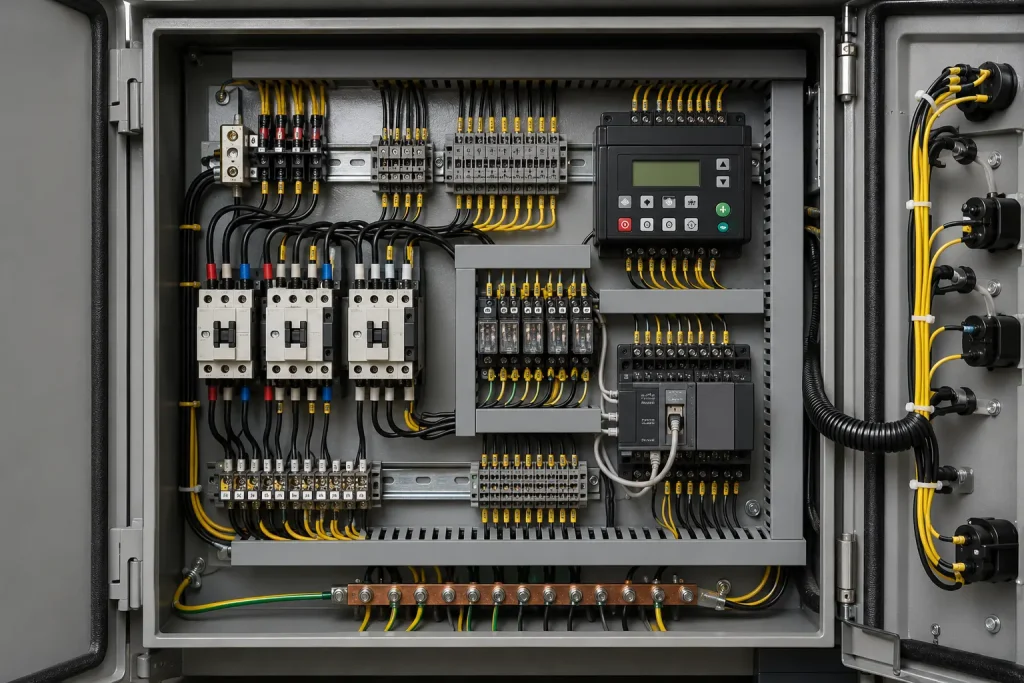

- Generator control panel assembly — internal 600V control wiring in generator automatic transfer switch panels, generator paralleling switchgear, and generator control cabinet assemblies built by Nigerian panel builders for Caterpillar, Cummins, and Perkins generator set installations across Nigeria’s industrial, commercial, and oil and gas sectors, where generator OEM panel builder specifications require UL AWM recognized wire for all internal control panel wiring.
- Industrial control cabinet MRO replacement — internal wiring replacement in motor control centers, PLC panels, and process control cabinets operating in Nigerian manufacturing facilities, refineries, and petrochemical plants where original North American specification equipment requires UL-recognized replacement wire for maintenance rewiring operations to maintain original equipment compliance documentation.
- Telecommunications equipment facility wiring — internal wiring in telecom base station equipment enclosures, power distribution units, and battery backup system control panels operated by MTN, Airtel, Glo, and 9mobile across Nigeria’s telecommunications infrastructure, where North American equipment specifications and telecom OEM maintenance requirements specify UL AWM wire for all internal panel wiring replacement during preventive maintenance cycles.
- West Africa regional distribution — Nigerian electrical importers in Lagos serving as regional distributors for Ghana, Côte d’Ivoire, Senegal, and other West African markets where growing industrial infrastructure development and oil and gas sector expansion is driving increasing demand for UL-recognized electrical components — with Lagos as the primary import and distribution hub for the West African sub-region.
Import Logistics to Nigeria — CIF Lagos Supply
CableApex ships to Nigerian buyers under CIF Lagos (Apapa port) or FOB Shanghai terms. Standard lead time for UL 1015 in common AWG and color combinations is 20–25 working days from order confirmation — allowing for the additional transit time to West African ports compared to shorter-haul destinations. CIF Lagos pricing includes marine insurance and freight to Apapa port.
Nigerian import documentation package: commercial invoice, packing list with spool-level barcoding, bill of lading, certificate of origin (China), and UL recognition confirmation documentation. Form M and pre-arrival assessment report (PAAR) documentation can be provided to support Nigerian customs clearance requirements. Payment terms: T/T 30% deposit with order, 70% against copy of bill of lading — standard for first-time buyers.
For Nigerian buyers importing for the first time from China, CableApex can recommend established freight forwarding agents with Lagos experience for customs clearance and inland delivery coordination from Apapa port to Lagos Island, Victoria Island, or Ikeja distribution zones.
Request a Quote — Nigeria Lagos Supply
Submit your AWG, temperature grade, color, spool format, and annual volume estimate below. Our team responds with a formal quotation within 12 business hours. Free 10-meter wire samples available for qualification testing. CIF Lagos and FOB Shanghai shipping terms available. Form M and PAAR documentation support available for Nigerian customs clearance.
