UL 3135 Silicone Wire India — 200°C / 600V for Pune, Mumbai & Bangalore Appliance OEMs
India’s electrical appliance and equipment manufacturing sector is expanding rapidly as an export destination for North American markets — driven by Make in India policy incentives, PLI scheme support for electronics and white goods manufacturing, and growing U.S. buyer interest in diversifying supply chains away from single-country dependence. For Indian OEM manufacturers producing appliances and equipment destined for the U.S. and Canadian markets, UL product certification is mandatory — and UL certification audits trace internal wiring recognition to the component wire level.

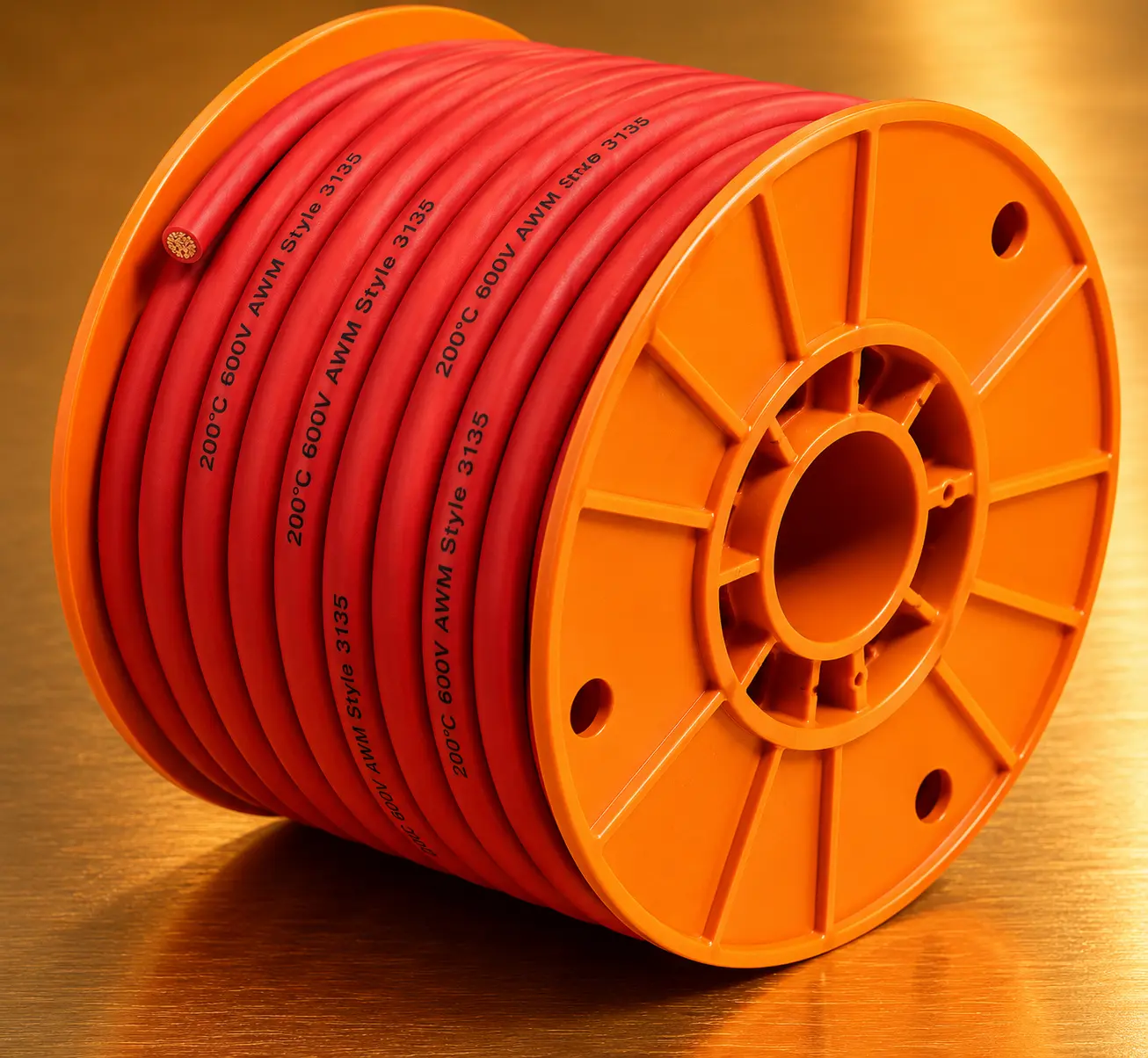

Style 3135 silicone rubber wire — rated 200°C and 600V under UL Subject 758 — is the correct UL AWM specification for internal wiring of appliances in totally enclosed high-temperature environments. CableApex supplies this wire factory-direct from Yangzhou to Indian buyers in Pune, Mumbai, and Bangalore with complete UL documentation, 12-hour quote response, and 100-meter minimum orders that match the procurement scale of India’s mid-size appliance OEM sector.
Technical Specifications — UL Style 3135
| Parameter | Value |
|---|---|
| UL Style | 3135 |
| UL Subject | 758, Section 3 |
| Temperature Rating | 200°C |
| Voltage Rating | 600 Vac |
| Flame Rating | Horizontal flame |
| AWG Range | 26 AWG – 12 AWG, solid or stranded |
| Conductor | Solid or stranded copper |
| Insulation Material | Extruded silicone rubber (SR) |

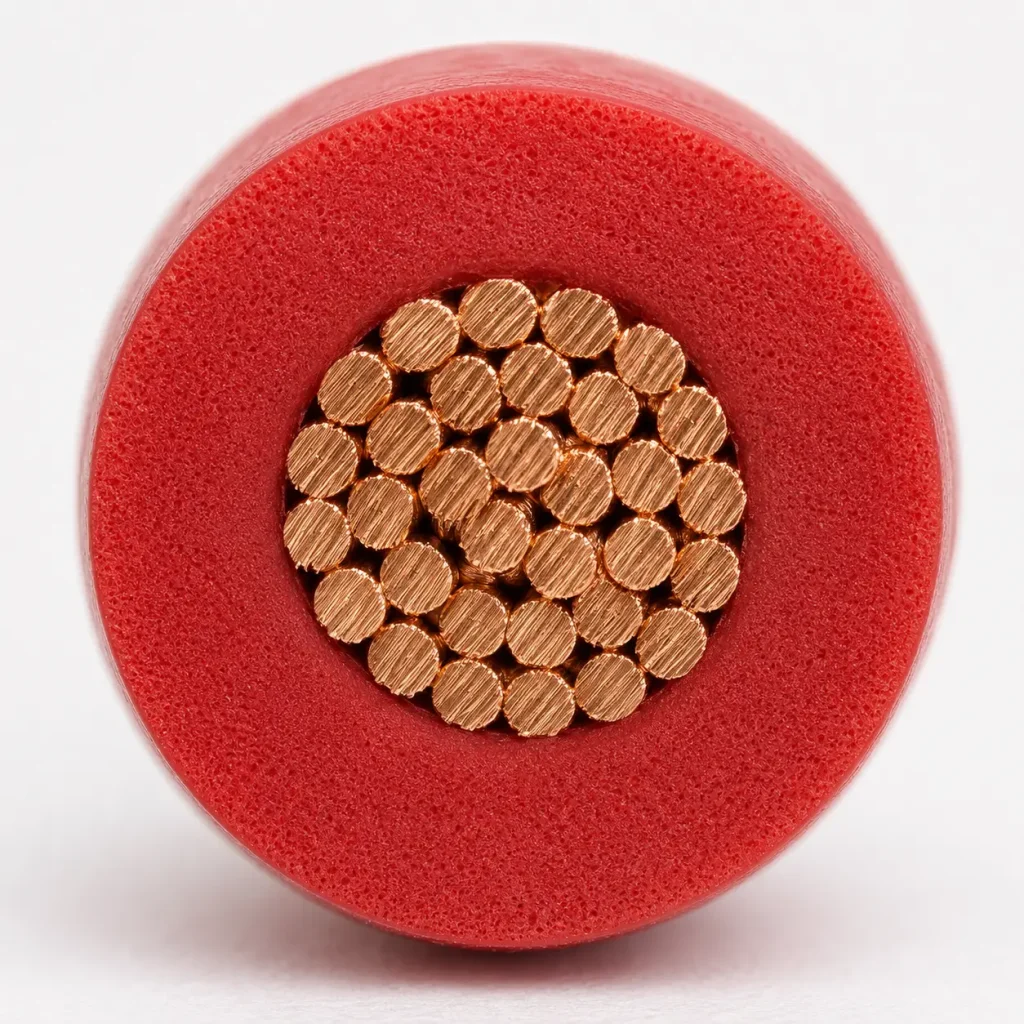

| Insulation Thickness | 30 mils min average / 27 mils min at any point |
| Typical Use | Internal wiring of appliances where totally enclosed |
| UL Recognition | UL Recognized Component — file on record |
| MOQ | 100 meters per AWG / color |
| Quote Response | 12 hours |
India Appliance Export Growth — The UL Wire Compliance Requirement
India’s electrical appliance manufacturing clusters in Pune’s Chakan industrial corridor, Mumbai’s Bhiwandi and Navi Mumbai zones, and Bangalore’s Peenya and Bommasandra industrial areas are producing increasing volumes of appliances and electrical equipment for export to the United States and Canada under the Make in India initiative and PLI scheme for white goods. The PLI scheme has attracted significant new investment in air conditioner, washing machine, and LED lighting manufacturing — product categories where U.S. retail customers require UL product certification as a non-negotiable market entry requirement.
Within UL product certification, the internal wiring of the appliance must use UL Recognized Component wire under UL Subject 758. For high-temperature appliance internal wiring applications — motor leads, heating element connections, and wiring in proximity to heat-generating components — Style 3135 silicone rubber wire at 200°C and 600V is the standard UL AWM specification. Indian appliance OEMs that have previously used IEC-standard silicone wire for domestic market production cannot substitute IEC wire for UL AWM wire in export-specification appliances destined for the U.S. market — the two certifications are not interchangeable at the component compliance level.
For Indian buyers comparing sourcing options, CableApex offers a direct China-to-India supply chain — eliminating the domestic distribution margin of Indian UL AWM wire distributors while providing equivalent UL recognition, documentation completeness, and technical support. Competitive pricing at 100-meter minimum orders makes CableApex a practical sourcing option for mid-scale Indian appliance OEMs without the container-load minimum order requirements of large-volume direct manufacturers.
Application Categories for Indian Appliance OEM Buyers

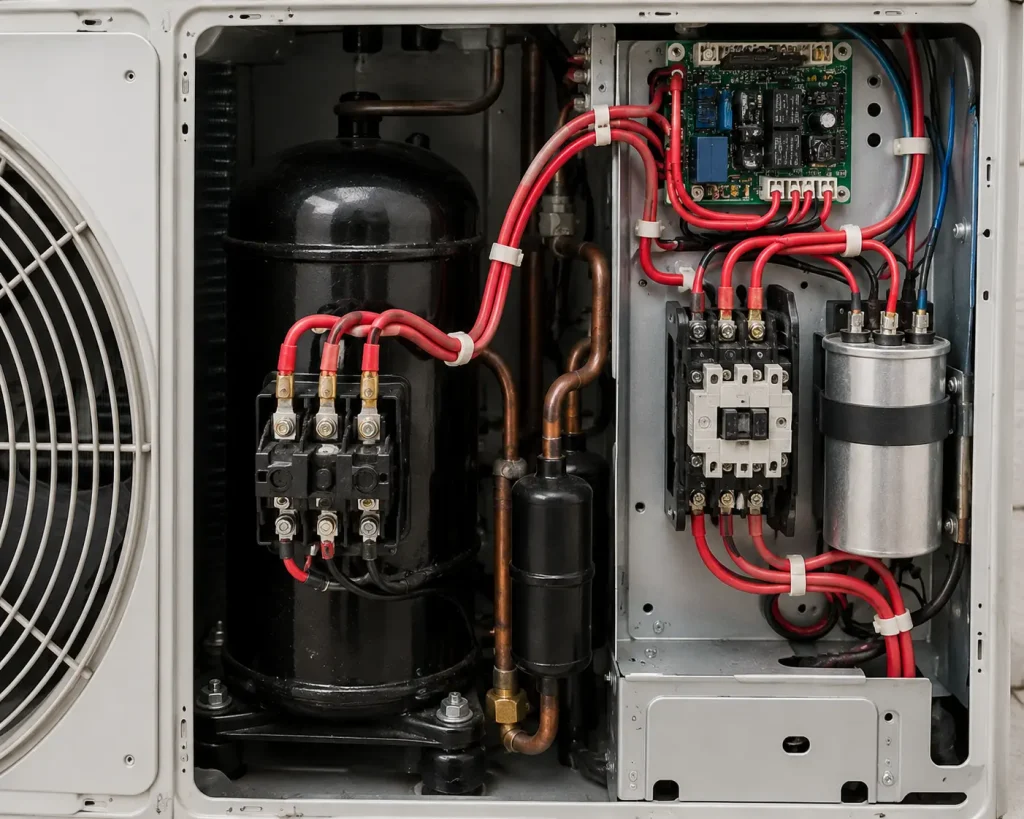

- Air conditioner internal wiring for U.S. export — compressor motor terminal leads, outdoor unit fan motor connections, and control board power feeds in split-type and window air conditioning units assembled in Pune and Mumbai for export to U.S. retail markets under PLI scheme production, where UL product certification requires UL AWM recognized wire throughout the internal wiring system including all high-temperature motor lead and compressor terminal connections.
- Washing machine motor lead wiring — drum motor winding terminal leads and pump motor connections in front-load and top-load washing machines assembled in Bangalore’s manufacturing clusters for North American OEM brands sourcing from India under USMCA-alternative supply chain diversification programs, where 200°C silicone rubber UL AWM wire satisfies motor lead specifications across the full range of washing machine motor thermal environments.
- Commercial kitchen equipment internal wiring — heating element leads, thermostat circuit connections, and fan motor wiring in commercial ovens, toasters, and food warmers manufactured by Indian commercial kitchen equipment OEMs in Mumbai’s MSME manufacturing clusters for export to U.S. food service and hospitality markets, where 200°C UL AWM silicone rubber wire is required for all internal wiring in proximity to heating elements.

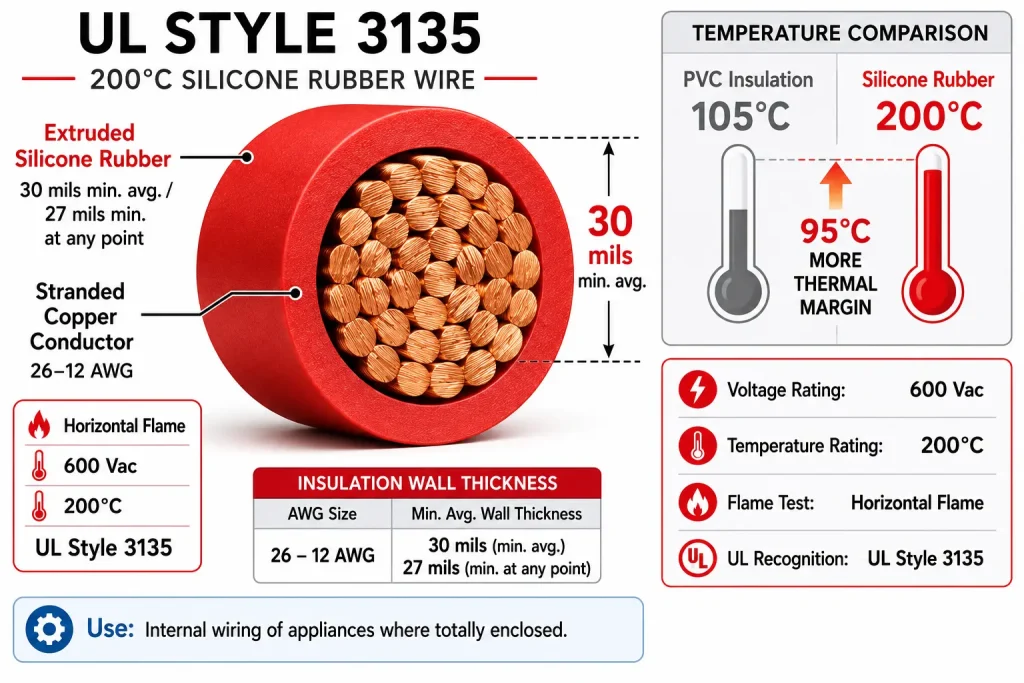

- Industrial electronics and power supply internal wiring — static internal wiring in power supply enclosures, industrial UPS systems, and electronic equipment assembled by Bangalore’s electronics manufacturing sector for North American markets, where the 200°C thermal ceiling of silicone rubber handles enclosure internal temperatures under full load that exceed the practical limit of 105°C-rated PVC alternatives.
Engineering Notes — UL 3135 for Indian Appliance Engineers
Totally enclosed use classification: Style 3135’s UL use classification specifies “internal wiring of appliances where totally enclosed” — meaning the wire routing path must be within a sealed or enclosed appliance enclosure, protected from mechanical damage and external environmental exposure. This is the standard condition for motor lead connections and heating element wiring inside assembled appliances, making Style 3135 the appropriate specification for the vast majority of Indian appliance OEM internal wiring applications at 200°C.
IEC silicone wire vs. UL 3135 — not interchangeable for U.S. export: Indian appliance manufacturers familiar with IEC-standard silicone rubber wire (H05SS-F, H07SS-F, or equivalent) should note that these IEC constructions are not interchangeable with UL Style 3135 for U.S. market UL product certification purposes. The physical construction may be similar, but the certification standard, recognition mark, and compliance documentation chain are fundamentally different. U.S. retail UL certification audits and factory inspections specifically verify UL AWM recognition — IEC certification does not satisfy this requirement.

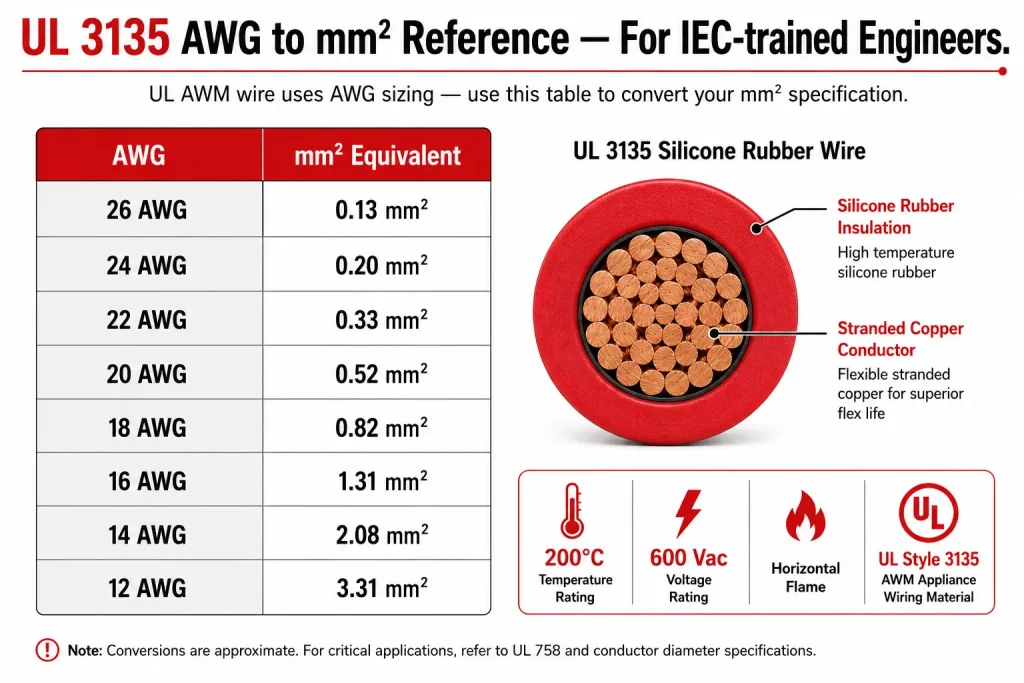

AWG vs. mm² sizing for Indian engineers: Indian electrical engineers accustomed to IEC mm² conductor sizing must convert to AWG when specifying UL AWM wire. The most common conversions for Style 3135 applications: 0.75 mm² ≈ 18 AWG, 1.0 mm² ≈ 17 AWG, 1.5 mm² ≈ 15 AWG, 2.5 mm² ≈ 13 AWG. CableApex provides AWG-to-mm² conversion tables with every quotation to simplify specification alignment for Indian engineering teams.
Request a Quote — India Pune Mumbai Bangalore Supply
Submit your AWG, color, spool format, and annual volume estimate below. Our team responds with a formal quotation within 12 business hours. AWG-to-mm² conversion table included with every quotation. Free 10-meter wire samples available for qualification testing. FOB Shanghai shipping terms available for Indian buyers.
