The UL 3666 AWG Range — 32 AWG to 1000 kcmil

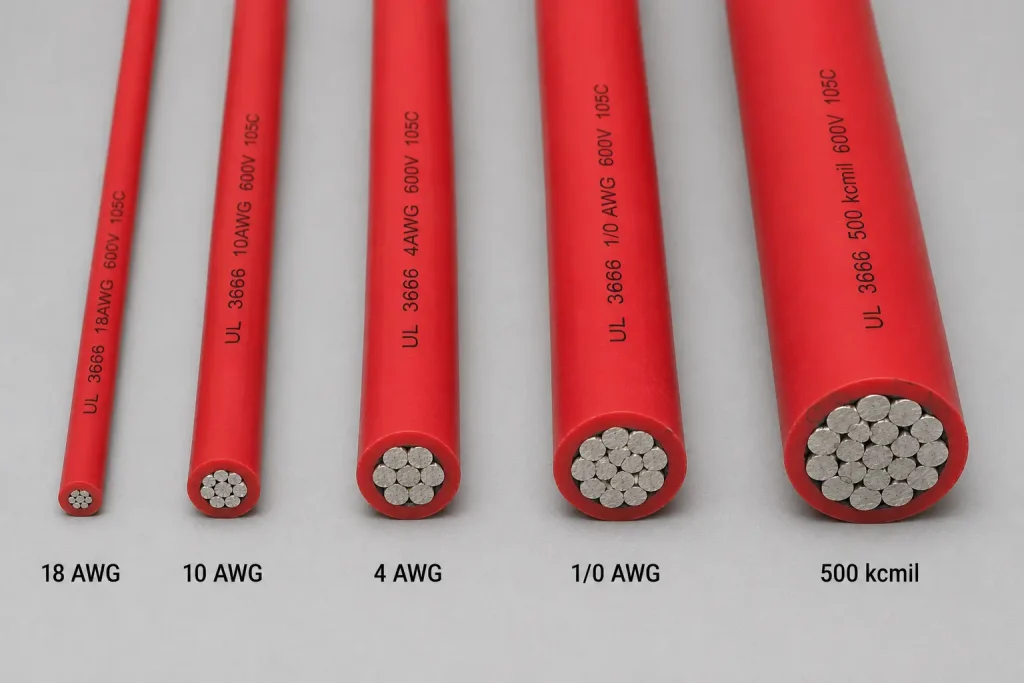

UL 3666 covers a 32 AWG to 1000 kcmil conductor range per UL Subject 758 — one of the widest AWG ranges in the UL Recognized XLPE family. This span covers signal-level wiring at the small end (32 AWG signal pigtails) all the way to heavy industrial power distribution at the large end (1000 kcmil approximately 507 mm² cross-section). For German engineers searching UL 3666 105C XLPE isoliert wire Germany, this AWG range flexibility is the Style’s distinguishing characteristic among the four UL XLPE Styles.

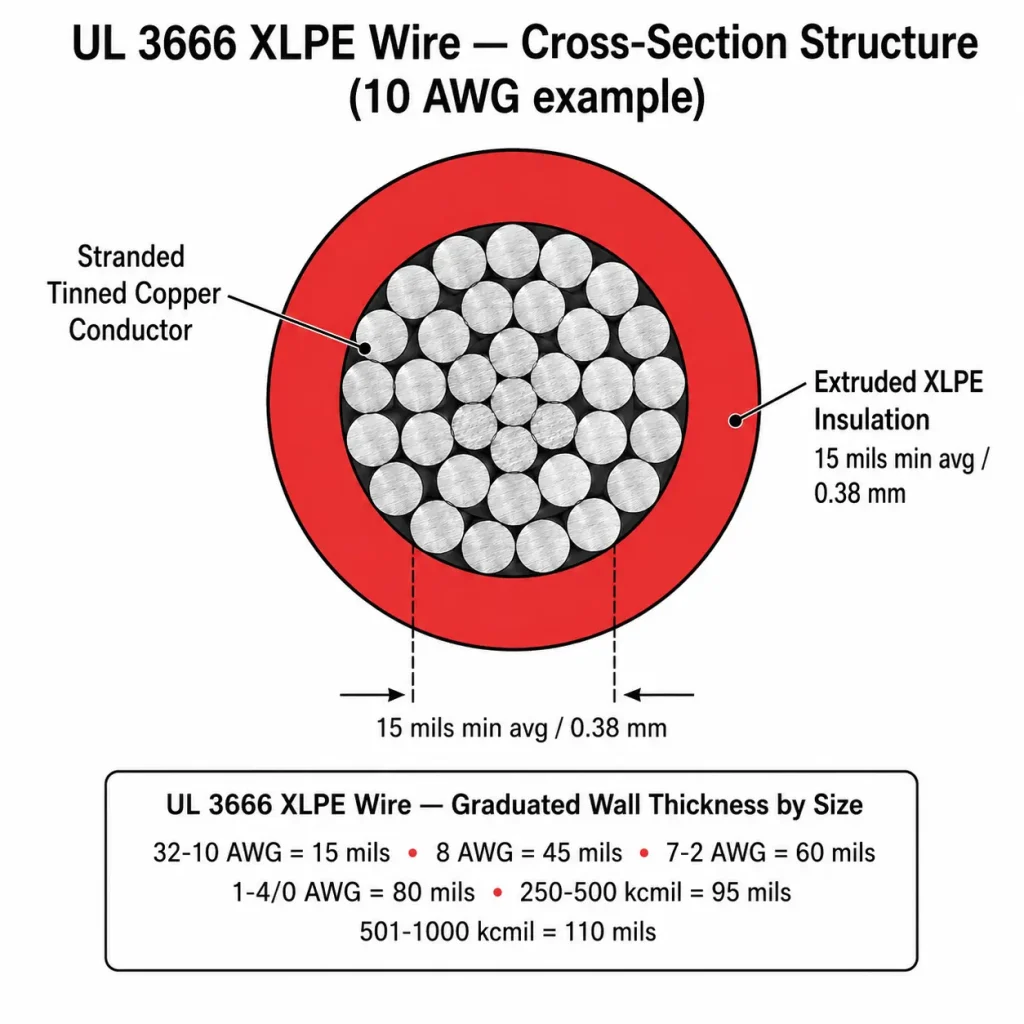

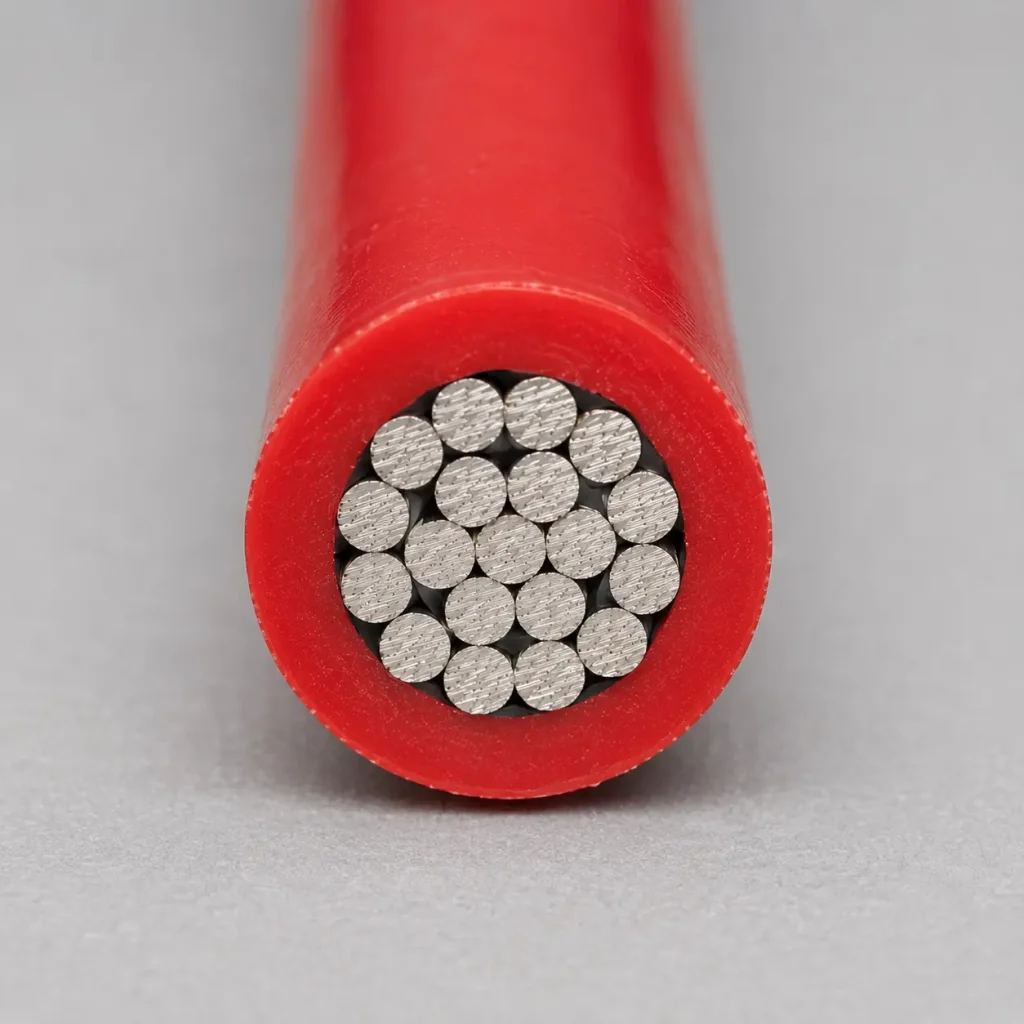

The graduated insulation wall thickness reflects this range: 15 mils for the small gauges (32-10 AWG), scaling up through 45 mils (8 AWG), 60 mils (7-2 AWG), 80 mils (1-4/0 AWG), 95 mils (250-500 kcmil), and 110 mils for the largest gauges (501-1000 kcmil). The dielectric strength of XLPE at increasing thickness provides the 600V AC voltage margin across this entire range.
UL 3666 in Large-Gauge Applications (250-1000 kcmil)
The large-gauge segment of UL 3666 (250-1000 kcmil) serves specific German industrial export applications that smaller XLPE Styles cannot cover:
Industrial main power feed wiring — Large industrial equipment with main power circuits at 480V three-phase / 300-500 amp class uses UL 3666 in the 250-500 kcmil range for internal wiring from main disconnect to power distribution sections. The 95 mils XLPE wall provides 600V dielectric margin while remaining cost-competitive with PVC alternatives.

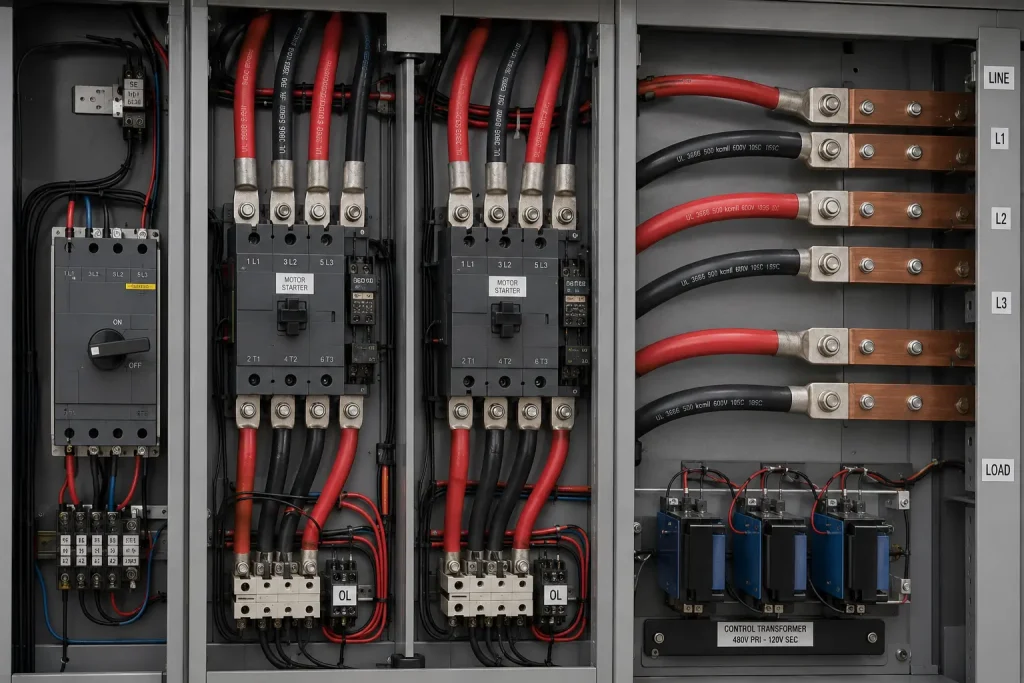

Switchgear and motor control center internal wiring — German MCC manufacturers exporting to North American industrial facilities use UL 3666 for internal bus wiring between MCC sections, motor starter outputs, and main breaker connections. The 105°C rating handles the elevated cabinet temperatures in densely populated MCCs.
Generator and UPS internal wiring — Commercial generator sets and large UPS systems with output current classes reaching 500-800 amps use UL 3666 in the 500-1000 kcmil range for internal power output connections. The thermoset XLPE provides safety margin in the high-current fault scenarios these systems must survive.
The “Not Subjected to Mechanical Abuse” Limitation
UL 3666’s UL listing carries a specific application constraint: “Internal wiring where not subjected to mechanical abuse.” This limitation distinguishes UL 3666 from UL 3271 (which has no such limitation in its listing language and is designated for motor leads with mechanical exposure).
The practical interpretation: UL 3666 is intended for static internal wiring routed once during equipment assembly and remaining in fixed position throughout service. It is not appropriate for:
- Articulating equipment where wires must flex repeatedly during operation
- Service door cables where wires move with door operation
- Motor lead applications where wires terminate at moving motor frames
- Any installation with potential abrasion against chassis edges during service
For applications with any of these mechanical exposure conditions, UL 3271 (with no mechanical abuse limitation) is the correct XLPE Style choice. UL 3666 is the cost-effective option for purely static internal wiring at 105°C / 600V where mechanical exposure is not a concern.
UL 3666 Specifications

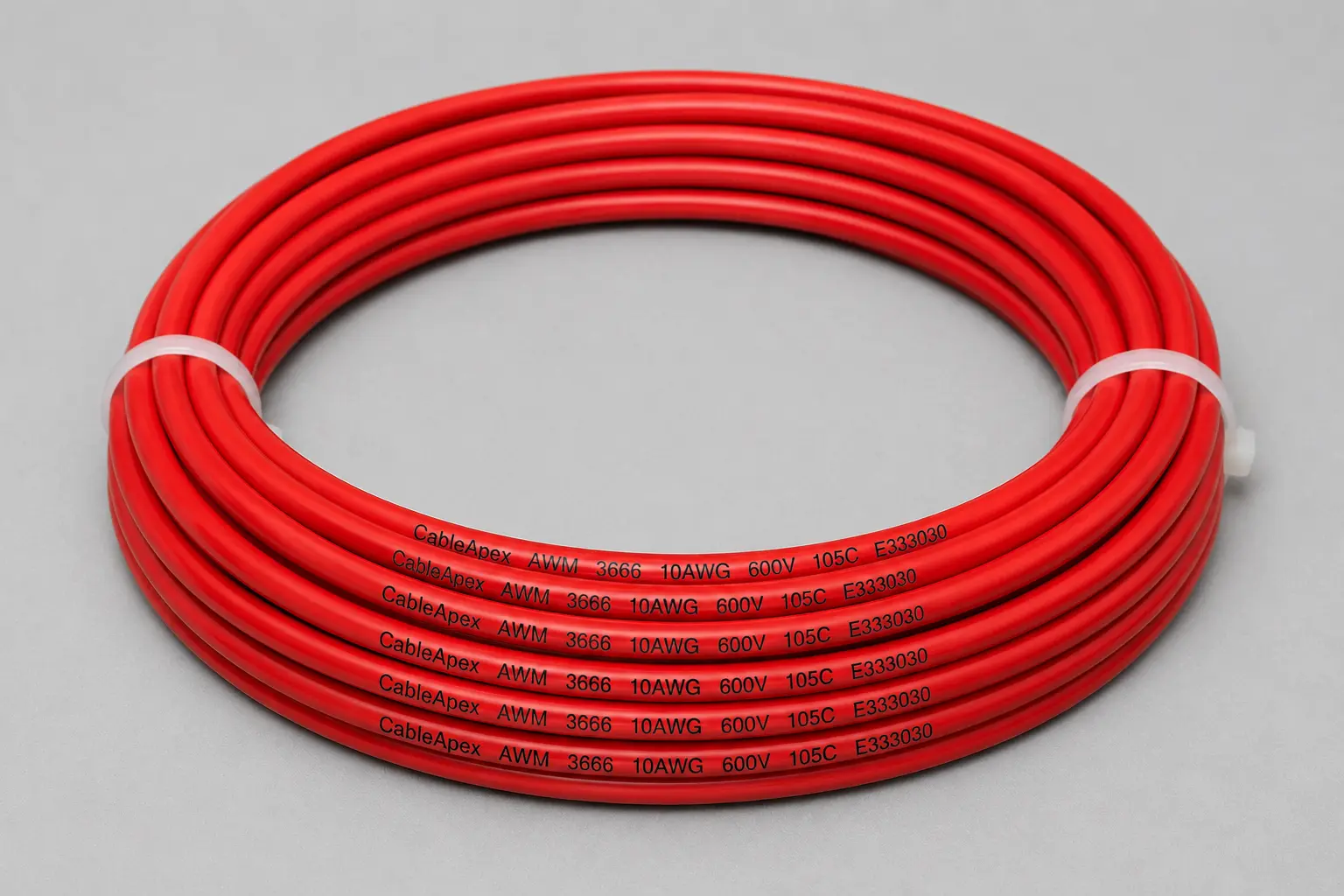

| Parameter | Value (per UL Subject 758) |
|---|---|
| UL Style | AWM 3666 |
| UL File Number | E333030 (Follow-Up Service) |
| AWG Range | 32 AWG – 1000 kcmil, solid or stranded |
| Conductor Material | Tinned or bare copper, solid or stranded round |
| Voltage Rating | 600V AC |
| Temperature Rating | 105°C |
| Insulation | Extruded XLPE |
| Insulation Wall (32-10 AWG) | 15 mils (0.38 mm) min avg / 13 mils (0.33 mm) min at any point |
| Insulation Wall (8 AWG) | 45 mils (1.14 mm) avg / 40 mils (1.02 mm) min |
| Insulation Wall (7-2 AWG) | 60 mils (1.52 mm) avg / 54 mils (1.37 mm) min |
| Insulation Wall (1-4/0 AWG) | 80 mils (2.03 mm) avg / 72 mils (1.83 mm) min |
| Insulation Wall (250-500 kcmil) | 95 mils (2.41 mm) avg / 86 mils (2.18 mm) min |
| Insulation Wall (501-1000 kcmil) | 110 mils (2.79 mm) avg / 92 mils (2.34 mm) min |
| Use Limitation | Not subjected to mechanical abuse |
| Flame Rating | Horizontal Flame per UL Subject 758 |
| Compliance | UL Subject 758 (AWM), RoHS, REACH |
| Marking | CableApex · UL AWM 3666 · AWG · 600V · 105°C · E333030 |
Engineering Notes from CableApex
- “What’s the maximum continuous current for UL 3666 at 500 kcmil?” 500 kcmil XLPE at 105°C class supports approximately 380-430 amps continuous depending on installation conditions (free air, conduit fill, ambient temperature, bundling). For specific MCC or panel installations, NEC Table 310.16 with appropriate adjustment factors provides the standard ampacity reference. The 95 mils insulation wall at this gauge provides 600V dielectric margin across the full 105°C operating range.
- “Can I use UL 3666 1000 kcmil for outdoor switchgear?” UL 3666 is rated for internal wiring of appliances and equipment, not for outdoor or wet location service. Internal wiring of switchgear that itself is installed outdoors in a weather-tight enclosure is acceptable use; UL 3666 directly exposed to weather is not within the listing scope. For outdoor exposure, UL-listed building wire types under UL 83 (XHHW, USE-2) or specialty cables for the specific environmental exposure are the appropriate choices.
- “Termination considerations for 1000 kcmil UL 3666?” 1000 kcmil termination requires heavy-duty compression lugs sized for the conductor (typically aluminum or copper compression lugs with 1000 kcmil barrels). The 110 mils XLPE insulation strips with proper sizing tools — straight razor cuts are not recommended at this thickness. Industrial hydraulic crimp tools rated for 1000 kcmil copper are required for proper crimp force. For first-time installations at this gauge, factory-assembled cable assemblies (with terminations pre-installed at the factory) may be cost-effective compared to field termination.
MOQ, Packaging & Shipping
MOQ for large-gauge UL 3666 (250-1000 kcmil) is significantly lower in meter terms than smaller gauges due to higher per-meter conductor value. Standard packaging: spools or reels per customer specification, with larger spools required for heavier gauges. Export documentation: Commercial Invoice, Packing List, Certificate of Origin (CCPIT), Bill of Lading, UL Recognition reference letter (File No. E333030), RoHS Declaration, REACH SVHC Declaration, MSDS. HS Code: 8544.49. CIF Hamburg or Rotterdam, transit time 25–30 days from Shanghai or Ningbo origin port.
Related UL Styles for Wide-Range Applications
UL 3666 buyers commonly cross-reference: UL 1015 (105°C / 600V PVC, 30-2000 kcmil — PVC alternative with even wider AWG range up to 2000 kcmil), UL 3271 (125°C / 600V XLPE, 30-2000 kcmil — higher temperature XLPE without mechanical abuse limitation, also covers 2000 kcmil), UL 3266 (125°C / 300V XLPE, 32-10 AWG — lower voltage and narrower AWG), and UL 10269 (105°C / 1000V PVC, 30-2000 kcmil — higher voltage PVC for applications above 600V).
